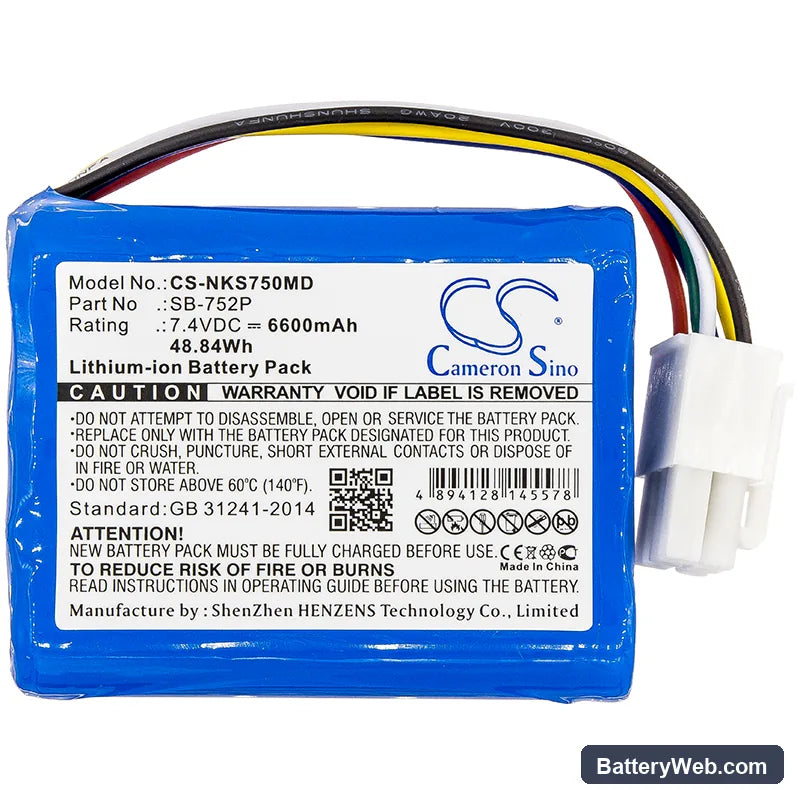

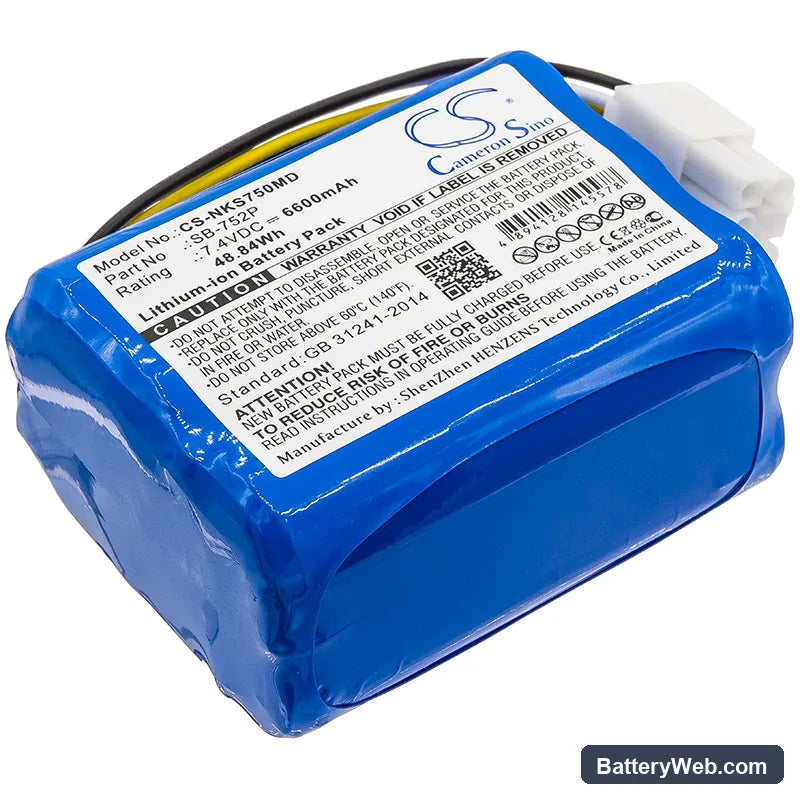

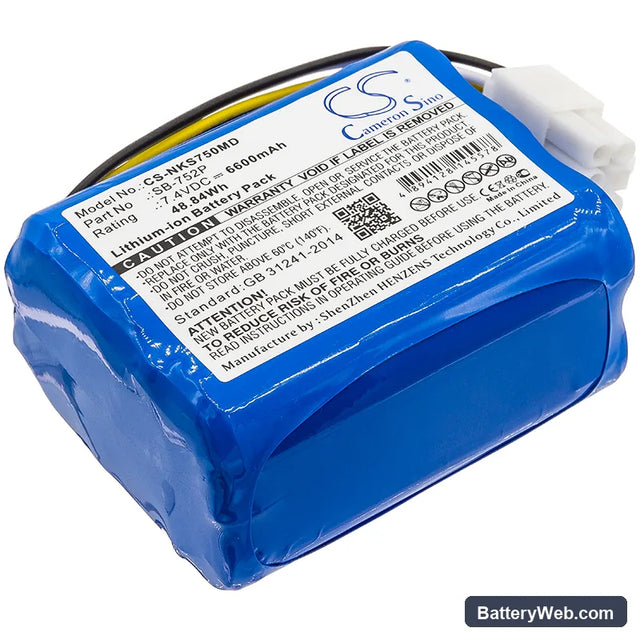

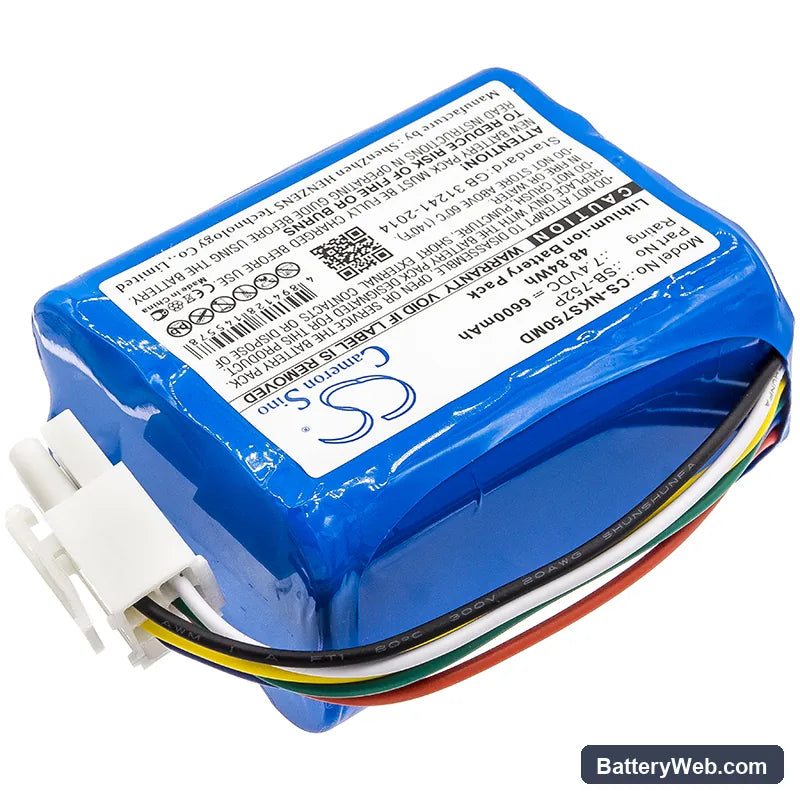

Nihon Kohden SB-752P SVM-7501 Replacement Battery 7.4V 6600mAh

Nihon Kohden SVM-7501 — 7.4V Li-ion Replacement Battery (SB-752P)

This is a 7.4V 6600mAh Li-ion replacement for the Nihon Kohden SB-752P battery. It fits the SVM-7501 portable vital signs monitor used in hospital wards, HDUs, and clinical environments. Voltage, connector, and BMS communication match the original unit specification.

• SVM-7501 compatibility: The SVM-7501 uses a single-cell-group 7.4V rail with a proprietary BMS handshake that verifies cell chemistry on startup. This cell group voltage and the onboard protection circuit are matched to that handshake, so the monitor's charge IC accepts the battery without triggering a fault code.
• Bench tested on actual hardware: We cycled this cell through the SVM-7501's charge and discharge sequence on the bench. The BMS completed its verification pass, the charge indicator progressed normally, and the protection circuit responded correctly to load profiles consistent with ECG, SpO2, and NIBP simultaneous operation.
• Post-install self-test protocol: After fitting this battery, let the SVM-7501 complete its full power-on self-test without interrupting the boot sequence. The device runs a BMS verification check at startup — cutting power during this window creates a false battery fault that persists until the next clean reboot.

Why the SVM-7501 alarms low battery with a fully charged replacement installed

The SVM-7501's BMS stores an internal cell profile from the previous battery. When a new cell is installed, the monitor compares real-time voltage response against that stored profile and may flag a mismatch as a low-battery condition. This is not a fault with the replacement — it is a calibration state. Run one full charge-discharge cycle before clinical deployment, and the BMS will write a new baseline for this cell. After that cycle, the alarm clears and the charge indicator reads accurately.

SVM-7501 will not power on after the replacement battery sat unused in storage

Li-ion cells self-discharge during storage. If voltage has dropped below the SVM-7501's BMS recovery threshold — typically around 6.0V for a 7.4V nominal pack — the protection circuit locks out discharge to prevent cell damage. The monitor will not boot because the BMS blocks current flow before the device even starts its power-on sequence. Place the battery on charge via the SVM-7501's AC supply and leave it connected for at least two hours before attempting power-on. If the charge indicator does not respond, verify the AC adapter output is present at the dock before assuming the cell is unrecoverable.
