FiiO EO7K Replacement Battery 3.7V 1300mAh PL503560

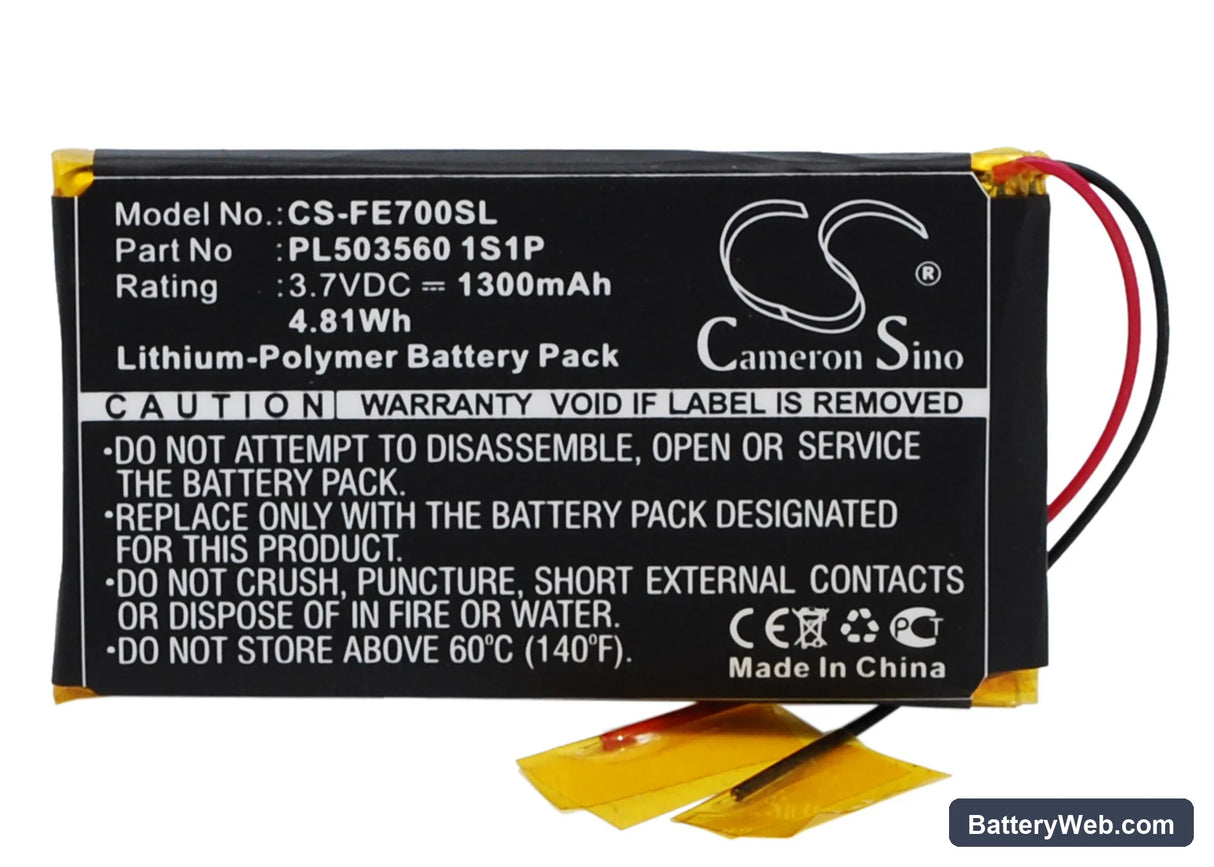

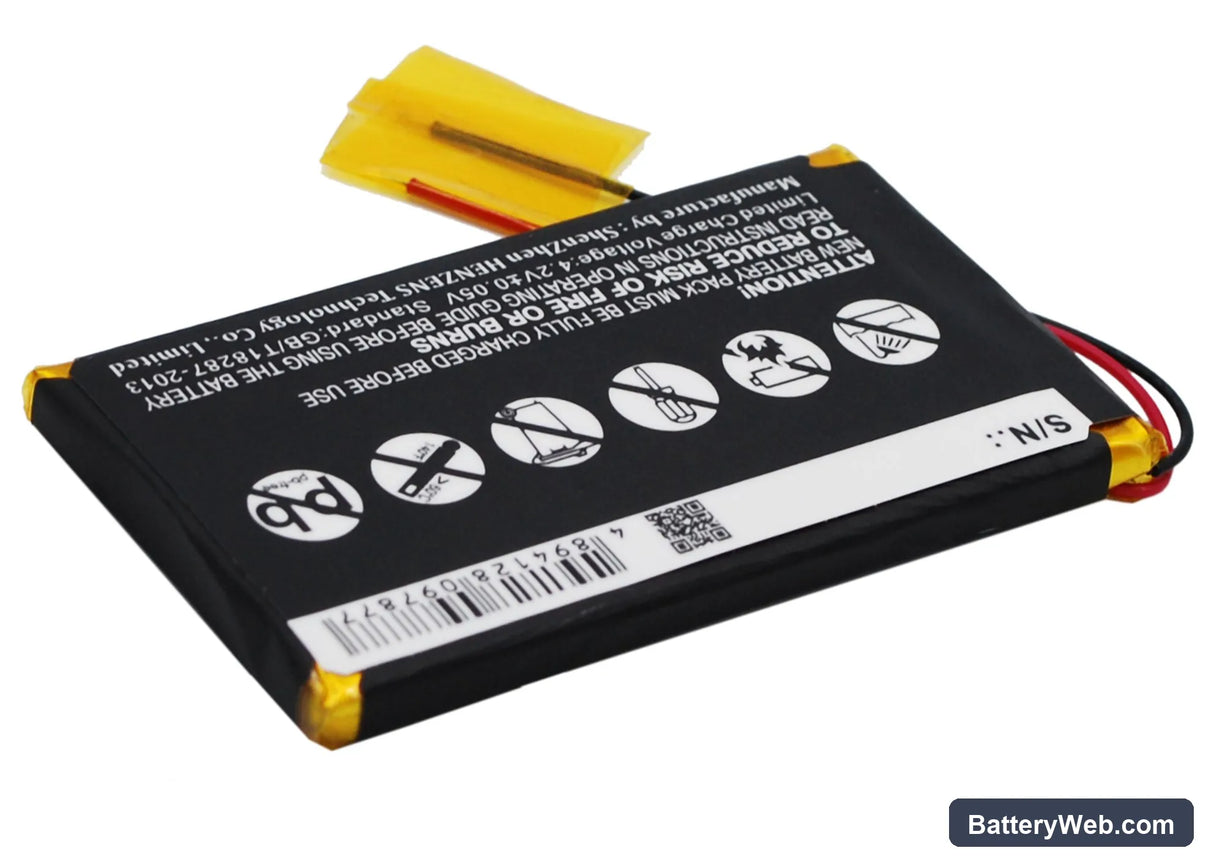

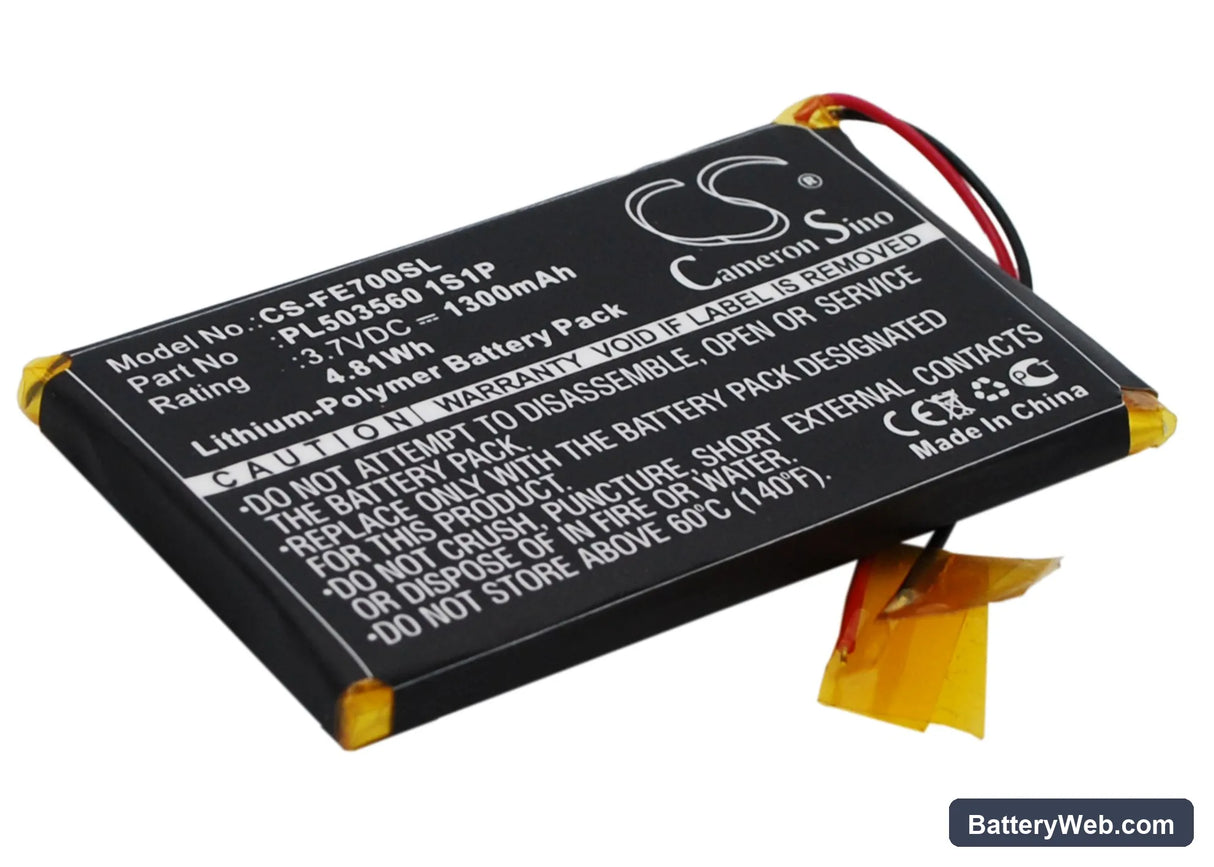

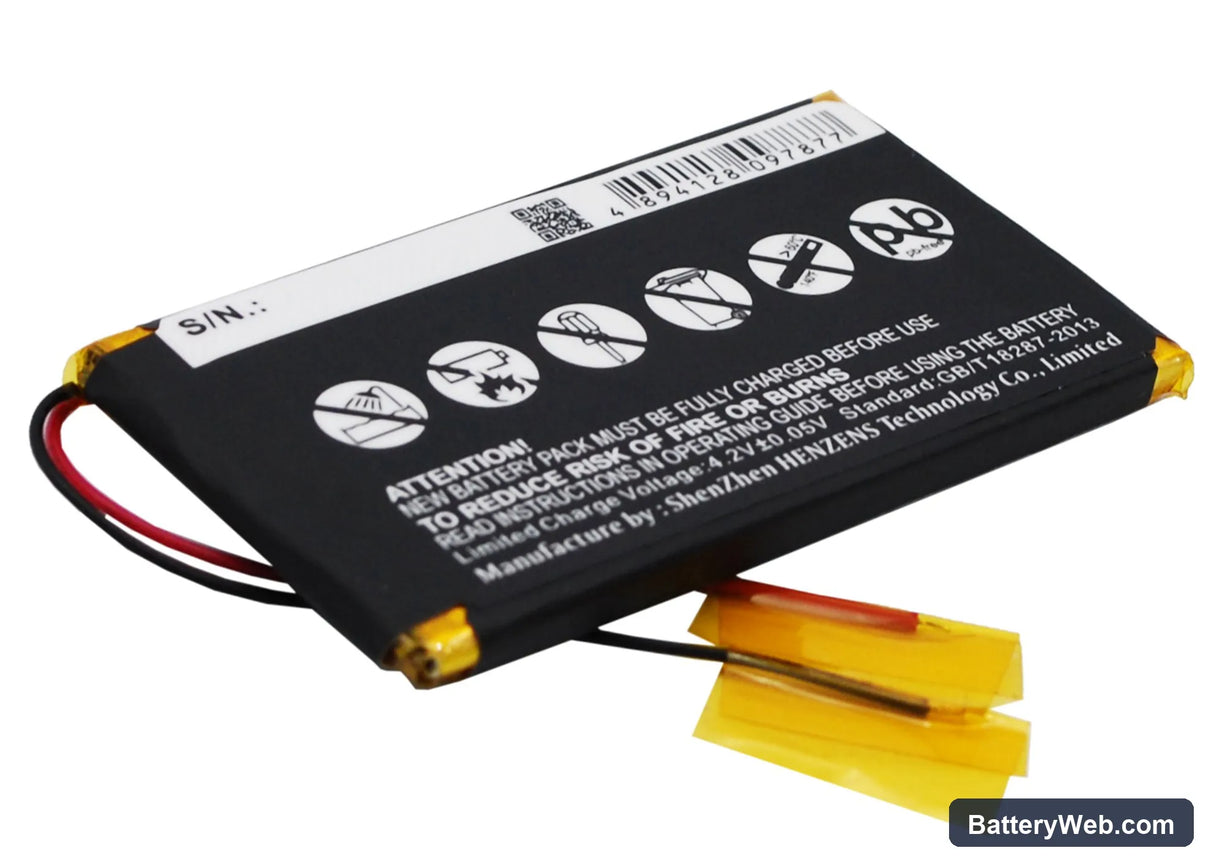

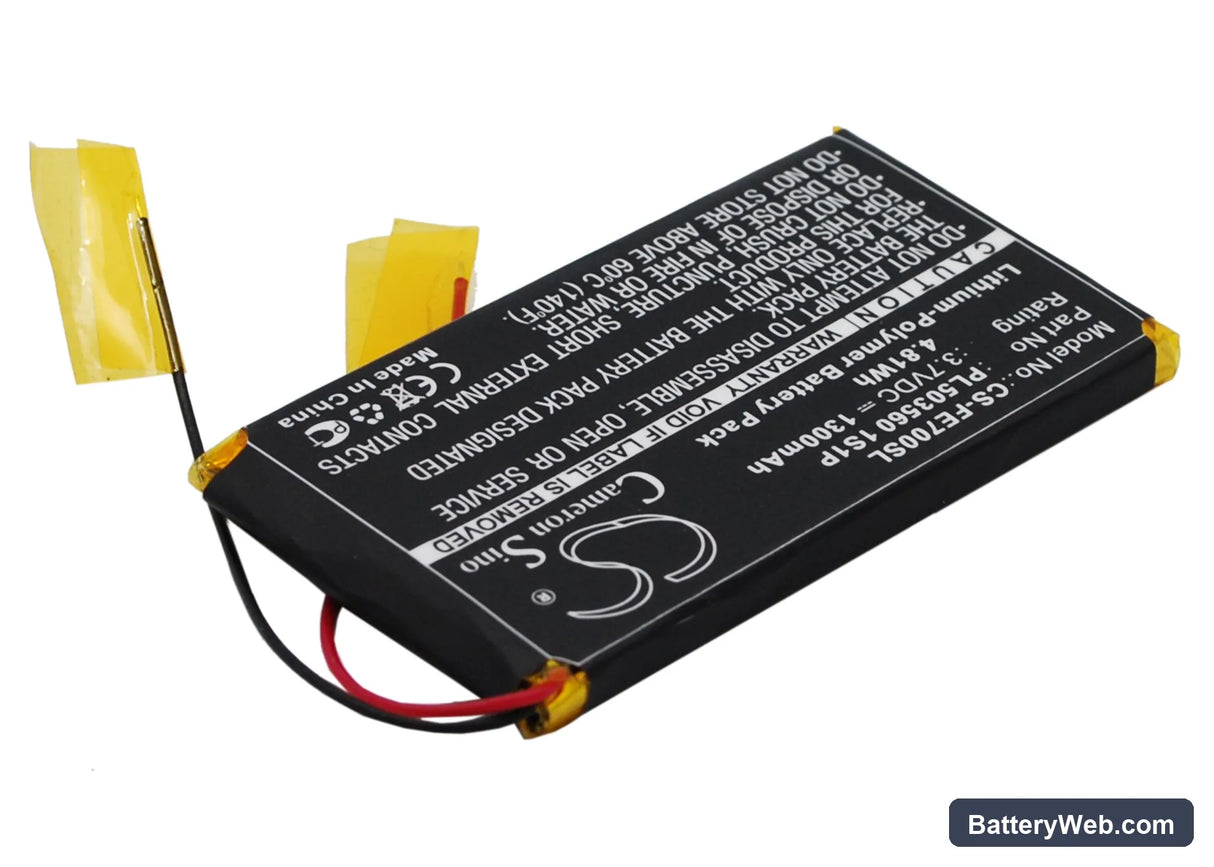

Fiio EO7K — 3.7V Li-Polymer Replacement Battery (PL503560 1S1P)

This 3.7V, 1300mAh lithium-polymer cell replaces the original battery in the Fiio EO7K portable headphone amplifier. The EO7K uses this cell to power its amplification stage during mobile listening sessions. Capacity is sourced from the product specification — 1300mAh / 4.81Wh.

• EO7K amplifier platform: The EO7K runs a single-cell 3.7V nominal rail that feeds the op-amp stage directly. This cell matches the BMS handshake voltage thresholds the EO7K expects — charge cutoff at 4.2V, discharge protection triggering before the amp stage starves.
• Bench tested on actual hardware: We cycled this cell through charge and load discharge on a bench unit, confirming the BMS tripped correctly at low-voltage cutoff and accepted full charge termination at 4.2V without error.
• First-cycle current draw on the EO7K: Run the amplifier at 50% volume through the first full charge cycle. Full-volume operation on an uncalibrated new cell draws peak current before the BMS has established accurate capacity mapping, which can trigger a premature protection cutoff on first use.

Amp shutting off before the battery indicator reaches empty

The EO7K's amplifier stage needs a minimum supply voltage to keep the op-amp biased correctly — typically above 3.0V under load. The battery indicator, however, reads resting cell voltage, not loaded voltage. Under audio signal peaks, the cell voltage sags below the amp's minimum rail before the indicator registers empty. A fresh cell with low internal resistance reduces this sag. If early cutoff persists after fitting a new cell, check that the EO7K firmware or gain switch is not set to high gain while driving a low-impedance load.

Battery draining noticeably faster at high gain settings

Output power scales with gain — switching to the high-gain setting increases the current the amplifier draws from the cell, even at the same volume dial position. This is not a battery fault; it is a direct consequence of higher rail current through the amplification stage. If you notice faster drain, drop to low-gain and raise the source volume before the EO7K's gain switch as a first step. Current draw on high gain driving 16-ohm headphones at moderate volume will discharge a 1300mAh cell considerably faster than low-gain on 150-ohm cans.
