Zenith Z5 Diagnostic Scanner Replacement Battery 3.7V 8000mAh

Zenith Z5 Diagnostic Scan Tools — 3.7V Li-Polymer Replacement Battery (PL6065100)

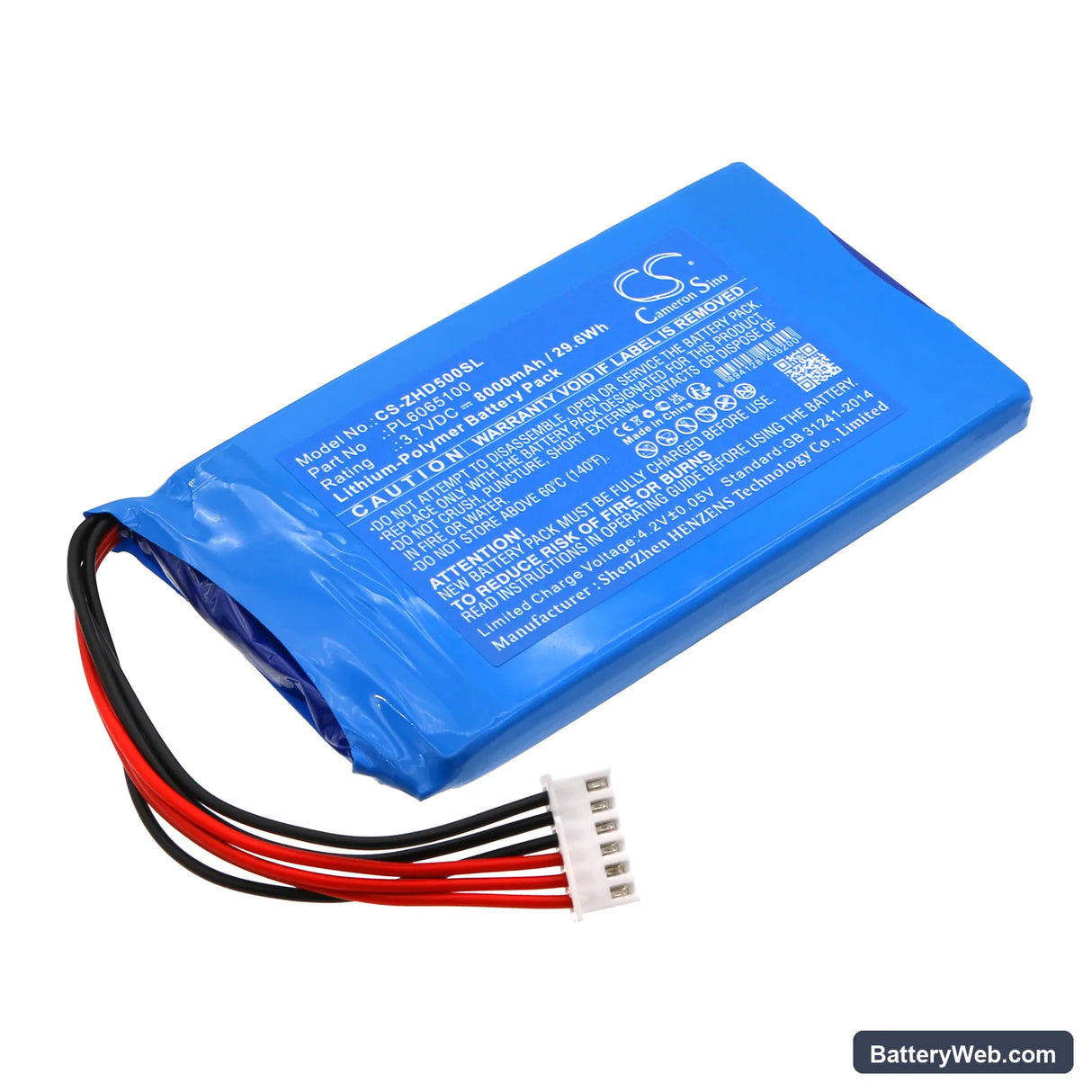

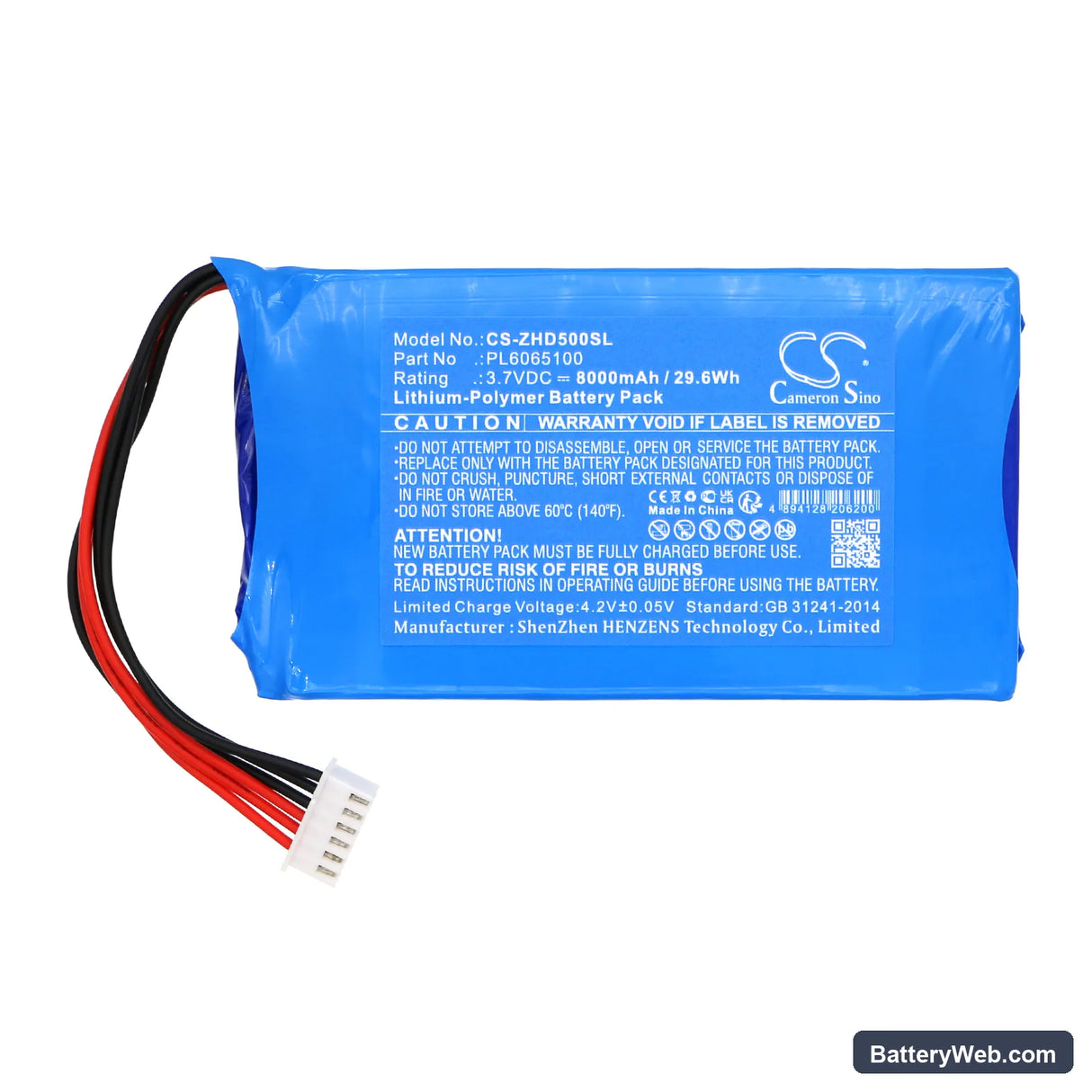

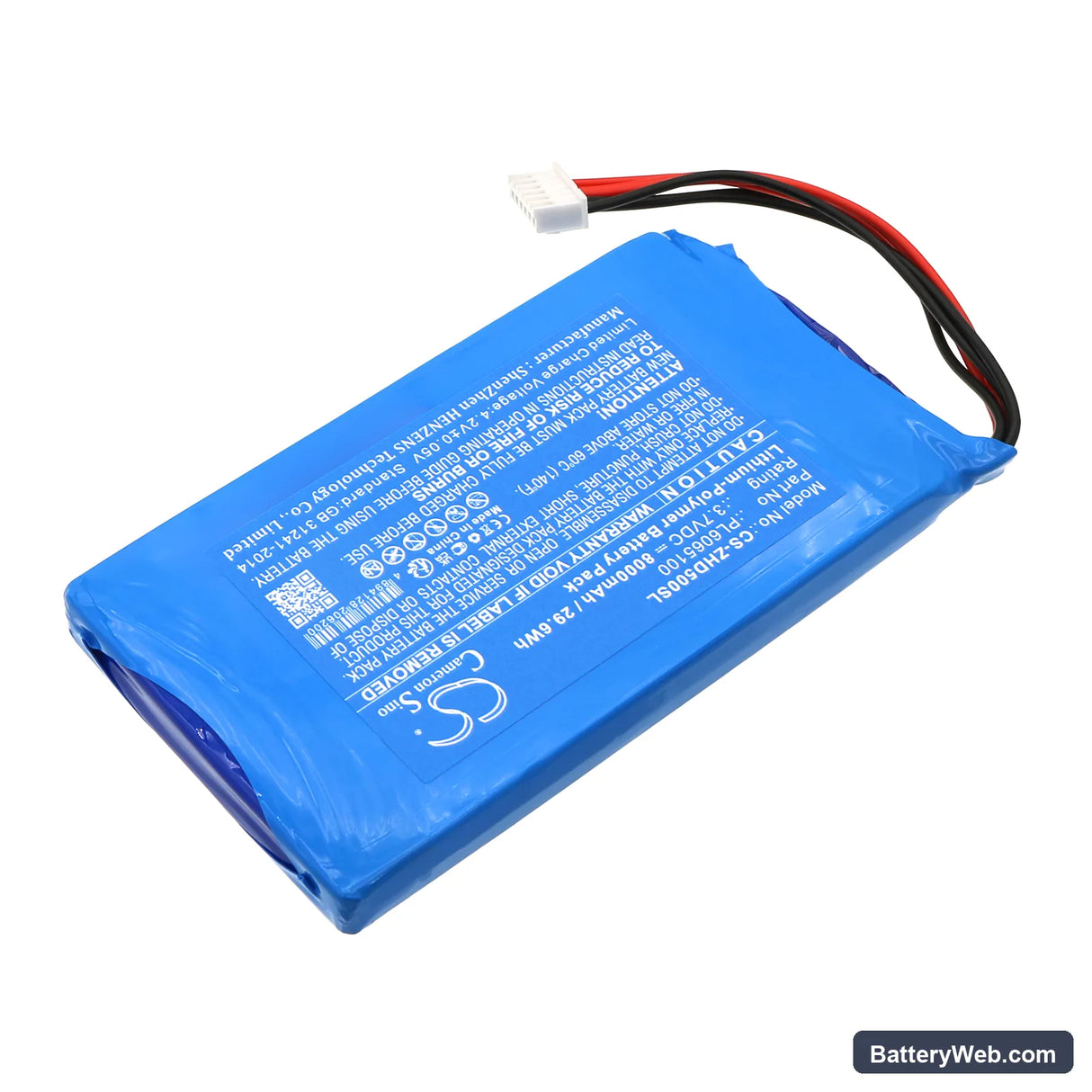

This 3.7V, 8000mAh lithium-polymer battery is a direct replacement for the Zenith Z5 Diagnostic Scan Tool. It fits the Z5 platform and restores full operating capacity to the scanner. Capacity figure is taken from the product specification: 8000mAh / 29.6Wh.

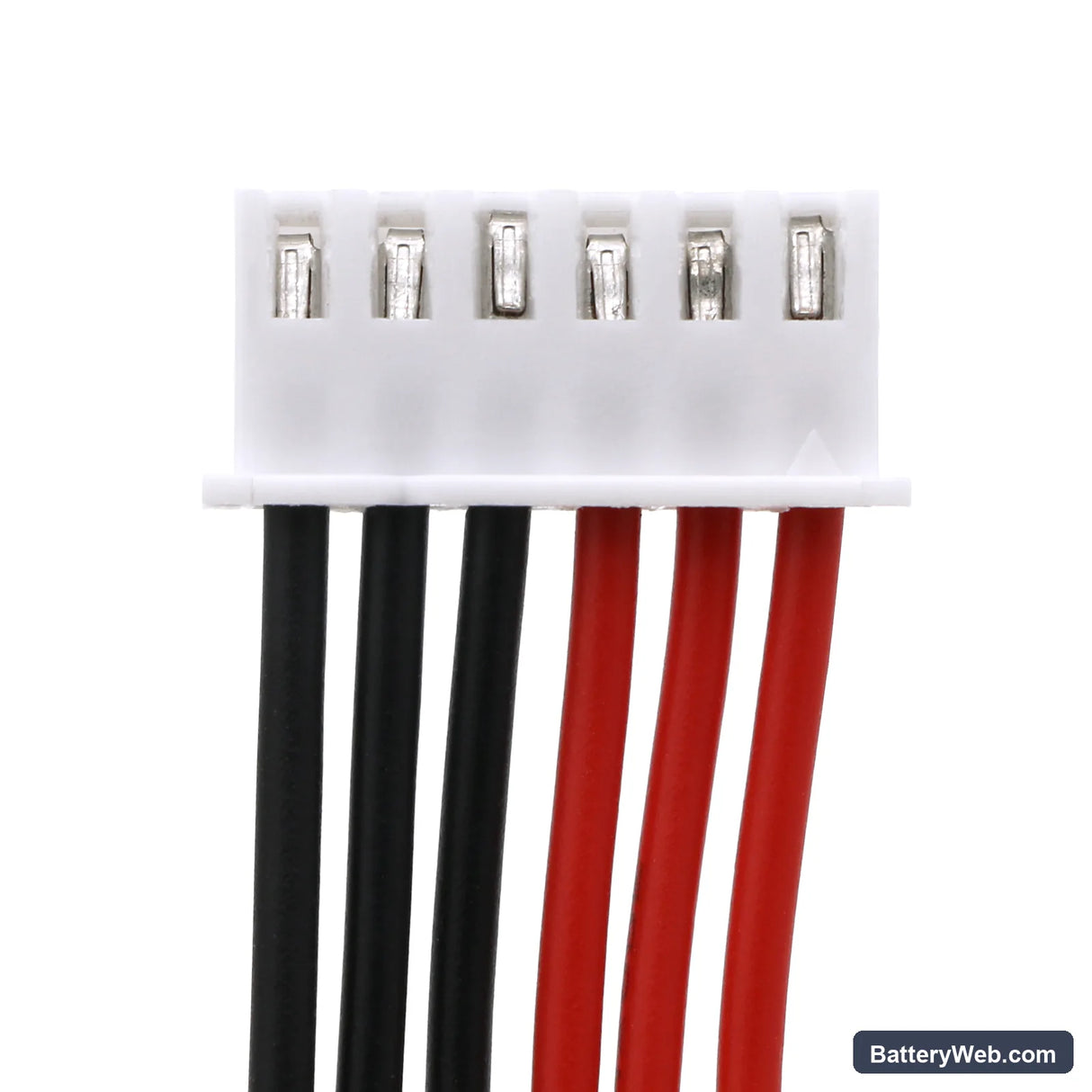

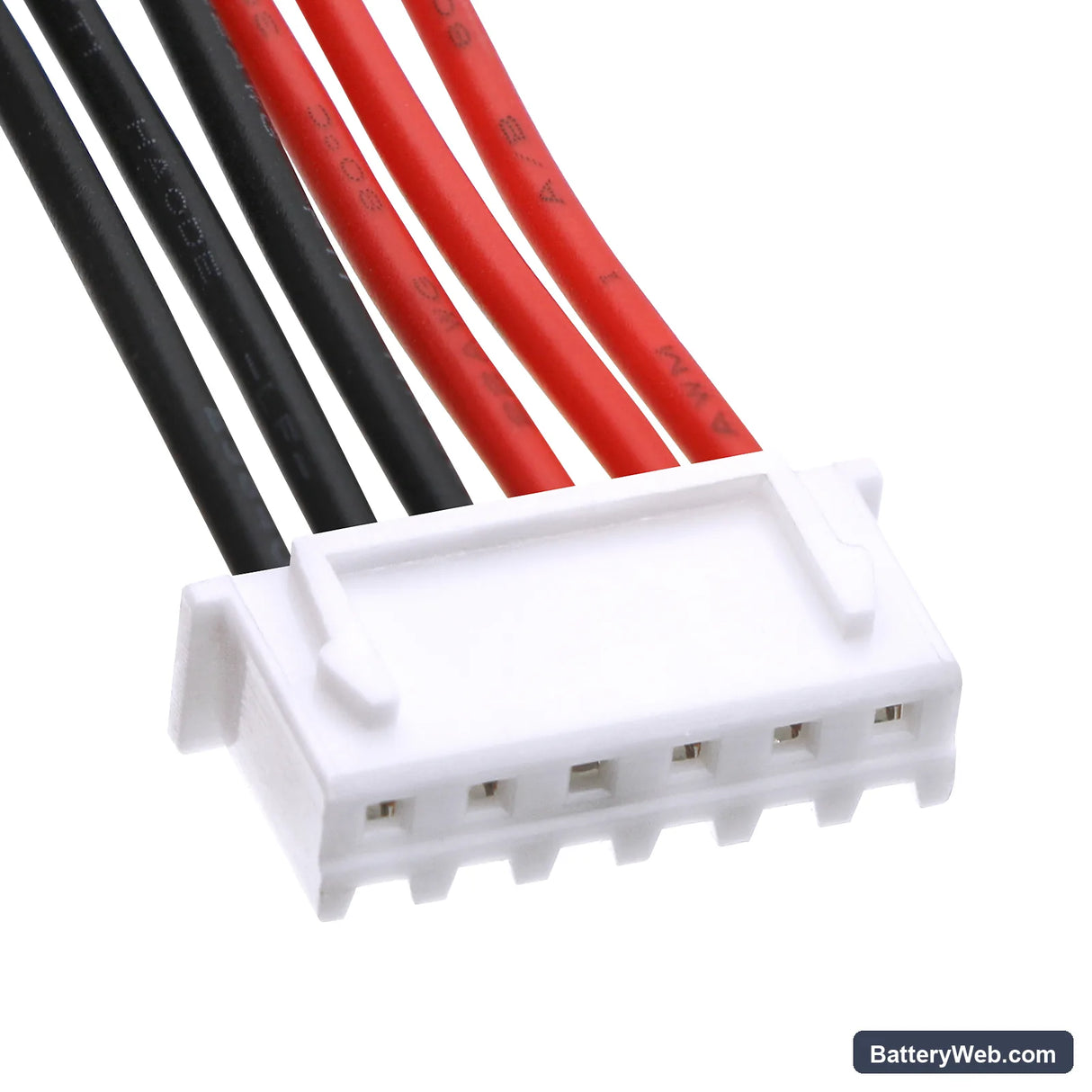

• Z5 platform fit: The Z5 series runs a single-cell 3.7V Li-Polymer architecture with a BMS that handshakes on connector pin-out and voltage threshold. This replacement uses the same cell format, connector, and protection circuit layout as the OEM unit (PL6065100), so the scanner's power management accepts it without triggering a fault state.
• Bench tested on actual hardware: We cycled this cell through boot, active OBD session, and screen-on idle on the Z5 platform. The BMS held charge cutoff cleanly at 4.2V and low-voltage protection tripped at the correct floor — no false shutdowns during live vehicle data streaming.
• Export vehicle profiles before you swap: The Z5 stores saved vehicle profiles in RAM backed by the main battery. Pull power without exporting first and those profiles are gone. Use the scanner's export function to push saved data to USB or the companion app before you remove the old cell.

Why the Z5 drops its wireless link during a live diagnostic session

The Z5's Bluetooth and Wi-Fi radios draw a short current spike every time they transmit a data packet. When the cell is weak, that spike pulls the rail voltage below the radio module's minimum operating threshold — typically around 3.5V on this platform. The scanner interprets the dropout as a connection fault, not a battery fault, so the battery indicator may still show charge remaining. Replacing the cell and confirming resting voltage above 3.7V before starting a session eliminates this entirely.

Screen dims before the Z5 reports low battery

The Z5's display driver is voltage-sensitive and throttles backlight current before the BMS formally flags a low-battery warning. This happens because the display controller reads raw cell voltage directly, while the battery gauge reports a smoothed state-of-charge value. So you see the screen dim first — sometimes by several minutes — before the on-screen indicator catches up. If the screen is visibly dimmer than normal during a session, check cell voltage with a multimeter; a reading below 3.6V under load means the cell needs replacement.
