Garmin Astro 220 Replacement Battery 3.7V 2600mAh

Garmin Astro 220 / DC20 Series — 3.7V Li-ion Replacement Battery (010-10806-00)

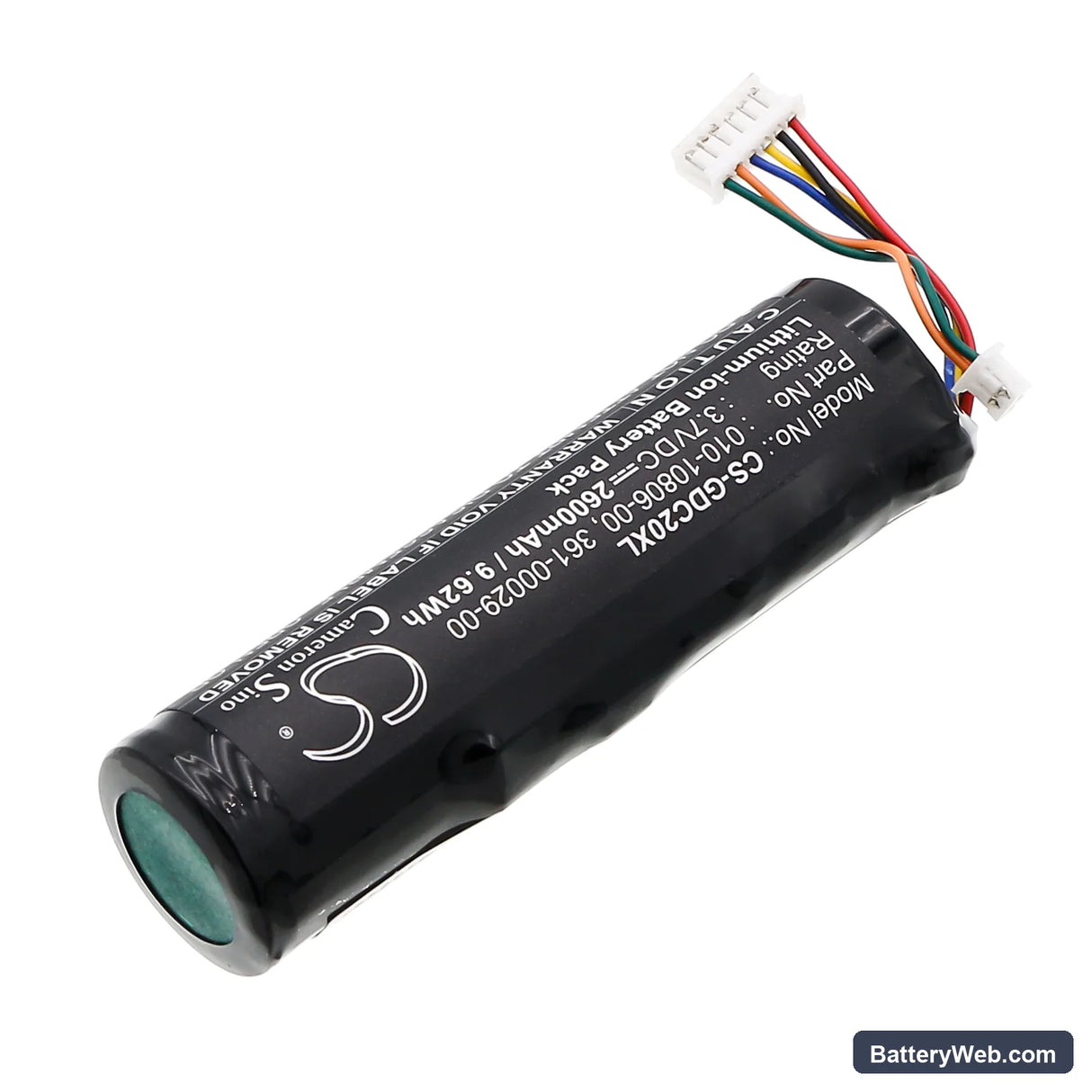

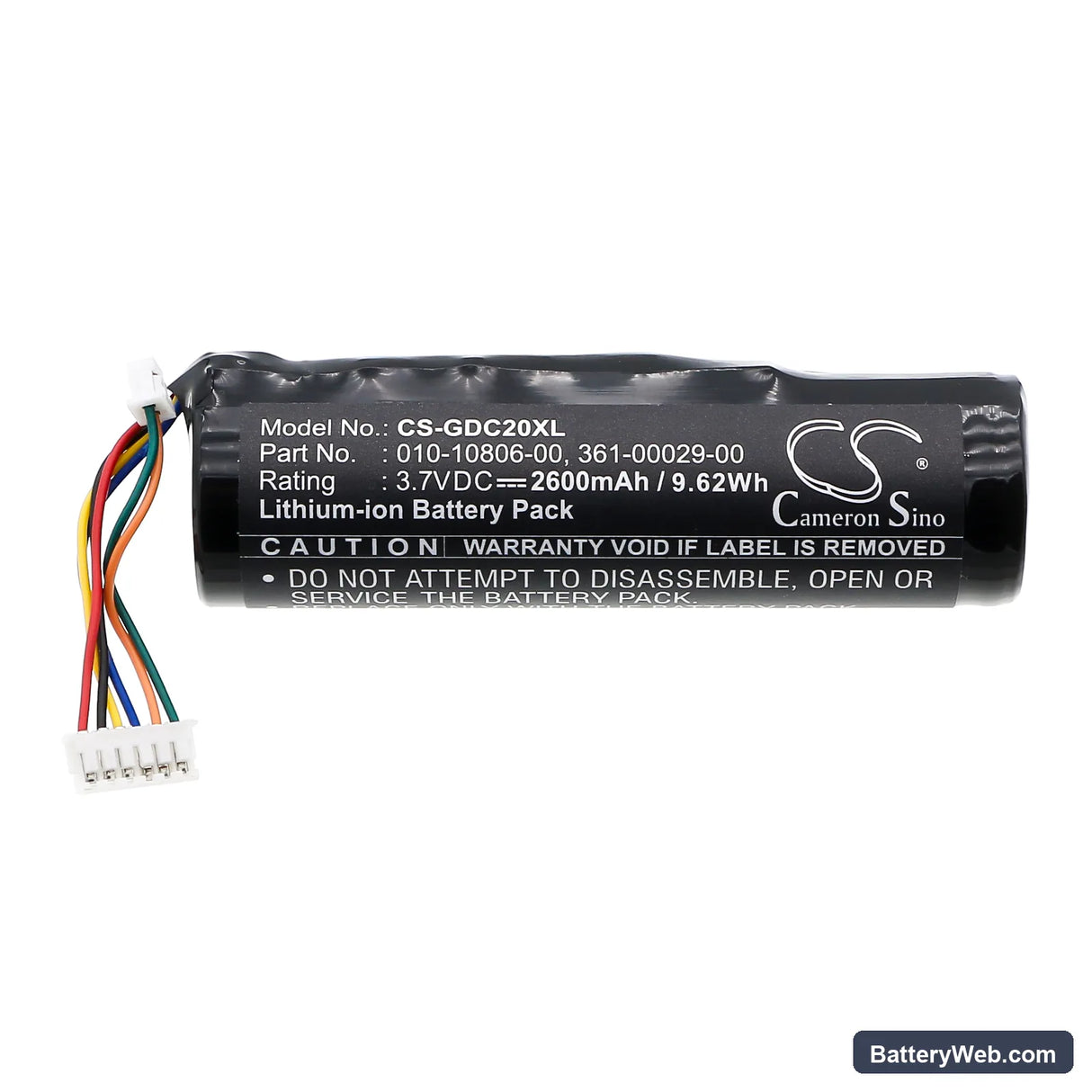

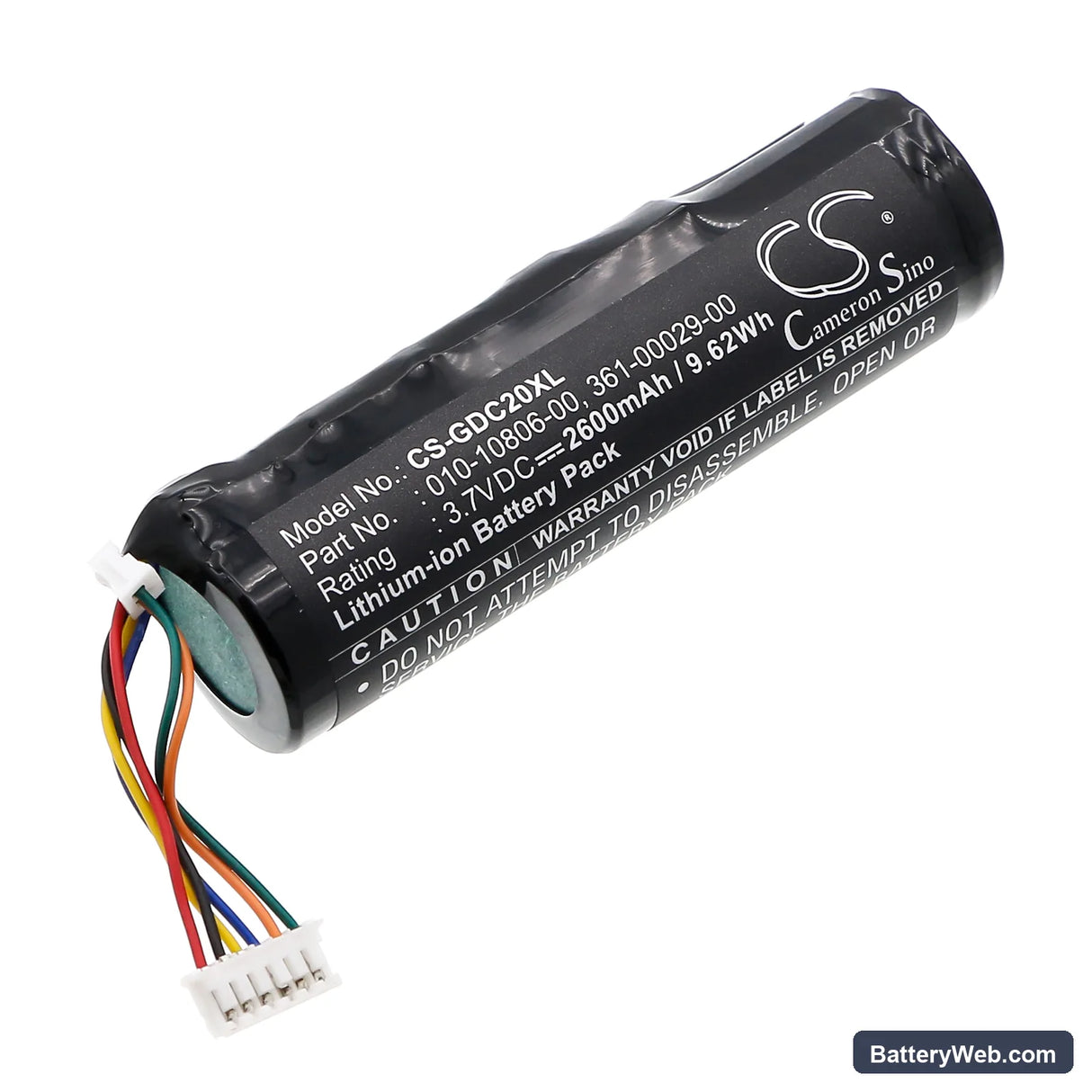

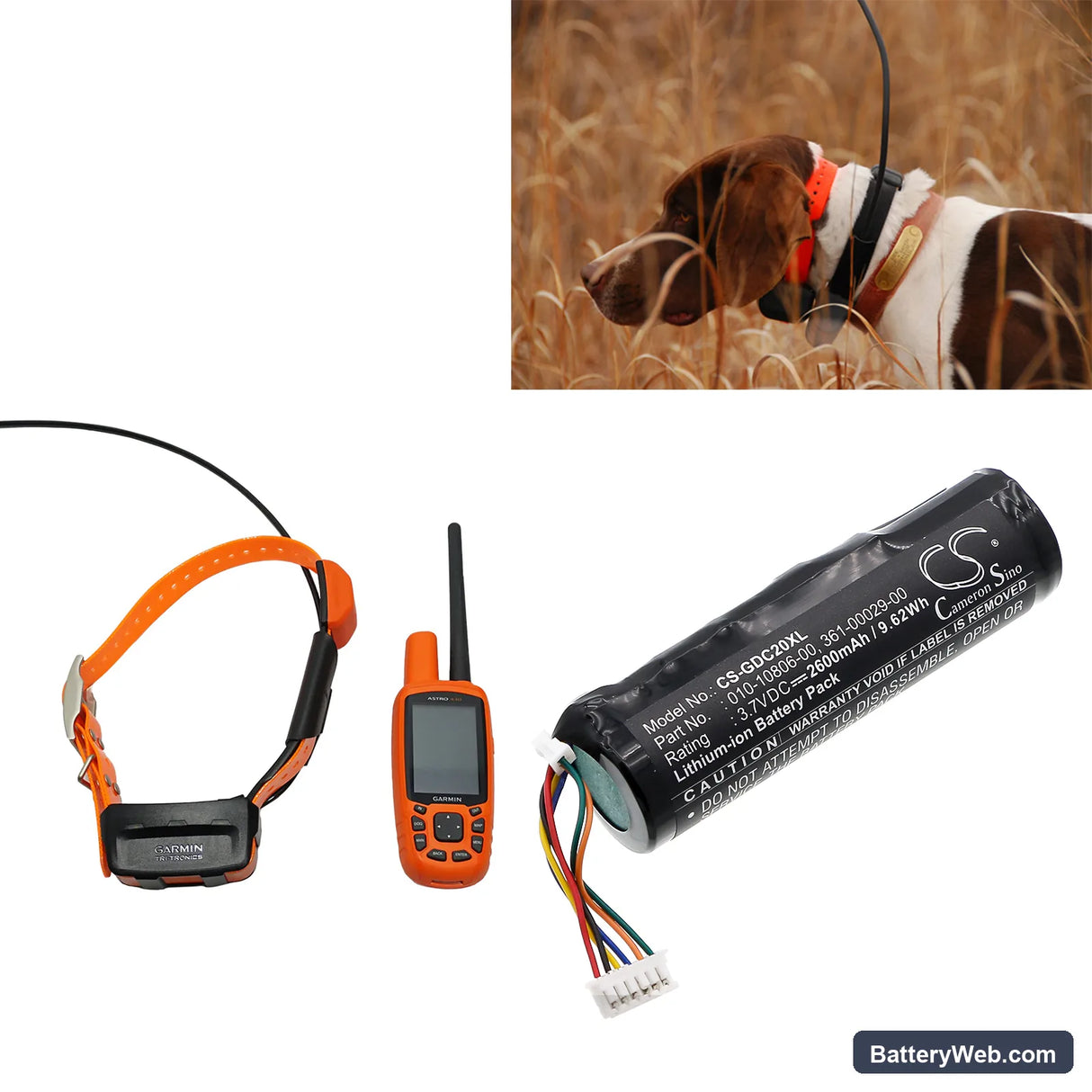

This 3.7V, 2600mAh Li-ion battery replaces the original pack in the Garmin Astro 220, Astro 320, and Astro System DC20 and DC30 GPS dog tracking collars. It matches OEM part numbers 010-10806-00, 010-10806-01, 010-10806-20, 361-00029-00, and AC00-12542. Capacity is rated at 9.62Wh.

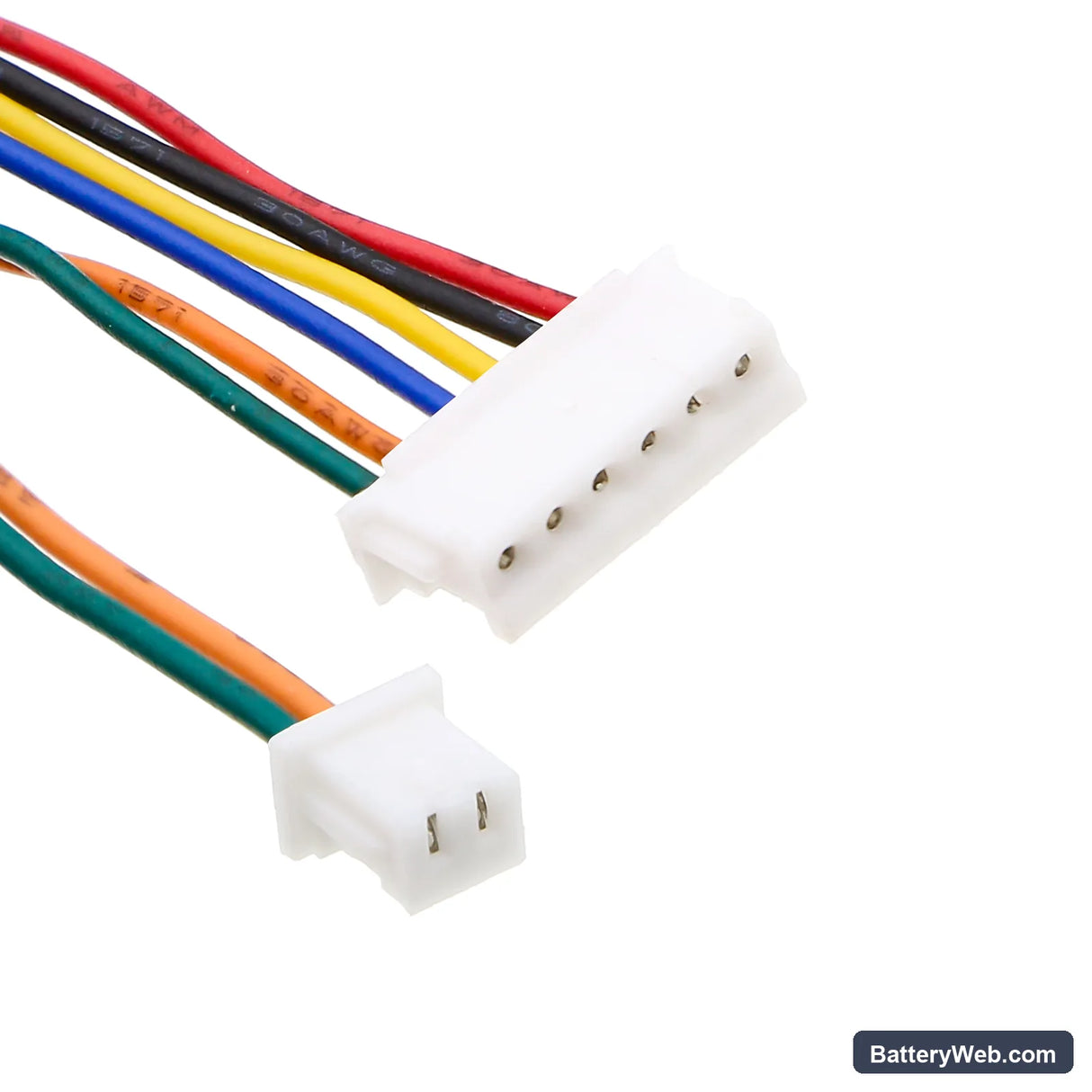

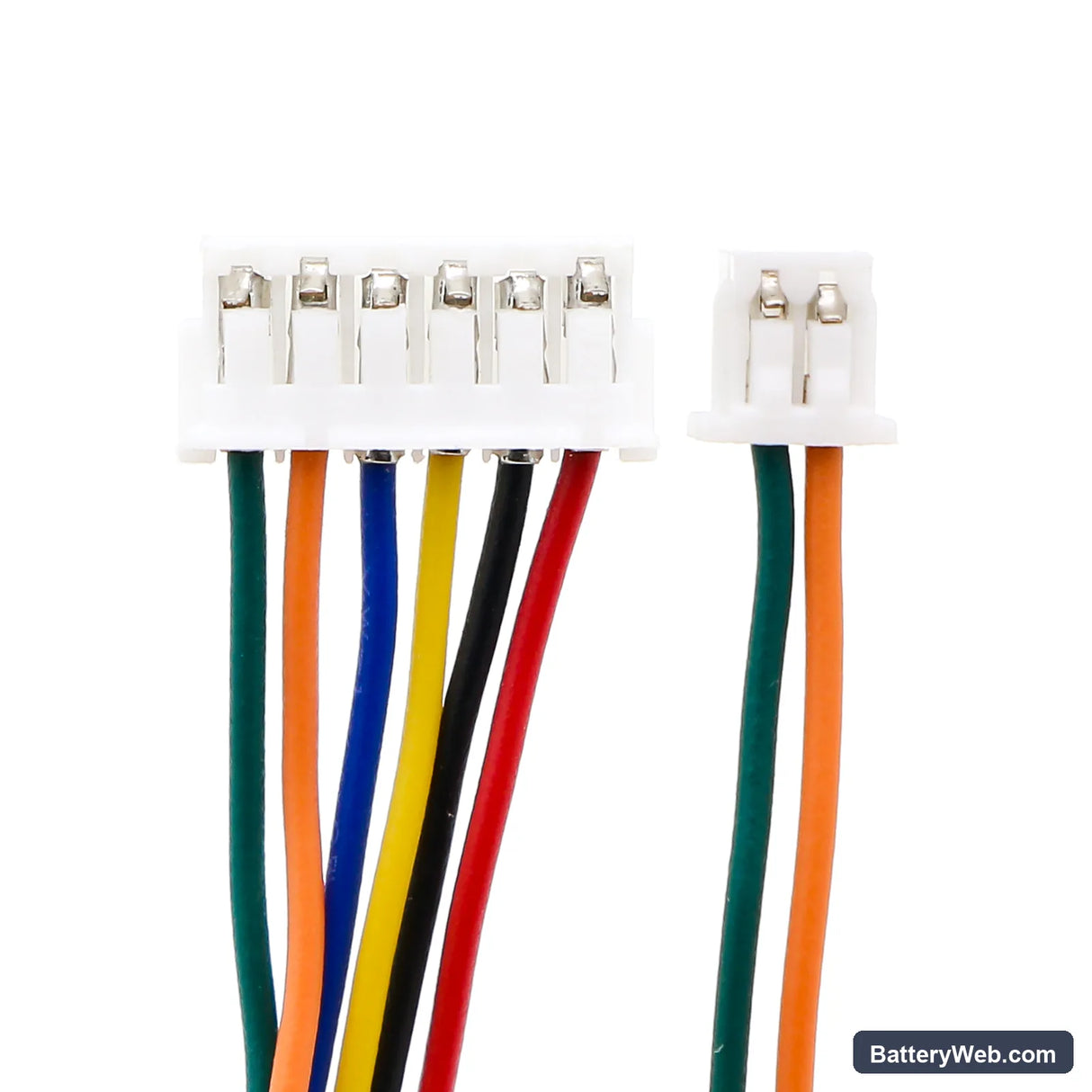

• Astro 220, 320, DC20, DC30 fitment: These collars share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The 66.00 x 18.35mm cell footprint fits the housing without modification, and the BMS communicates state-of-charge data correctly to the Astro handheld unit.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the DC20 collar platform. The BMS accepted the pack without fault codes, reported accurate charge percentage to the paired Astro 220 handset, and held stable voltage under continuous GPS transmission load.
• First GPS acquisition after install: After fitting a new battery, the collar performs a cold start — GPS almanac data is lost when power is fully interrupted. Take the dog outside and allow 5–10 minutes in open sky for the first fix. Subsequent warm starts will be significantly faster.

Battery drain spike when tracking in remote or rural terrain

In low-signal areas, the collar's GPS receiver and cellular radio both increase transmit power to maintain a fix and push location updates to the Astro handset. This dual-radio load draws more current than tracking in open suburban environments. Collar battery life in dense forest or canyon terrain can drop noticeably compared to flat open ground. If the collar is used regularly in these conditions, check the battery voltage at the collar contacts — a healthy fully charged cell reads 4.1–4.2V at rest.

Collar drops off the Astro map and won't re-register after a power cycle

After a full power interruption — such as a battery swap — the DC20 and DC30 collars sometimes lose their active pairing with the Astro handset and stop reporting position. This is not a battery fault; it is a re-registration handshake the collar must complete after cold boot. Power the collar on fully, then navigate to the Astro handheld's dog list and select "Update Dog Info" to force the collar to re-broadcast its ID. The collar's status LED should change from a slow blink to a steady pulse once the handset confirms the link.
