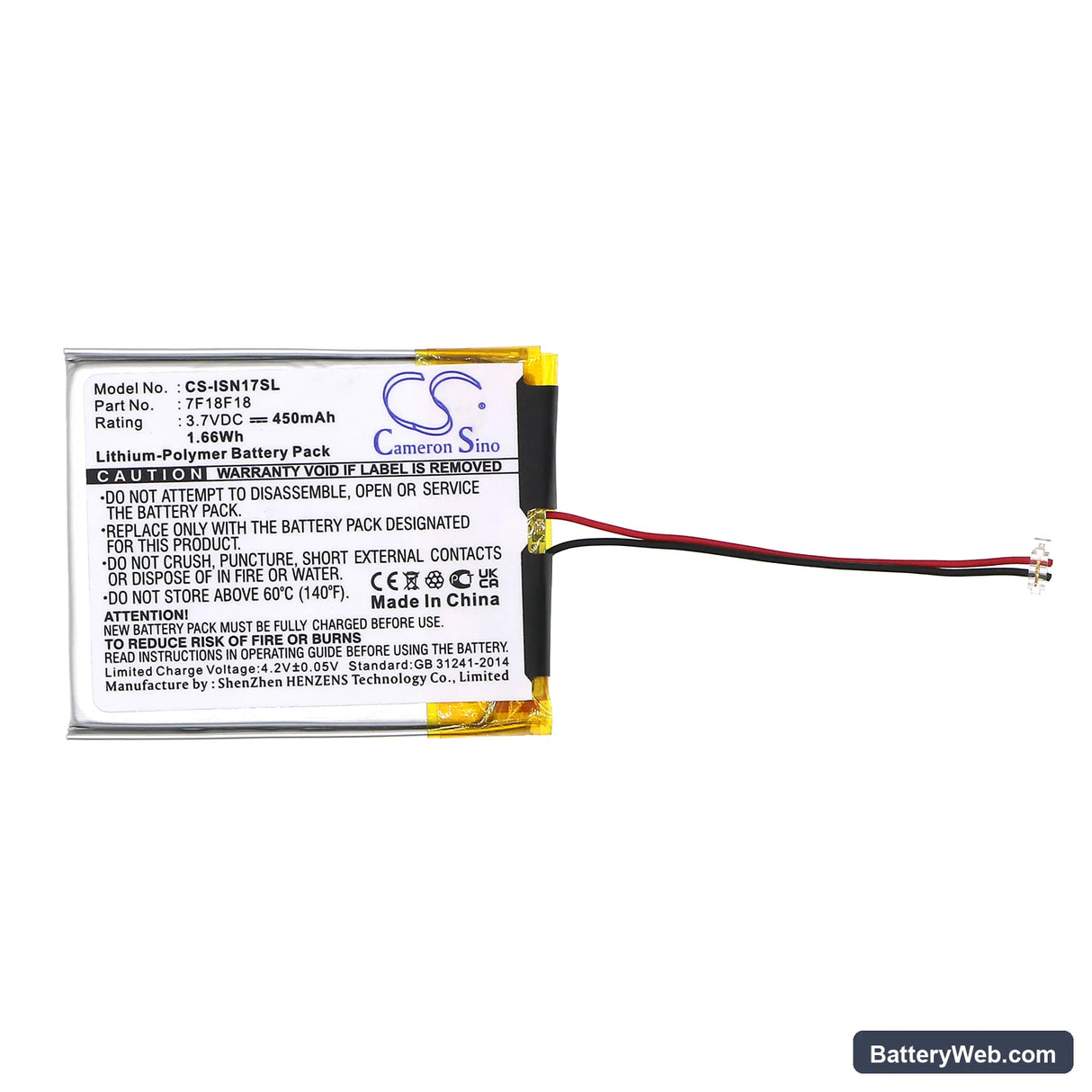

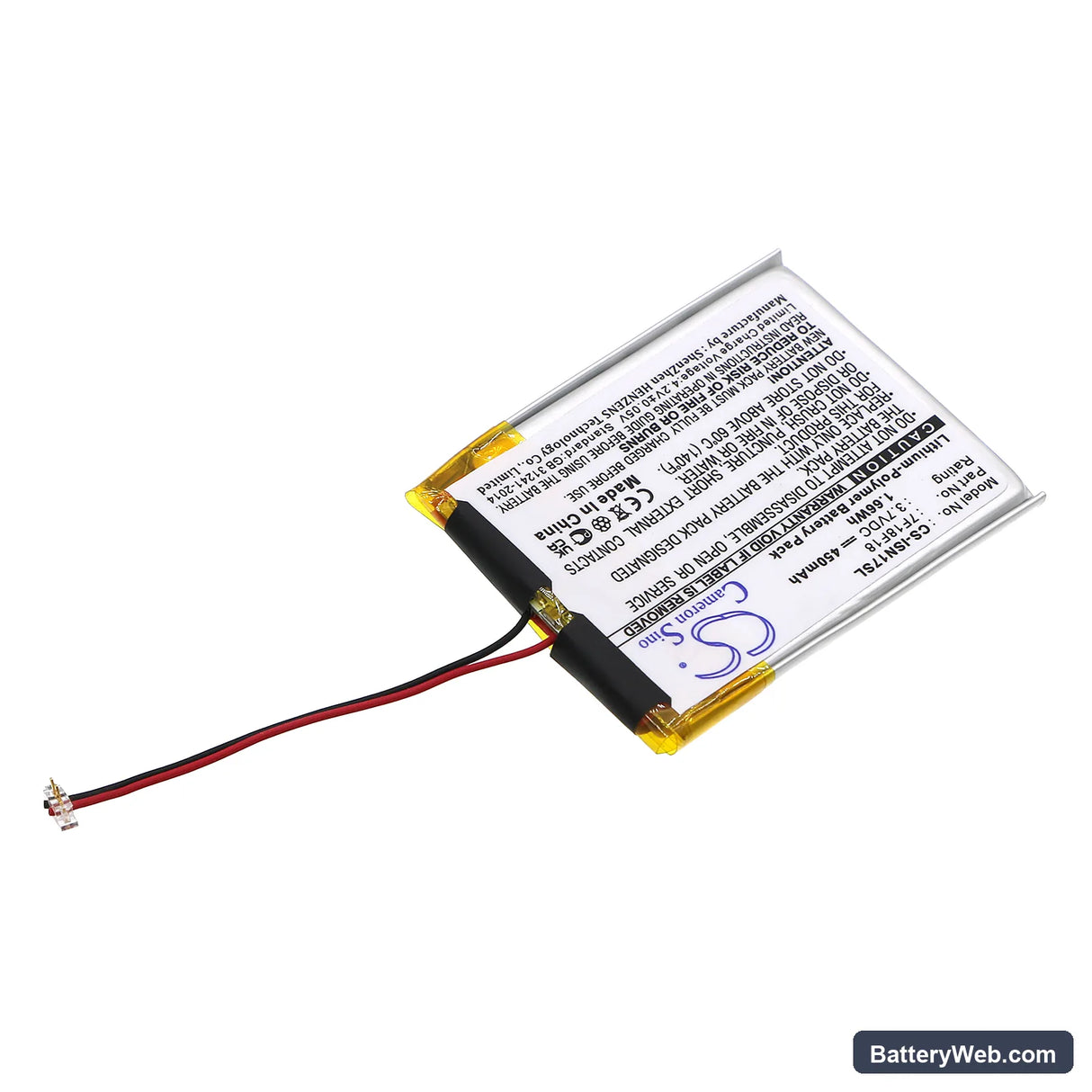

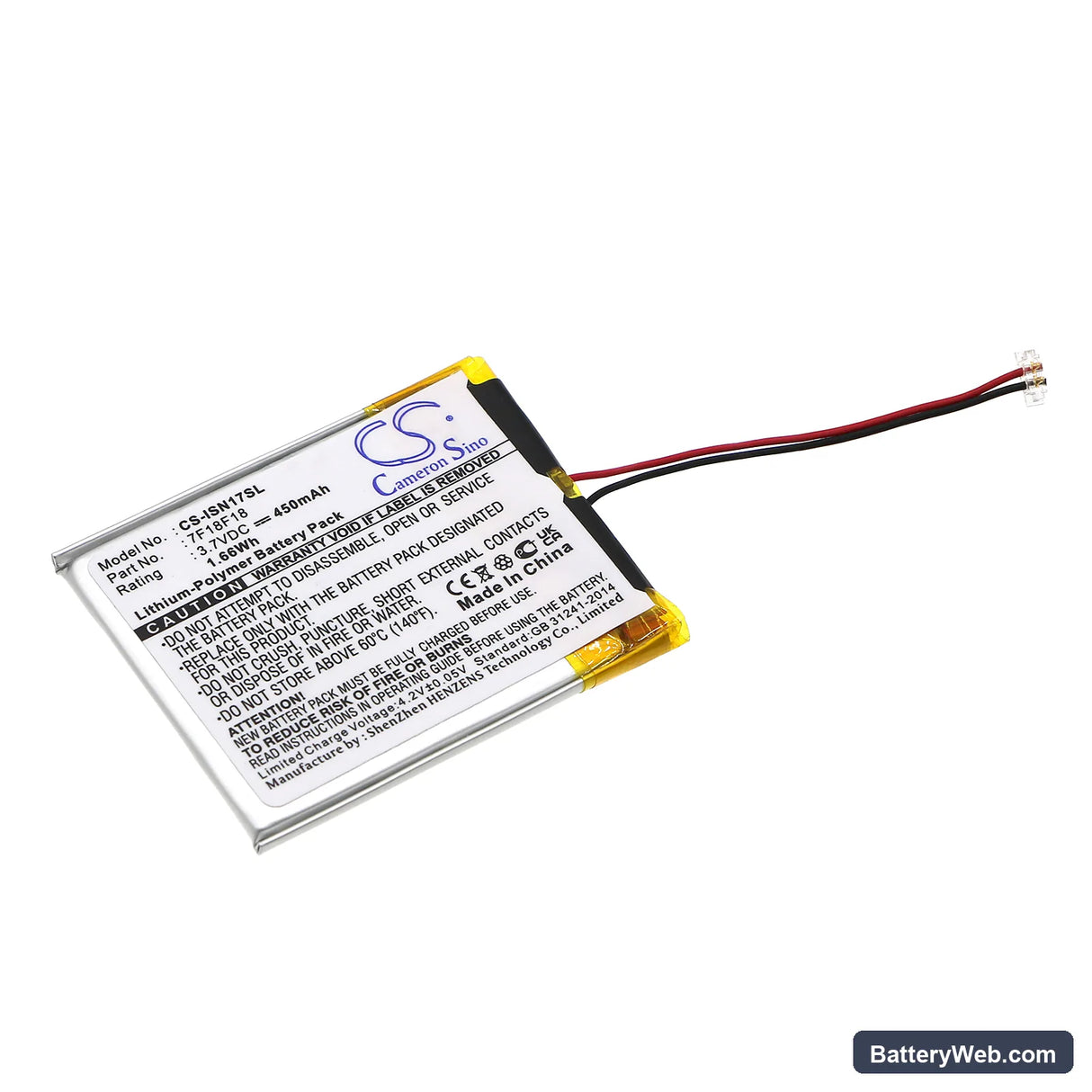

Insignia NS-4V17 Compatible Battery 3.7V 450mAh Li-Polymer

Insignia NS-4V17 / NS-2V17 Series — 3.7V Li-Polymer Replacement Battery (7F18F18)

This 3.7V 450mAh Li-Polymer cell replaces OEM part 7F18F18 in Insignia NS-4V17, NS-4V17R, NS-4V17B, NS-2V17, and related models. It fits the compact form factor of these portable media players with dimensions of 43.00 × 34.70 × 3.60mm. Swap it in when the original cell can no longer hold a usable charge across a playback session.

• NS-4V17 and NS-2V17 platform compatibility: These models share the same battery footprint, connector pinout, and 3.7V operating rail, so one cell covers the full variant range — NS-4V17, NS-4V17R, NS-4V17B, and NS-2V17 without modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on NS-series hardware and confirmed the BMS accepted the cell without triggering overcurrent cutoff or rejection flags at full charge completion.
• Post-swap initialisation — NS-4V17 specific: After fitting the new cell, connect the charger before pressing power. These players often enter deep-discharge protection after storage and require a slow trickle input before the firmware accepts a normal charge current. Give it 30 minutes on charge first.

Battery percentage jumping after cell swap on the NS-4V17

After replacing the cell, the NS-4V17's on-screen battery indicator may jump between values — showing 80%, then 40%, then 90% across short intervals. This happens because the device's voltage-threshold fuel gauge is still calibrated to the discharge curve of the old, degraded cell. The new cell has a flatter, healthier discharge curve that the gauge hasn't mapped yet. Run two or three full charge-to-low cycles and the indicator will stabilise.

Playback cutting out before the battery indicator shows empty

Audio amplifier circuits inside the NS-4V17 draw a spike of current at output peaks, which drags cell voltage down sharply at the low end of discharge. When the cell is aged, that voltage sag trips the low-voltage cutoff even while the indicator still reads 10–20%. A fresh 450mAh cell restores enough headroom that the amplifier can sustain output through to actual cell depletion. If cutouts persist after swapping the cell, check that the battery connector is fully seated — a loose contact causes the same voltage sag symptom.
