Explay Q232 / Q233 — 3.7V Li-ion Replacement Battery

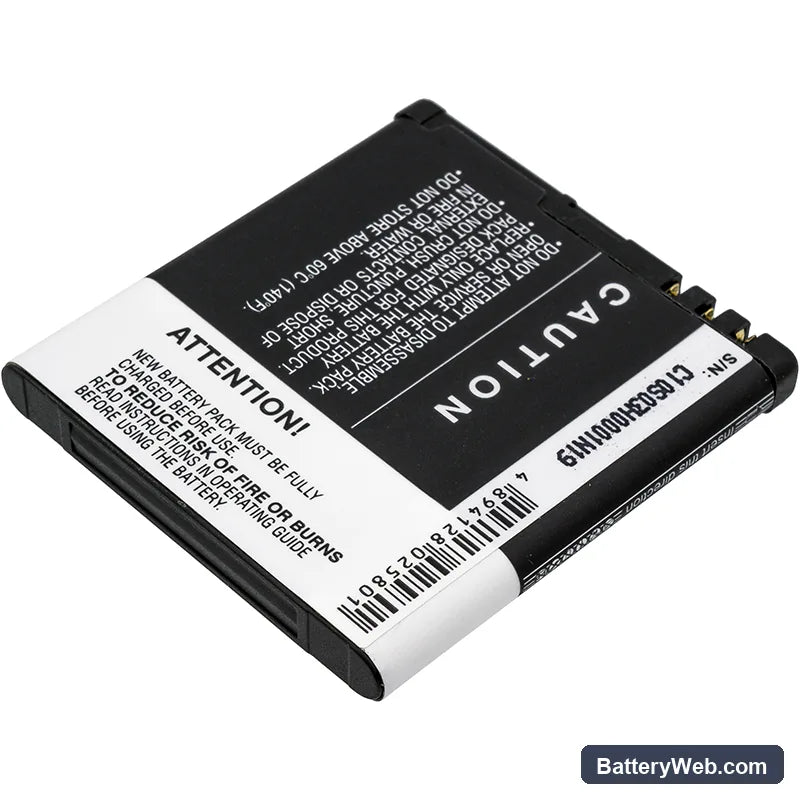

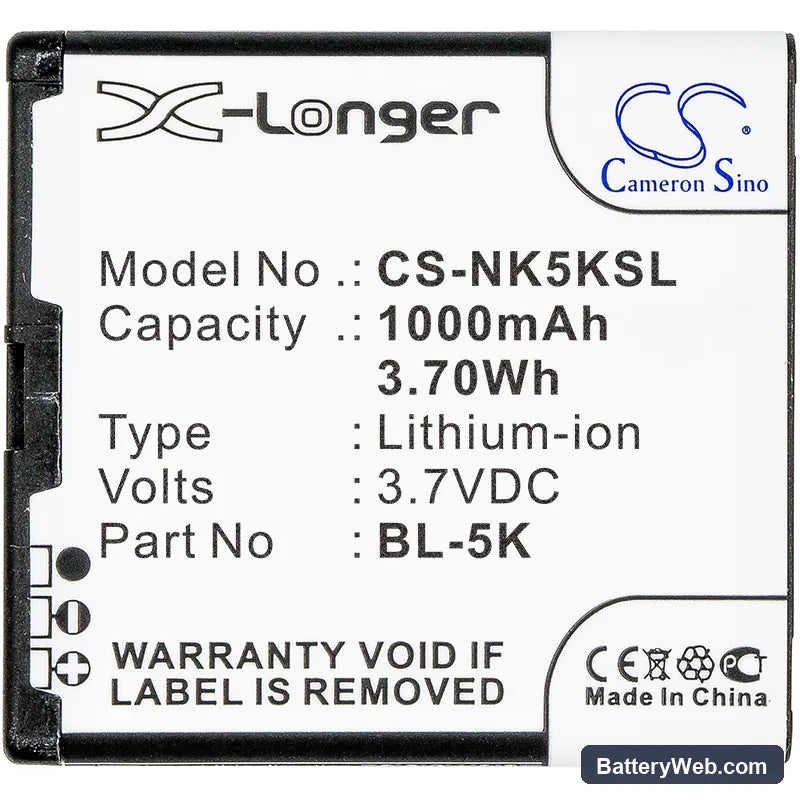

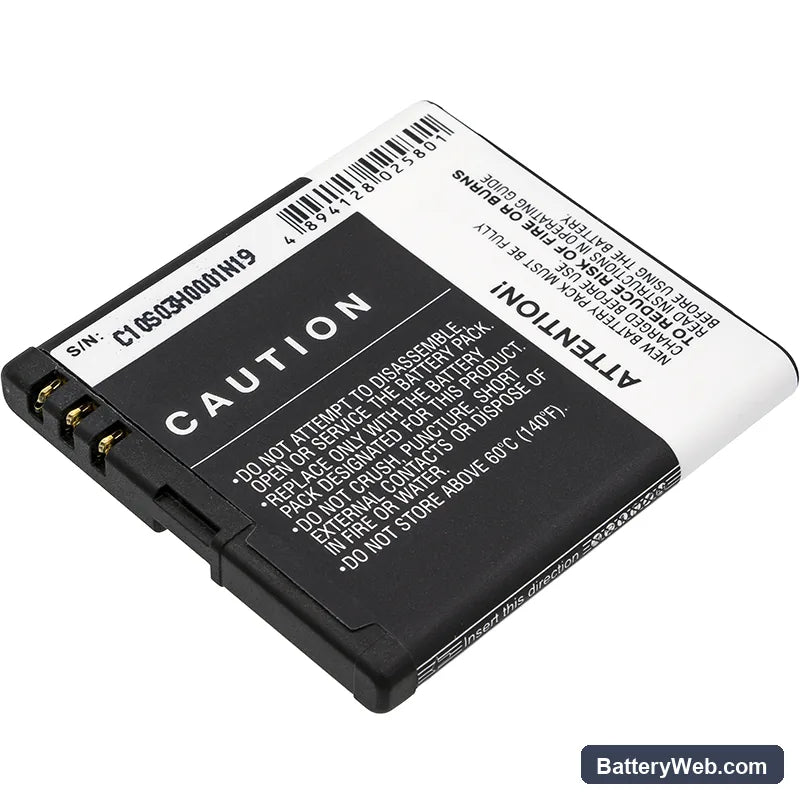

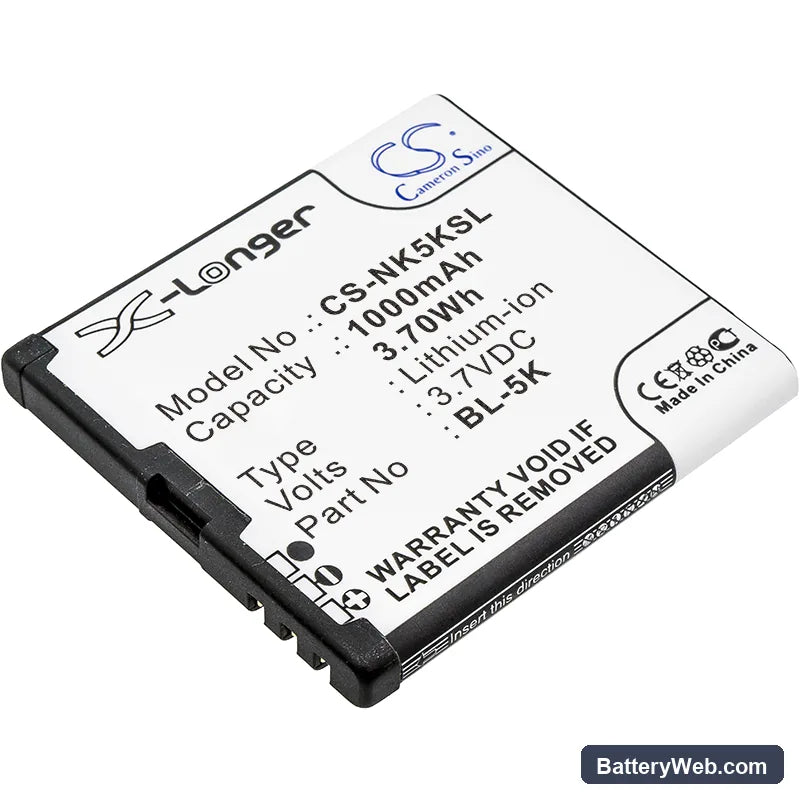

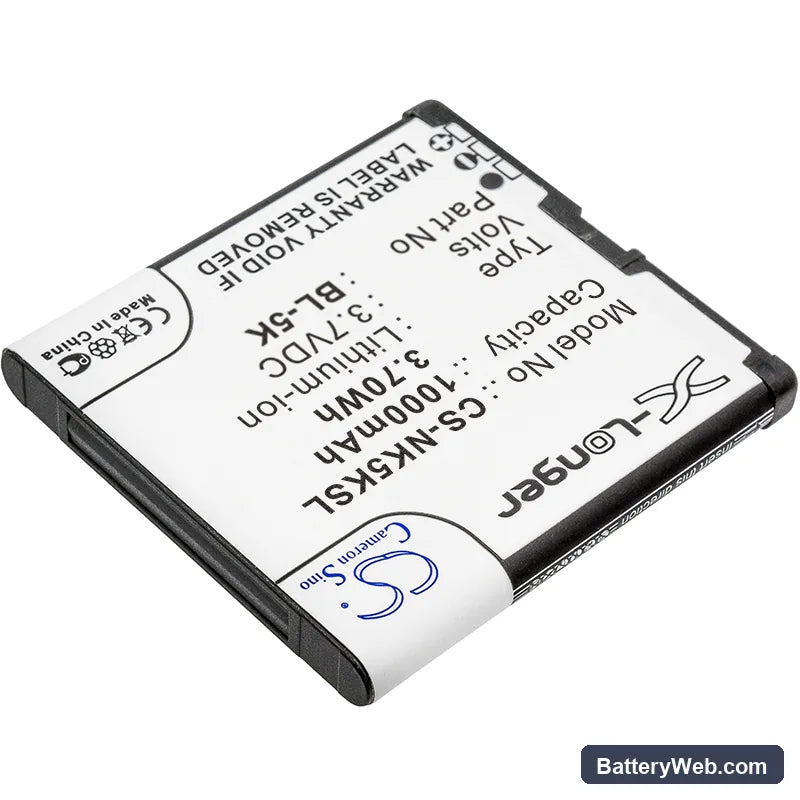

This is a 3.7V, 1000mAh Li-ion cell for the Explay Q232 and Q233 smartphones. It slots into either model and restores power when the original cell can no longer hold a charge. Capacity is 3.7Wh — identical to the factory specification.

• Q232 and Q233 compatibility: Both models share the same battery bay dimensions and voltage rail. The cell footprint is 46.89 × 44.00 × 5.37mm, which matches the physical compartment in both handsets without modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the bench. The BMS accepted a standard charge current without tripping, and the protection circuit cut off correctly at the low-voltage threshold — no anomalous behaviour at either end of the charge curve.
• Fuel gauge recalibration after install: On first use, disable fast charging if your charger supports it, then run one full discharge down to automatic shutdown followed by a complete charge. This lets the fuel gauge IC map its reference curve against the new cell before high-current charging begins on an uncalibrated state-of-charge counter.

Sudden shutdown at 20–30% on the replacement cell

This is a voltage cliff issue, not a capacity problem. Under peak load — mobile data, screen at full brightness, active call — the cell voltage drops sharply. The BMS reads that drop and cuts power before the percentage counter reaches zero. It happens most on a new cell that has not yet been calibrated to the fuel gauge IC. Run one full discharge-charge cycle and the shutdown threshold should stabilise. If it continues after two full cycles, check that the battery connector is fully seated — a loose contact increases internal resistance and amplifies the voltage sag under load.

Phone will not power on after sitting in storage

If the cell discharged below approximately 2.5V during storage, the BMS enters a lockout state and blocks normal charging. The phone shows no response on a standard cable. Connect it to a low-current USB source — a PC port or a 5V 500mA adapter — and leave it for 20 to 30 minutes without pressing the power button. This trickle current nudges the cell voltage above the BMS recovery threshold. Once the phone shows a charging indicator, switch to your normal charger and complete a full cycle.
