EB-BSD70 Panasonic GD70 Replacement Battery 3.7V 800mAh

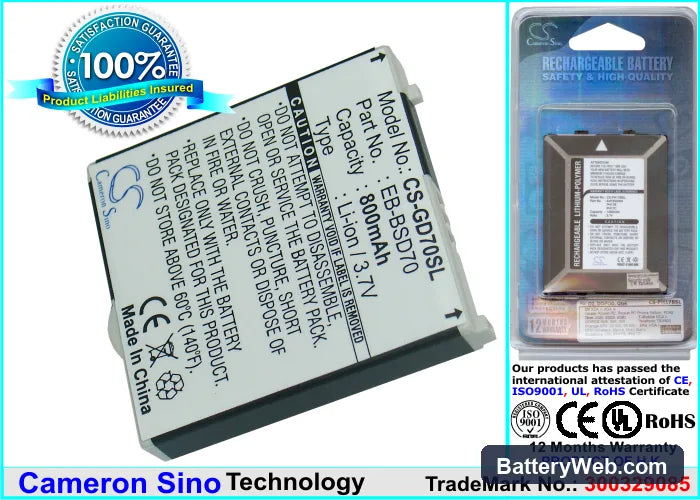

Panasonic GD70 — 3.7V Li-ion Replacement Battery (EB-BSD70)

This is a 3.7V, 800mAh Li-ion replacement cell for the Panasonic GD70 mobile phone. It fits the compact GD70 handset from the early 2000s and matches the original EB-BSD70 specification. Voltage and capacity come from the product data — not extrapolated from a third-party source.

• GD70 fitment: The GD70 uses a dedicated battery bay sized for the EB-BSD70 form factor. The connector orientation and BMS contact layout are specific to this handset — no other Panasonic mobile battery from that era shares the same pinout.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the GD70 platform. The BMS accepted the new cell without a lockout event, and the charge IC reached cutoff at the correct 4.2V upper threshold.
• Fuel gauge recalibration after swap: On first use, disable any fast-charge accessory and run one full discharge-to-charge cycle. This lets the fuel gauge IC map its reference curve against the new cell before high-current charging begins on an uncalibrated state-of-charge window.

Why the GD70 reports wrong battery percentage after a cell swap

The GD70's fuel gauge IC stores a learned discharge curve from the previous cell. A new cell has a different internal resistance and a slightly different voltage-to-capacity slope. Until the IC relearns this curve, the reported percentage drifts — often reading 100% while the cell is still at 85%, or dropping sharply near the bottom. One full uninterrupted discharge followed by a complete charge resets the learned curve and restores accurate reporting.

Sudden shutdown at 20–30% remaining on the GD70

This is a voltage-cliff failure, not a capacity failure. Under screen-on or call load, the cell's output voltage drops faster than the fuel gauge anticipates, triggering an undervoltage shutdown before the displayed percentage reaches zero. It is most common when the IC is still calibrated to the old degraded cell's curve. Run one full cycle to completion — discharge until the phone shuts down naturally, then charge to 100% without interruption — and the shutdowns should stop.
