Sanei Electric BL2-58 — 7.4V Li-ion Replacement Battery

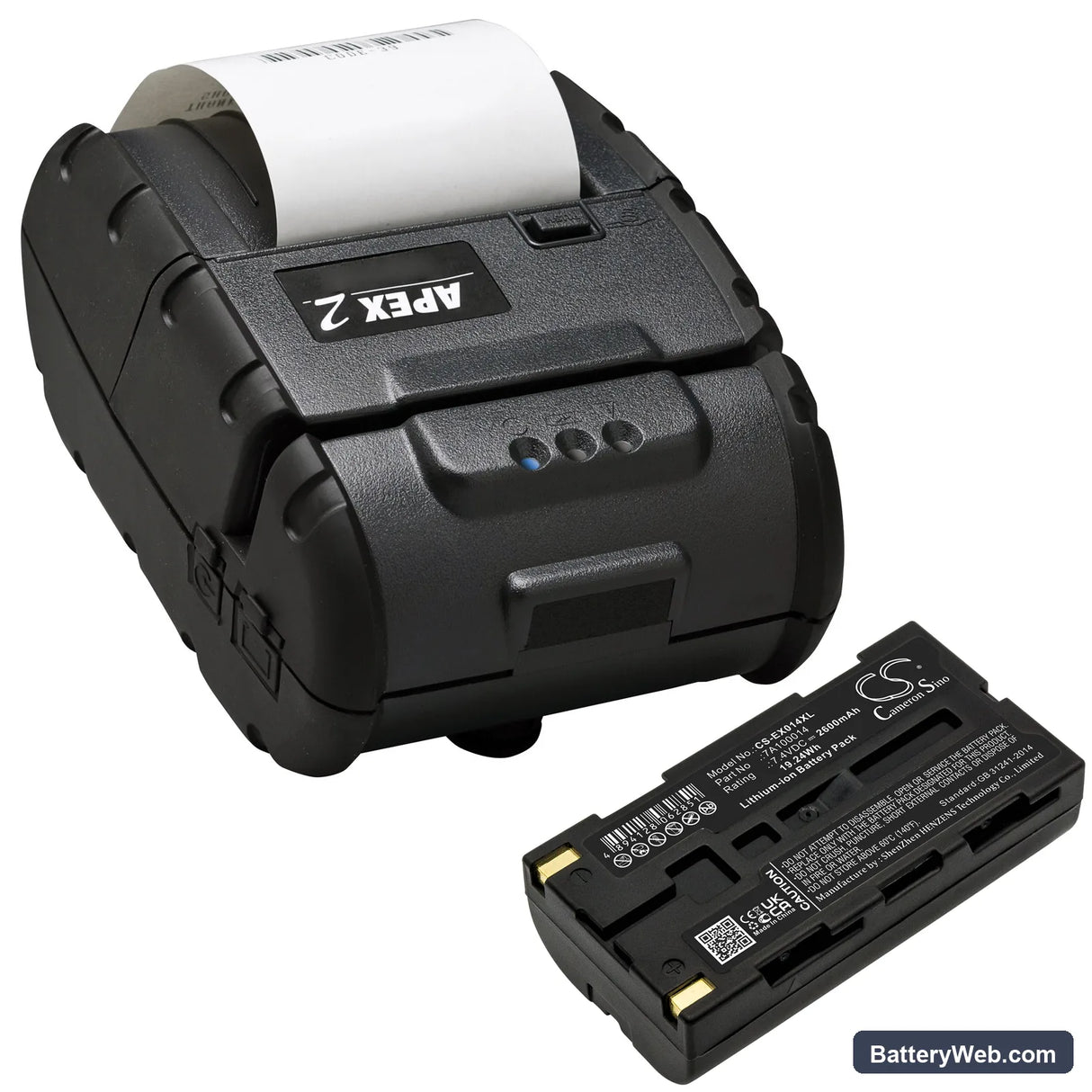

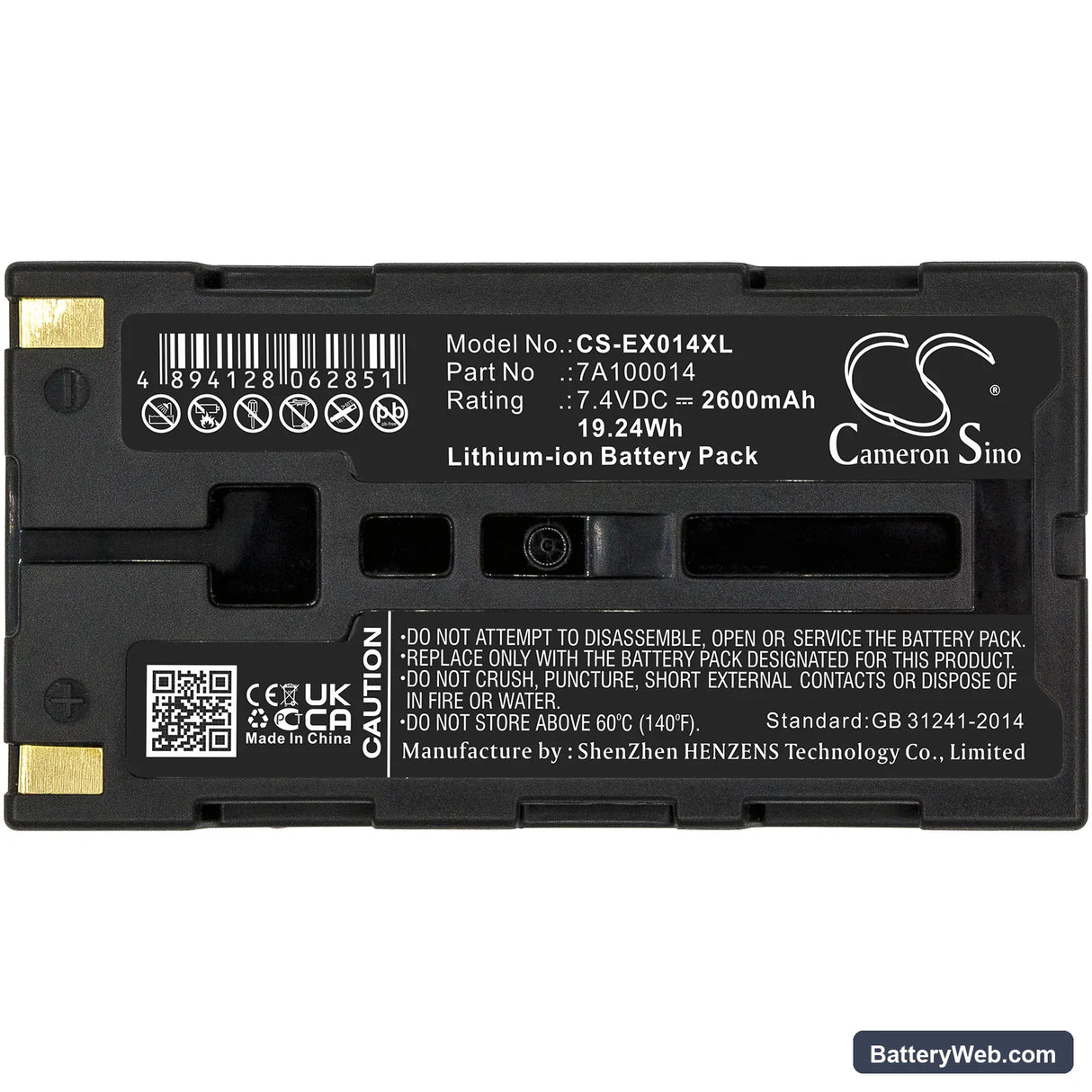

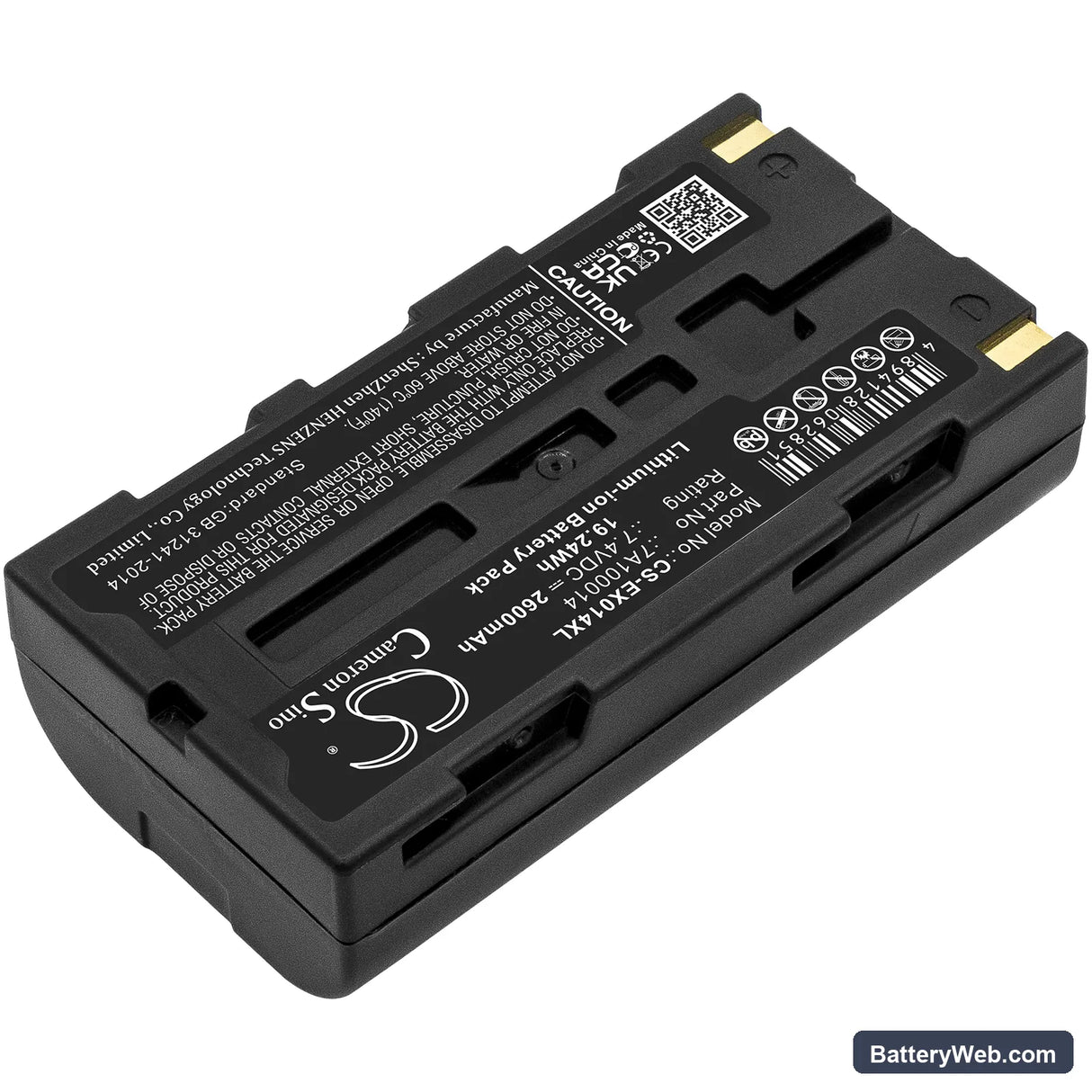

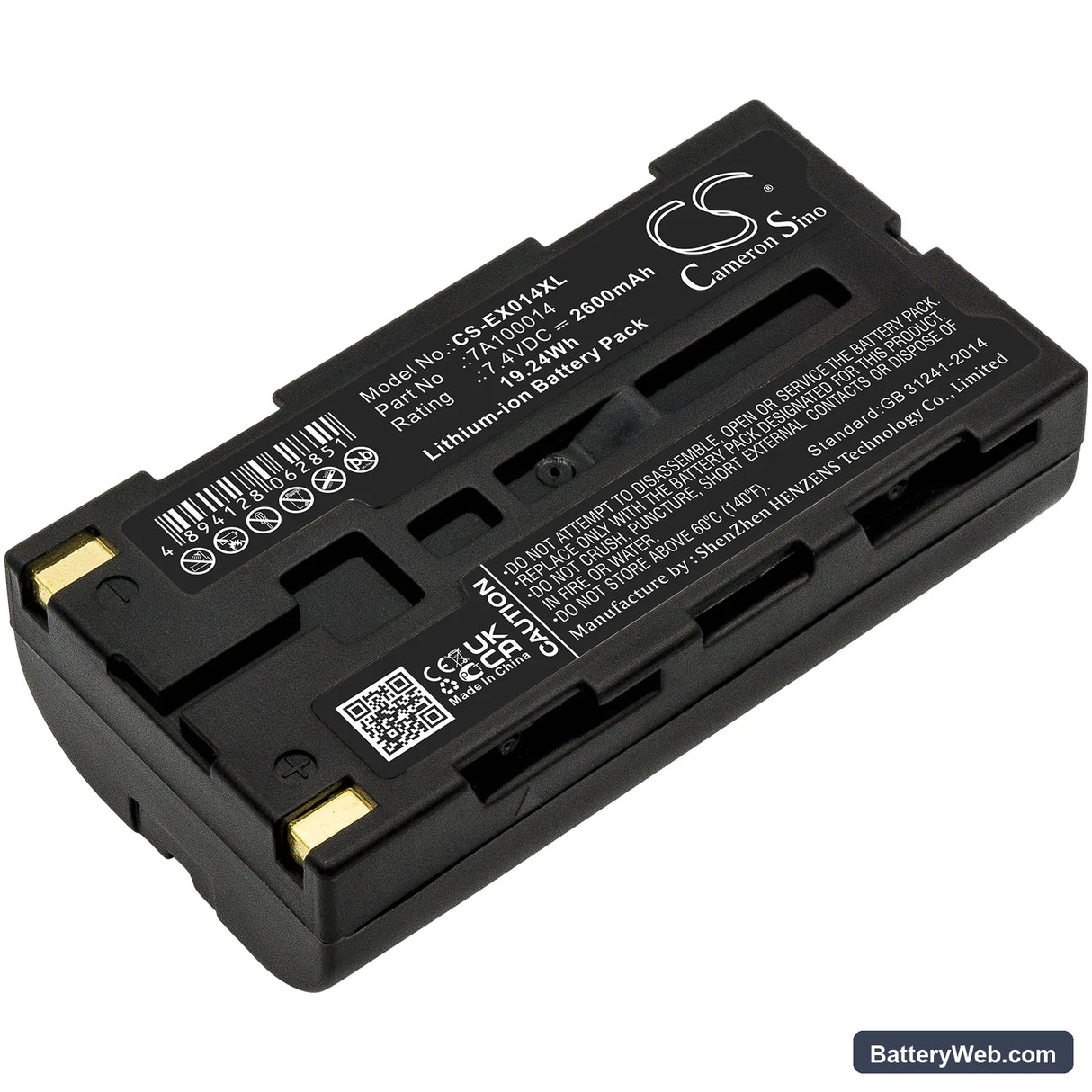

This is a 7.4V, 2600mAh Li-ion battery for the Sanei Electric BL2-58 portable receipt and label printer. It fits the BL2-58 directly and matches the original cell's voltage and connector configuration. Capacity is rated at 19.24Wh.

• BL2-58 platform fit: The BL2-58 runs a single-cell 7.4V Li-ion pack with a BMS that monitors discharge rate across both the thermal print head and the paper feed motor. Both loads draw from the same rail, so the replacement cell must match the original discharge curve — which this one does.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on a BL2-58 unit. The BMS accepted the new pack without fault codes, current draw at print-head activation stayed within spec, and the feed motor cycled cleanly through multi-page print jobs.
• First-deploy print sequence: After installing, charge to full and run five consecutive test prints before putting the unit into service. The BL2-58 BMS uses initial load draws from the feed motor and thermal head to calibrate its current profile — skipping this step can cause premature low-battery warnings under normal print loads.

BL2-58 Bluetooth dropout during active print jobs

The BL2-58 shares its 7.4V rail between the radio module and the thermal print head. When battery charge drops toward the lower end, a simultaneous print trigger and radio keepalive packet can pull voltage below the radio module's minimum operating threshold. The radio drops, the app loses connection, and the job fails mid-print. This is not a firmware issue — it is a voltage sag problem. Replacing a degraded battery and keeping charge above 50% during active jobs prevents it.

Faded or uneven print output on the BL2-58

The thermal print head in the BL2-58 requires a stable voltage to maintain consistent head temperature across the full print line. A cell with capacity fade delivers lower voltage under load, which causes the head to underperform on heat — the result is faded text, missing dots, or uneven density across the receipt width. This is distinct from a paper or head-cleanliness problem. If print quality improves when the battery is freshly charged but degrades as charge drops, the cell is the cause — replace it and retest at 50% charge to confirm.
