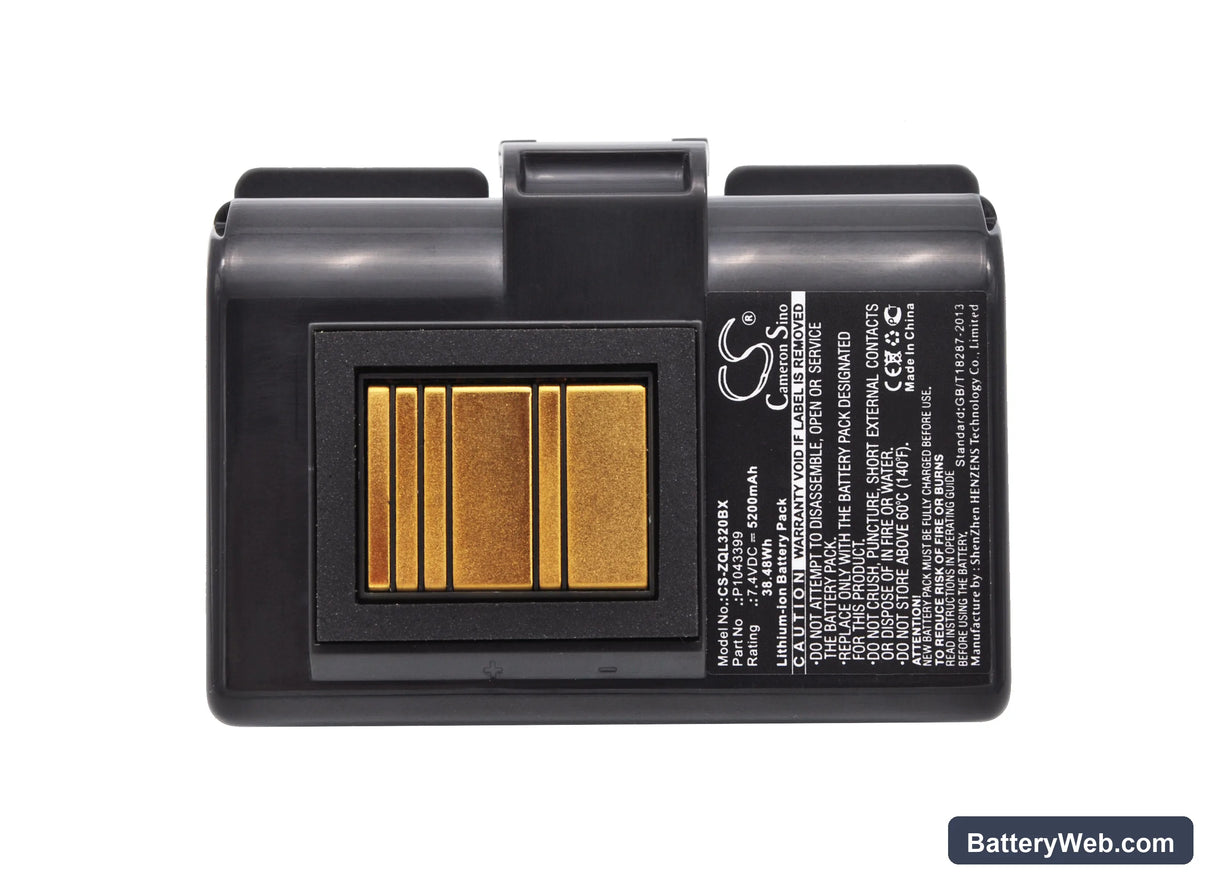

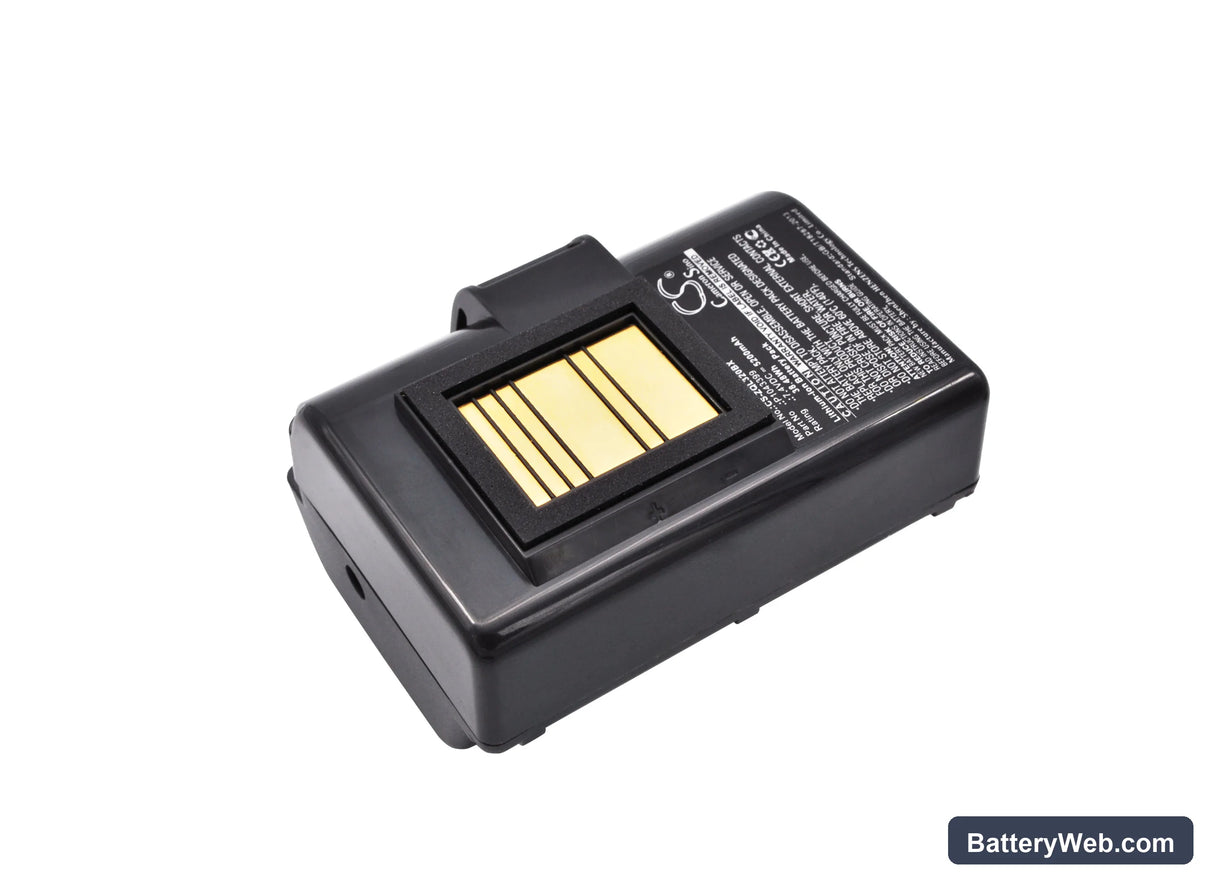

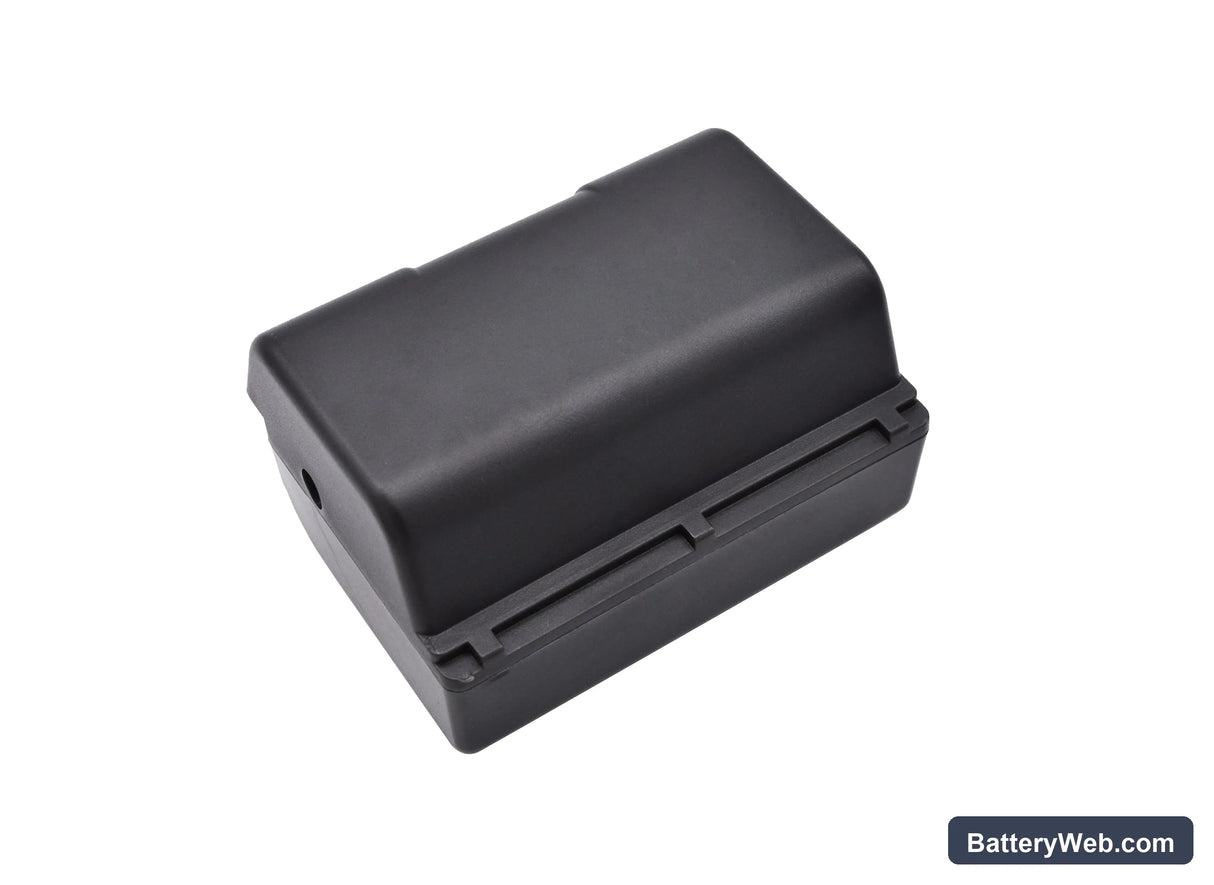

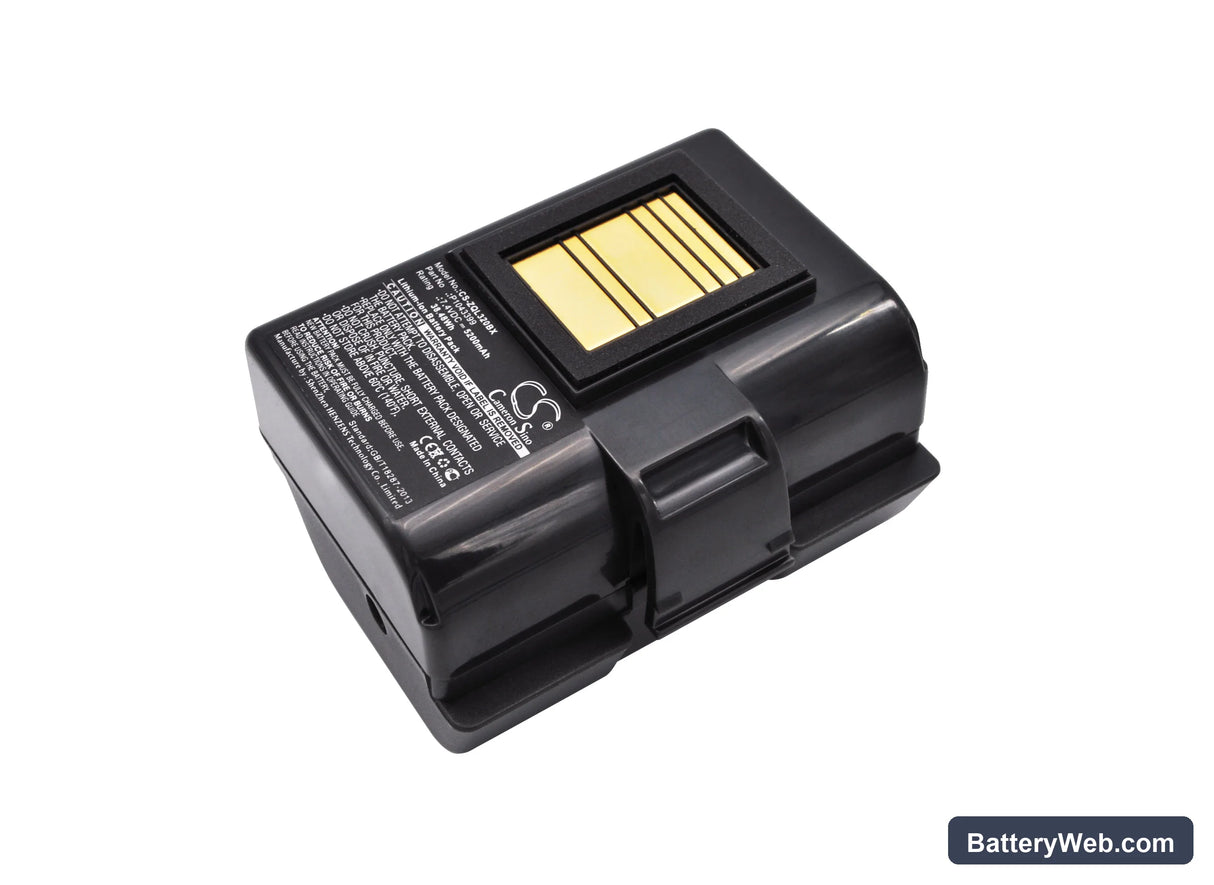

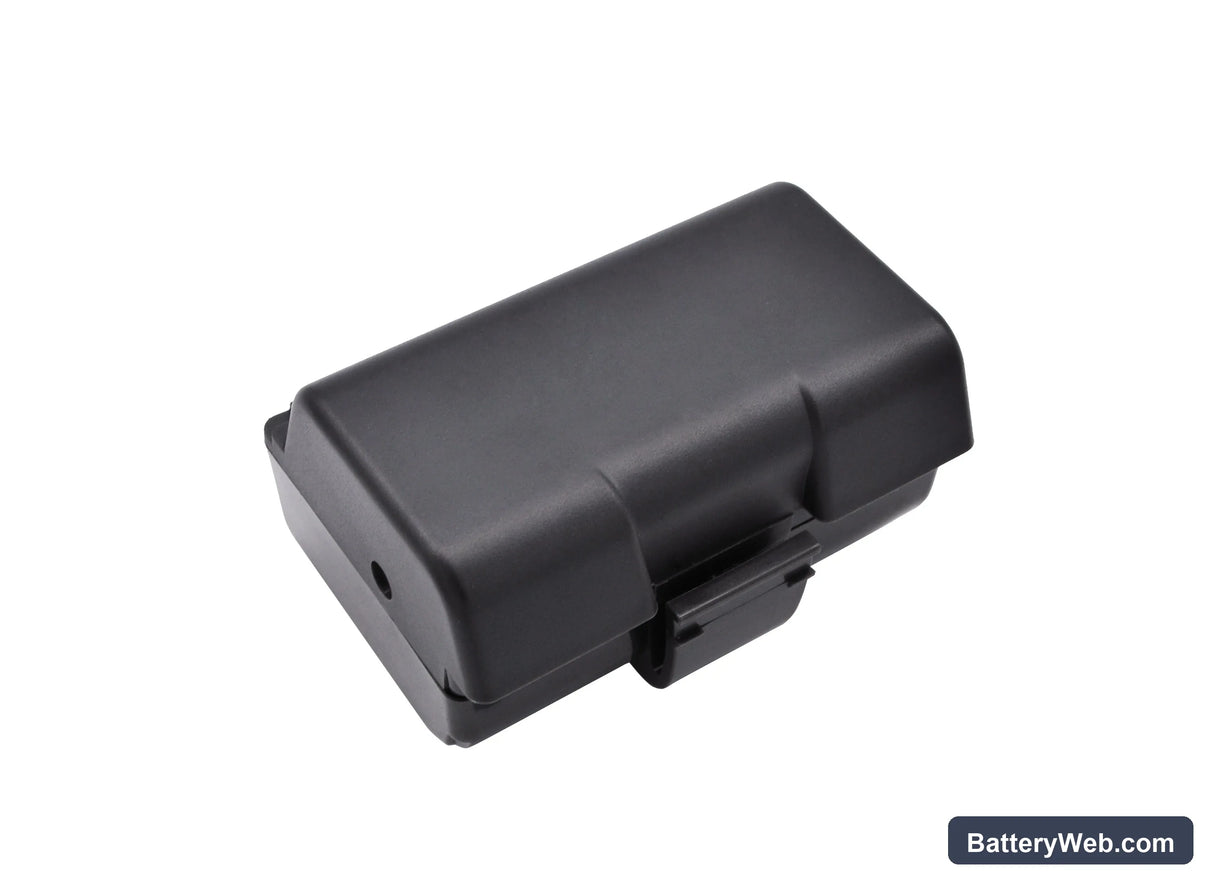

Zebra QLN220 Replacement Battery 7.4V 5200mAh Li-ion

Zebra QLN220 / QLN320 / ZQ510 / ZQ520 — 7.4V Li-ion Replacement Battery (P1031365-025)

This 7.4V 5200mAh Li-ion battery replaces the original power pack in the Zebra QLN220, QLN320, ZQ510, and ZQ520 portable thermal printers. It also covers nine additional compatible Zebra mobile printer models. The cell matches the original voltage rail and connector, so no modification is required at installation.

• QLN and ZQ series platform fit: The QLN220, QLN320, ZQ510, and ZQ520 share the same battery bay dimensions, connector pinout, and BMS handshake protocol — that is why one cell covers all four models plus the extended compatibility list. Swapping between these models does not require any firmware change.
• Bench tested on actual hardware: We ran this cell on a QLN320 and cycled the BMS through charge, idle, and continuous print loads. The BMS held stable current delivery across the thermal head and paper feed motor without triggering low-voltage cutoff at normal operating draw.
• First-deploy print sequence: After installing, charge to 100% and run five consecutive print jobs before field deployment. The thermal printer's BMS calibrates its current profile against real motor and head load during those first cycles — skipping this step can cause the printer to misread state-of-charge and cut off prematurely mid-shift.

Why the QLN220 drops Bluetooth mid-job at low charge

The QLN220's Bluetooth radio and thermal head both draw from the same voltage rail. When the battery drops below roughly 6.8V under load, the printer prioritises the print motor and thermal head, which causes the radio module to lose enough voltage to drop its connection. This looks like a wireless fault but the root cause is voltage sag from an aged or partially charged cell. Keeping the battery above 30% charge before starting a large job eliminates most mid-job disconnections.

Faded or uneven print output after fitting a new battery

The thermal head in ZQ510 and QLN series printers adjusts its burn temperature based on a stable voltage input — typically 7.2–7.4V at the head. If the new battery has not completed its first full charge cycle, its resting voltage may sit lower, causing the head to underheat and produce faint or patchy output. This is not a head fault. Charge the battery fully, then print a test label from the Zebra Setup Utilities; output should normalise to a consistent dark print immediately after a full charge.
