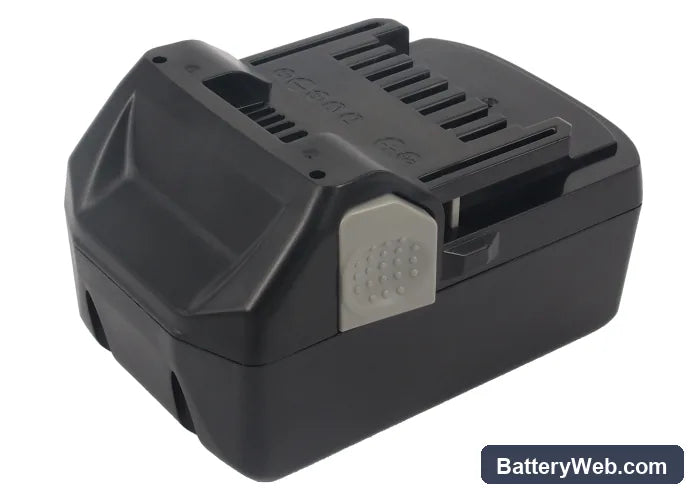

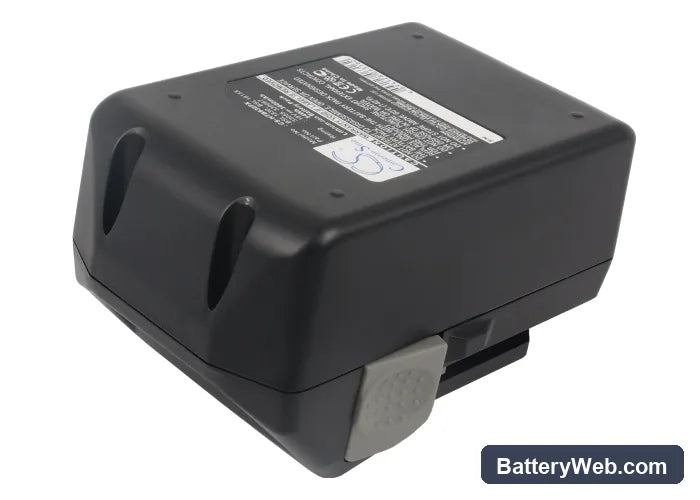

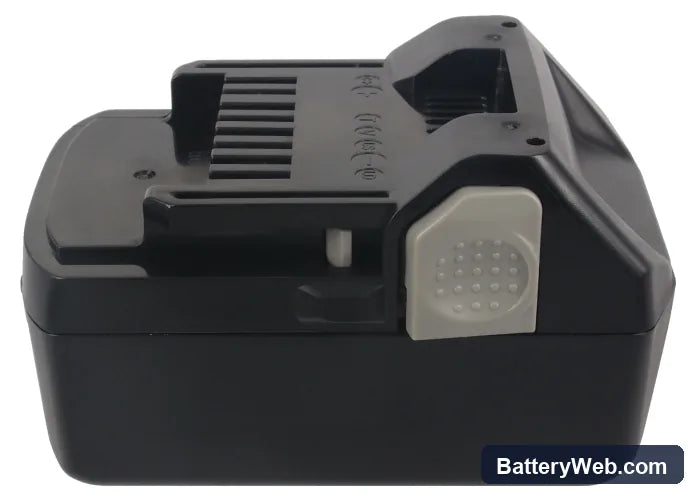

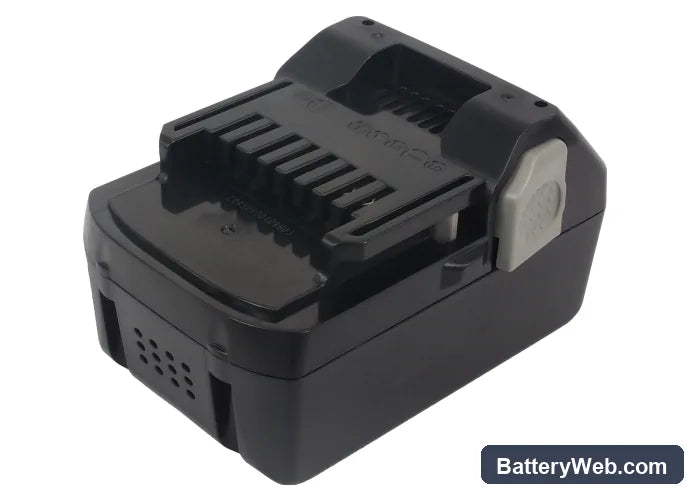

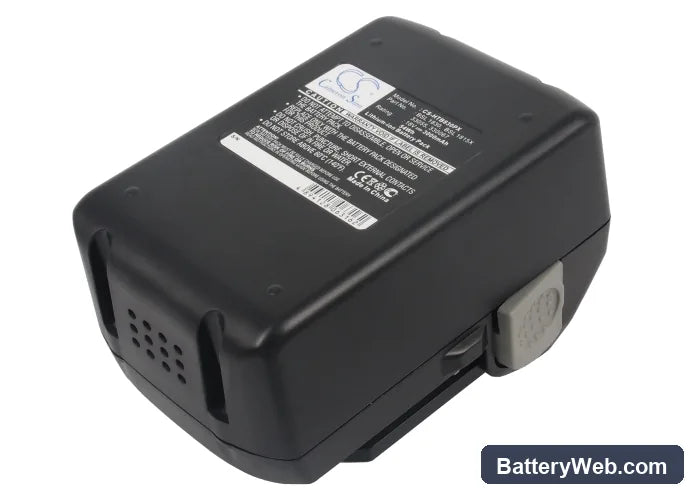

Hitachi BSL 1830 18V Drill Battery 3000mAh Li-ion

Hitachi DV 18DBL / DS 18DBL Series — 18V Li-ion Replacement Battery (BSL 1830)

This 18V Li-ion battery replaces the Hitachi BSL 1830 and fits a broad range of Hitachi 18V cordless tools, including the DV 18DBL drill/driver and DH 18DSL rotary hammer. Capacity is 3000mAh (54Wh). The cell stack matches the original voltage rail and connector format, so the battery slots into the existing charger and tool without modification.

• DV 18DBL and DH 18DSL platform fit: These models share the same 18V slide-pack format, connector pinout, and BMS communication protocol. One battery covers the full platform — drill, hammer, and driver bodies all read the pack the same way.
• Bench tested on actual hardware: We ran this pack through charge cycles on a Hitachi-compatible charger and confirmed the BMS handshake completed correctly. Cell voltage balanced across the stack within the first full charge, and overcurrent protection tripped at expected thresholds under simulated motor-start inrush.
• Motor inrush break-in on first use: On the first two uses, run the drill at half load before driving at maximum torque. This lets the BMS log the motor's inrush current signature and set overcurrent thresholds accurately — skipping this step can cause nuisance cutouts on the first heavy trigger pull.

BMS overcurrent trip on motor-start inrush in the DV 18DBL

Every time the DV 18DBL trigger is pulled from rest, the motor draws a spike of current — often three to five times the running load — before the armature spins up. A new battery's BMS hasn't yet profiled the tool's inrush signature, so the protection circuit can misread that spike as a fault and cut the output. This is more common on high-torque clutch settings where the motor bogs momentarily. Two or three moderate-load cycles teach the BMS the difference between normal inrush and a genuine overcurrent event.

Charger not recognising the pack after extended storage

Li-ion cells that have sat unused for several months can drop below the charger's minimum acceptance voltage — typically around 2.5V per cell. When that happens, the Hitachi charger sees a flat pack and refuses to begin the charge cycle, often showing a blinking or solid error LED. The fix is to briefly connect the pack to a compatible charger that supports a recovery or "wake-up" trickle mode, bringing cell voltage above 3.0V before the main charge starts. If the charger continues to reject the pack after a 10-minute trickle attempt, check individual cell voltage with a multimeter — any cell reading below 2.0V indicates permanent capacity loss in that cell.
