Porter Cable PC18B 18V Replacement Battery 1500mAh Li-ion

Porter Cable PC18CS Series — 18V Li-ion Replacement Battery (PC18B)

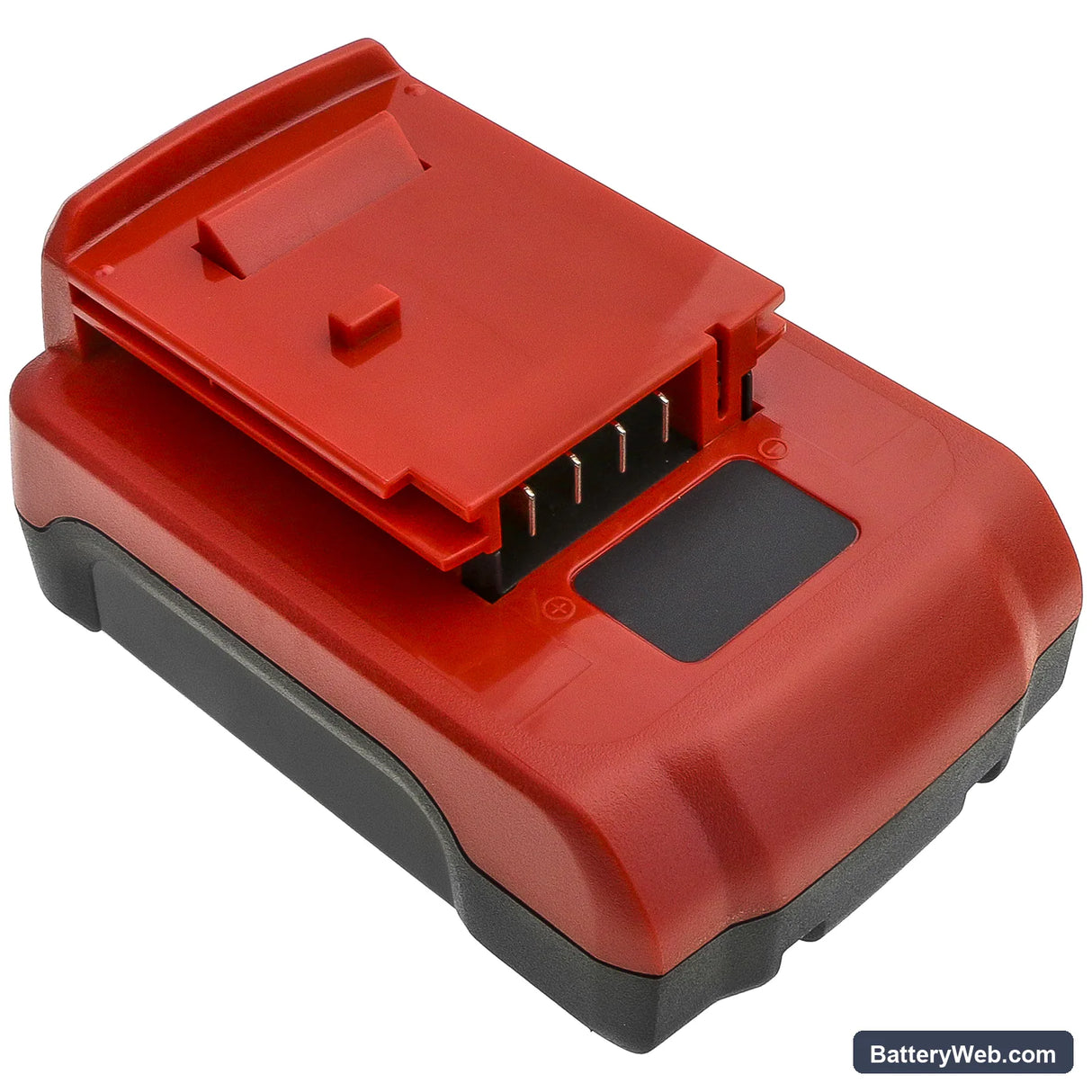

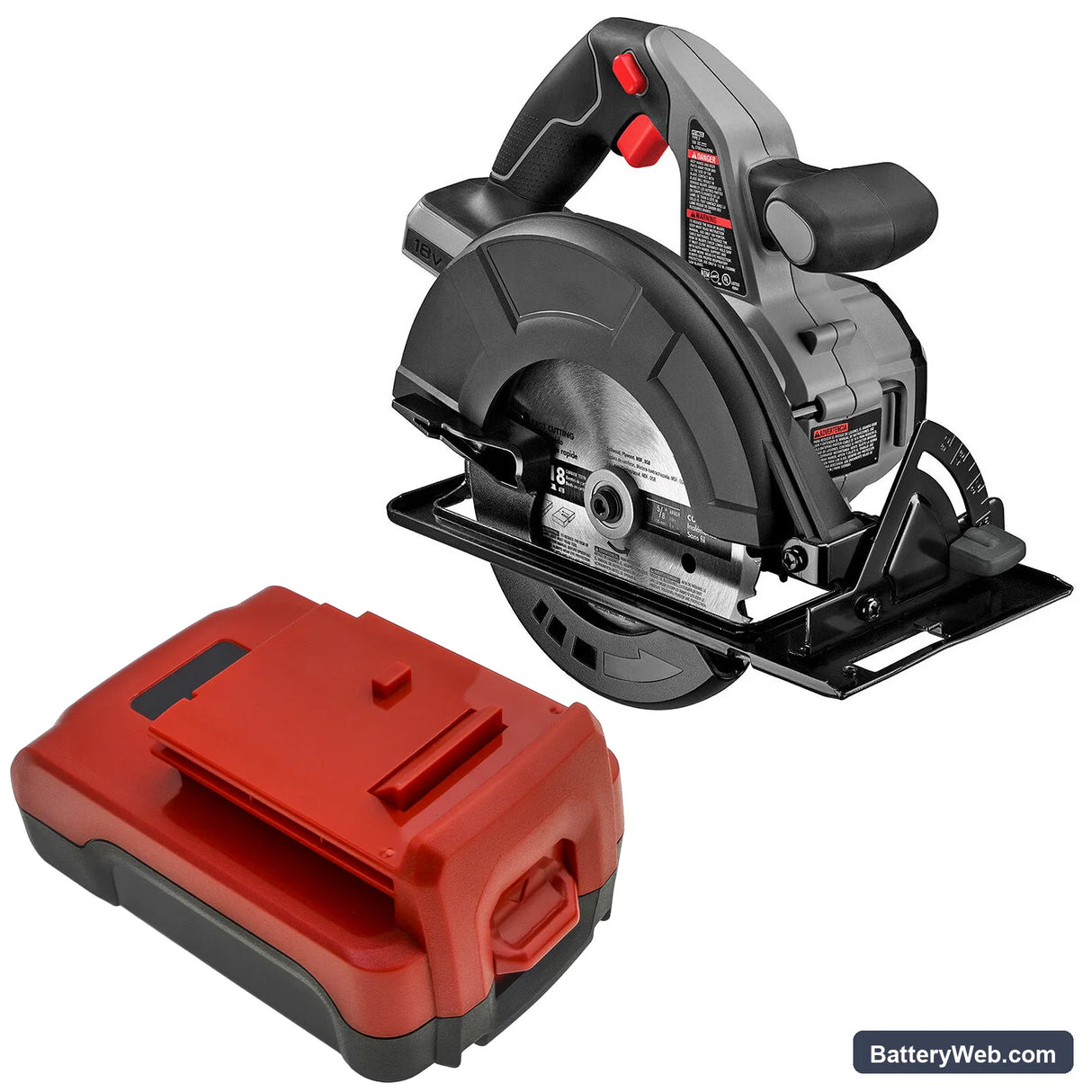

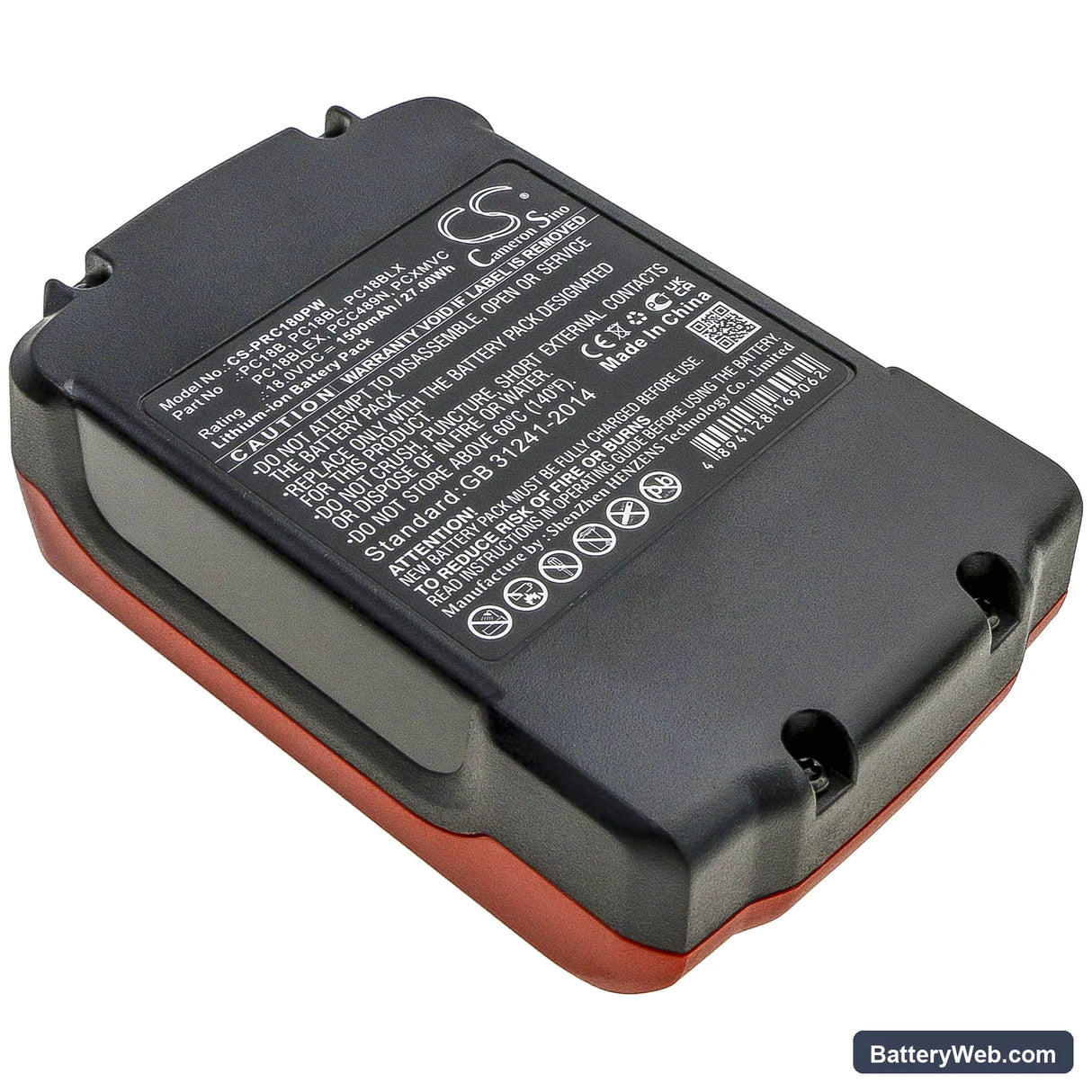

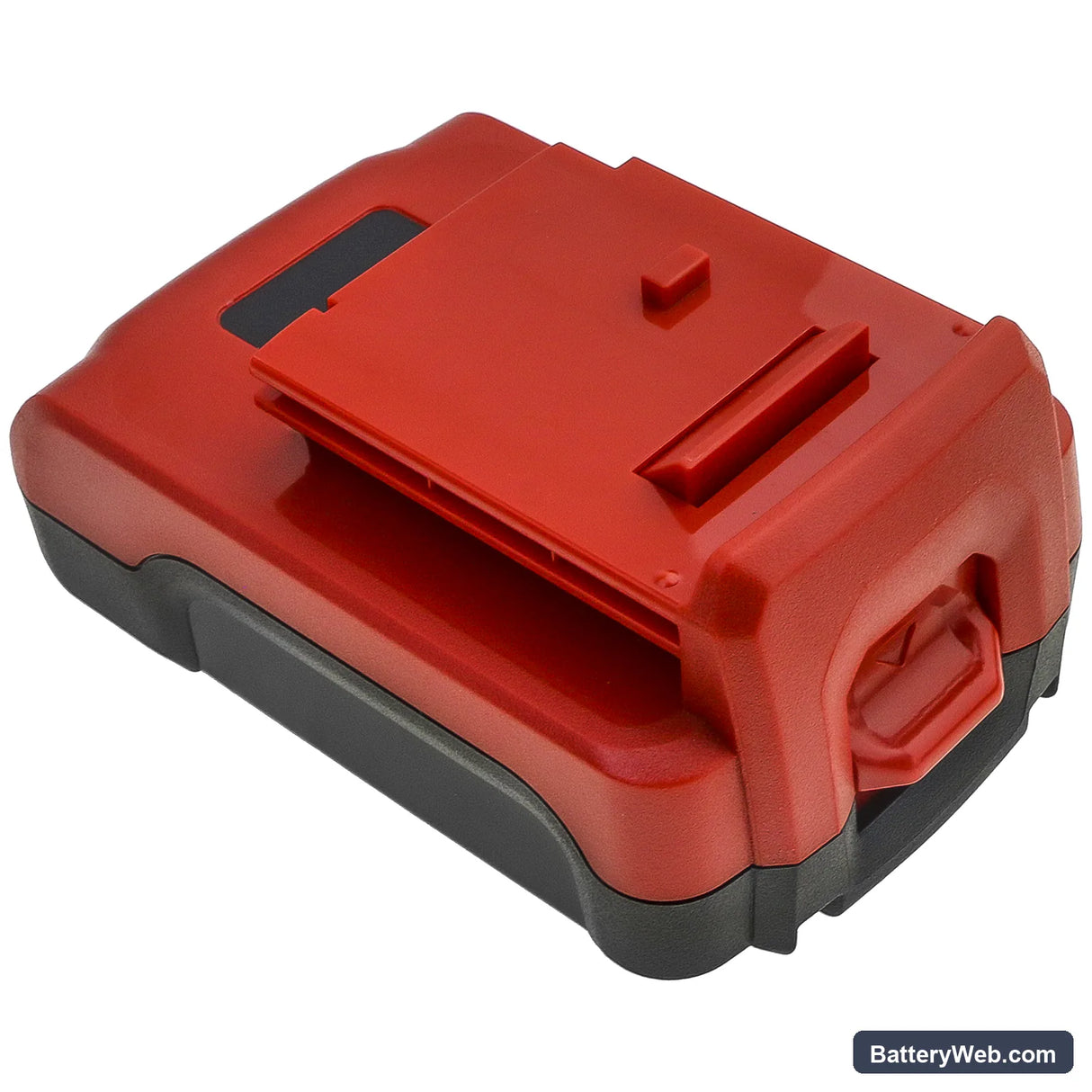

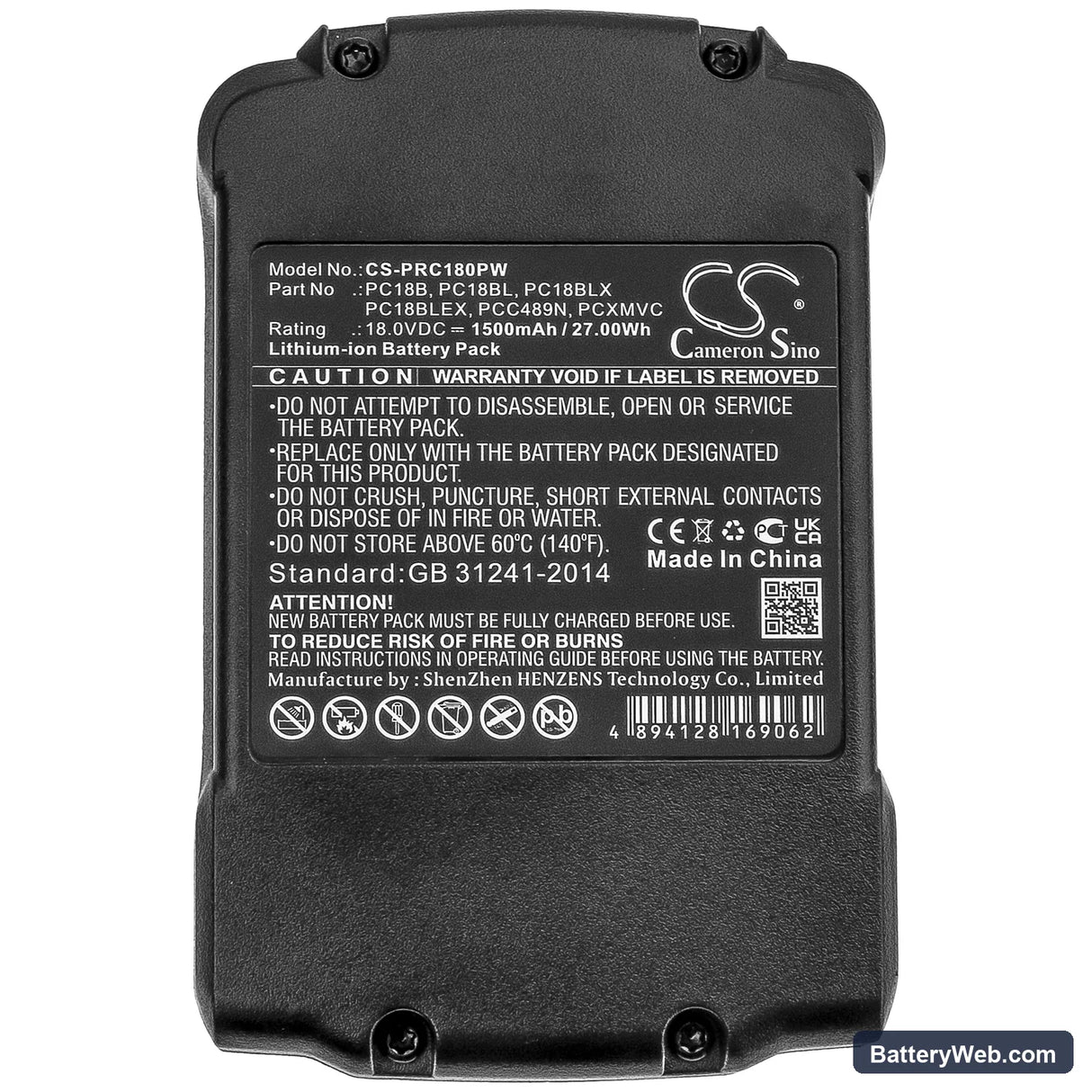

This is an 18V, 1500mAh Li-ion battery pack built to fit the Porter Cable PC18CS reciprocating saw and related 18V platform tools including the PC1800RS, PC1800D, and PC1801D. It replaces OEM part numbers PC18B, PC18BL, PC18BLX, PC18BLEX, PCC489N, and PCXMVC. Voltage and connector format match the original pack exactly.

• PC18CS platform compatibility: All models in this group share the same 18V rail, slide-in connector, and BMS handshake protocol. Swapping between the reciprocating saw and drill bodies on this platform works without reconfiguration — the battery communicates identically across the series.
• Bench tested on actual hardware: We ran this pack through the PC18CS trigger cycle, monitoring BMS response to motor-start inrush current. The protection circuit held within spec across repeated start cycles without nuisance tripping.
• First-cycle load break-in: On initial use, run the saw through light cuts — thin timber or conduit — for the first two charge cycles before pushing into heavy stock or nail-embedded wood. This lets the BMS profile the motor's inrush current draw before locking overcurrent thresholds.

BMS cutoff on PC18CS motor-start inrush surge

The PC18CS draws a sharp current spike the instant the trigger closes — well above the steady-state cutting draw. A new pack with uncalibrated BMS thresholds can interpret this spike as a fault and cut power before the blade moves. This is more common after storage, when cells have sat at a low state of charge and internal resistance is elevated. Running two light-load cycles first allows the BMS to distinguish normal inrush from a genuine overcurrent event. After that, full-load cuts should proceed without nuisance shutoffs.

Charger not recognising the pack after storage

Li-ion packs stored below roughly 2.5V per cell will fall outside the voltage window most chargers accept to begin a charge cycle. The charger blinks an error or does nothing — it is not a faulty charger or a dead pack. Some chargers have a recovery or "wake" mode that trickle-charges at low current until cells reach 3.0V per cell, at which point normal charging begins. If your charger lacks this mode, a compatible charger with a recovery function is the fix — look for one that accepts packs down to 1.0V per cell to initiate the cycle.
