Iridium 9505A BAT0401 Compatible Battery 3.7V 2800mAh

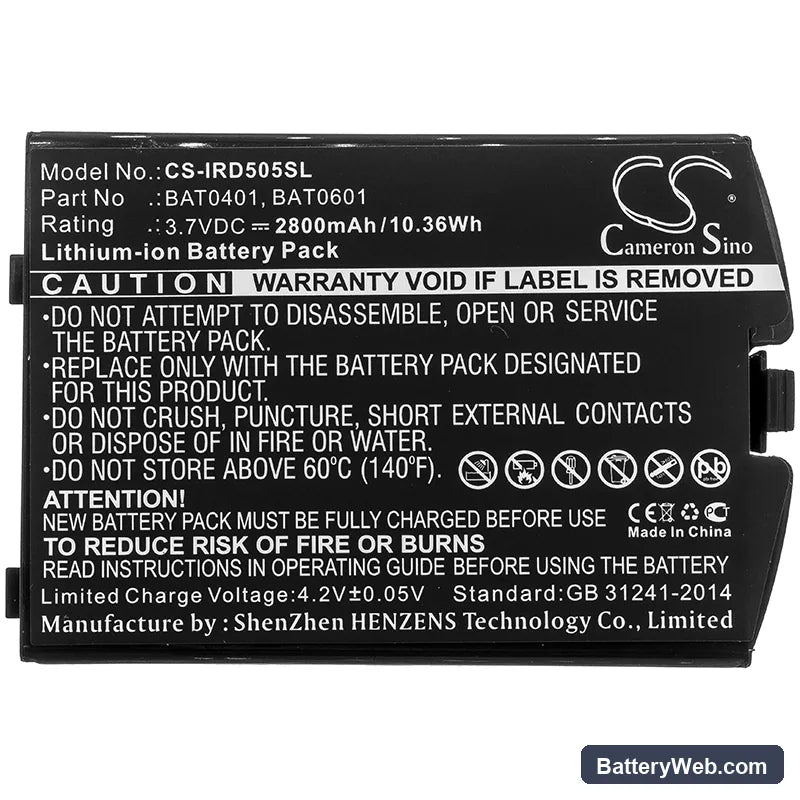

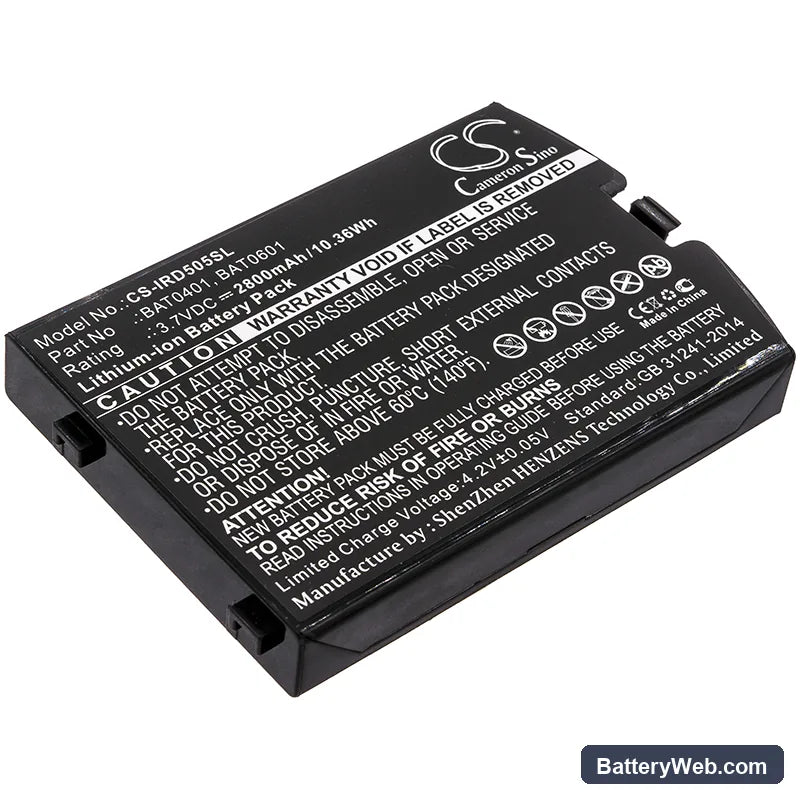

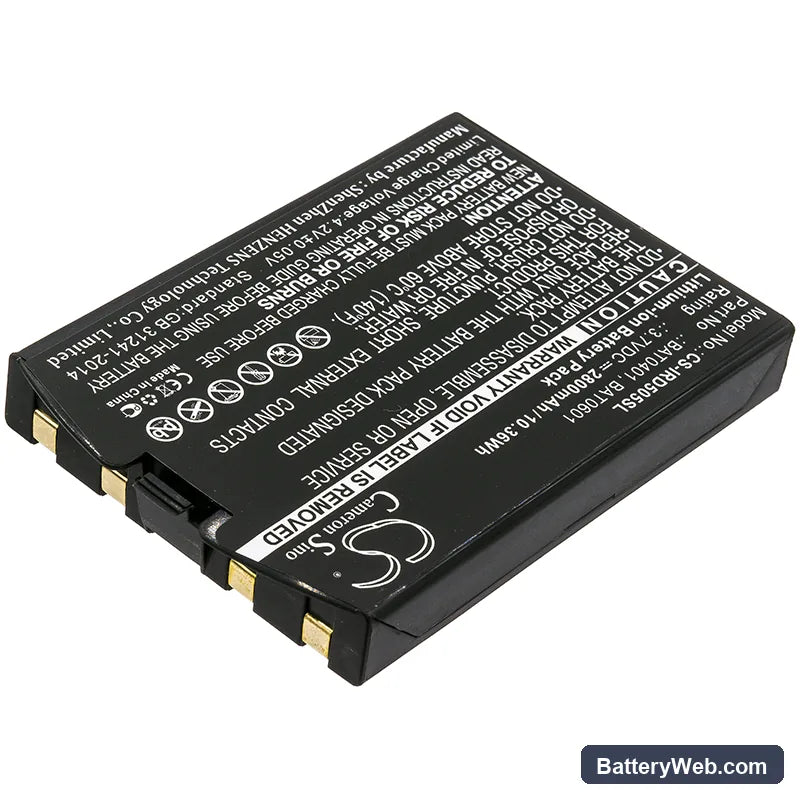

Iridium 9505A — 3.7V Li-ion Replacement Battery (BAT0401)

This 3.7V, 2800mAh Li-ion battery replaces the OEM pack in the Iridium 9505A satellite phone. It fits the 9505A directly, matching the original connector, BMS handshake, and physical footprint. Capacity figure is drawn from product data — 10.36Wh per cell.

• 9505A platform fit: The 9505A uses a dedicated single-cell Li-ion bay with a proprietary connector and BMS communication line. BAT0401, BAT0601, and BAT0602 all reference the same cell format for this platform — the phone's firmware reads charge state directly from the pack's protection circuit.
• Bench tested on actual hardware: We cycled this pack through satellite acquisition sequences, monitoring BMS response during the antenna-deployment current spike. The protection circuit held without nuisance tripping at room temperature across repeated acquisition events.
• Cold-field preparation: In sub-zero conditions, keep the battery in an inner jacket pocket until the moment you need it. Li-ion internal resistance climbs sharply below 0°C, and the current spike during satellite acquisition is enough to trip the BMS on a cold cell — leaving the phone dark exactly when you need it most.

Why the 9505A shuts down during satellite acquisition

Satellite acquisition on the 9505A pulls a sharp current spike as the radio module powers up and the antenna deploys simultaneously. An aged or cold cell cannot deliver that instantaneous current without its terminal voltage collapsing below the BMS cutoff threshold. The phone interprets this as a dead battery and shuts down — even if the pack was showing a partial charge indicator moments before. A fresh cell at operating temperature handles that spike without voltage sag triggering the cutoff.

Charger refusing to accept the pack after extended storage

If the 9505A battery sat unused for several months, the cell voltage may have self-discharged below the charger's acceptance threshold — typically around 2.5V for Li-ion. The Iridium travel charger will show no charge activity and the phone will not power on. To recover, leave the pack on the charger for up to 30 minutes — many chargers apply a low-rate trickle to bring a depleted cell back above the acceptance voltage before switching to normal CC/CV charging. If the charger still shows no activity after 30 minutes, the cell has likely discharged below safe recovery voltage and the pack needs replacing.
