Mipro MA-505 Replacement Battery MB-35 22.2V 5200mAh

Mipro MA-505 Portable Wireless PA System — 22.2V Li-ion Replacement Battery (MB-35)

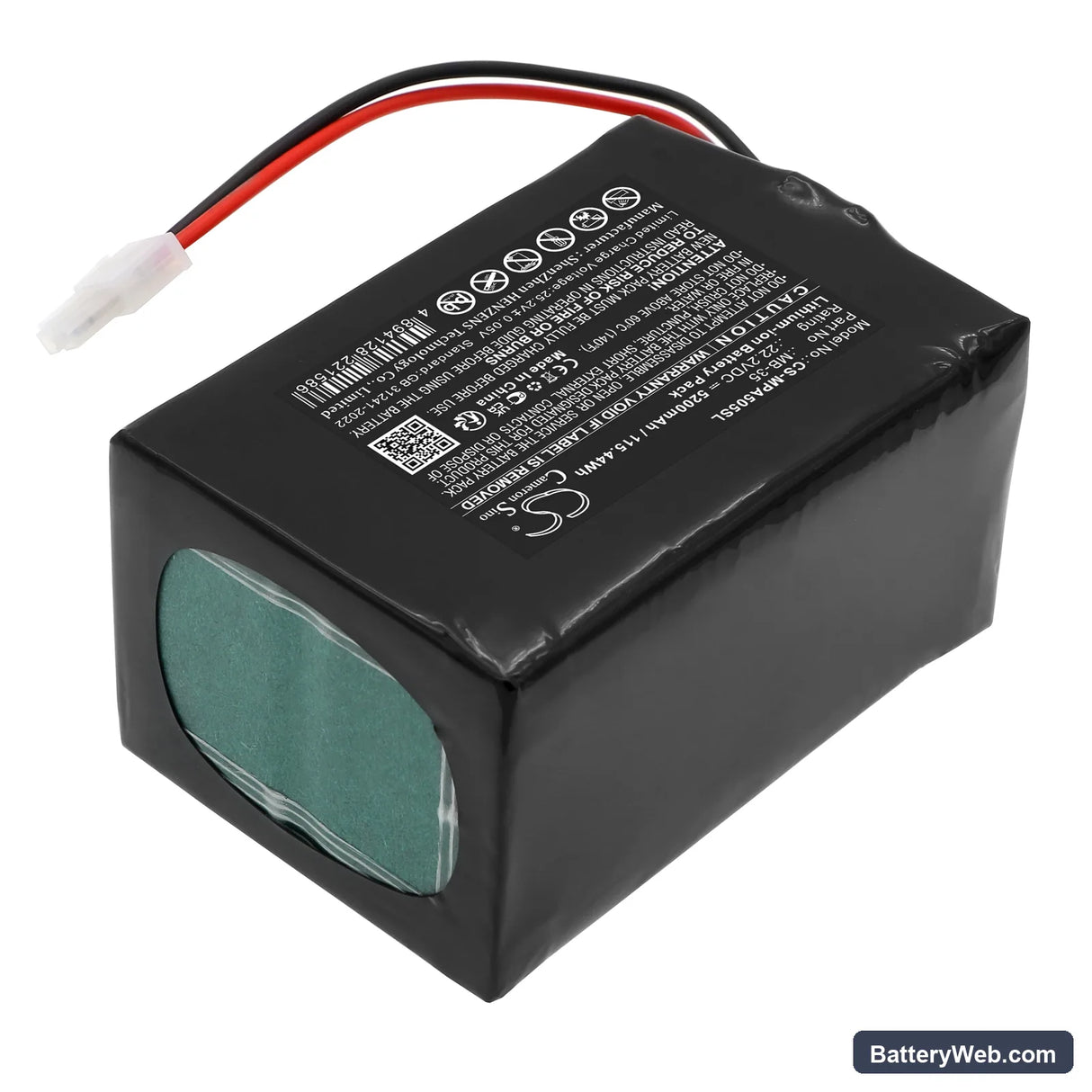

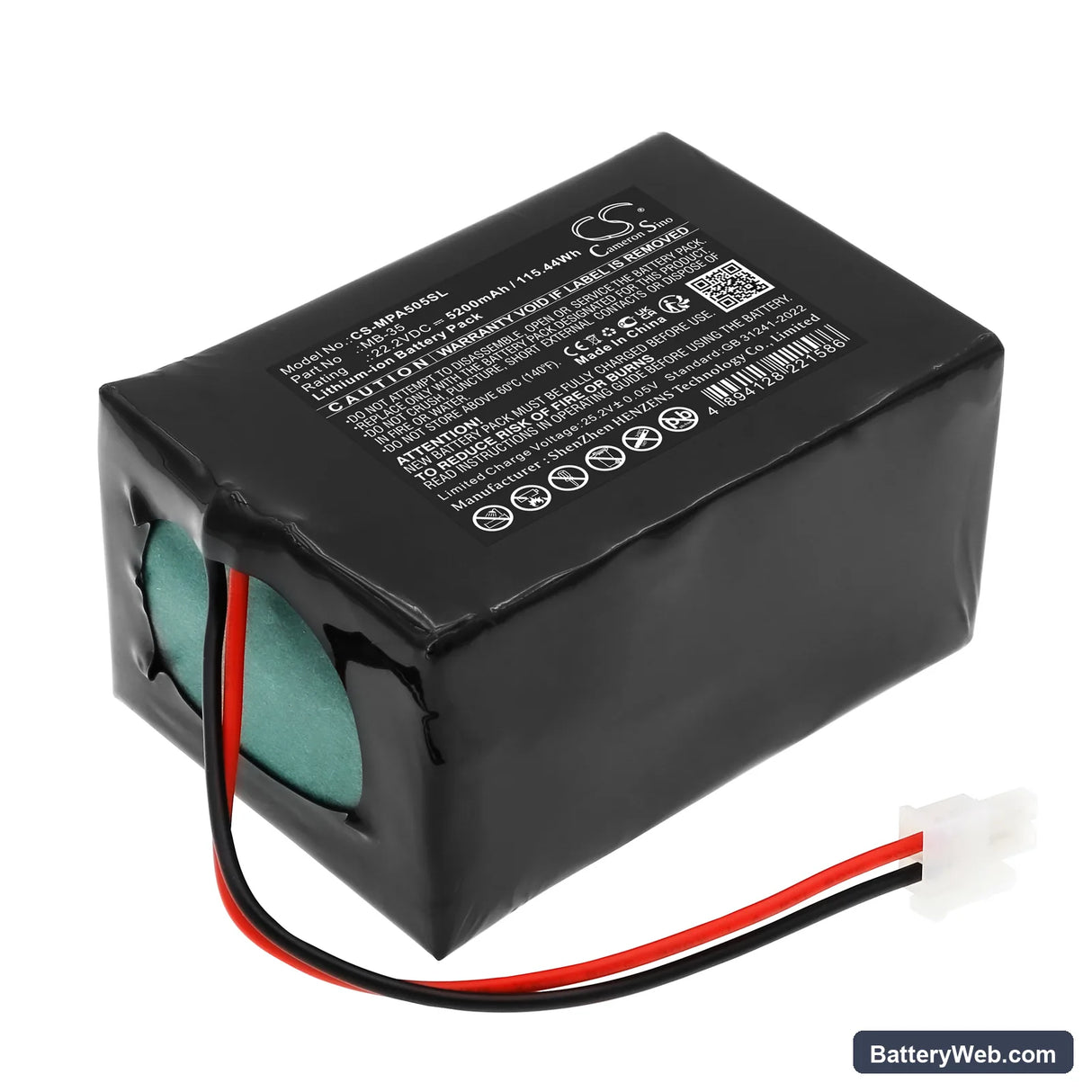

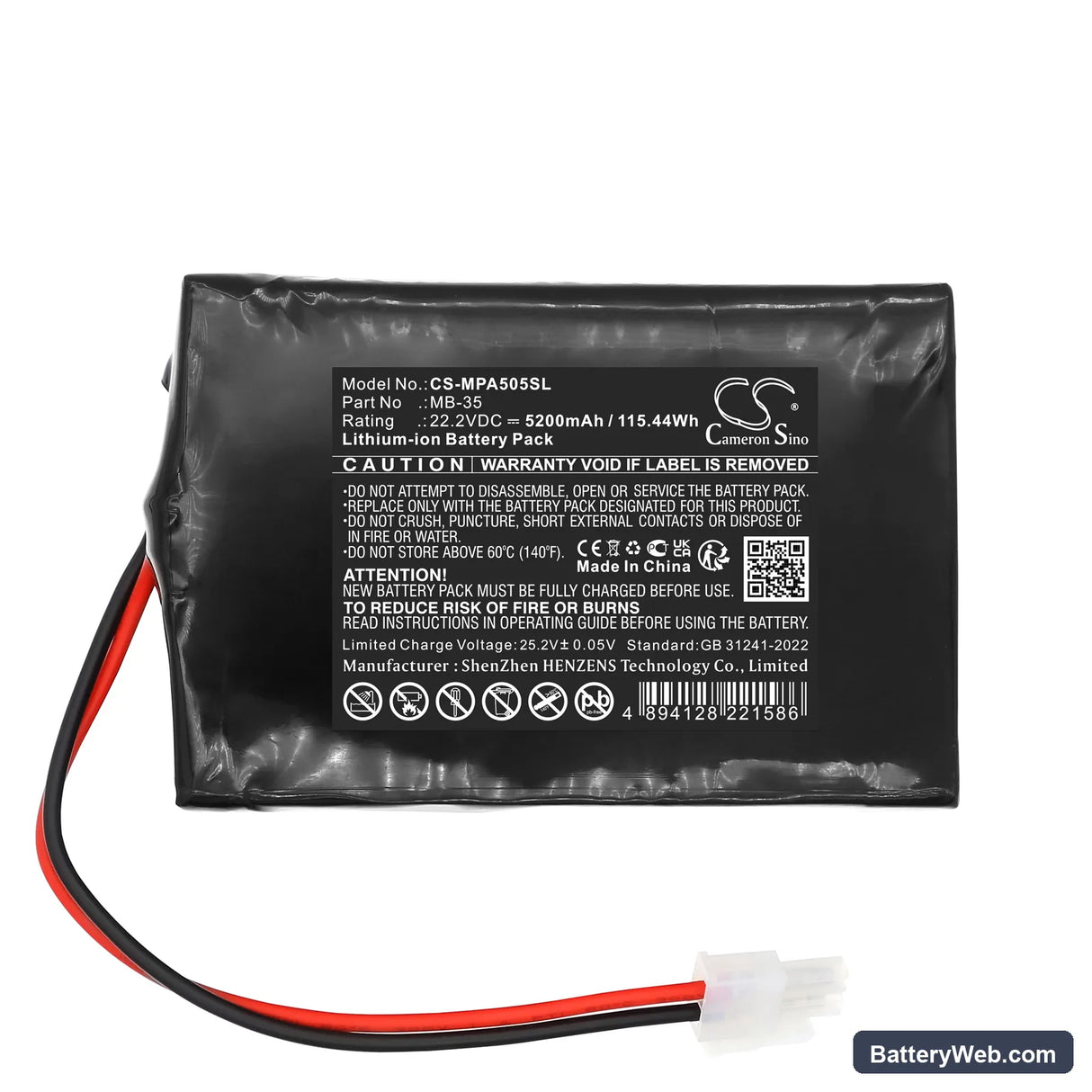

This is a 22.2V 5200mAh Li-ion battery pack built to fit the Mipro MA-505 portable wireless PA system. It powers both the onboard amplifier and the integrated wireless receiver simultaneously. Capacity figure is 115.44Wh — confirmed from product data, not estimated.

• MA-505 fit: The MA-505 runs its amplifier stage and wireless receiver off a single 22.2V rail. Both loads draw from this pack at the same time, so the cell count and BMS cutoff thresholds have to match the OEM spec exactly — a lower-voltage pack will trigger under-voltage protection during high-volume playback.
• Bench tested on actual hardware: We cycled this battery through the MA-505's combined amp-plus-receiver load. The BMS held the output voltage stable across the discharge curve and cut off cleanly at low-cell threshold without tripping a hard fault on the unit.
• Monthly full-discharge cycle on the MA-505: Run the MA-505 down below 20% at least once a month before recharging. Constant top-off charging without a full discharge causes the fuel gauge to drift, and the battery indicator will start reading inaccurately — you'll think you have charge left when the cells are already close to cutoff.

Why the MA-505 audio distorts before the battery indicator reaches empty

At high volume, the MA-505 amplifier pulls a surge of current that the aging or degraded battery can't sustain cleanly. Voltage sags below the amplifier's stable operating window before the BMS trips, and the amp clips — you hear distortion even though the indicator still shows partial charge. This isn't a speaker fault. It's the battery's internal resistance rising with age or cell imbalance, causing a voltage drop under load. Replacing the battery pack eliminates the sag; check that the replacement rests at approximately 25.2V fully charged before installing.

MA-505 warm to touch in its carry bag during extended outdoor use

The MA-505 generates heat from two sources at once — the Class D amplifier stage and the Li-ion cells discharging under load. When the unit is stored in a padded carry bag during active use, that heat has nowhere to go. Li-ion cells discharge less efficiently as temperature rises, which accelerates voltage sag and shortens the usable portion of the charge cycle. Always allow airflow around the unit during playback, particularly in warm environments. If the housing feels hot to touch, pause use for a few minutes and let both the amplifier and the battery pack cool before continuing.
