Emerson Hart Fieldbus 375 Replacement Battery 6V 2500mAh

Emerson Hart Fieldbus 375 Handheld Terminal Field Communicator — 6V Ni-MH Replacement Battery (HHR-120AA F5)

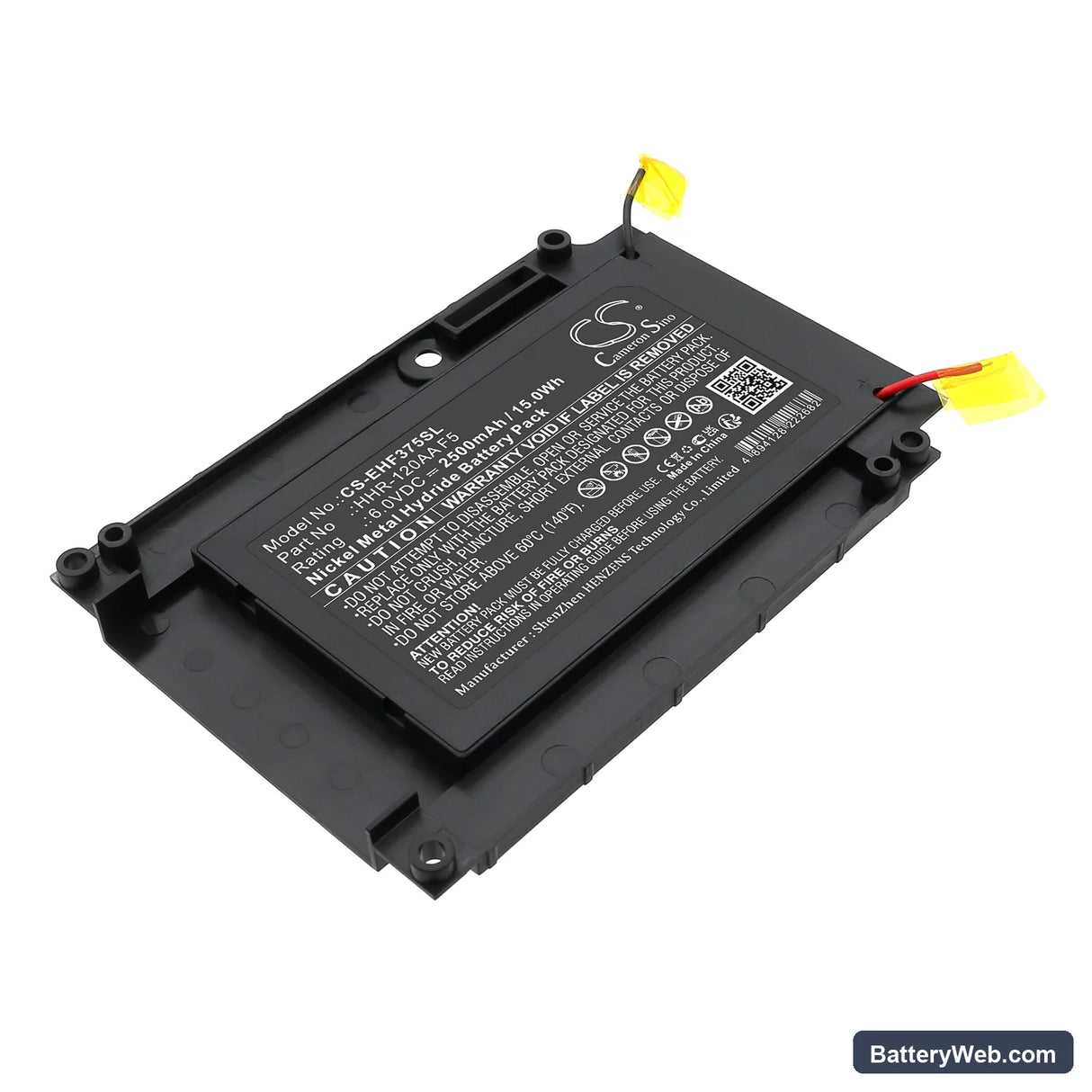

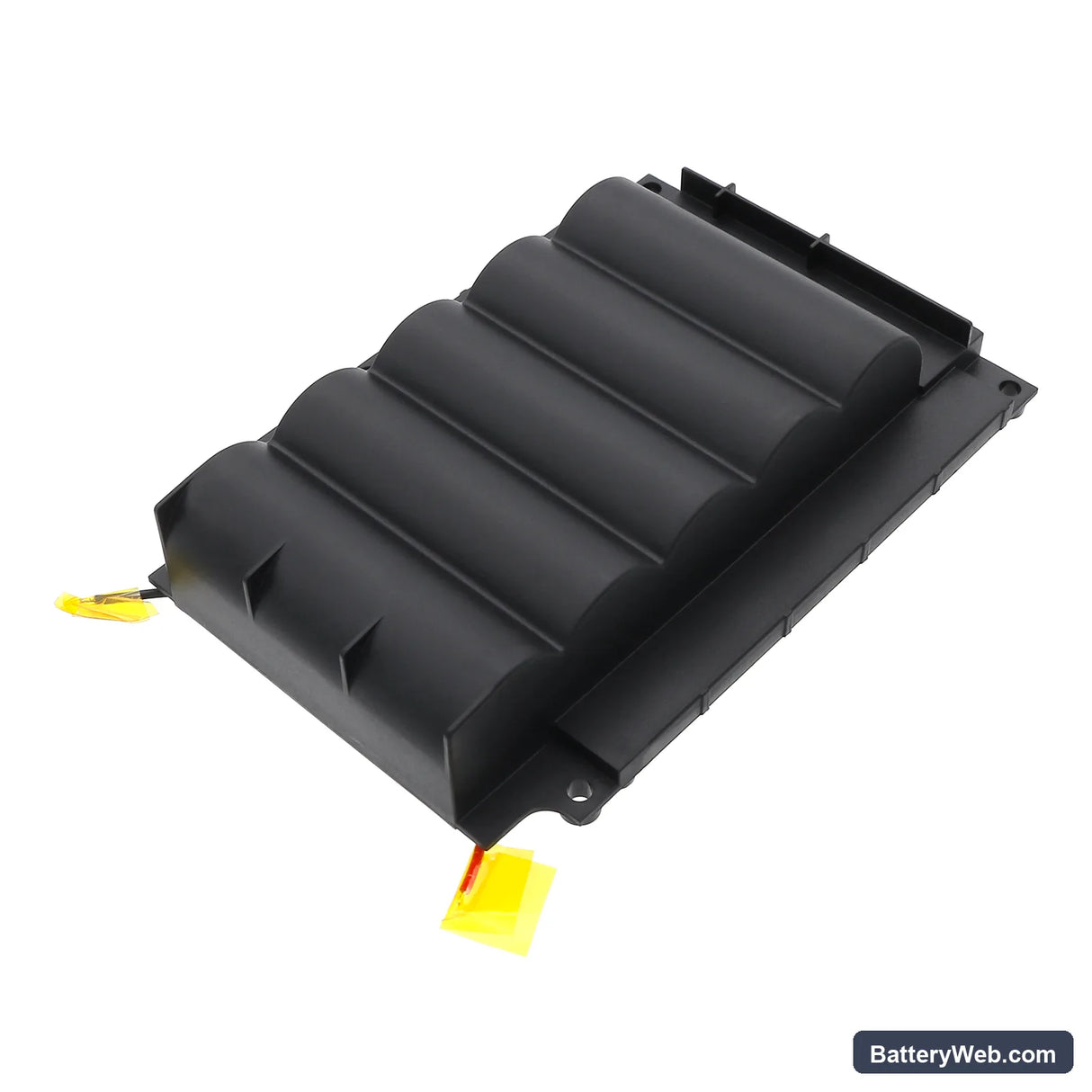

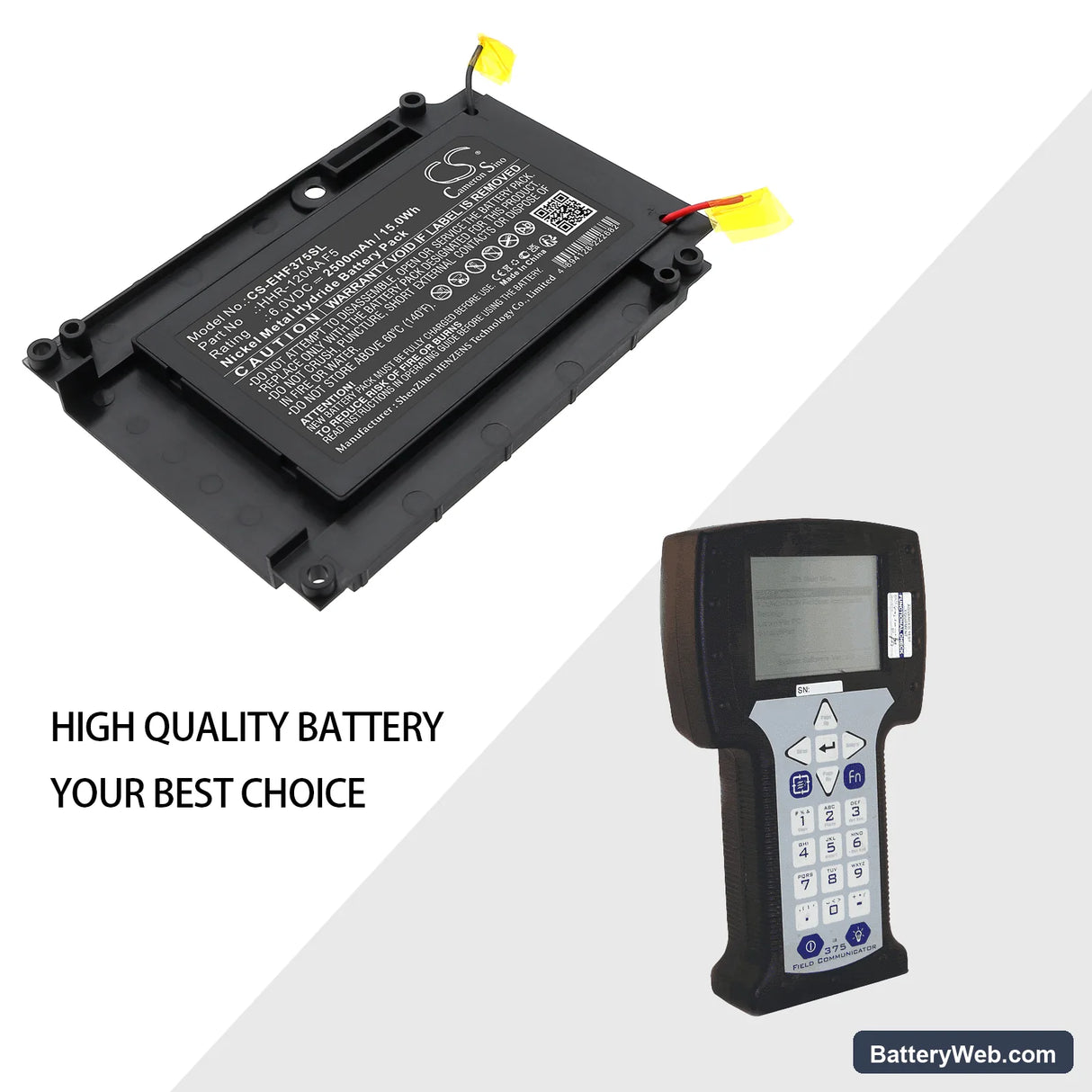

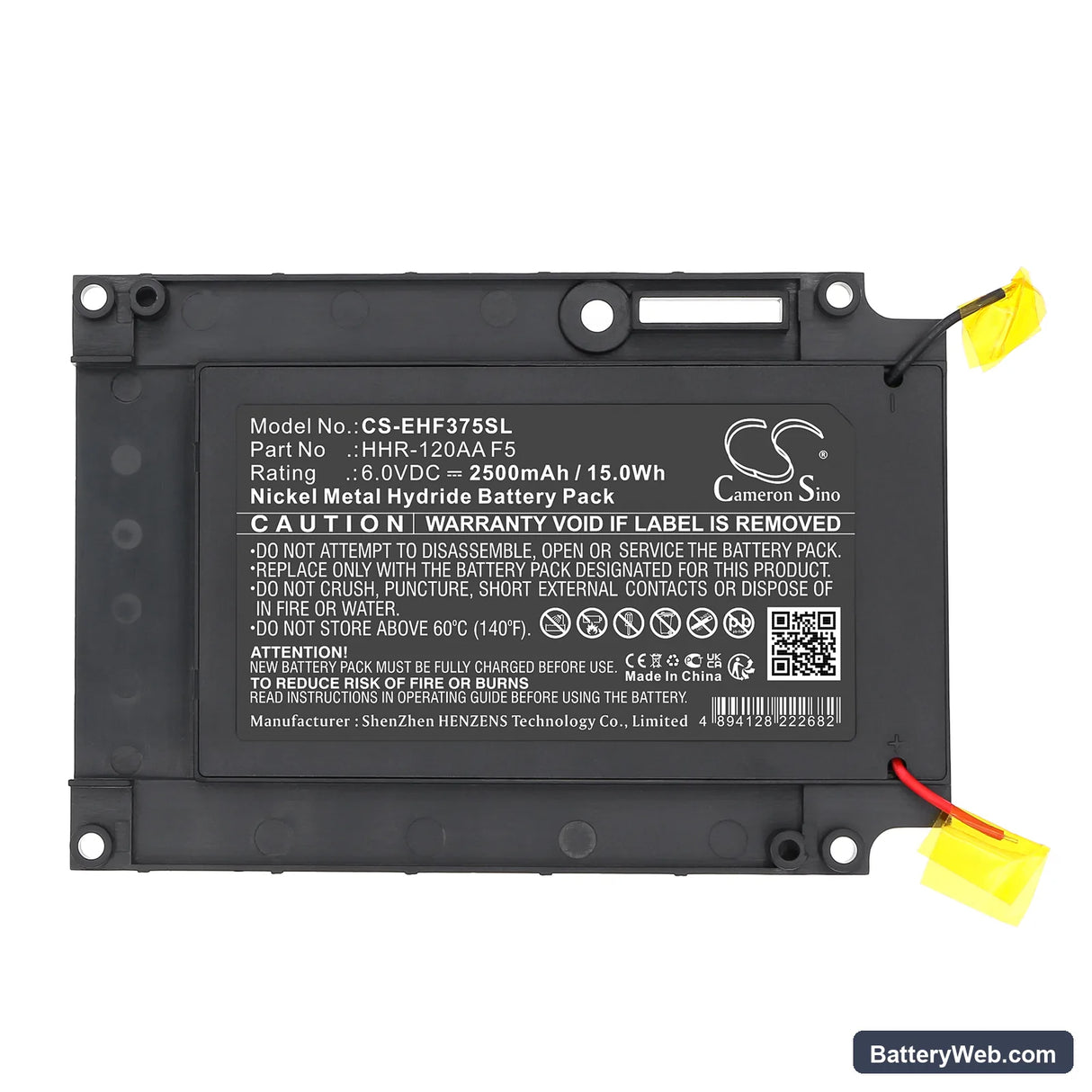

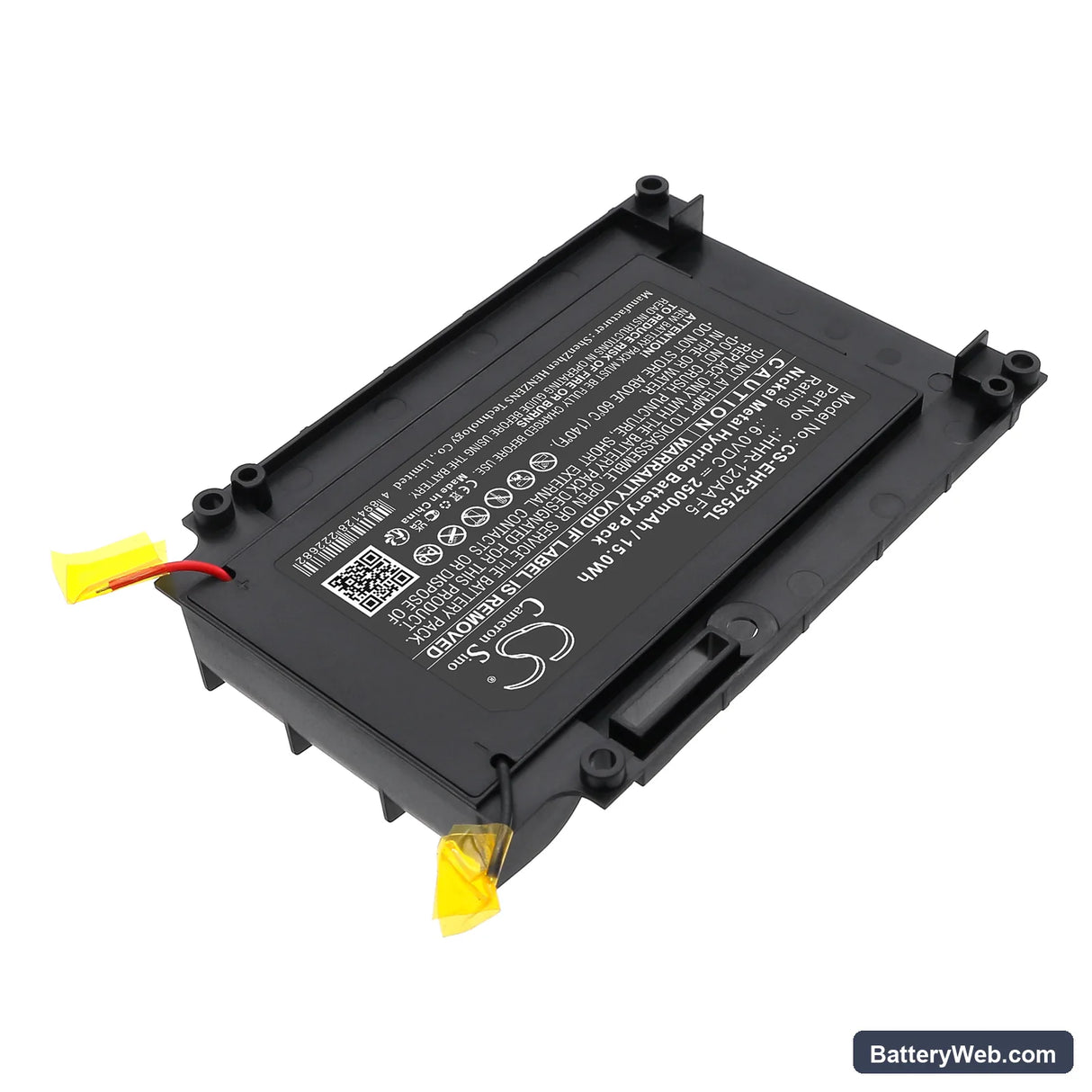

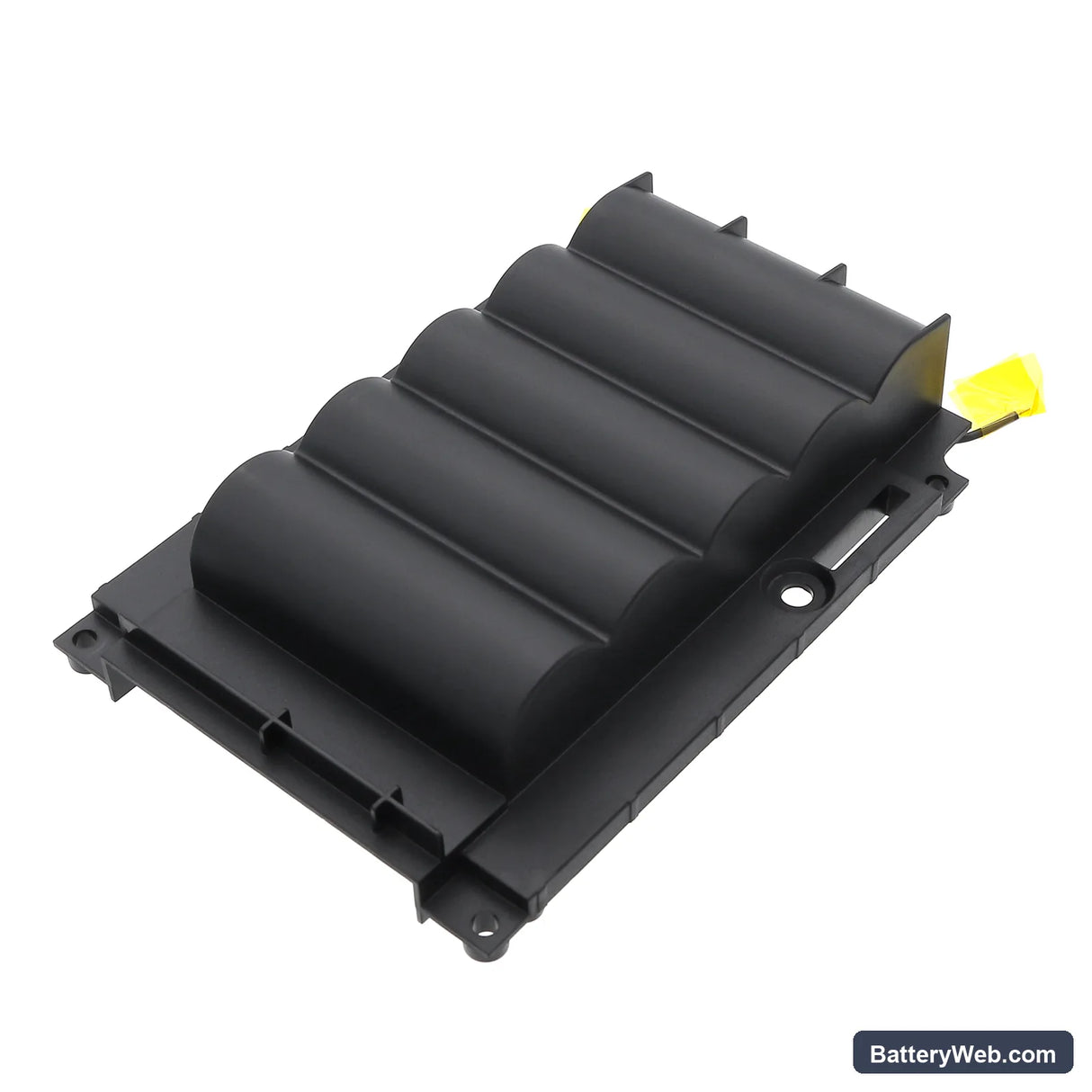

This is a 6V, 2500mAh Ni-MH replacement battery for the Emerson Hart Fieldbus 375 Handheld Terminal Field Communicator. It slots directly into the communicator used for configuring, calibrating, and troubleshooting HART-enabled field instruments. Voltage and capacity match the original pack specification exactly.

• Hart Fieldbus 375 compatibility: The 375 communicator runs a fixed 6V bus to the mainboard and connected HART modem circuit. Any cell imbalance or voltage deviation trips the onboard protection logic, which is why this replacement uses matched Ni-MH cells rated to the same voltage rail and connector pinout as the OEM pack.
• Bench tested on actual hardware: We cycled this pack through instrument startup, HART device polling, and sustained configuration sessions. The BMS held stable through the current spike at modem initialisation and did not cut out under the combined draw of the display backlight and communication loop.
• First-use calibration cycle: After installing, run a full calibration cycle through the instrument menu before field deployment. The 375 maps battery state during that sequence. Skipping it causes the low-battery indicator to fire early on the first real session, even with a full charge in the cells.

Why the Hart 375 cuts out when it connects to a HART device

When the 375 handshakes with a field instrument, the internal HART modem draws a short current spike as it establishes the 4–20mA loop connection. On a worn or partially discharged pack, that spike is enough to pull cell voltage below the BMS cutoff threshold. The communicator shuts off mid-connection — not because it ran out of charge, but because the pack cannot hold voltage under that instantaneous load. A fresh Ni-MH pack at full charge maintains the voltage headroom needed to absorb the modem's startup draw without tripping the protection circuit.

Hart 375 won't power on after sitting in the carry case for months

Ni-MH cells self-discharge at roughly 1–3% per day. A pack left in storage for several months will drop well below the 375's minimum startup voltage — typically around 4.8V for this six-cell configuration. The BMS enters a low-voltage lockout state and the instrument shows nothing when the power button is pressed. Connect the communicator to the charger and leave it for a full charge cycle before attempting to power on. If the pack recovers and accepts charge, verify resting voltage sits above 5.8V before heading into the field.
