Sokkia BDC72 Replacement Battery 7.4V 5500mAh

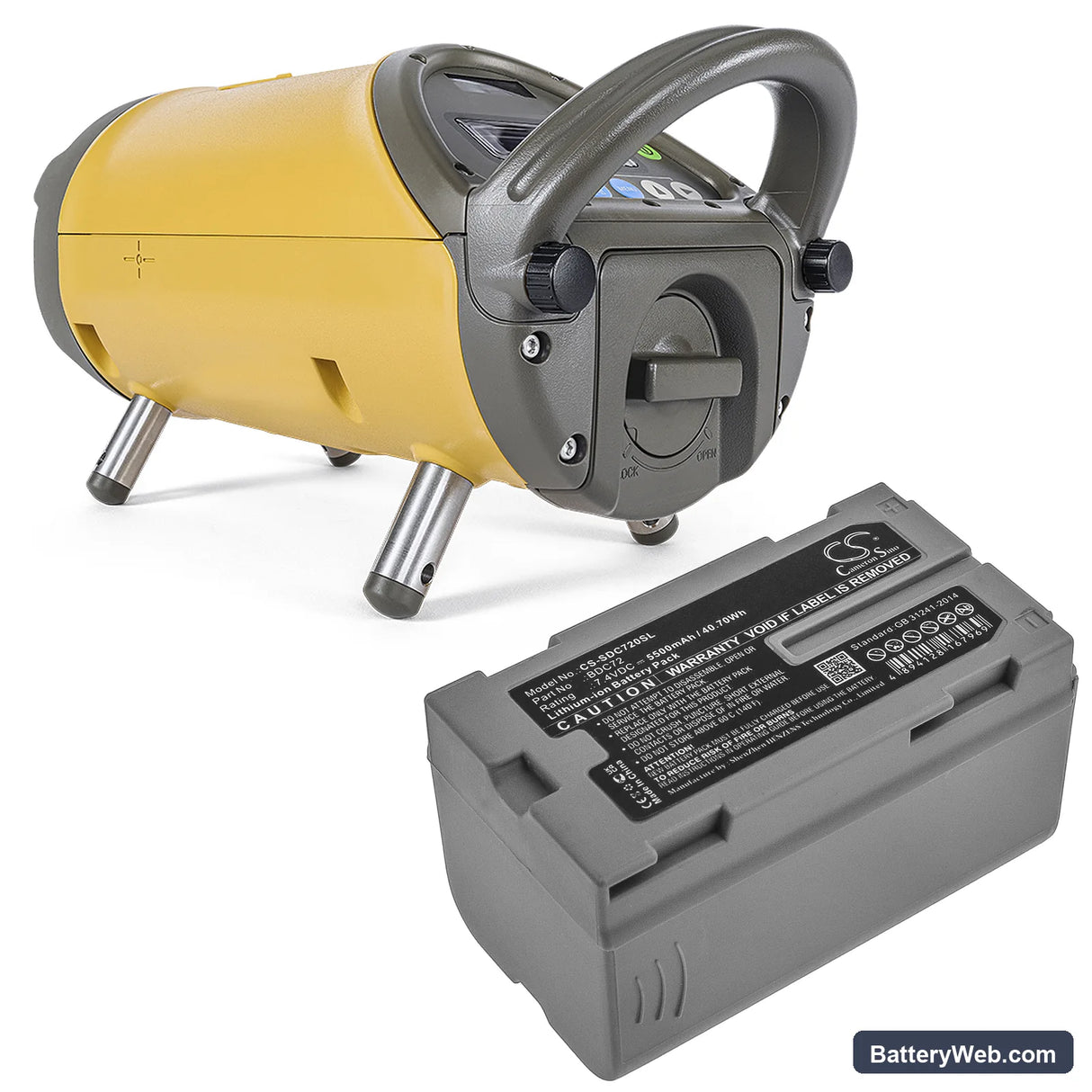

Sokkia LN-150 / TP-L6 Series — 7.4V Li-ion Replacement Battery (BDC72)

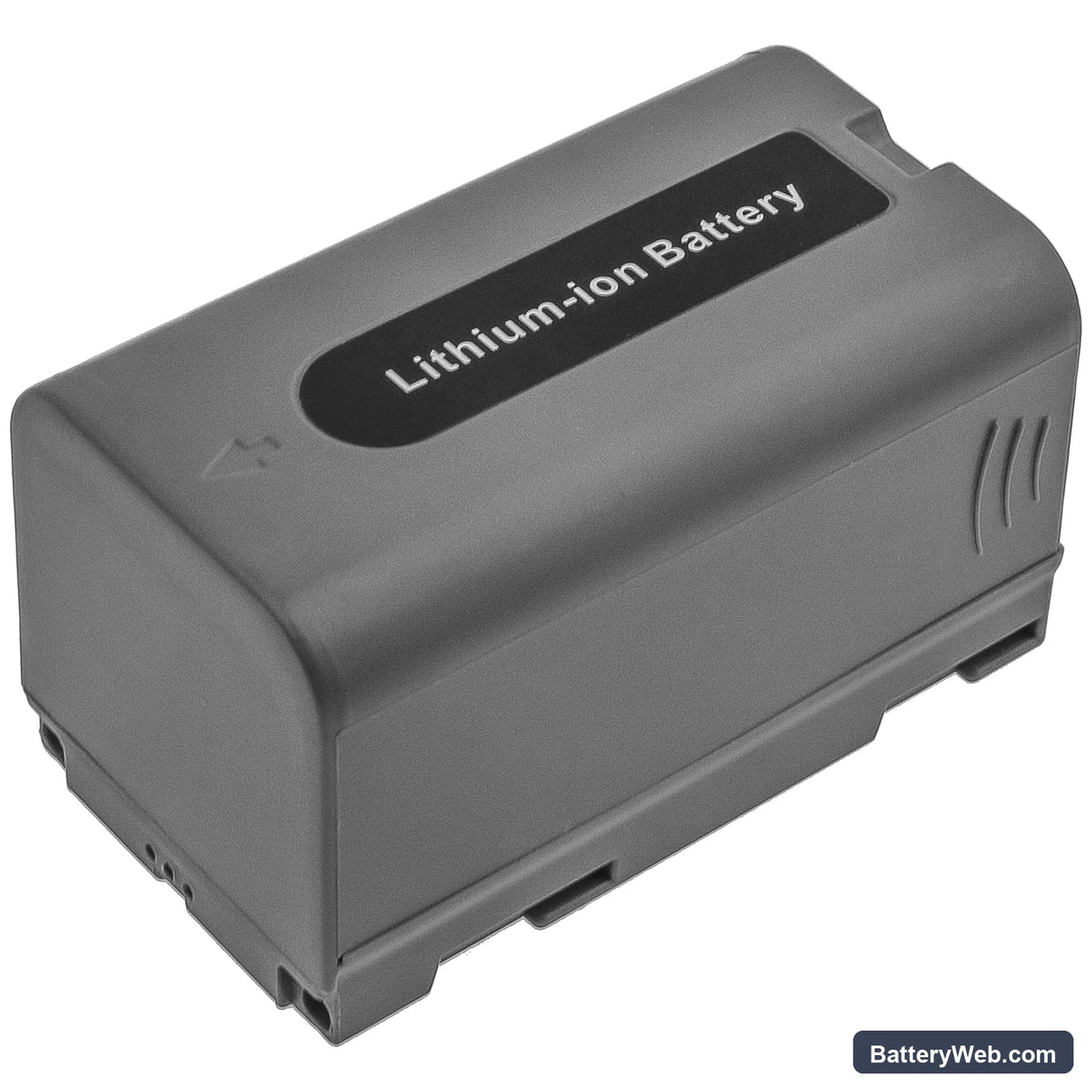

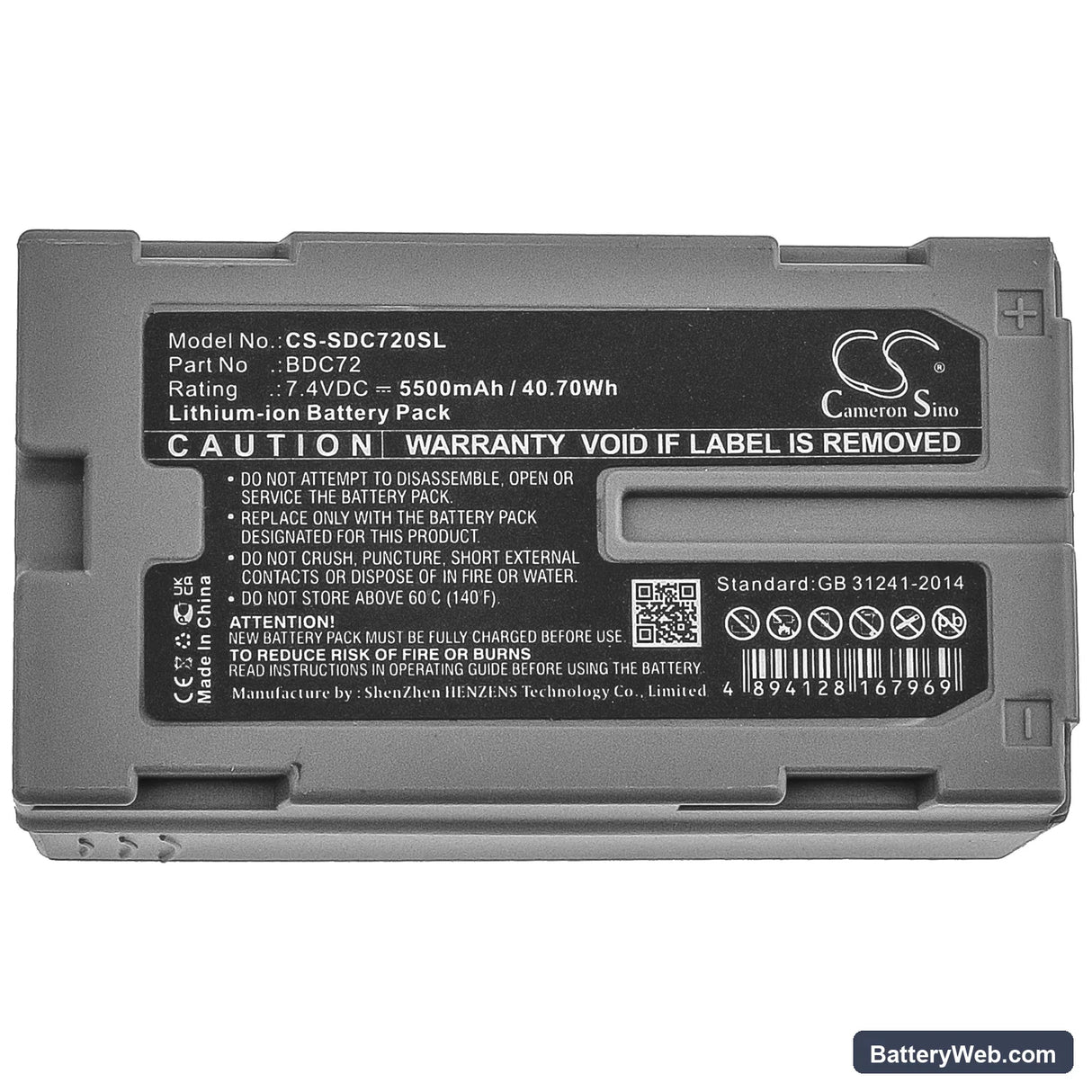

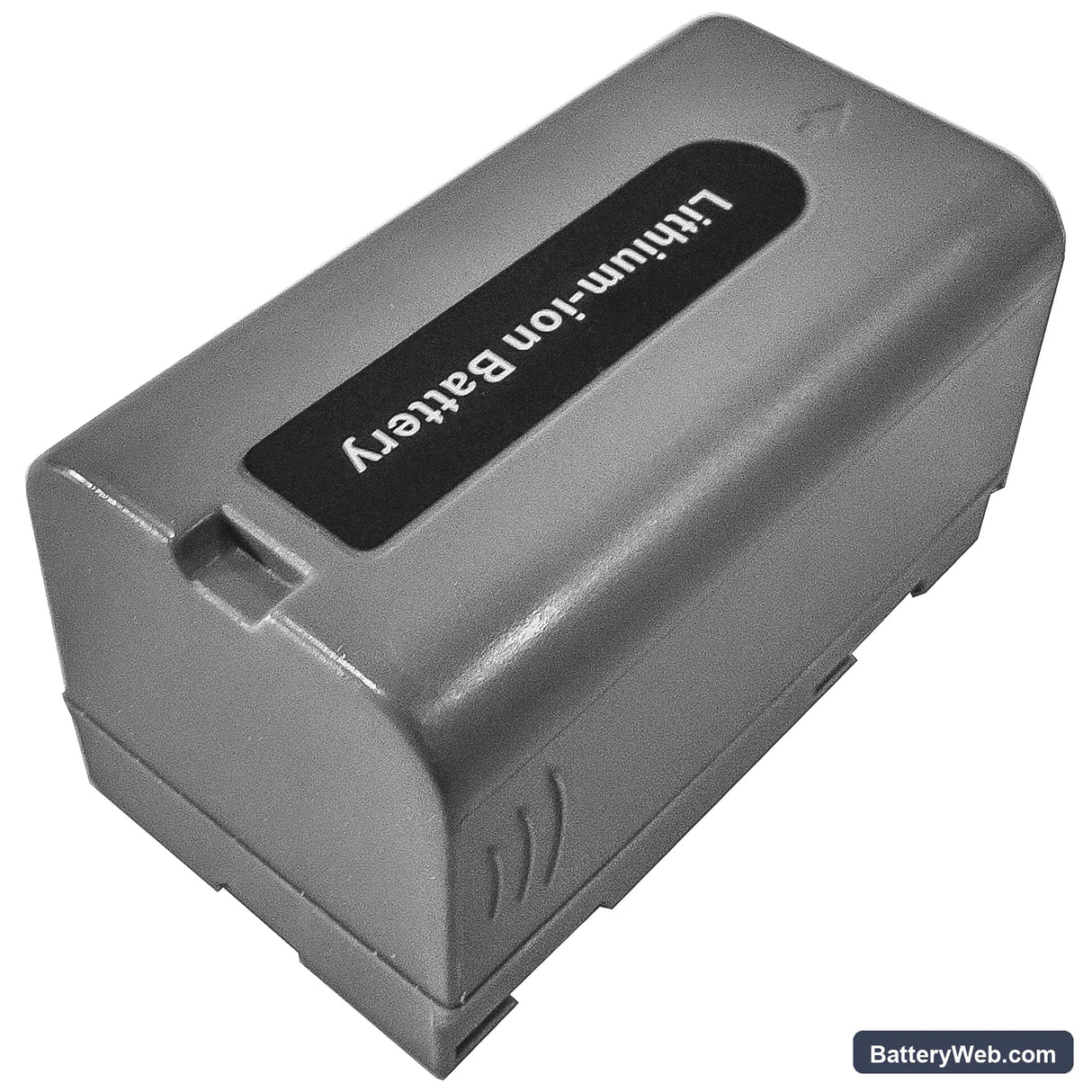

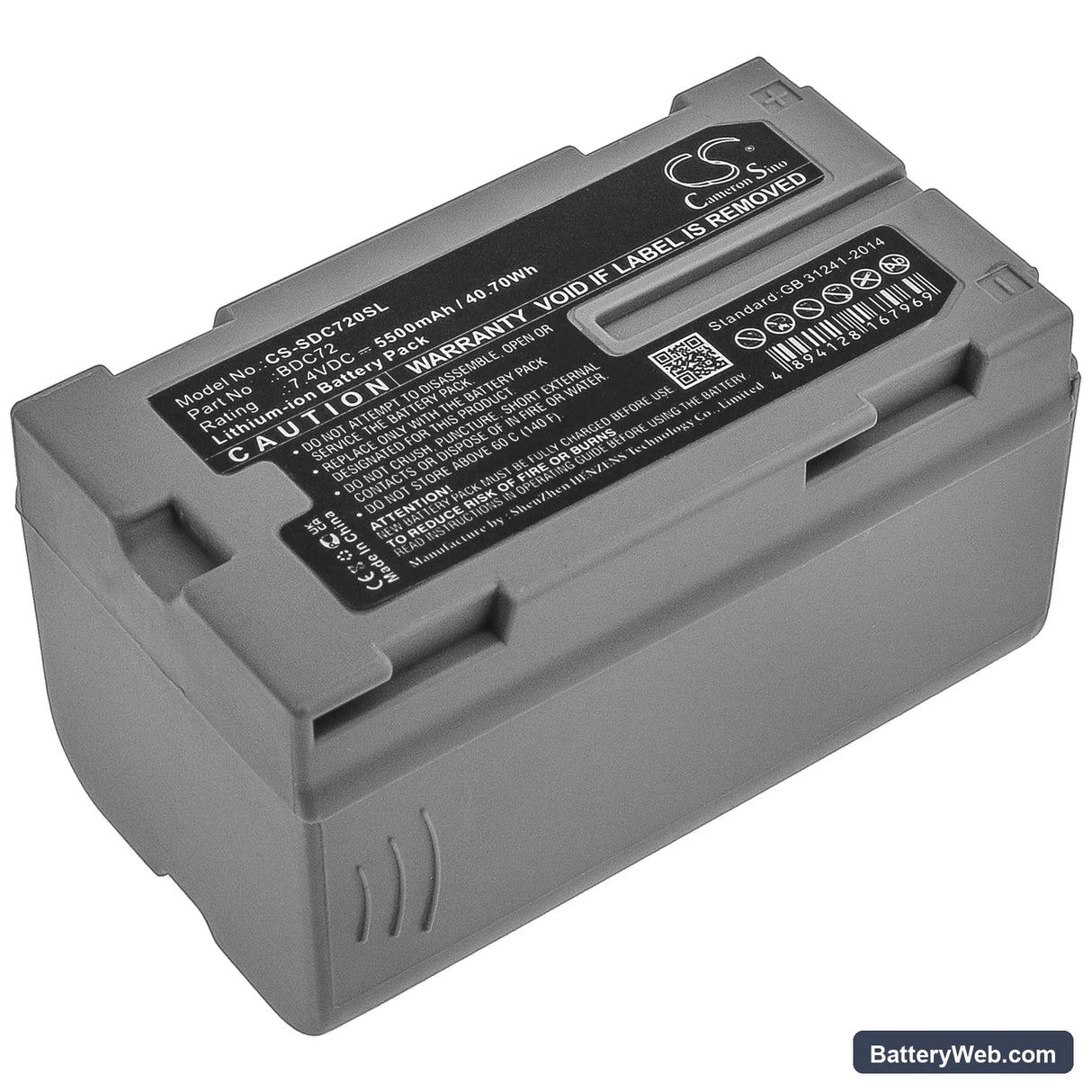

This 7.4V, 5500mAh Li-ion pack is a direct cell replacement for the BDC72 battery used in the Sokkia 3D Layout Navigator LN-150 and Pipe Laser TP-L6. Both instruments draw from the same 7.4V rail with the same connector and BMS handshake protocol. Capacity is sourced from the product specification — 5500mAh, 40.7Wh.

• LN-150 and TP-L6 shared platform: These two instruments run the same 7.4V power architecture, use the same BDC72 form factor, and communicate with the host device through the same BMS data line. One battery serves both tools without modification.
• Bench tested on actual hardware: We cycled this pack through the LN-150's power-on sequence and sensor initialisation. The BMS passed the inrush current check at startup without tripping cutoff, and cell voltage held steady across a sustained positioning load.
• Post-install calibration on the LN-150: After fitting the new pack, run a full calibration cycle through the instrument menu before taking it to site. The LN-150 maps battery state during calibration — skip this step and the low-battery indicator fires prematurely on your first layout session.

BDC72 pack not recognised after the LN-150 sat in the case for months

When a Li-ion pack sits unused for an extended period, cell voltage drops below the BMS recovery threshold — typically around 2.5V per cell. At that point, the BMS enters sleep mode and the instrument sees no pack at all. Place the battery on the charger for at least 15 minutes before concluding it is dead; most chargers will trickle-charge a sleeping BMS back above the 5.0V combined threshold and resume normal charge. If the charger LED never switches from fault to charge mode, the cells have dropped too low for recovery and the pack needs replacement.

LN-150 display showing erratic battery percentage after fitting a new pack

The LN-150's voltage-threshold indicator recalibrates to new cells over the first charge-discharge cycle. Fresh cells have a slightly different voltage curve than the depleted pack they replaced, so the percentage readout will jump or reset until the instrument completes one full cycle. Run the battery down to the automatic shutdown point, then charge uninterrupted to 100% — after that single cycle, the percentage display stabilises. If the readout is still erratic after two full cycles, check the BMS data pin contact in the battery bay for debris or corrosion.
