Ecovacs DSX39 Replacement Battery 14.4V 6700mAh S31-LI-144-6400

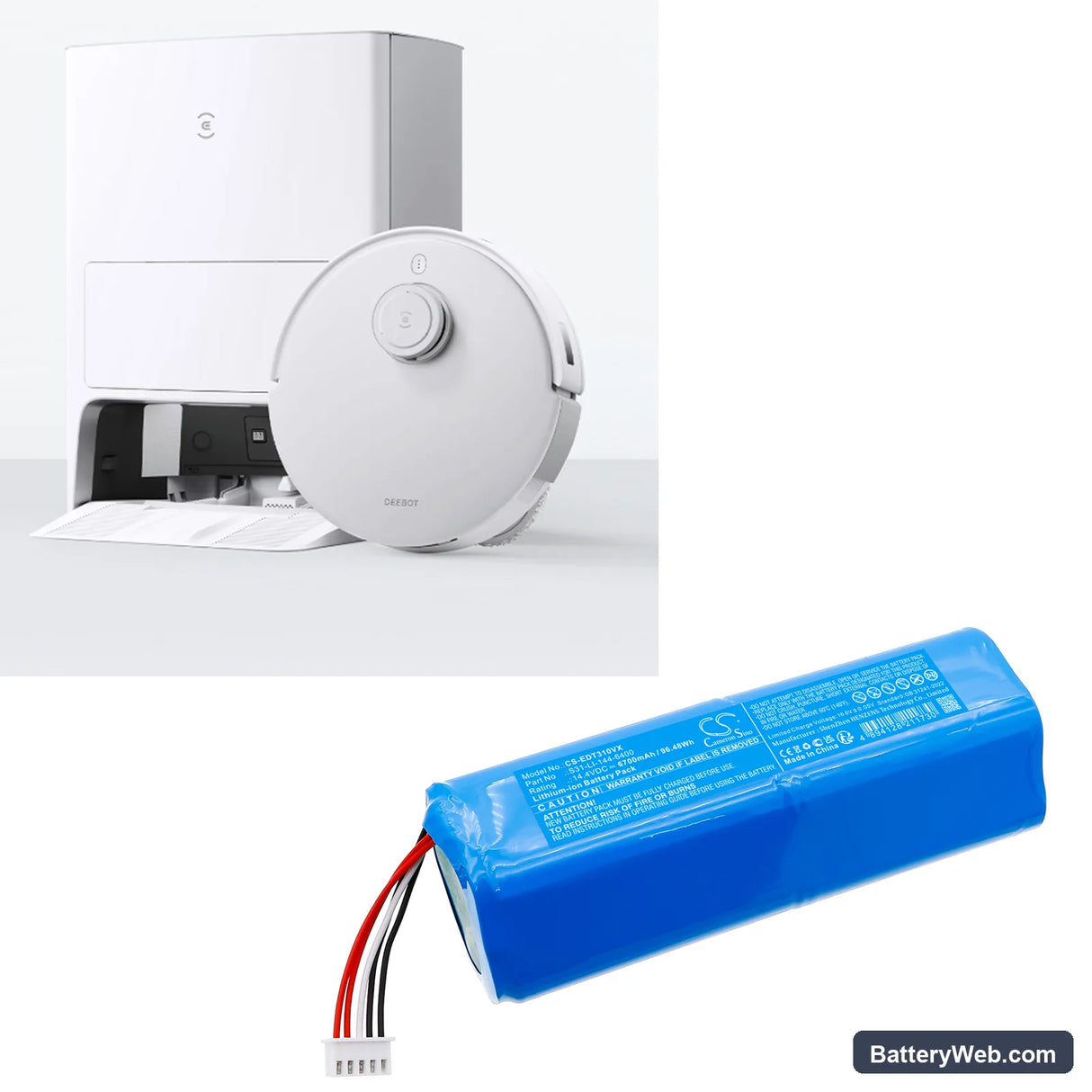

Ecovacs DSX39 / T30S OMNI / DEEBOT X8 Pro OMNI — 14.4V Li-ion Replacement Battery (S31-LI-144-6400)

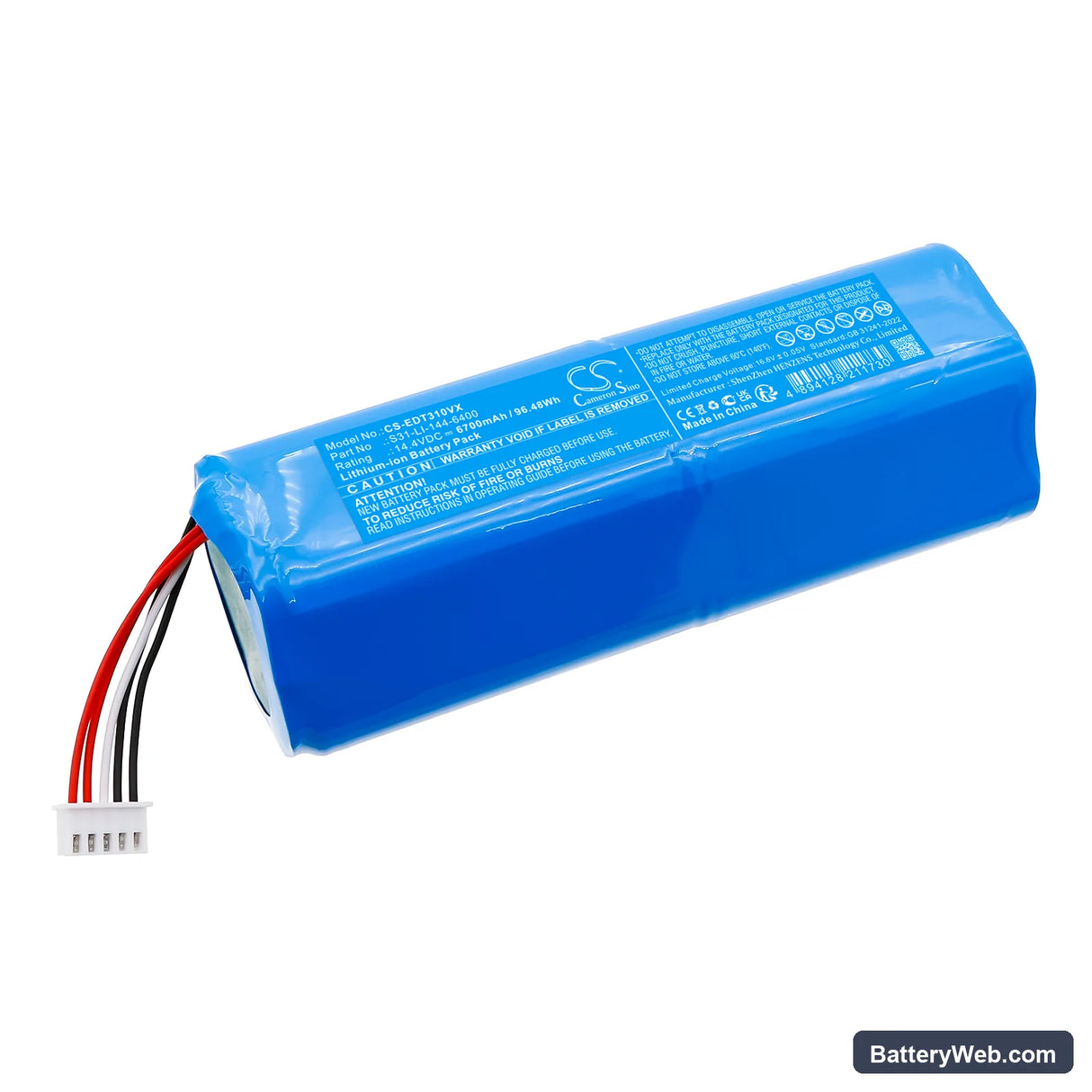

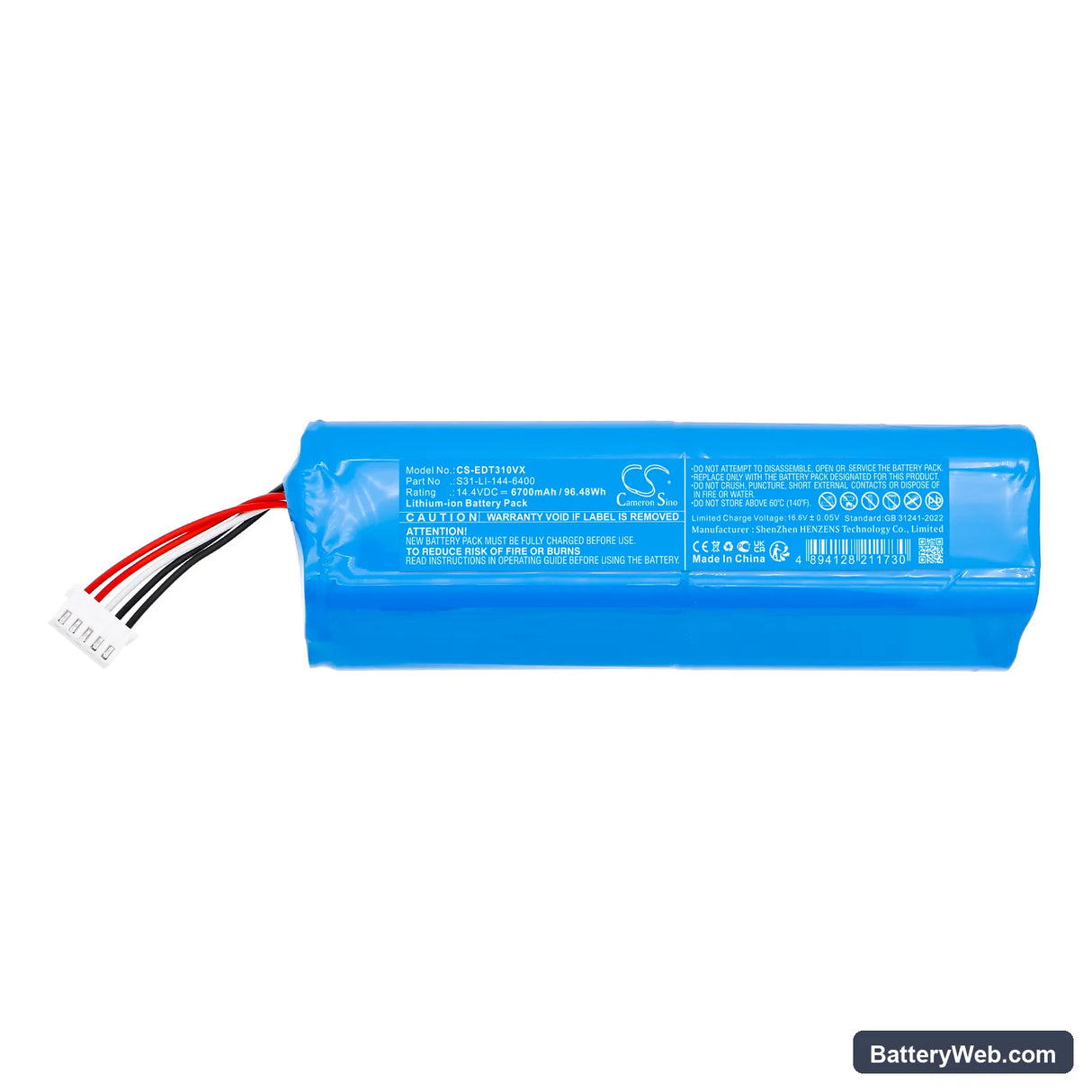

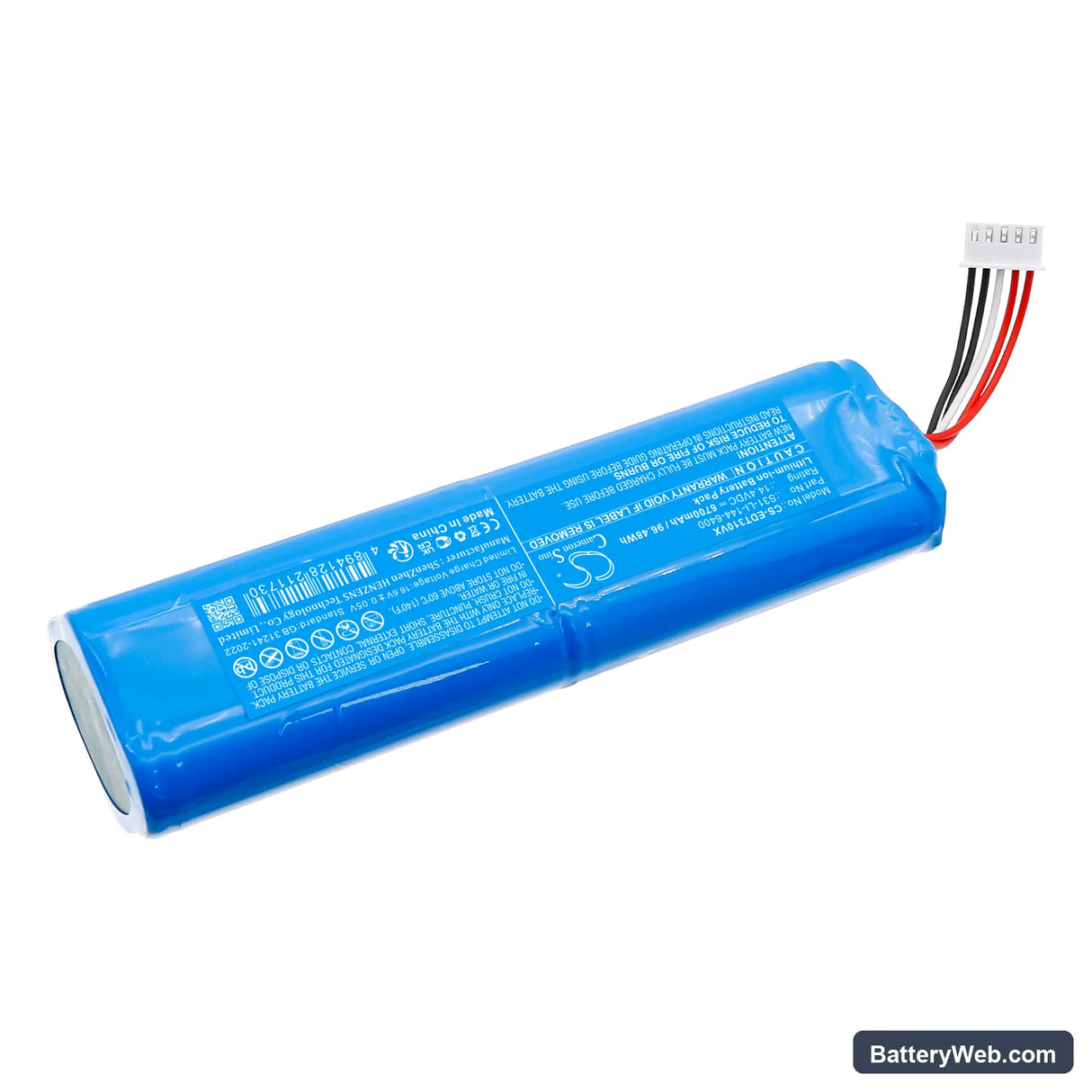

This 14.4V 6700mAh Li-ion battery replaces the OEM pack in the Ecovacs DSX39, T30S OMNI, T30S Pro, and DEEBOT X8 Pro OMNI robotic vacuum cleaners. It slots into the same battery bay and uses the same BMS communication protocol as the original. Capacity is 6700mAh (96.48Wh), matching the factory specification.

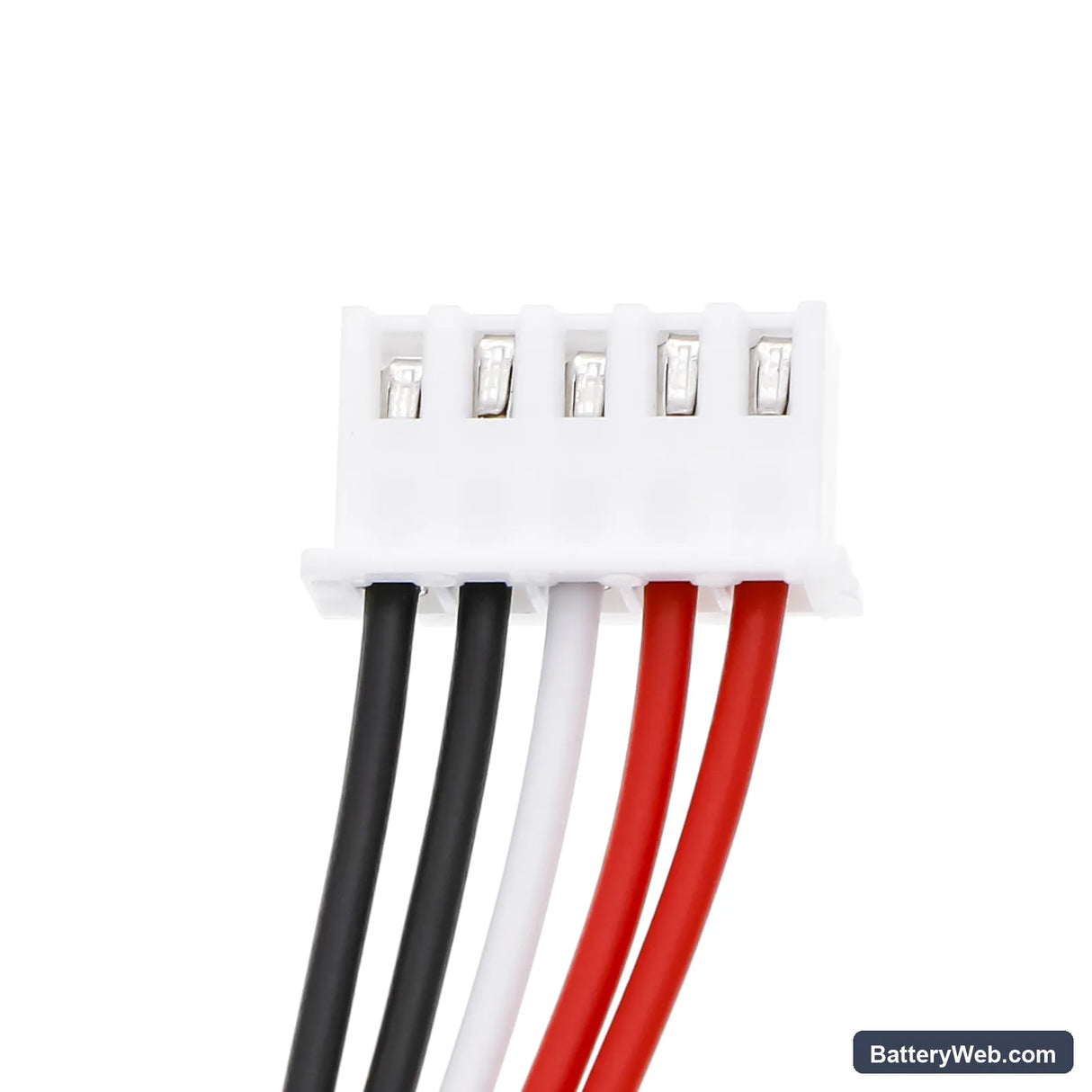

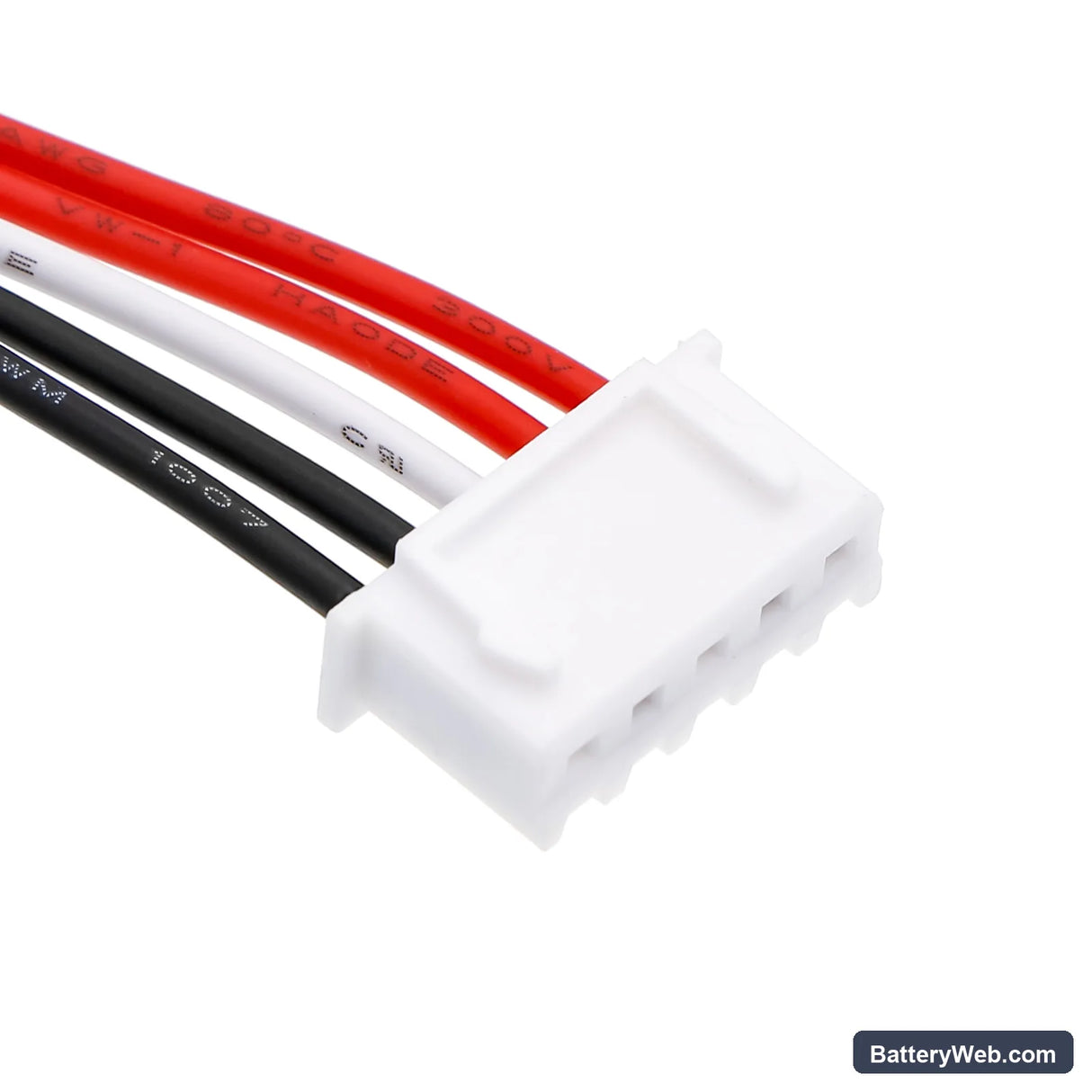

• DSX39 / T30S / DEEBOT X8 platform fit: These models share the same 14.4V power rail, battery connector pinout, and BMS handshake protocol. The vacuum's control board reads charge state and cell temperature through the BMS — the replacement pack supports that data exchange without triggering a fault code.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the DSX39 platform. The BMS held the 14.4V rail steady under sustained suction load, and the low-voltage cutoff triggered cleanly at the correct threshold before the motor could brown out.
• Dock charging habit on these Ecovacs models: Do not leave the vacuum sitting on the dock permanently between uses. The T30S and DSX39 platforms continue to trickle charge when docked — over weeks, this compresses cell capacity faster than normal cycle wear. Charge to full, then lift off the dock.

Suction dropping before the battery indicator reaches low on the DSX39

The DSX39 motor draws significantly more current when the filter is partially blocked or the brush roll is tangled. That elevated draw causes voltage to sag on a degraded cell before the battery percentage gauge catches up. The BMS reads actual cell voltage, not estimated percentage — when voltage sags under load, the vacuum reduces motor power to protect the cells. The result looks like fading suction with the indicator still showing 40–50%. Clean the filter and check brush roll resistance first; if the issue persists with a clear filter, the original cell has degraded past usable capacity.

Motor cuts out mid-clean then recovers after a few seconds

This is a BMS overcurrent trip, not a charge fault. When the brush roll jams on carpet fringe or debris, current spikes sharply — the BMS cuts output to protect the cells, then resets once the overcurrent condition clears. It happens in under a second and the vacuum resumes as if nothing occurred. If it trips repeatedly in the same area, stop the run, remove the brush roll, and clear any wrapped fibre before restarting — the BMS will not reset indefinitely under repeated spikes on the same cycle.
