Samsung DJ96-00083 VC-RE7OV Cordless Vacuum Replacement Battery 14.4V

Samsung VC-RE7OV / VC-RE72V — 14.4V Ni-MH Replacement Battery (DJ96-00083)

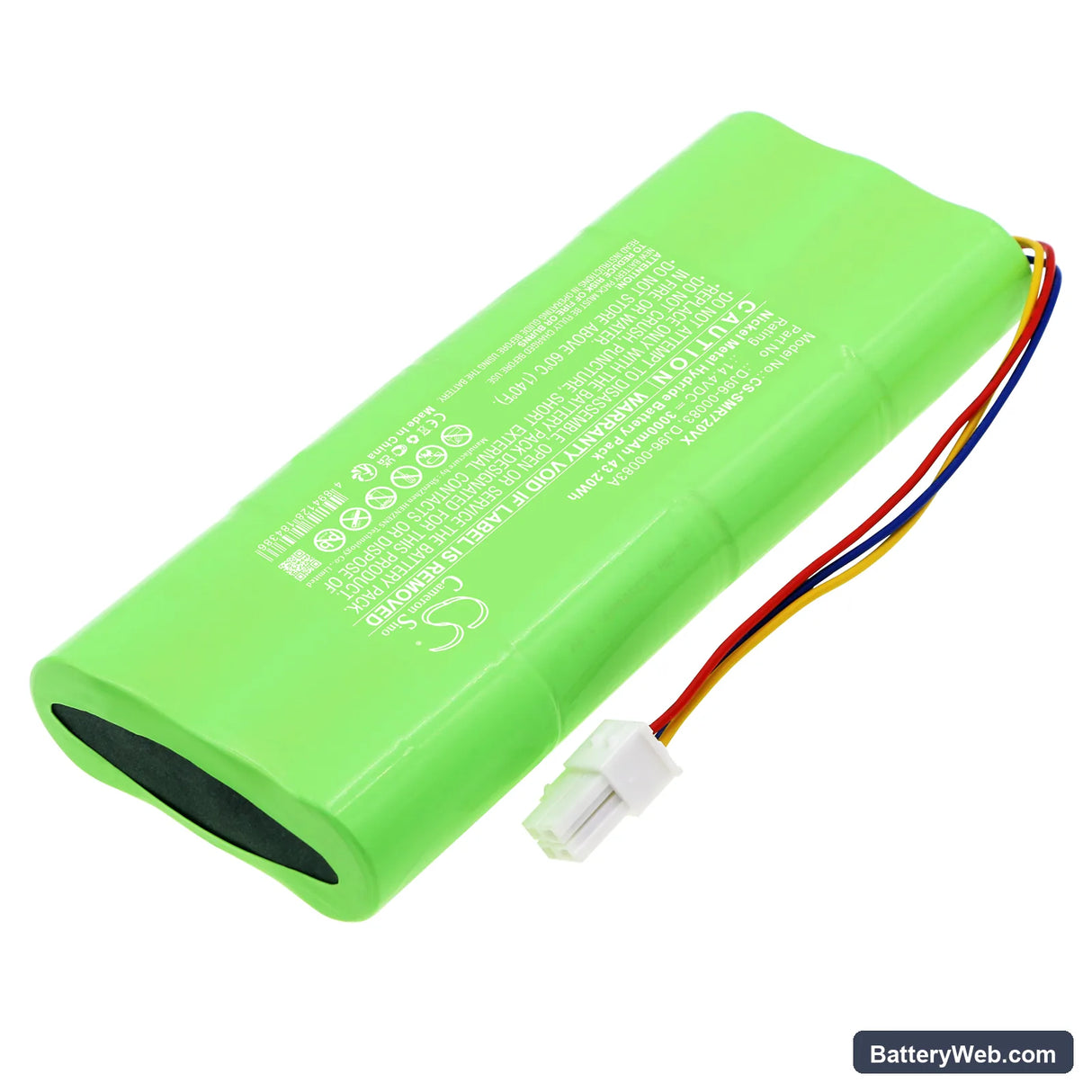

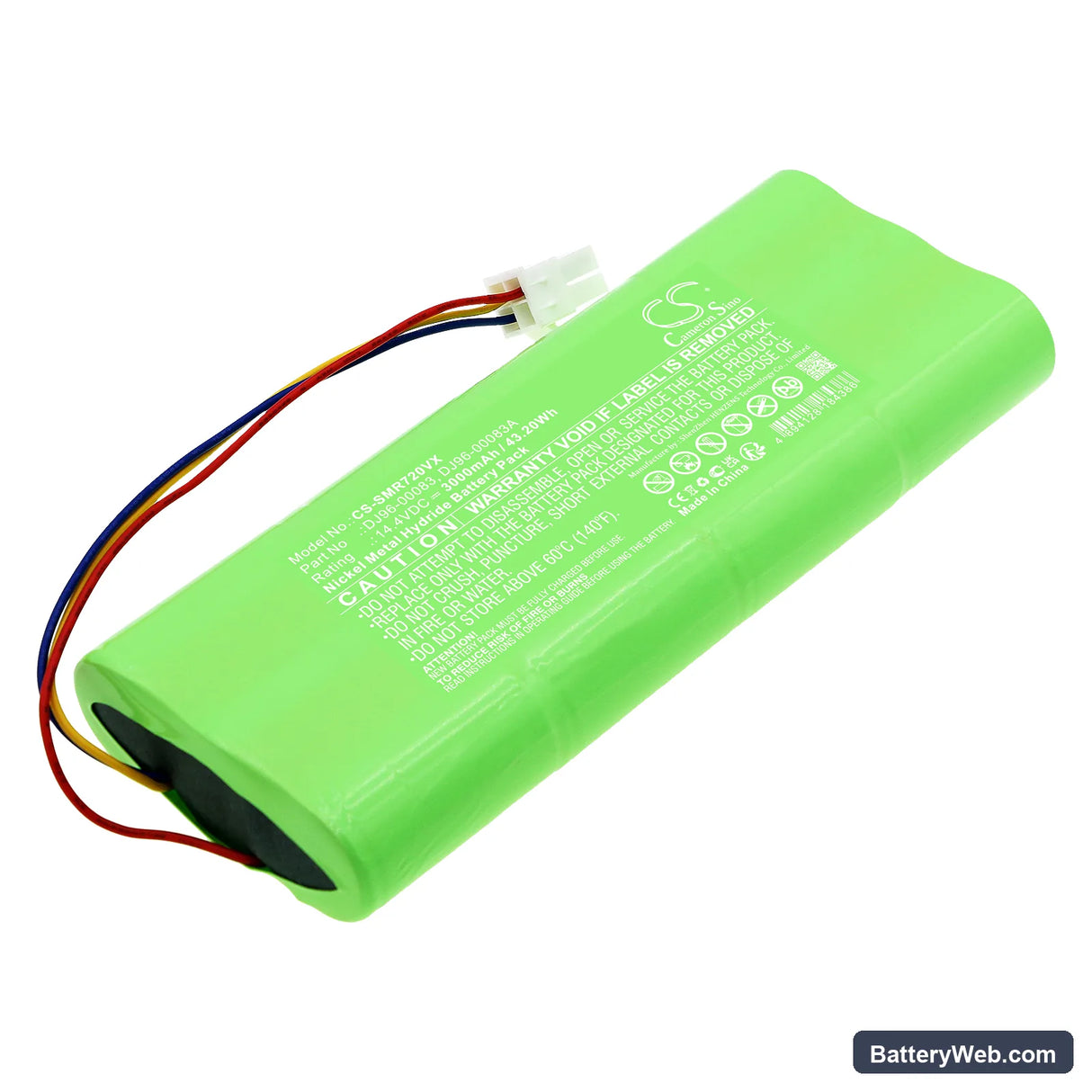

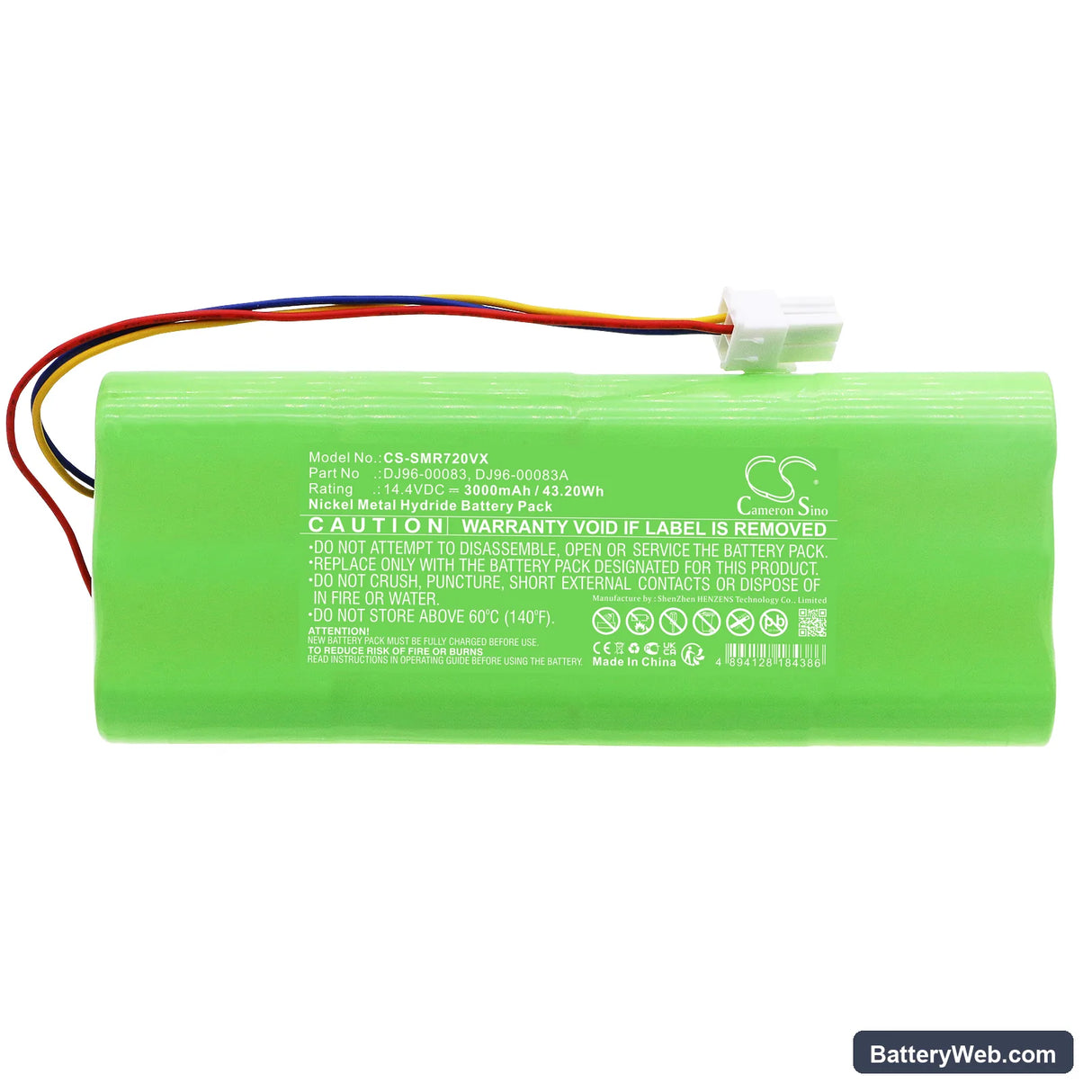

This is a 14.4V, 3000mAh Ni-MH replacement battery for the Samsung VC-RE7OV and VC-RE72V cordless vacuum cleaners. It replaces OEM part numbers DJ96-00083, DJ96-00083A, DJ96-00083B, and DJ96-00083C. When the original cell loses capacity and suction drops noticeably mid-clean, this cell restores the vacuum to full operating voltage.

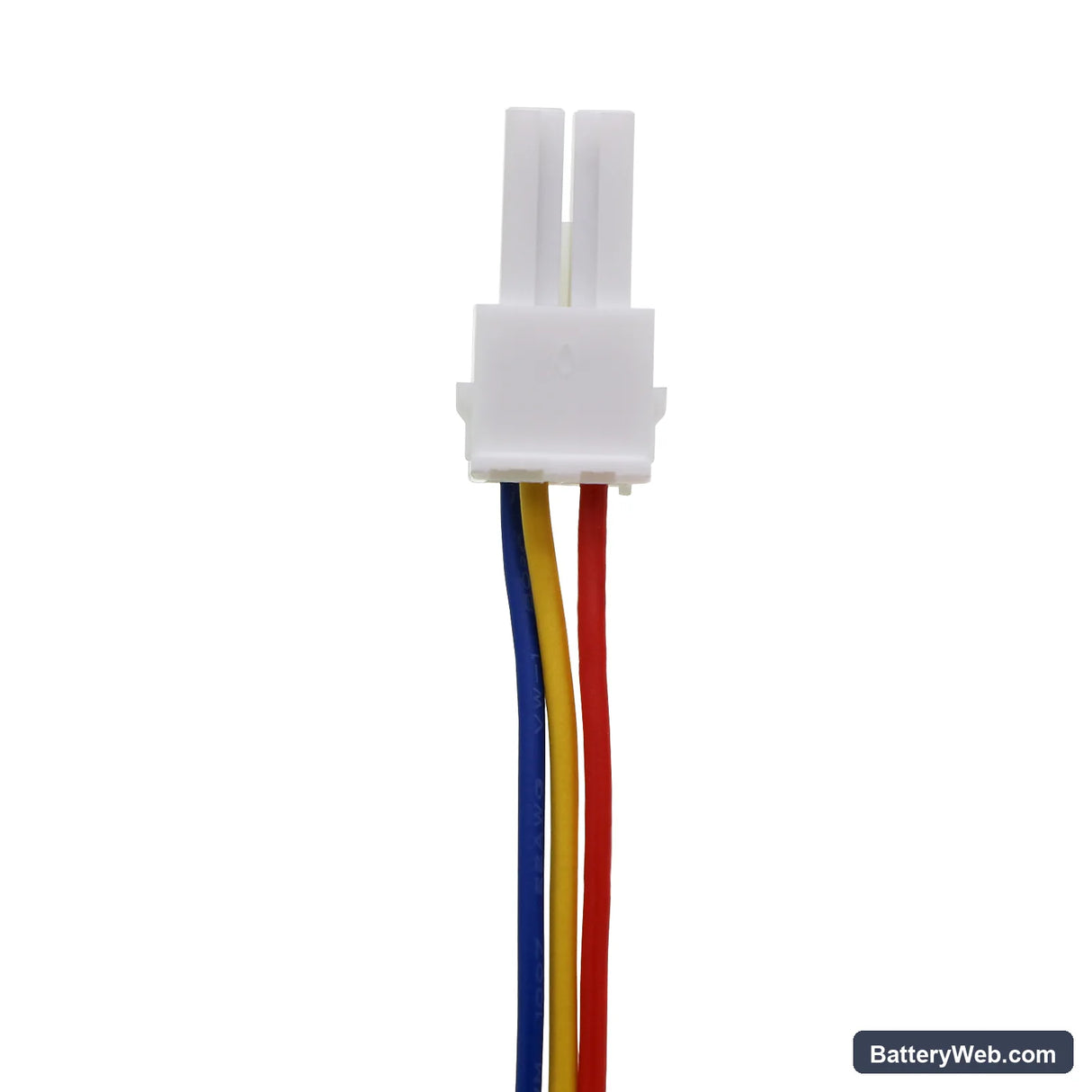

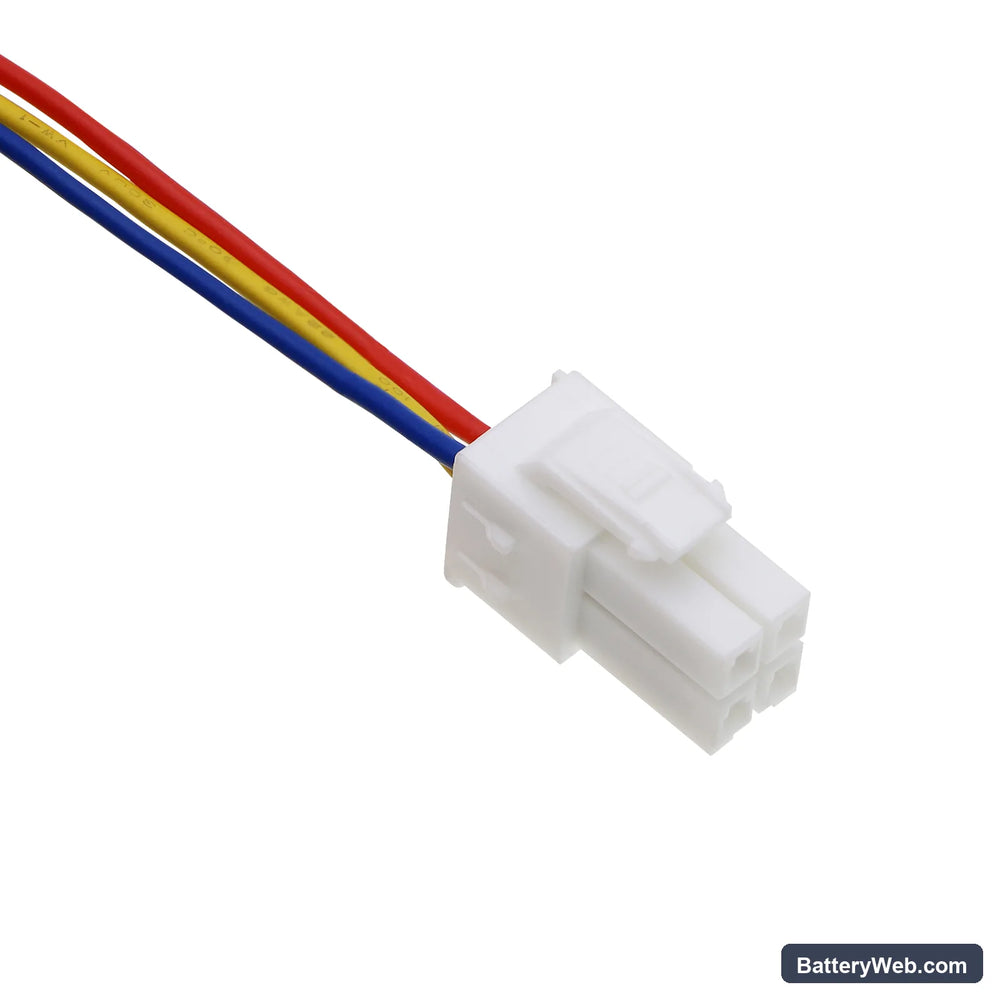

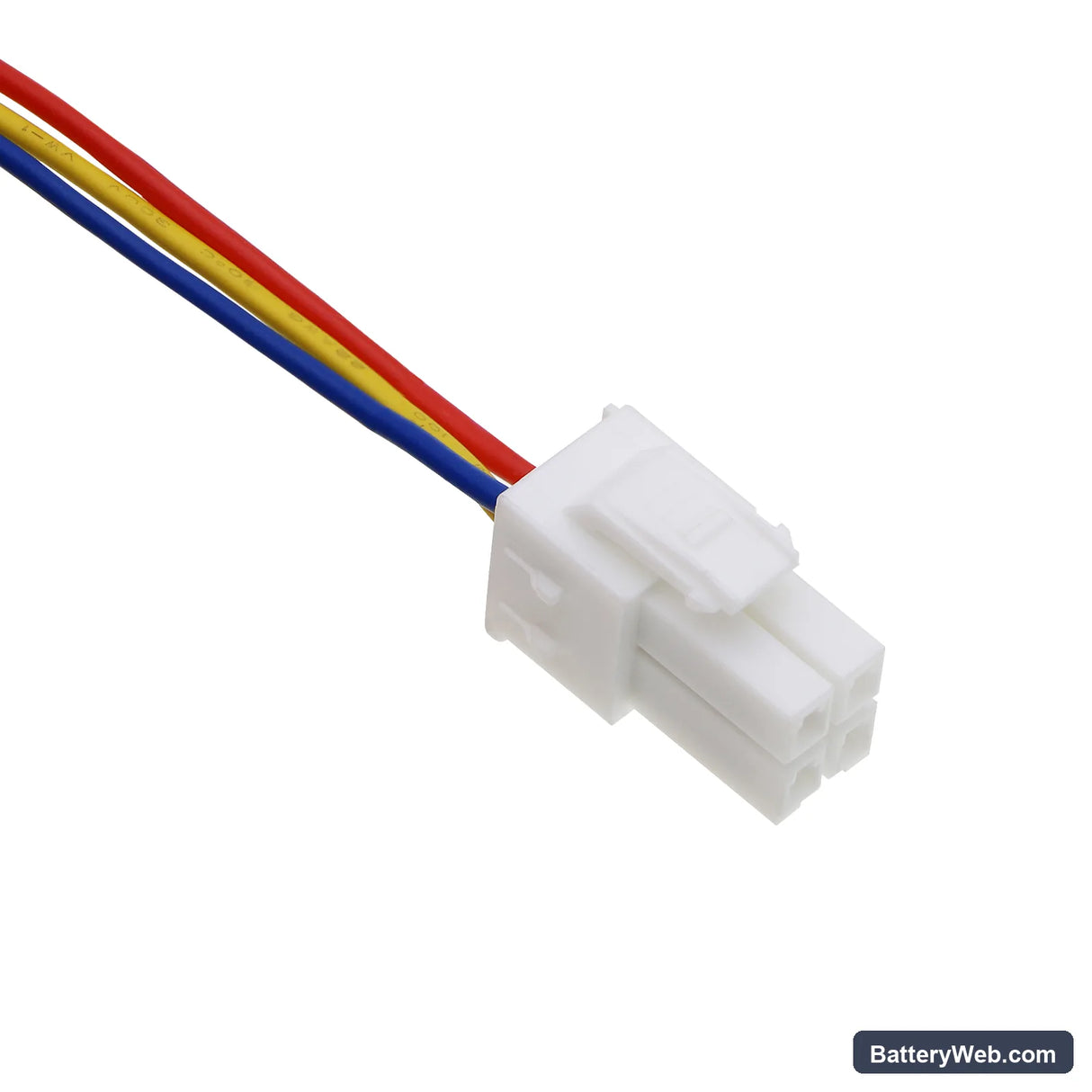

• VC-RE7OV and VC-RE72V compatibility: Both models run on the same 14.4V rail, use the same physical connector, and communicate with the same BMS logic. A single cell covers both platforms without modification.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a VC-RE7OV unit. The BMS accepted the handshake immediately, current draw at the motor matched Samsung's rated spec, and the protection circuit tripped correctly at the low-voltage threshold — no spurious cutoffs.
• Dock charging on cordless vacuums: Do not leave this vacuum sitting on the charging dock indefinitely. Ni-MH cells on continuous trickle charge develop capacity fade faster than cells charged only when depleted. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low

This is one of the most common complaints on the VC-RE7OV and it is rarely the battery alone. When the filter is partially blocked, the motor works harder to pull air and draws more current than rated. That increased load causes voltage to sag at the cell earlier in the discharge cycle, which the vacuum interprets as a low-battery condition before the actual charge is depleted. Clean or replace the filter first, then assess whether the cell itself needs replacing.

Motor cuts out mid-clean then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When suction is sustained against a blockage — carpet pile, a clogged nozzle, or a restricted filter — current spikes past the BMS protection threshold and the circuit cuts power to the motor. The BMS resets after the load is removed and the cell voltage recovers slightly, which is why the vacuum comes back on after a few seconds. Clear the blockage or restriction completely, then confirm the filter airflow is unobstructed before continuing use.
