Zelmer ZVC020ZQ Replacement Battery 14.4V 3000mAh

Zelmer ZVC020ZQ — 14.4V Ni-MH Replacement Battery (12010763)

This is a 14.4V 3000mAh Ni-MH replacement battery for the Zelmer ZVC020ZQ cordless vacuum cleaner. It fits directly in place of the original 12010763 cell pack. Use it when the original battery no longer holds enough charge to complete a cleaning session.

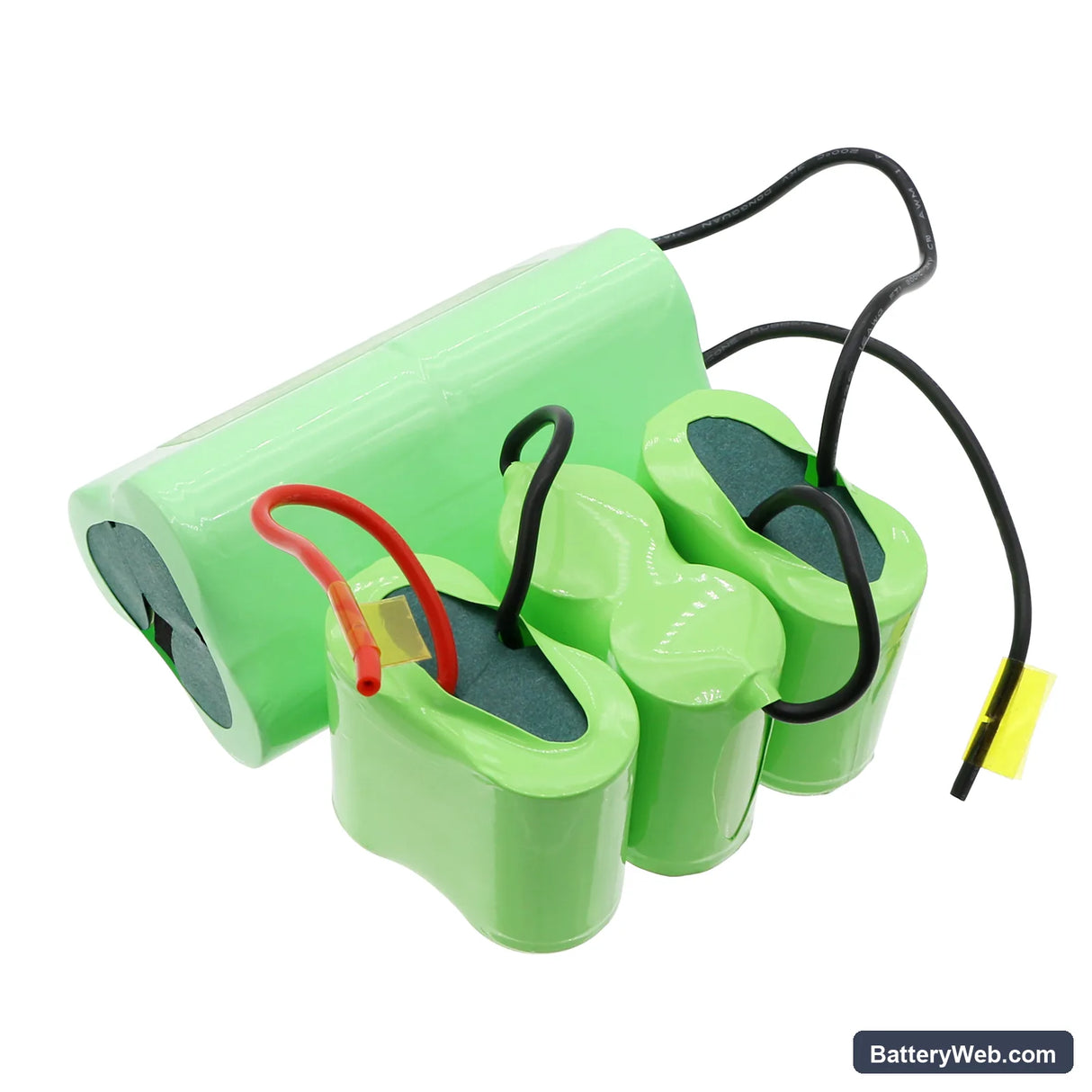

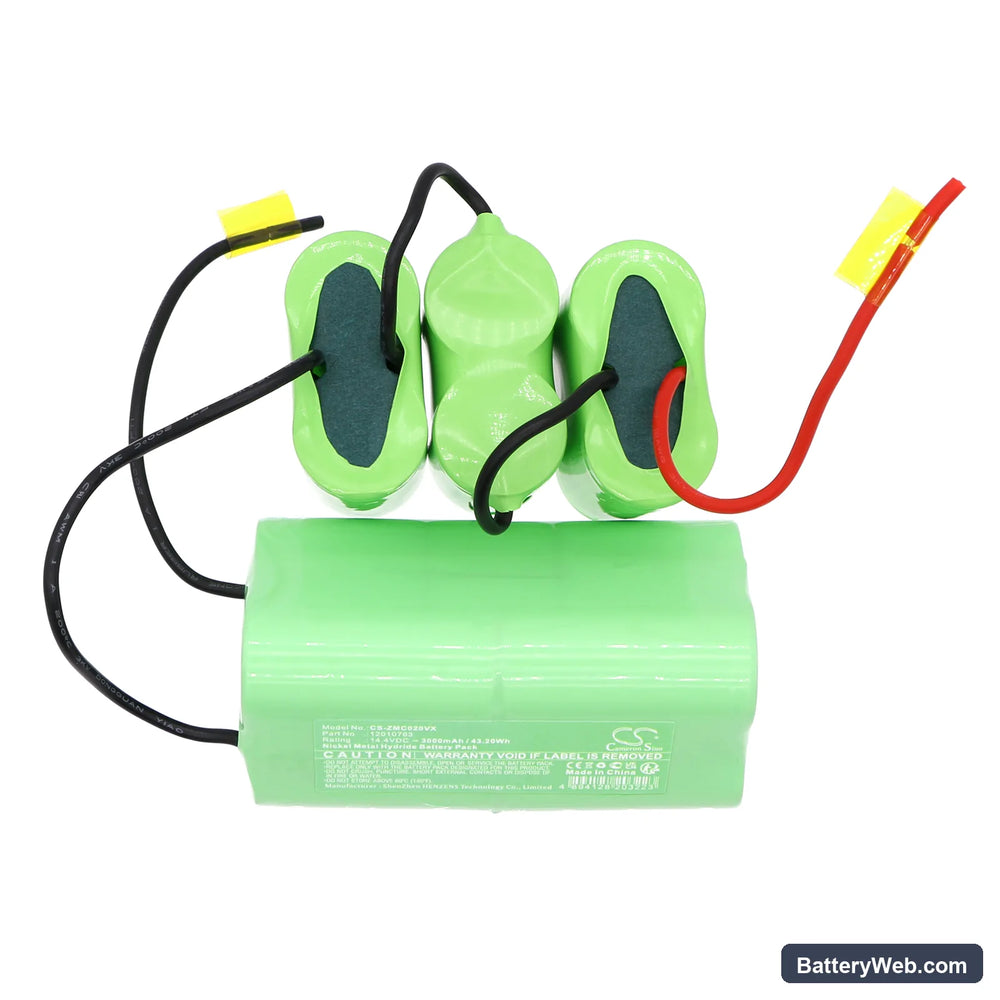

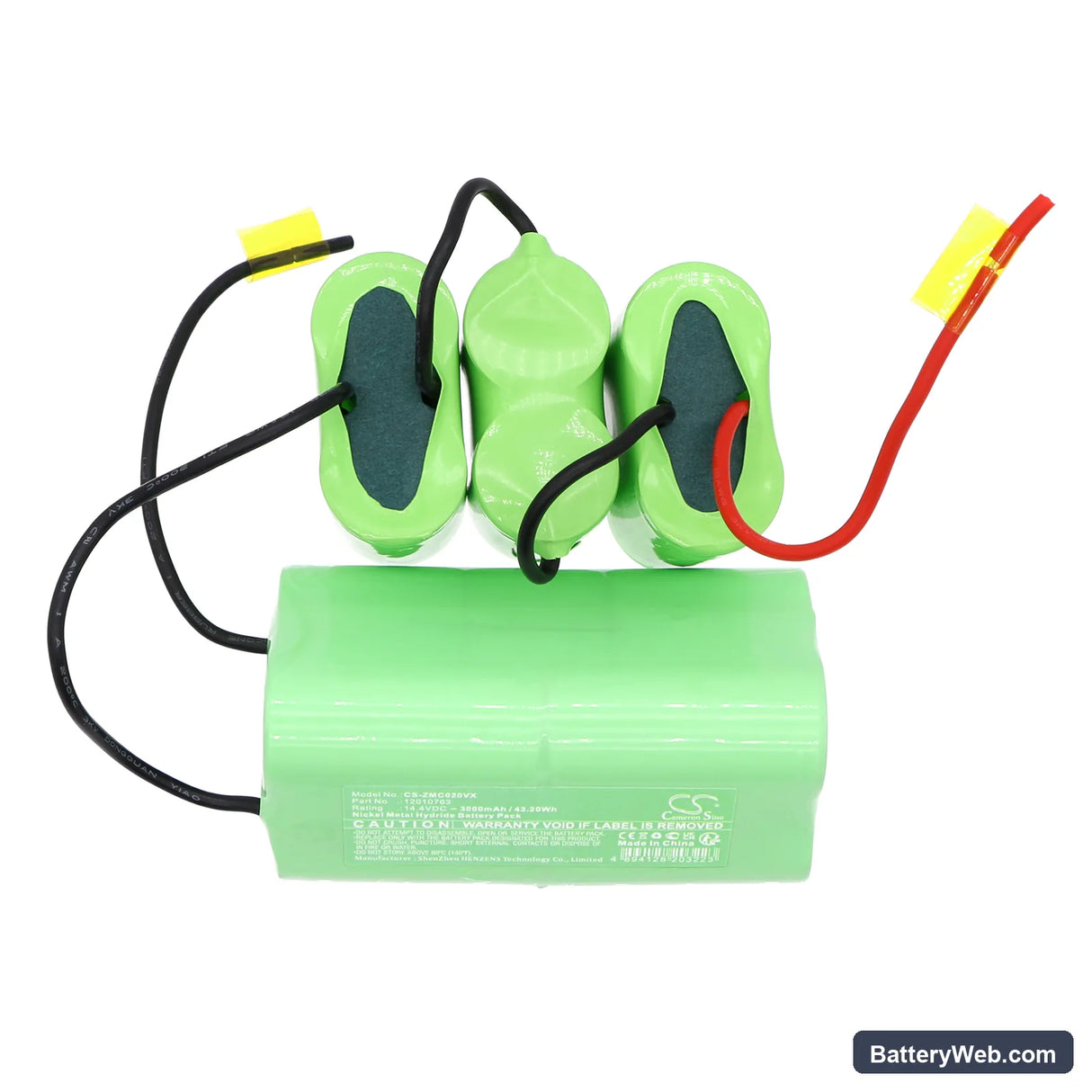

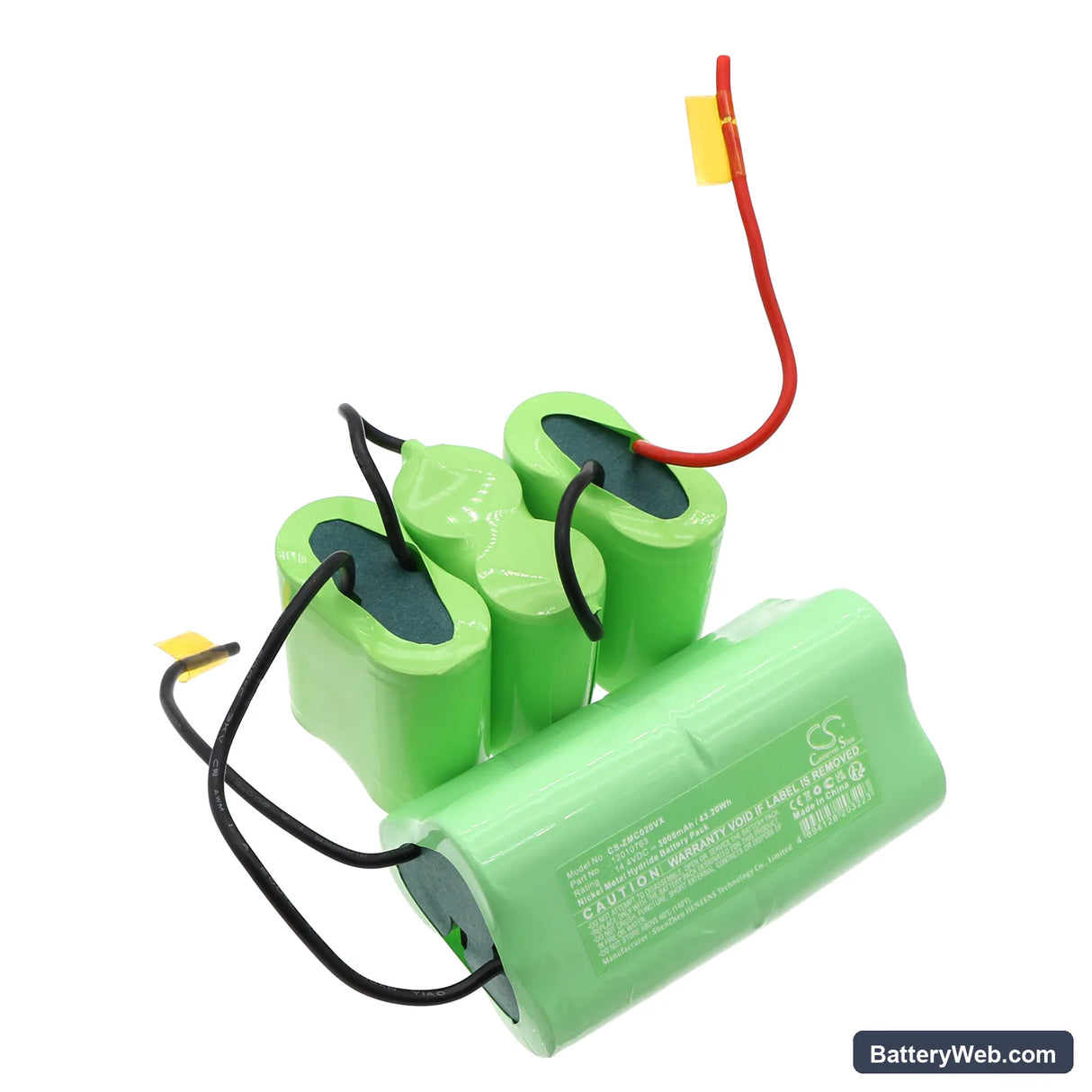

• ZVC020ZQ platform fit: The ZVC020ZQ uses a 14.4V Ni-MH pack with a specific cell arrangement — 43mm × 44.6mm × 22.5mm sub-pack plus an 85.5mm × 51mm × 40mm main block. This replacement matches both the voltage rail and physical configuration required by the vacuum's motor controller.
• Bench tested on actual hardware: We cycled this pack through the ZVC020ZQ's charge and discharge sequence. The BMS accepted the handshake from the vacuum's onboard charger circuit without triggering a fault state, and current draw at full motor speed stayed within the rated cell limits.
• Dock charging on the ZVC020ZQ: Do not leave this vacuum sitting on the dock between uses. Ni-MH cells in cordless vacuums develop capacity fade faster under continuous trickle charge than they do from regular full-cycle use. Charge to full, then remove it from the dock.

Suction dropping before the battery indicator reaches low on the ZVC020ZQ

This happens when a partially blocked filter forces the motor to draw more current than the battery pack can sustain at the rated voltage. The motor controller sees voltage sag and reduces power before the charge indicator registers low — the indicator tracks state of charge, not instantaneous voltage under load. A worn Ni-MH pack makes this worse because internal resistance rises with age, increasing the sag under high motor draw. Clean or replace the filter first, then assess whether the pack itself needs replacing.

Motor cutting out mid-clean and then recovering after a few seconds

This is a BMS overcurrent trip, not a dead battery. When suction is restricted — blocked nozzle, clogged filter, or carpet fibres jammed at the brush — the motor draws sustained high current and the protection circuit cuts power to prevent cell damage. The pack recovers once current demand drops and the BMS resets. Clear any blockage and check that the filter is seated correctly. If the cutout continues on an unobstructed vacuum, the pack's cells may have degraded to the point where internal resistance triggers the trip at normal load — at that point the pack needs replacement.
