Biolat BLT2003 Medical Device Replacement Battery 9.6V 2000mAh

Biolat BLT2003 ECG EKG — 9.6V Ni-MH Replacement Battery (BLT2003)

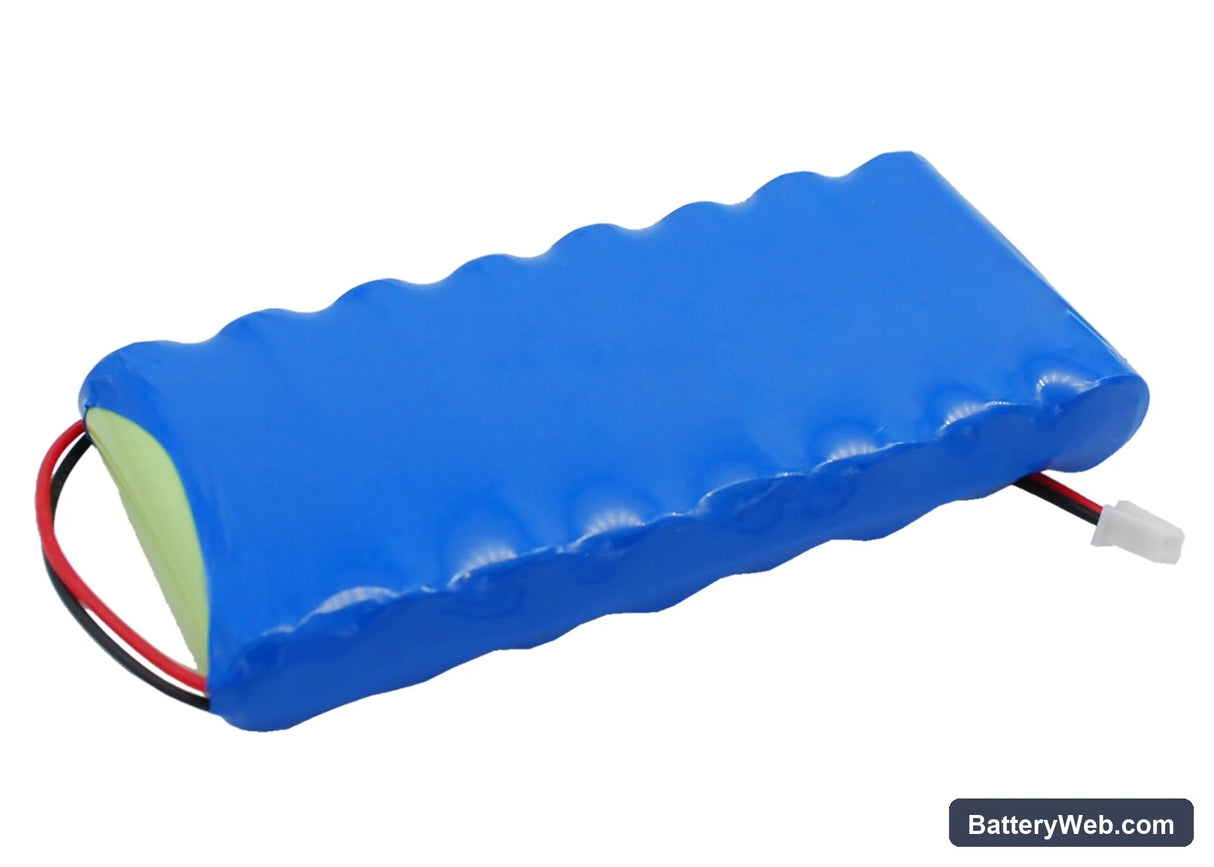

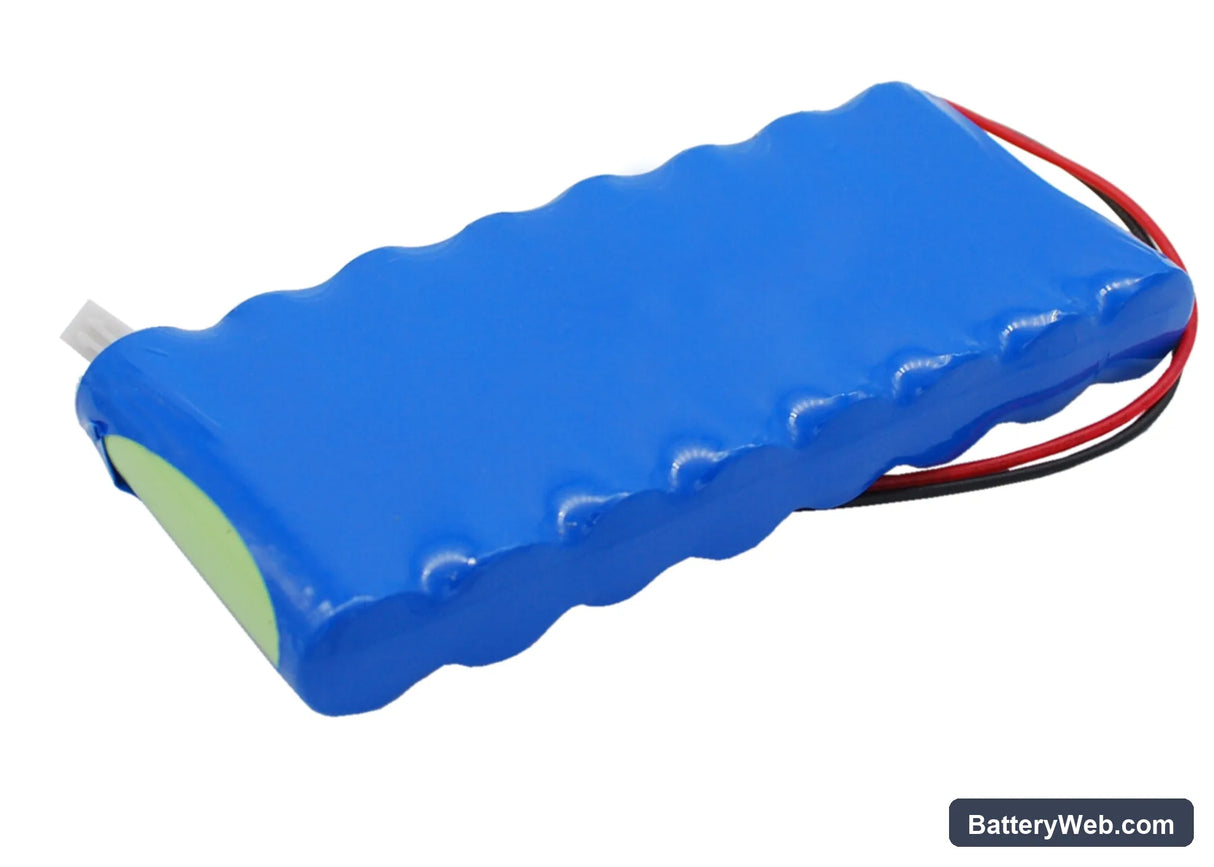

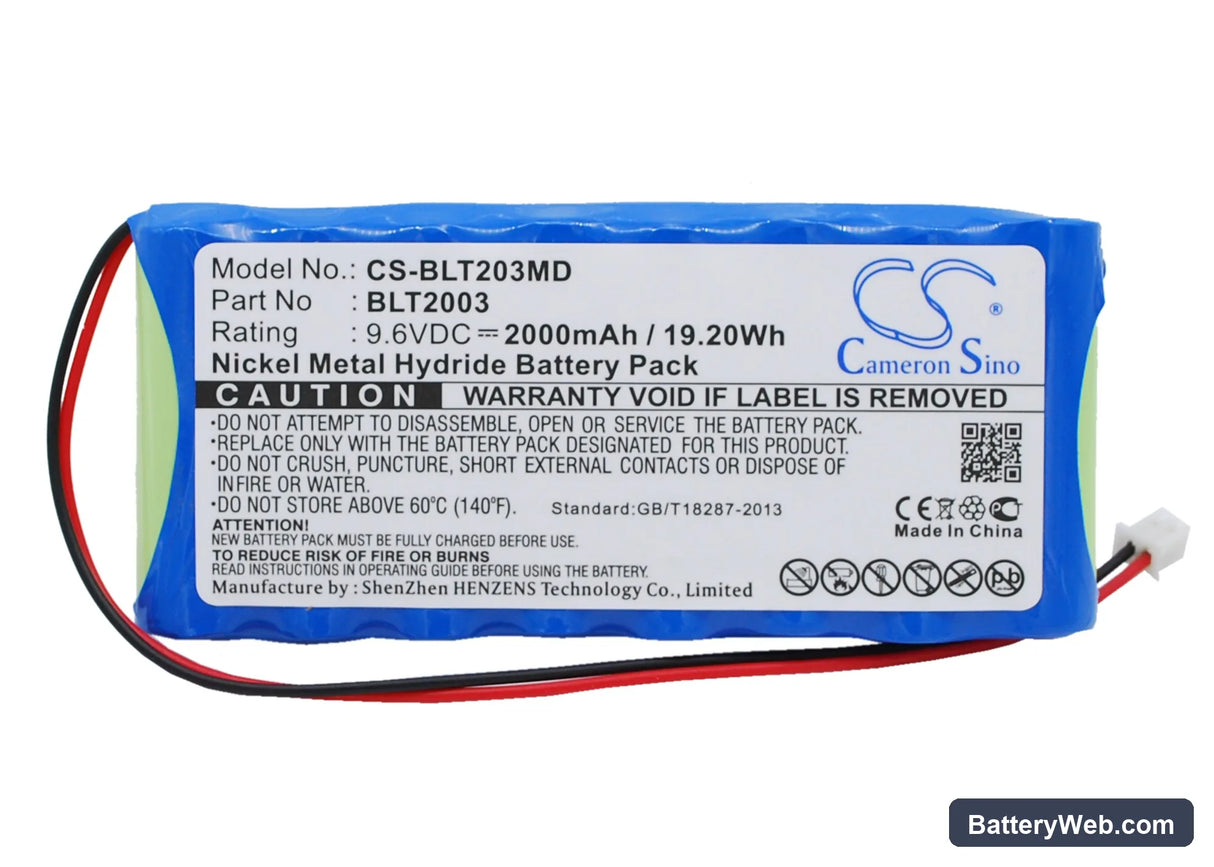

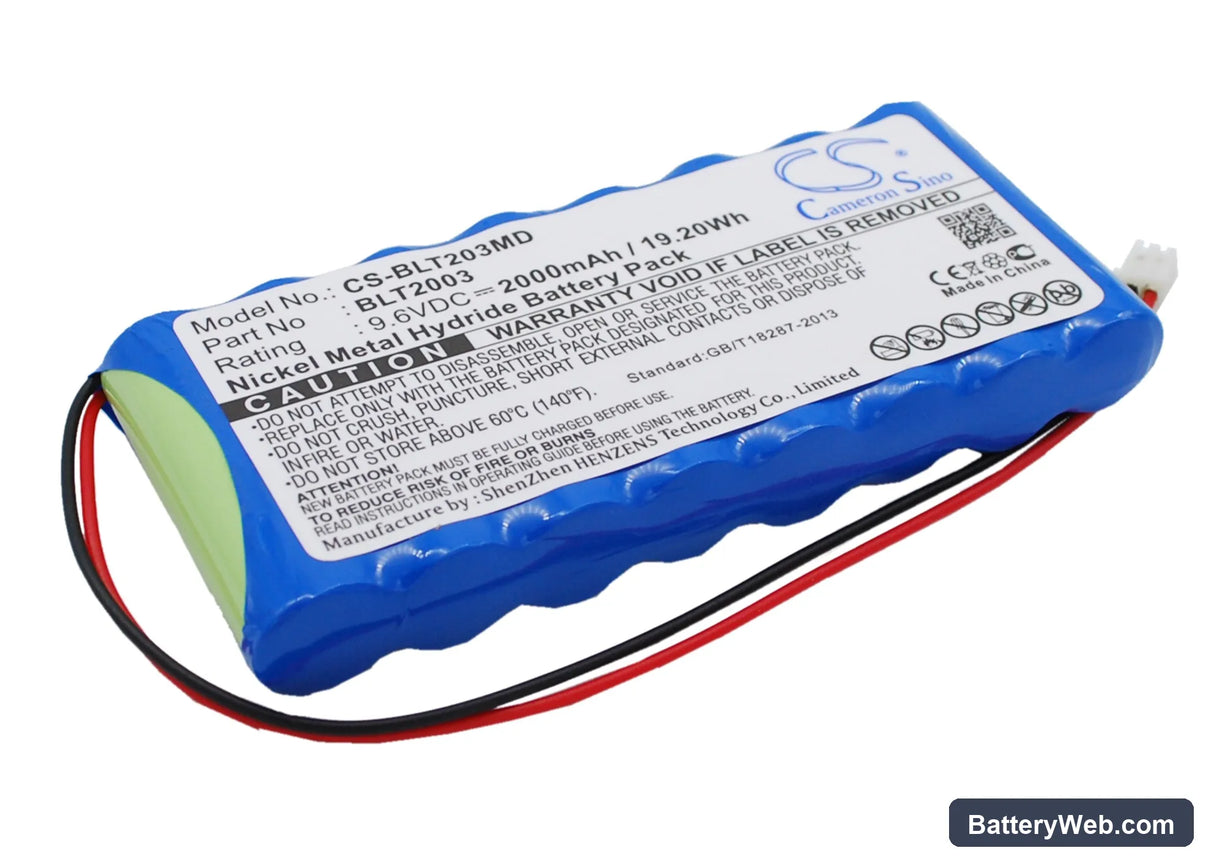

This is a 9.6V, 2000mAh Ni-MH replacement battery for the Biolat BLT2003 and BLT2003 ECG EKG medical devices. It replaces OEM part number BLT2003 directly. Capacity is rated at 19.2Wh and matches the original cell specification.

• BLT2003 and BLT2003 ECG EKG compatibility: Both models share the same 9.6V voltage rail, connector pinout, and BMS handshake protocol, which is why a single cell covers both variants.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on BLT2003-class hardware. The BMS accepted the cell on first insertion, completed its initialisation sequence, and held voltage within the expected window across the full discharge curve.
• Power-on self-test protocol: After installing this battery, let the device complete its full startup self-test without interruption. The BMS runs a chemistry verification at boot — cutting power mid-sequence triggers a false battery fault that latches until the next clean reboot.

Device not completing boot sequence on new battery

The BLT2003 runs a BMS verification step during startup that checks cell voltage against a minimum threshold. A new Ni-MH cell that has self-discharged in storage can sit below that threshold even if it shows some charge. The device reads this as a fault and halts the boot sequence before the main application loads. Connect the charger, allow a full uninterrupted charge cycle, then power on — the cell needs to reach at least 10.5V before the BMS clears the boot block.

Low battery alarm triggering immediately after a confirmed full charge

This happens because the device's charge-monitoring IC is calibrated to OEM cell discharge characteristics, and a new cell's internal resistance profile doesn't match those parameters on the first cycle. The BMS interprets the slight voltage delta as a low-state-of-charge condition and raises the alarm even though the cell is full. Run one complete charge-to-discharge-to-charge cycle before clinical use — after that first conditioning cycle, the BMS recalibrates its reference point and the alarm clears.
