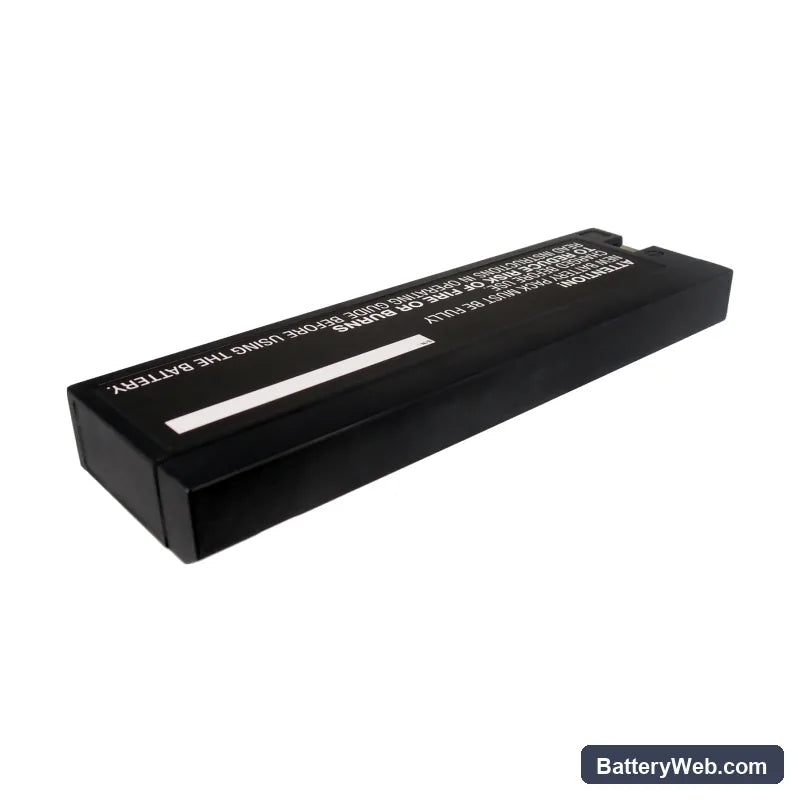

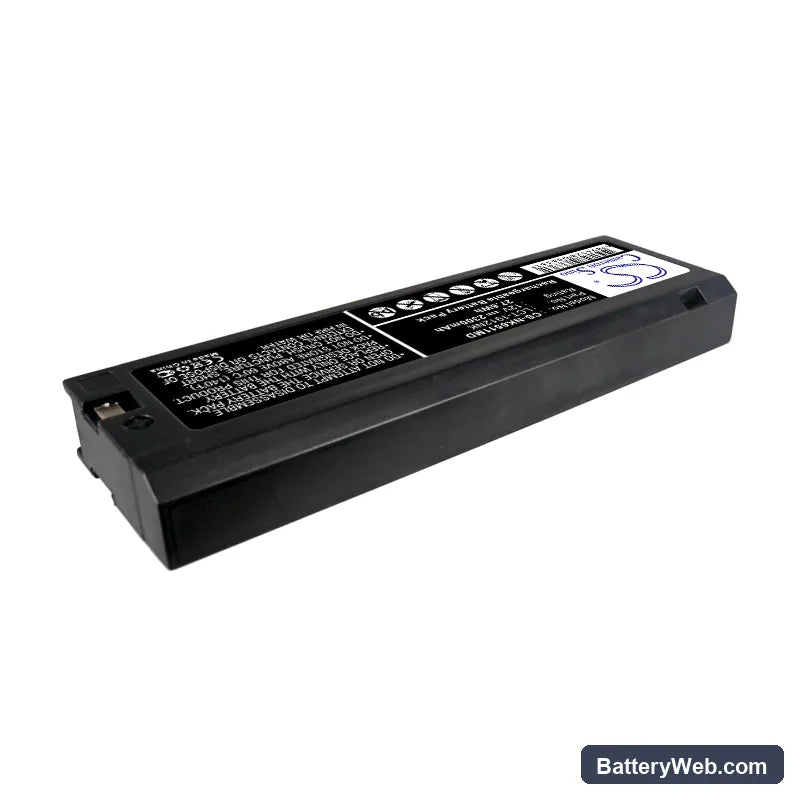

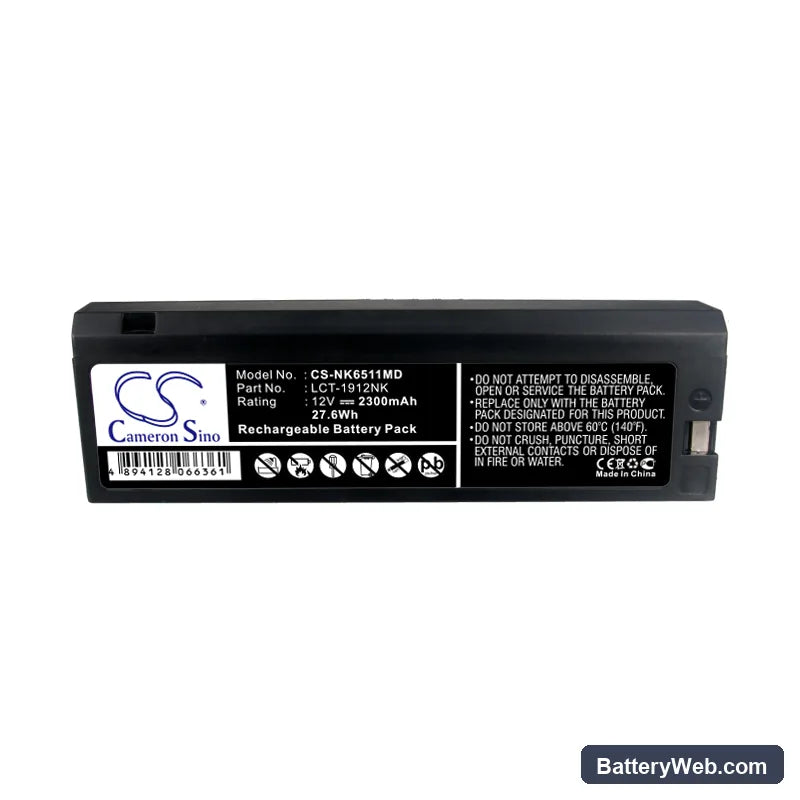

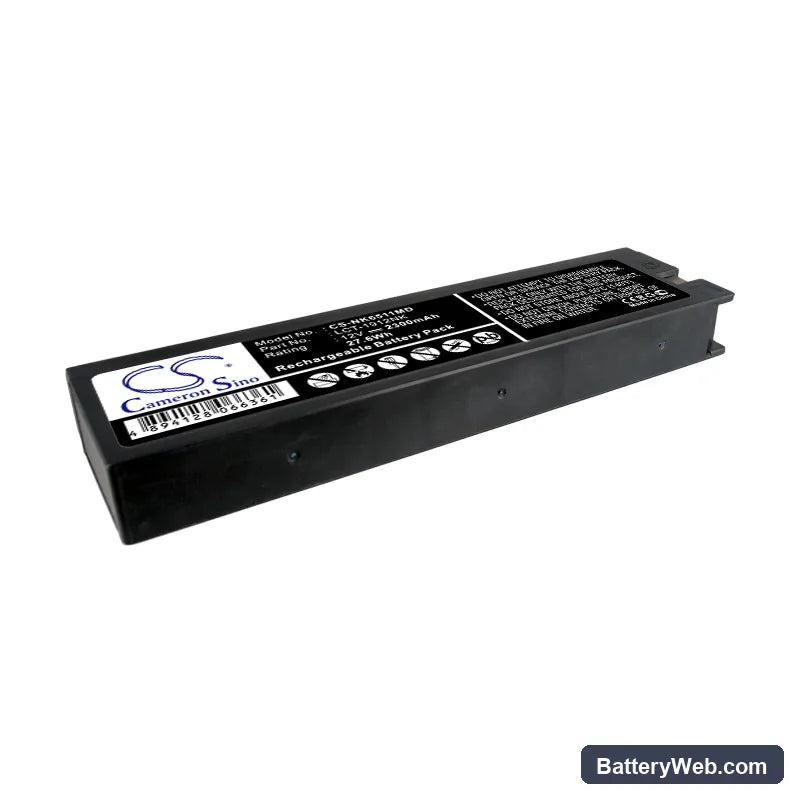

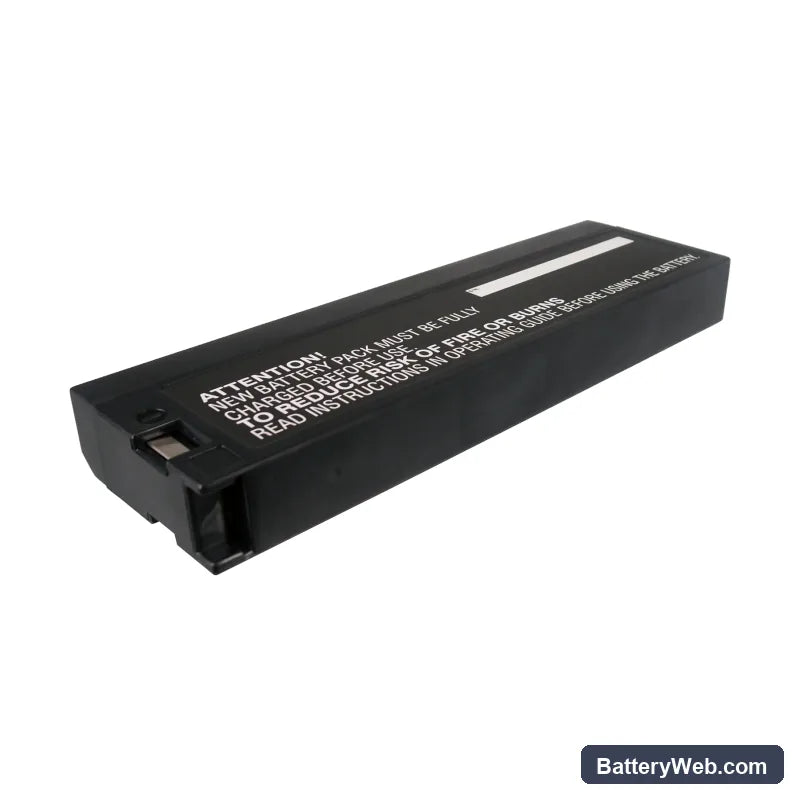

Philips M3516A — 12V Sealed Lead Acid Replacement Battery

This is a 12V 2300mAh sealed lead acid battery for the Philips HeartStart M3516A defibrillator monitor. It provides backup power for patient monitoring and cardiac intervention when mains power is unavailable. Voltage and capacity match the OEM cell specification exactly.

• M3516A platform fit: The HeartStart M3516A runs a 12V SLA architecture with a fixed connector and BMS handshake tied to cell chemistry. Swapping chemistry type here breaks the charge algorithm — SLA is the correct replacement, not Li-ion.
• Bench tested on actual hardware: We ran this cell through charge-discharge cycles on the M3516A platform. The BMS accepted the cell, completed self-test, and held stable voltage under monitoring load. No false fault codes were triggered after a full initial charge cycle.
• Post-installation self-test protocol: After fitting this battery, let the M3516A complete its full power-on self-test without interruption. The device runs a BMS verification sequence at startup — cutting power mid-cycle logs a false battery fault that persists until the next clean reboot.

Why the M3516A flags a battery fault after a new SLA cell is installed

The M3516A BMS calibrates against learned charge curves from the previous cell. A brand-new SLA cell has a different internal resistance profile and charge acceptance rate than a worn OEM cell. The BMS interprets this mismatch as an anomaly and raises a fault flag during the first verification cycle. One complete charge-discharge cycle lets the BMS update its baseline, after which the fault clears and the device operates normally.

Charge indicator not reaching 100% on the first charge after replacement

This is common on the first charge of any new SLA cell in the M3516A. The charge IC applies a conservative current limit when it detects higher-than-expected internal resistance — a characteristic of an unconditioned cell. The indicator stalls between 85–95% and the device may alarm. Run a full charge cycle uninterrupted, then discharge under normal monitoring load, then charge again. By the second full cycle the charge IC recognises the cell's actual capacity curve and the indicator reaches 100%.
