SoftBank 203Z Replacement Battery Li-Polymer 3.8V 5000mAh

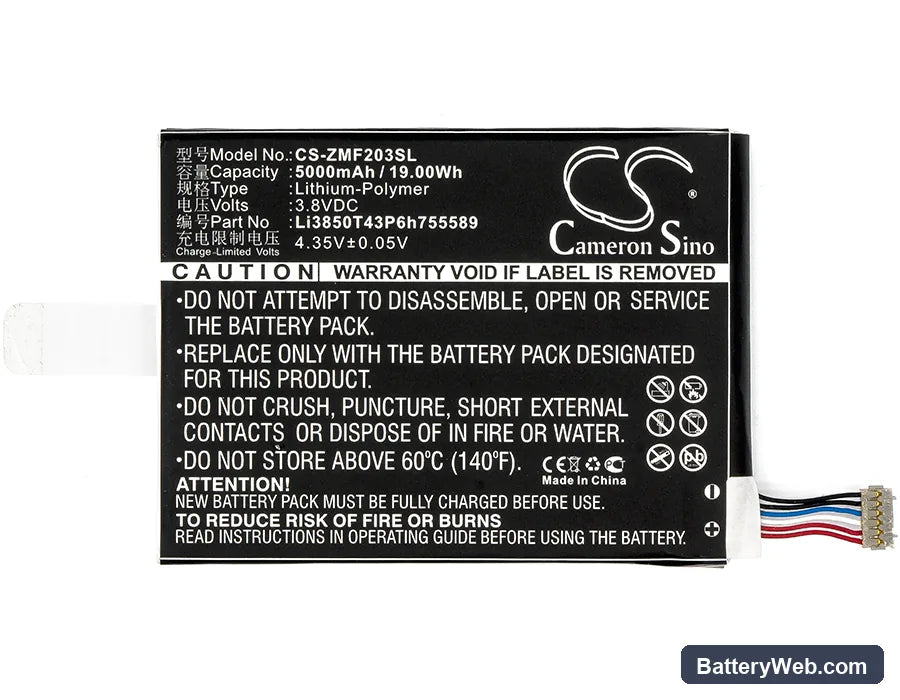

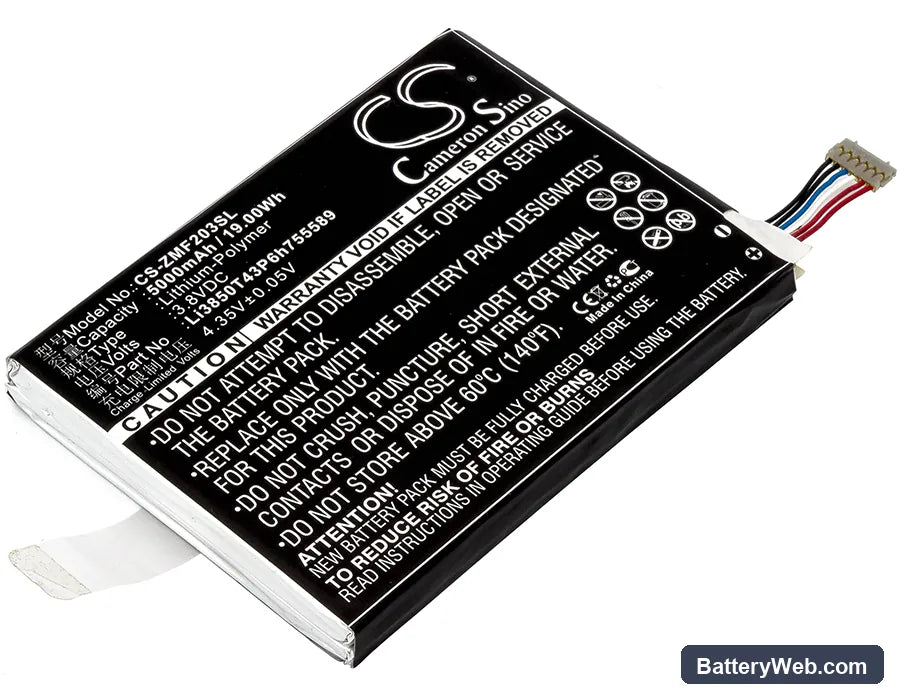

SoftBank 203Z / GL09P — 3.8V Li-Polymer Replacement Battery (Li3850T43P6h755589)

This is a 3.8V, 5000mAh Li-Polymer replacement battery for the SoftBank 203Z and GL09P mobile hotspot devices. It slots into either unit and restores full wireless connectivity when the original cell has degraded past usable capacity. Rated at 19Wh, it matches the factory specification listed under OEM part number Li3850T43P6h755589.

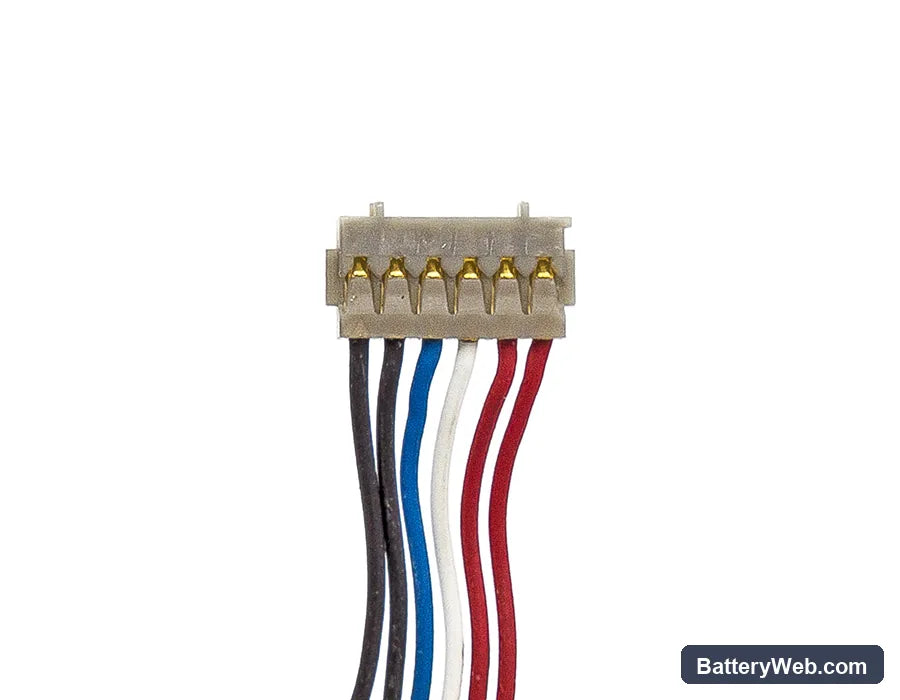

• 203Z and GL09P compatibility: Both models share the same battery bay dimensions, connector pinout, and BMS handshake protocol — 73.80 × 54.40 × 8.70mm cell with a 3.8V nominal rail. One battery covers both units without modification.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on the 203Z platform. The BMS held the charge termination voltage correctly and triggered low-voltage cutoff at the expected threshold without false shutdowns.
• Ventilation during extended hotspot sessions: Keep the 203Z flat on an open surface during long sessions. When connected devices are at the edge of range, the cellular radio runs at maximum transmit power — heat builds in the battery cavity and accelerates cell degradation if airflow is blocked.

Why the 203Z drops connected devices mid-session on a new battery

The 203Z runs two power-hungry subsystems simultaneously — the LTE modem and the Wi-Fi radio. When all client slots are occupied and the cellular signal is weak, combined draw spikes sharply. A worn cell cannot hold the voltage rail steady under that load, so the BMS triggers a brief protective cutoff that drops all connected devices. A fresh 5000mAh cell with low internal resistance handles the surge without the rail collapsing. If drop-outs persist on a new battery, check whether the unit is in a weak-signal area — moving it closer to a window cuts modem transmit power and reduces peak draw immediately.

203Z won't power on after sitting unused for several weeks

Li-Polymer cells self-discharge at roughly 2–5% per month. If the 203Z sat unused for an extended period, the battery may have dropped below the BMS minimum boot voltage — typically around 3.0V per cell — and the unit will show no response when the power button is pressed. Connect the device to the charger and leave it for at least 15–20 minutes before attempting to power on; the BMS needs to see a sustained input voltage before it will re-enable the discharge path. If the charge LED does not light at all, try a different cable and adapter to rule out a dead input before concluding the battery is unrecoverable. Once the cell recovers above 3.2V, normal charging and boot behaviour resumes.
