AT&T Maestro Plus / Fusion Z — 3.85V Li-Polymer Replacement Battery (VSM3300)

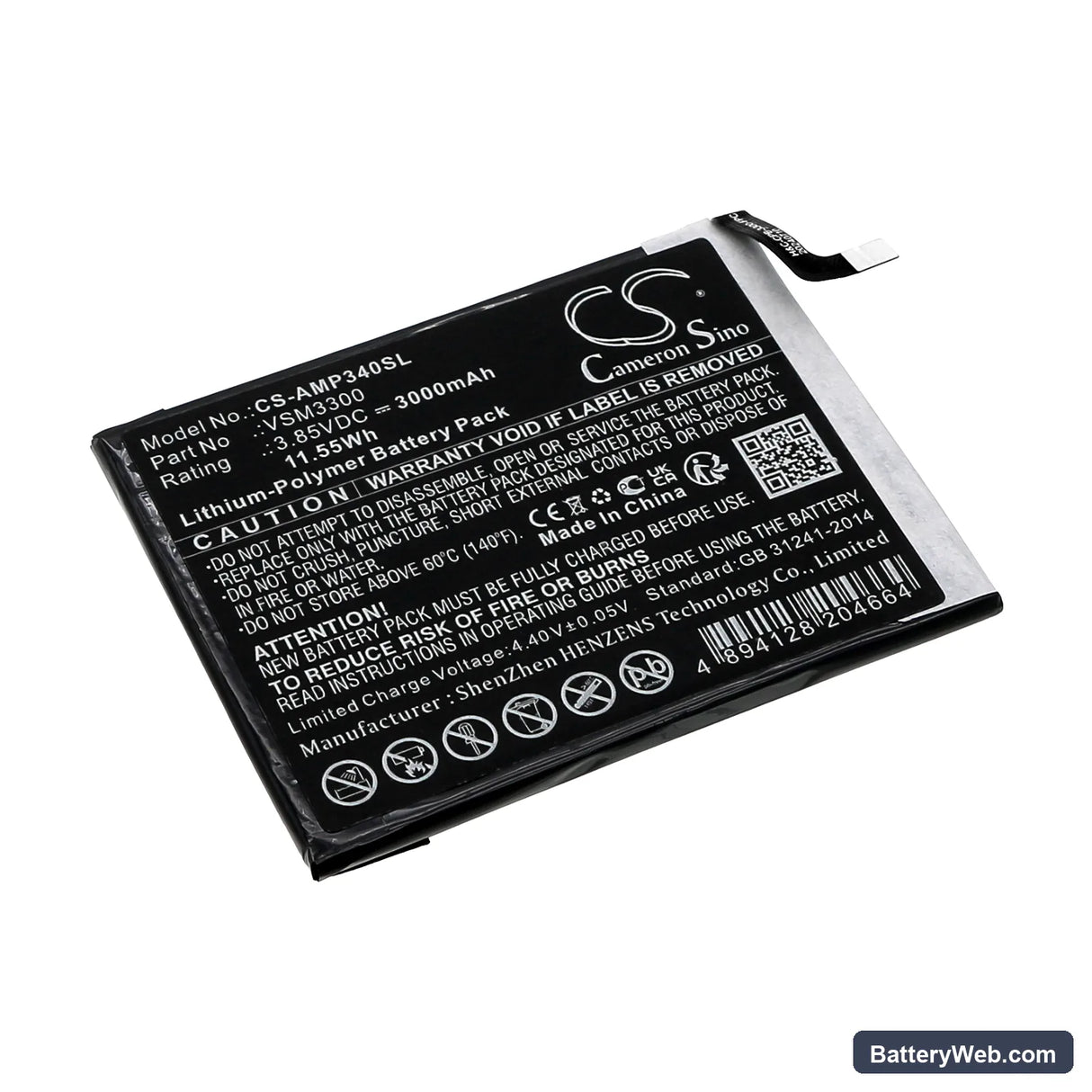

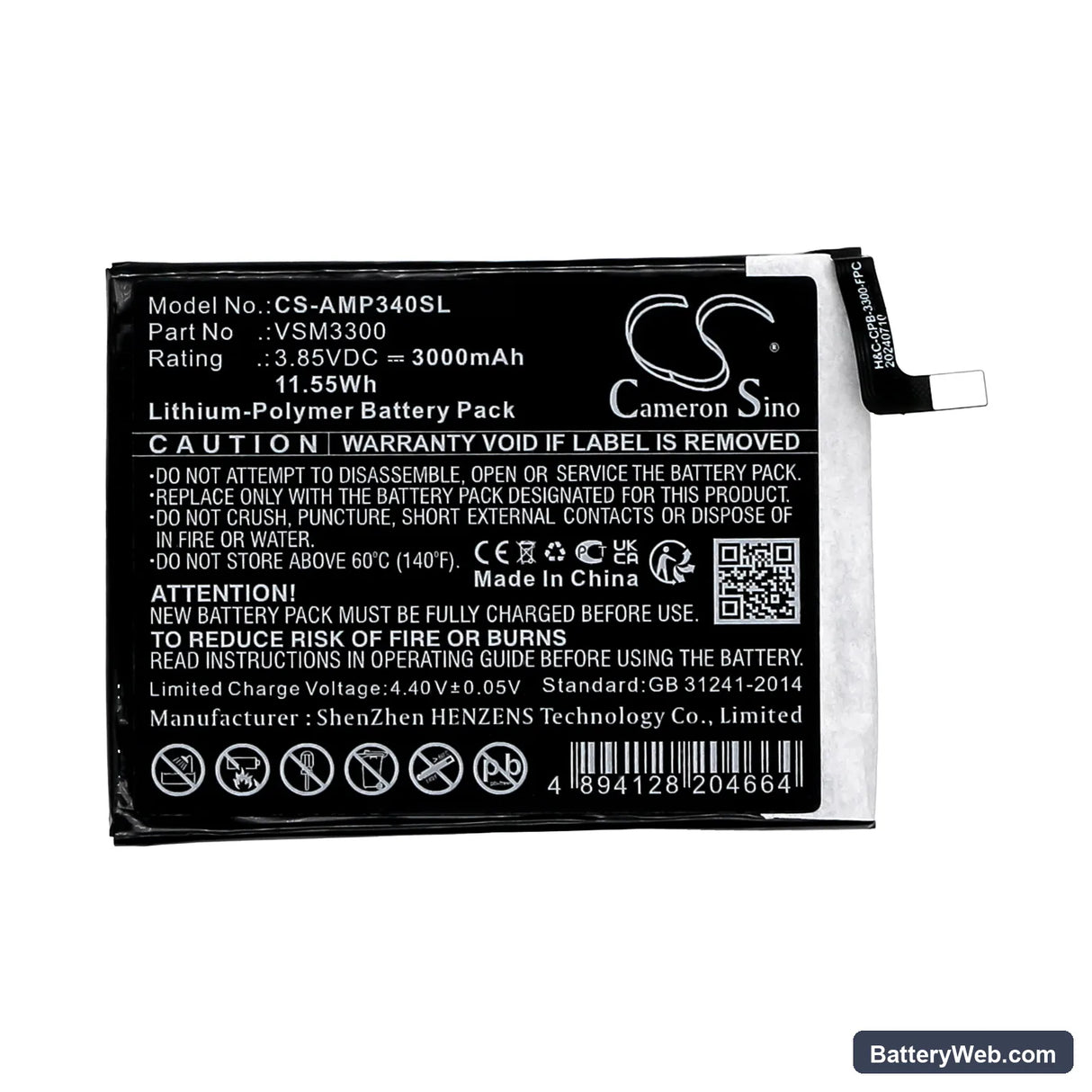

This 3.85V, 3000mAh (11.55Wh) Li-Polymer cell replaces the original VSM3300 battery in the AT&T Maestro Plus, V340U, Motivate V341U, and Fusion Z. These are basic calling and messaging devices, and battery degradation is the most common reason users replace them rather than buying new hardware. Swapping this cell restores the device to its original power capacity.

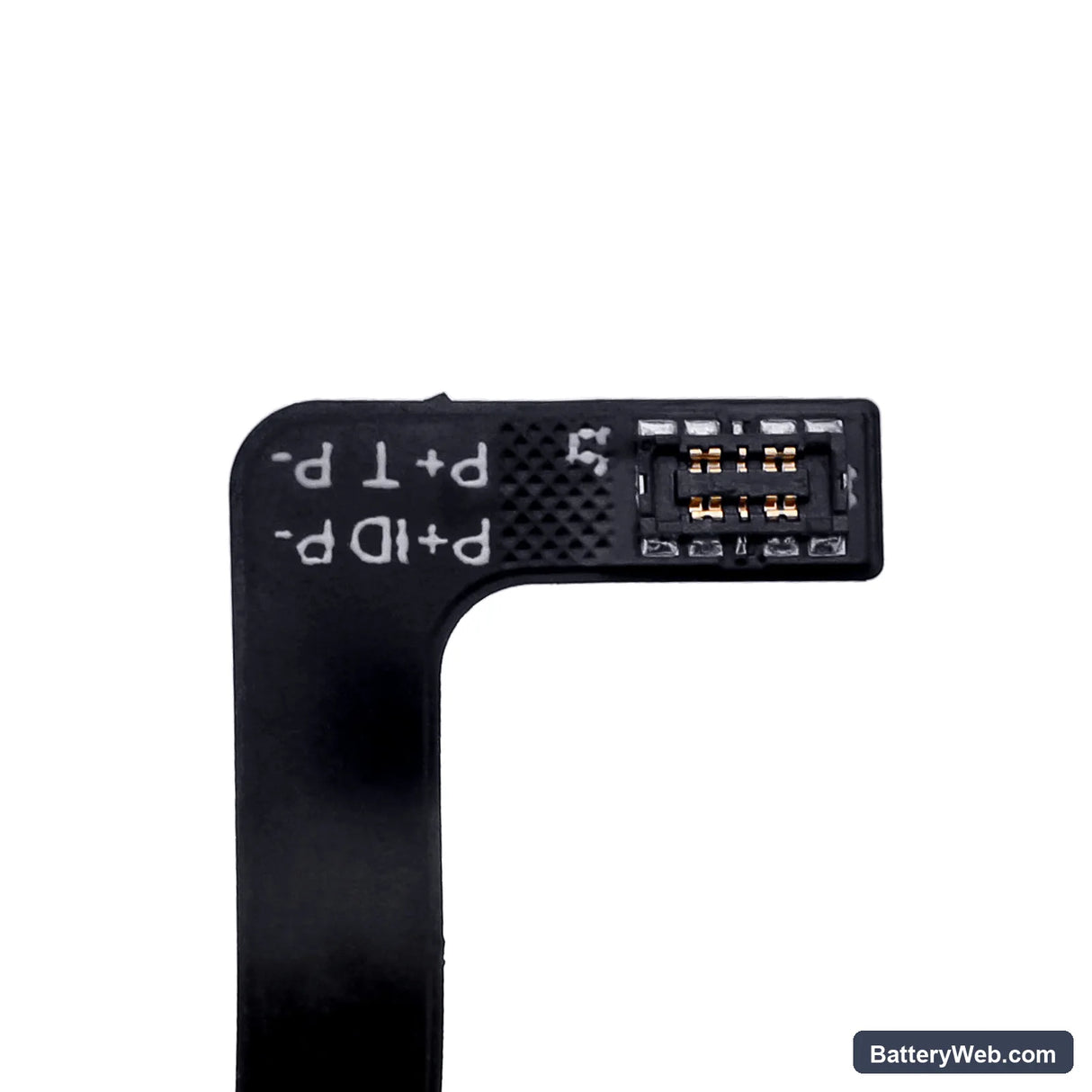

• Maestro Plus / Fusion Z compatibility: The V340U, Motivate V341U, and Fusion Z share the same battery bay dimensions and VSM3300 connector pinout. The BMS handshake protocol is identical across this device group, so the fuel gauge IC communicates correctly with each model's charge controller without modification.
• Bench tested on actual hardware: We ran the VSM3300 replacement through full charge and discharge cycles on the Maestro Plus. The BMS accepted charge input without triggering overcurrent cutoff, and the fuel gauge IC registered cell voltage accurately once the discharge curve was established after the first full cycle.
• Fuel gauge recalibration on first use: On first installation, disable fast charging and run one complete discharge-to-charge cycle before enabling it. The fuel gauge IC on these devices calibrates its coulomb counter against the new cell's discharge curve — skipping this step causes the OS to display inaccurate percentages for the first several cycles.

Sudden shutdown at 20–30% on the Maestro Plus after a cell swap

This is a voltage cliff issue, not a capacity problem. The fuel gauge IC still holds the old cell's discharge curve in memory after replacement, so it misreads the new cell's voltage-to-capacity relationship. When modem activity or screen load pulls current at the point where the new cell's voltage drops steeply, the phone cuts out even though the displayed percentage looks safe. One full discharge below 5% followed by a complete charge resets the coulomb counter and maps the new curve accurately. After that cycle, shutdown behaviour normalises.

Phone won't power on after the VSM3300 sat discharged in storage

Li-Polymer cells that drop below approximately 2.5V trigger BMS lockout — the protection circuit disconnects the cell to prevent damage, and the phone shows no response to the power button or charger connection. Connect the device to a wall adapter, not a PC USB port, and leave it for 20–30 minutes without pressing anything. The charge IC on these devices sends a trickle current that slowly recovers the cell voltage above the BMS re-enable threshold. Once the cell climbs back above 3.0V, the BMS reopens and normal charging resumes.
