Honor 70 Pro HB516590EFW Compatible Battery 3.87V 4400mAh

Honor 70 Pro — 3.87V Li-Polymer Replacement Battery (HB516590EFW)

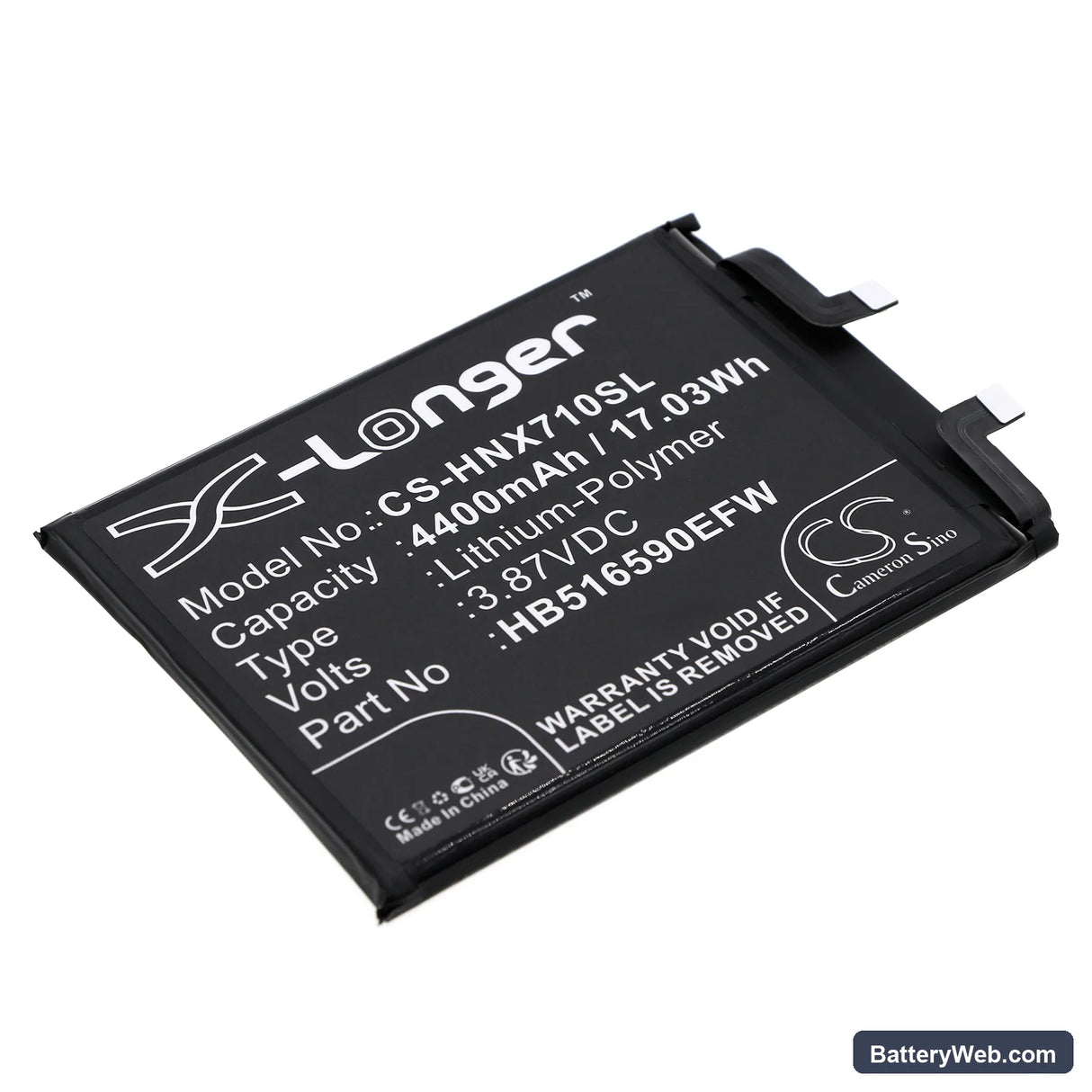

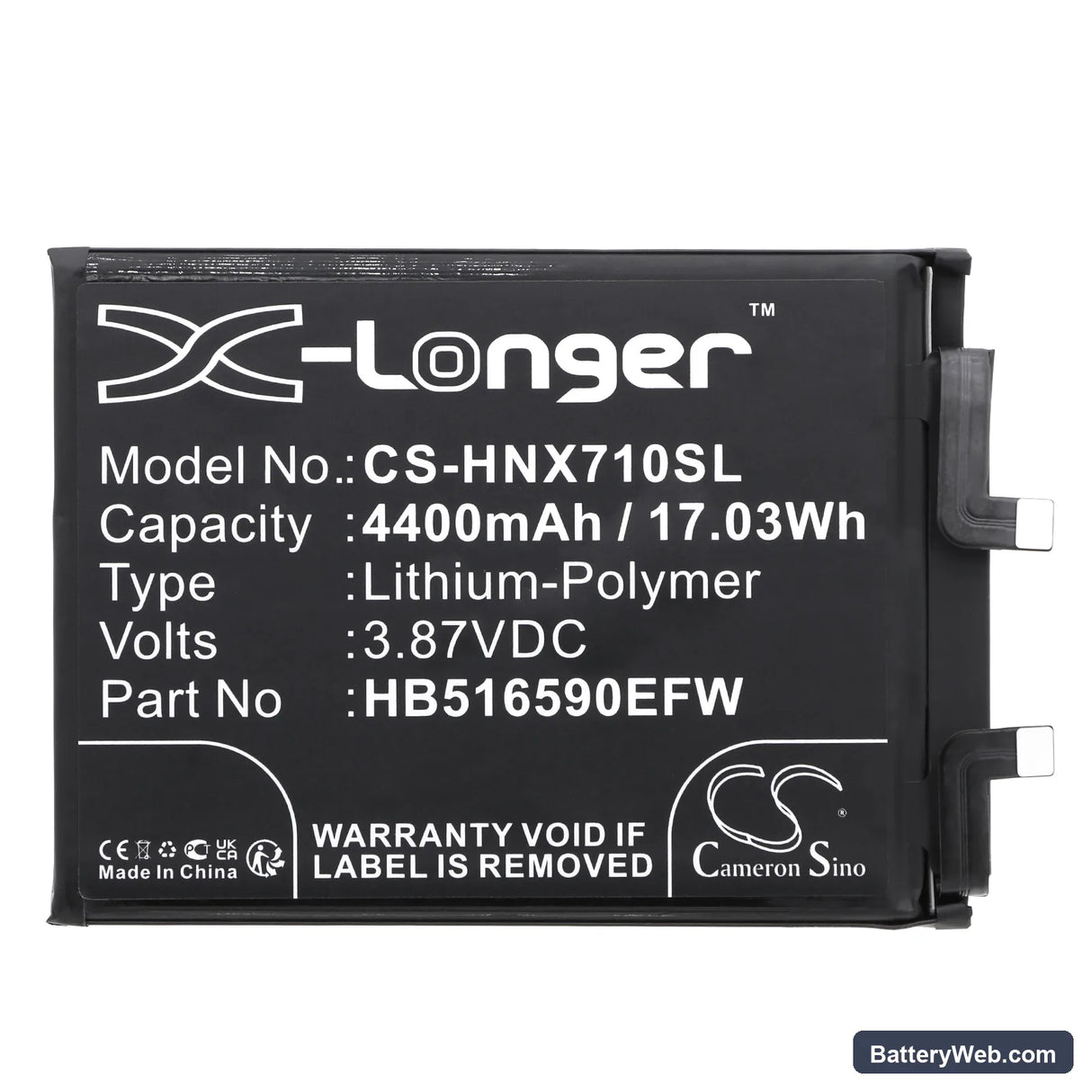

This is a 3.87V 4400mAh (17.03Wh) Li-Polymer cell for the Honor 70 Pro smartphone. It replaces the original HB516590EFW battery when the existing cell has degraded and can no longer hold charge through a full day. Capacity figure is taken from the product specification — not inflated.

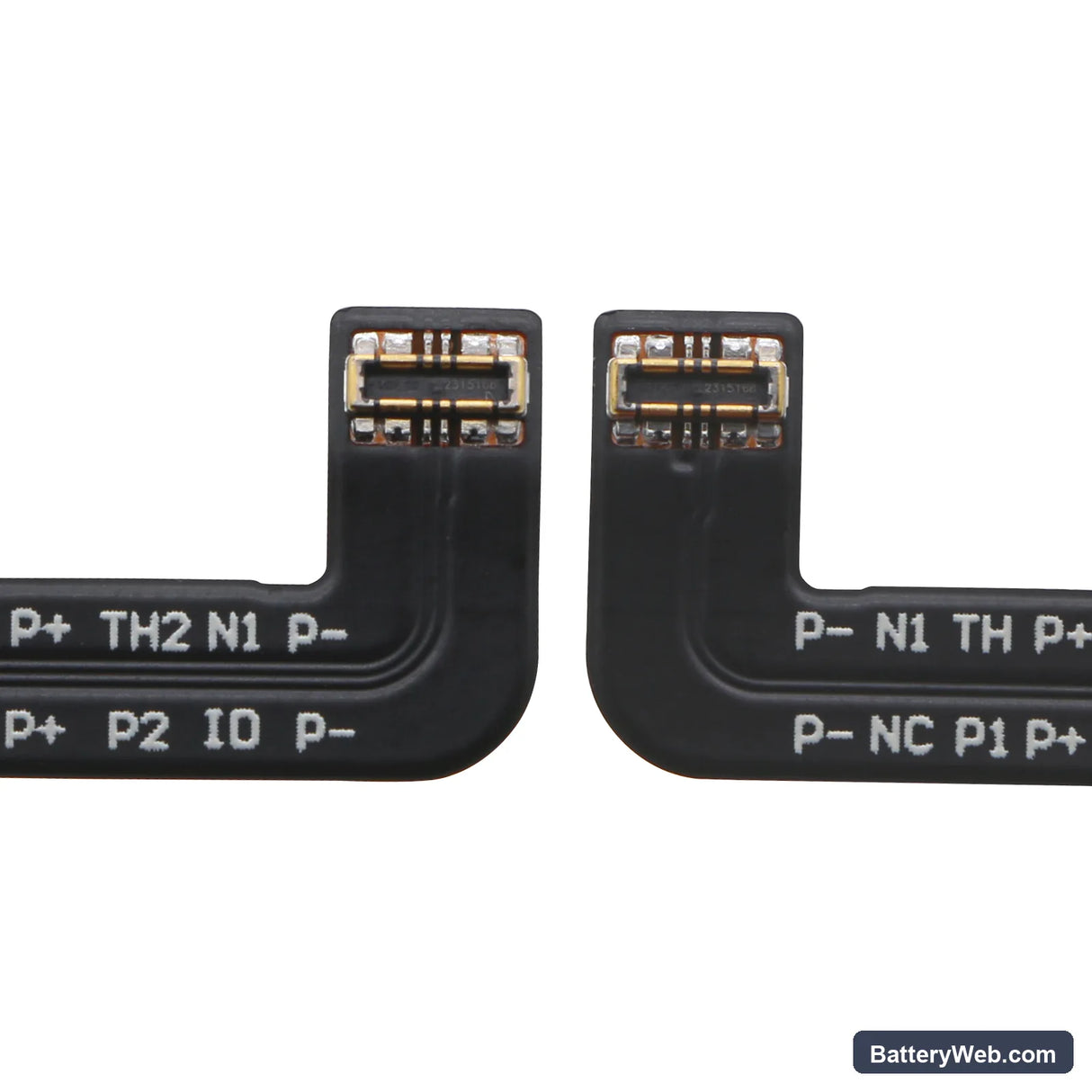

• Honor 70 Pro fit: The 70 Pro uses a specific connector pinout and BMS handshake that communicates state-of-charge data to the fuel gauge IC. This replacement cell carries the same HB516590EFW reference, so the BMS negotiation proceeds without fault codes on reconnection.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the 70 Pro platform and monitored BMS cutoff behaviour at both high and low voltage rails. The protection circuit triggers correctly at cell floor — no runaway discharge observed.
• Fuel gauge recalibration on first cycle: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle at standard current. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging begins pushing current into an uncalibrated coulomb counter.

Sudden shutdown at 20–30% on the Honor 70 Pro after a cell swap

A new cell does not automatically inherit the discharge curve stored in the fuel gauge IC — that data was built around the original cell's internal resistance profile. When the 70 Pro pulls heavy current for the display or modem, the new cell's actual voltage drops below what the IC predicted, triggering a low-voltage shutdown even though the reported percentage looks safe. The fix is a full calibration cycle: discharge to automatic shutdown, then charge uninterrupted to 100% without fast charge. After one clean cycle, the IC rewrites its reference curve to match the replacement cell.

USB-PD fast charge not activating on first cycle after replacement

After a cell swap, the BMS on the Honor 70 Pro may reject the fast charge handshake on the first charge session and fall back to standard 5V charging. This happens because the BMS reads an uncalibrated cell state and applies conservative current limits as a protection measure. Charge the device once at standard rate to 100%, then unplug and reconnect — the BMS will renegotiate the USB-PD contract with the charger on the next session. If fast charge still does not activate after two full cycles, confirm the charger output matches the 70 Pro's protocol requirement.
