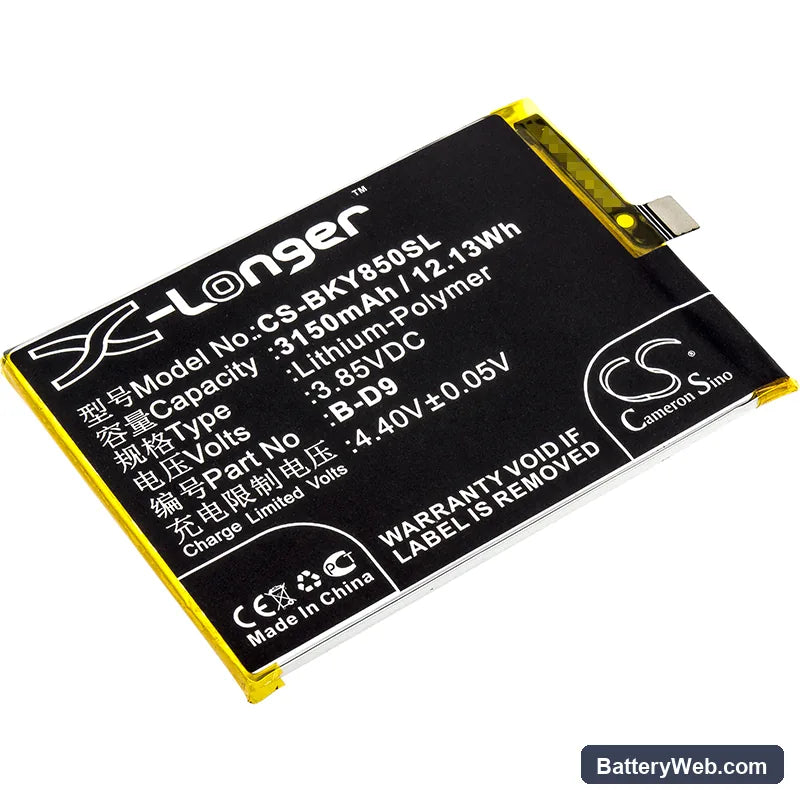

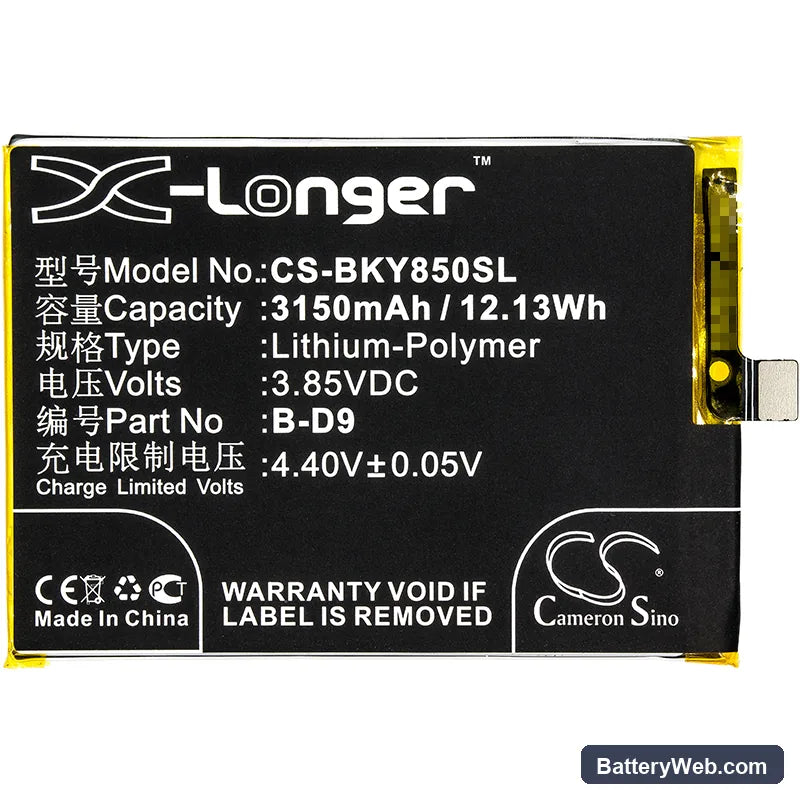

Vivo Y85 Replacement Battery B-D9 3150mAh 3.85V

Vivo Y85 Series — 3.85V Li-Polymer Replacement Battery (B-D9)

This is a 3150mAh (12.13Wh) Li-Polymer cell for the Vivo Y85, Y85A, Y85 Dual SIM, and Y85 Dual SIM TD-LTE. It replaces part number B-D9 when the factory cell no longer holds adequate charge. Voltage is 3.85V nominal — match this before fitting any cell to this board.

• Y85 series fit: All listed variants share the same battery bay dimensions (82.34 × 58.65 × 3.64mm), the same flex connector pinout, and the same charge IC handshake. Swapping between Y85 and Y85A does not require a different cell.
• Bench tested on actual hardware: We cycled this cell through the Vivo charge IC at both standard and fast-charge rates. The BMS accepted the charge profile cleanly, held voltage above 3.6V through load peaks from the modem and display, and tripped no over-current flags during bench discharge.
• Fuel gauge recalibration on first use: On first installation, disable fast charging and run one full discharge-to-charge cycle at standard rate. The fuel gauge IC on the Y85 calibrates its coulomb counter against the new cell's discharge curve. Skipping this step is the direct cause of erratic percentage readings in the first week.

Why the Y85 reports wrong battery percentage after a cell swap

The Y85 uses a coulomb-counting fuel gauge IC that builds its charge model from learned discharge data on the original cell. When you fit a new cell, that learned curve no longer matches the new chemistry profile. The IC continues using stale reference data, so the percentage display drifts — often reading 100% sooner than actual full charge, or dropping several points in one step. One complete discharge below 5% followed by an uninterrupted charge to 100% at standard rate forces the IC to rewrite its reference curve against the new cell.

Sudden shutdown at 20–30% on a replacement cell

This is a voltage-cliff failure, not a capacity problem. Under high simultaneous load — modem transmission, screen at full brightness, GPS active — the cell voltage sags below the BMS cutoff threshold before the fuel gauge registers low charge. The Y85's protection circuit reads this as a fault and cuts power instantly. If shutdowns repeat at the same percentage, run the device through two full calibration cycles first. If the fault persists, check that the flex connector is fully seated — a partially connected cell increases internal resistance and amplifies voltage sag under load. Target resting voltage after a full charge: 4.35V.
