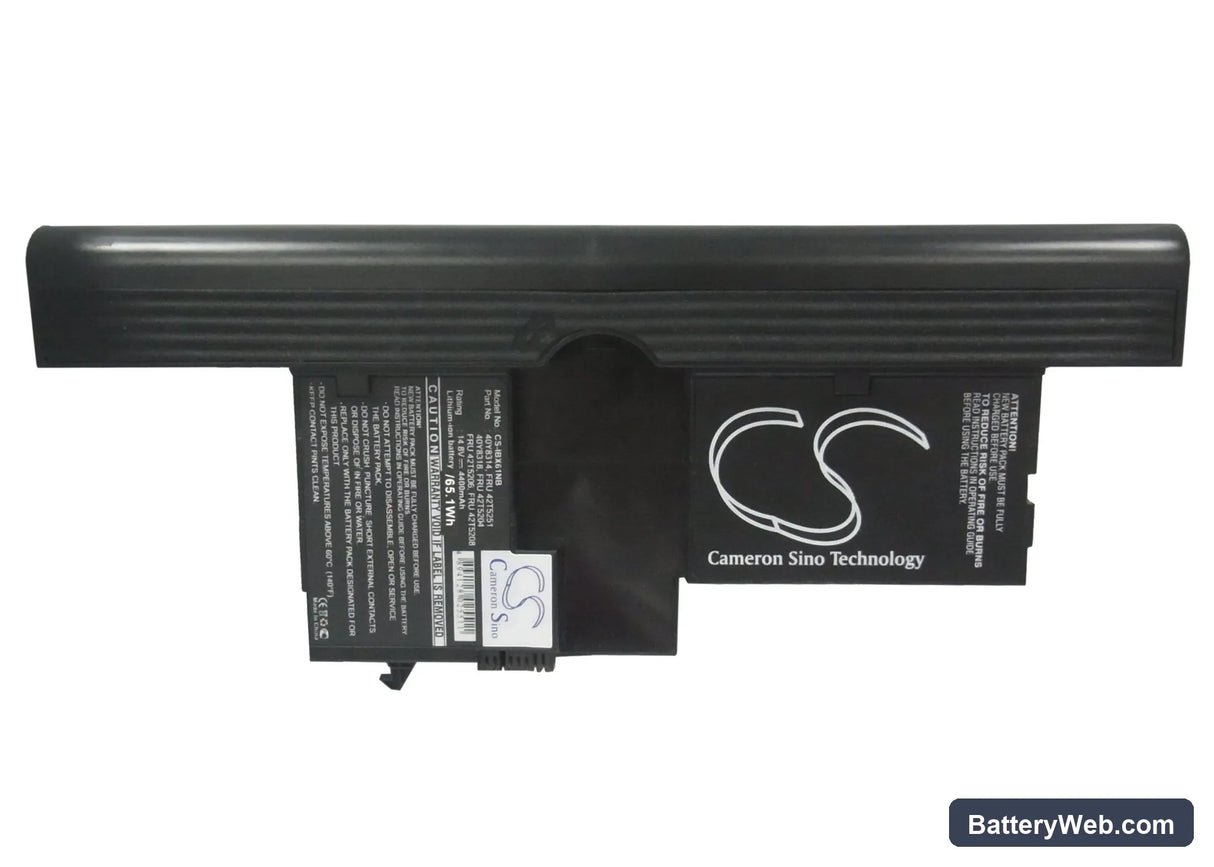

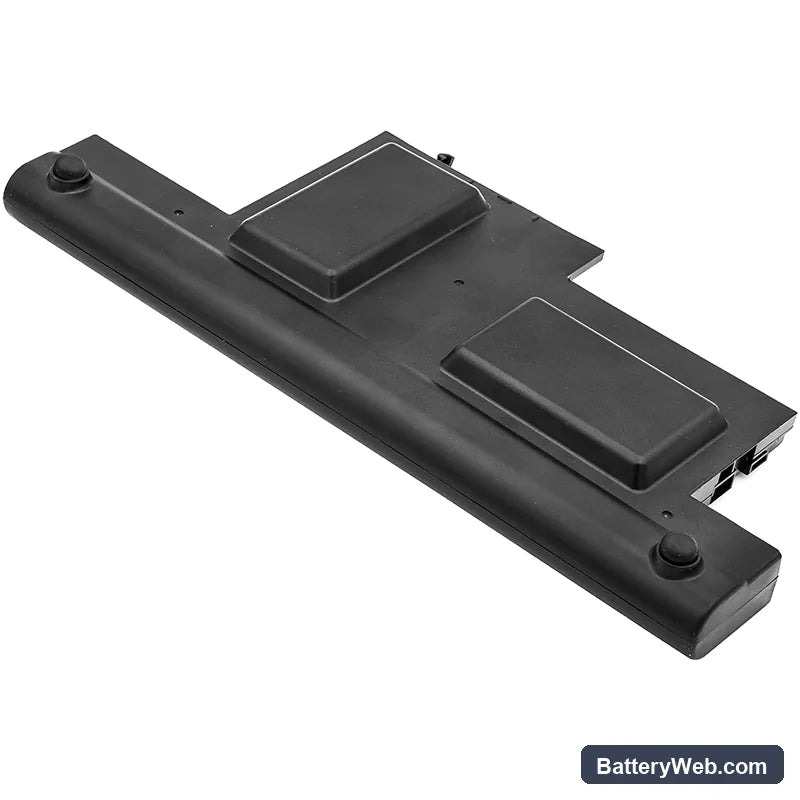

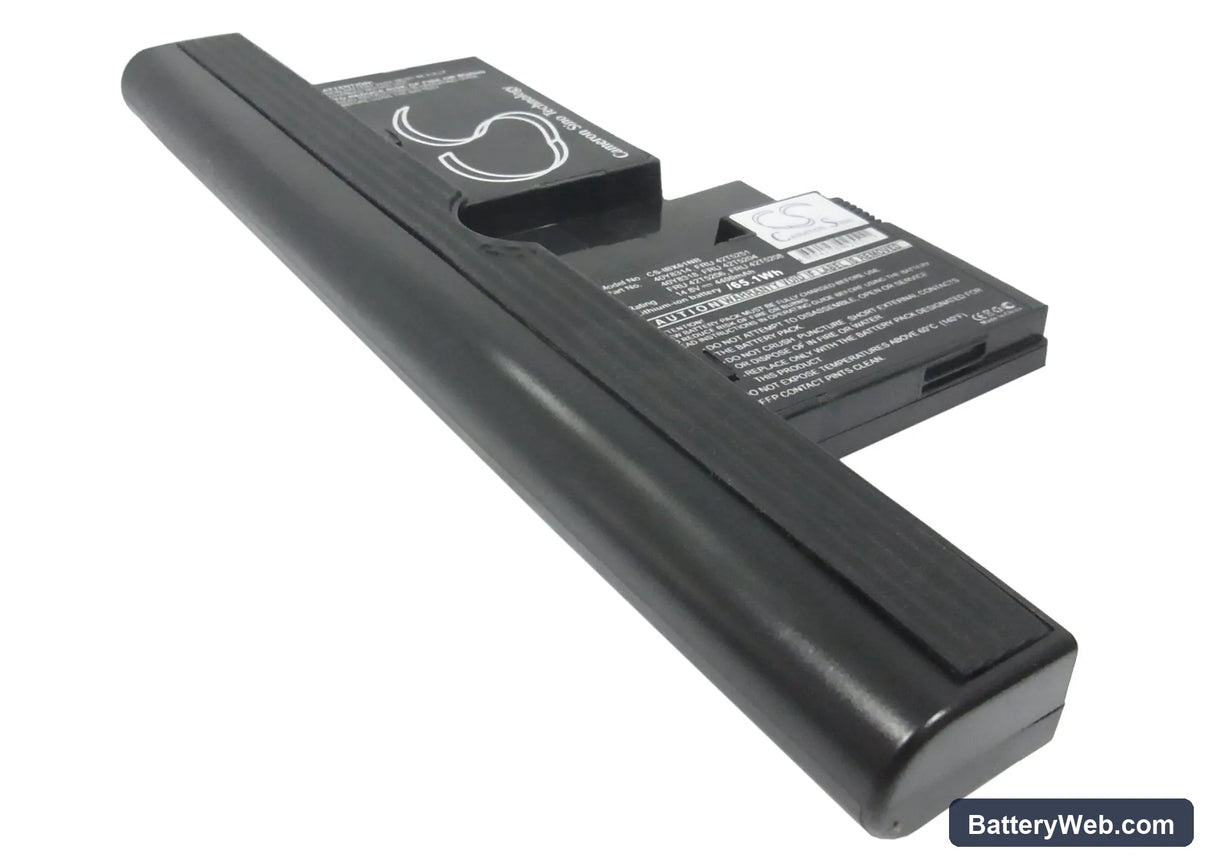

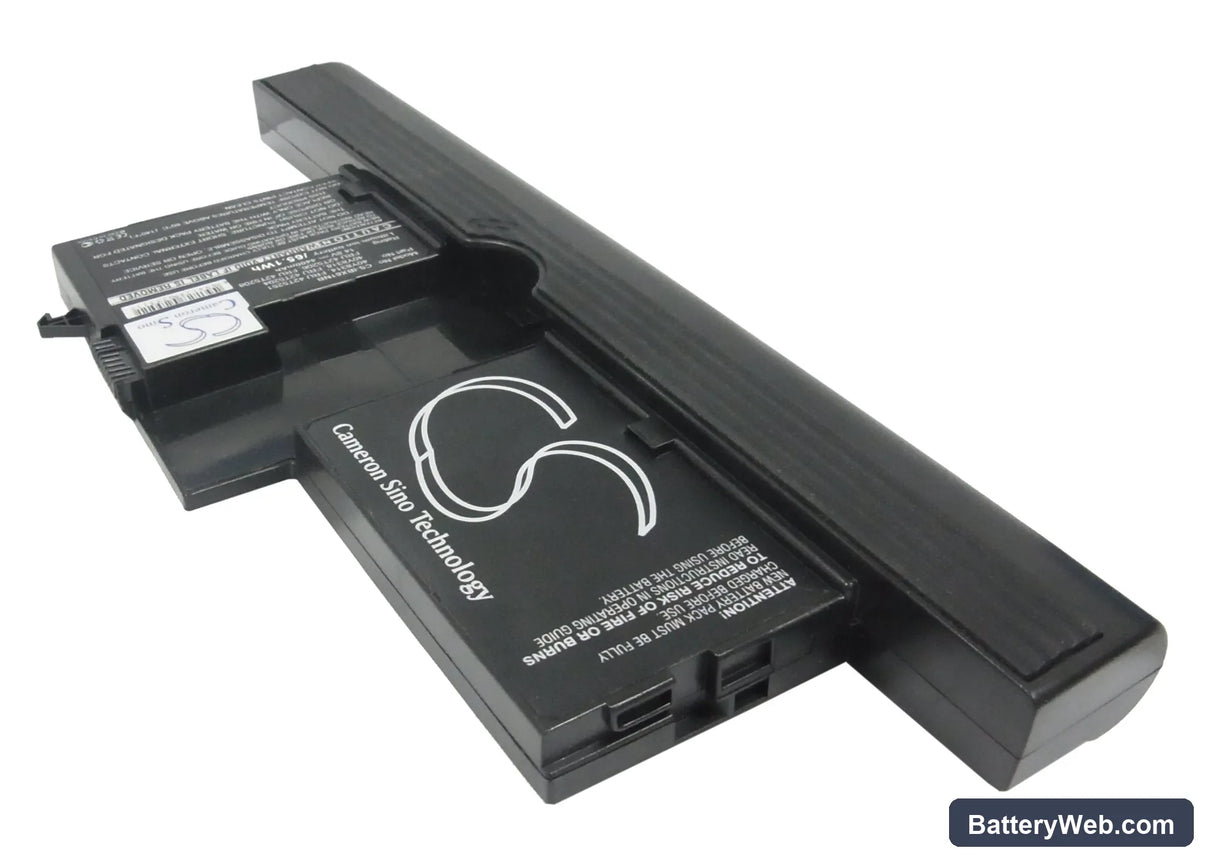

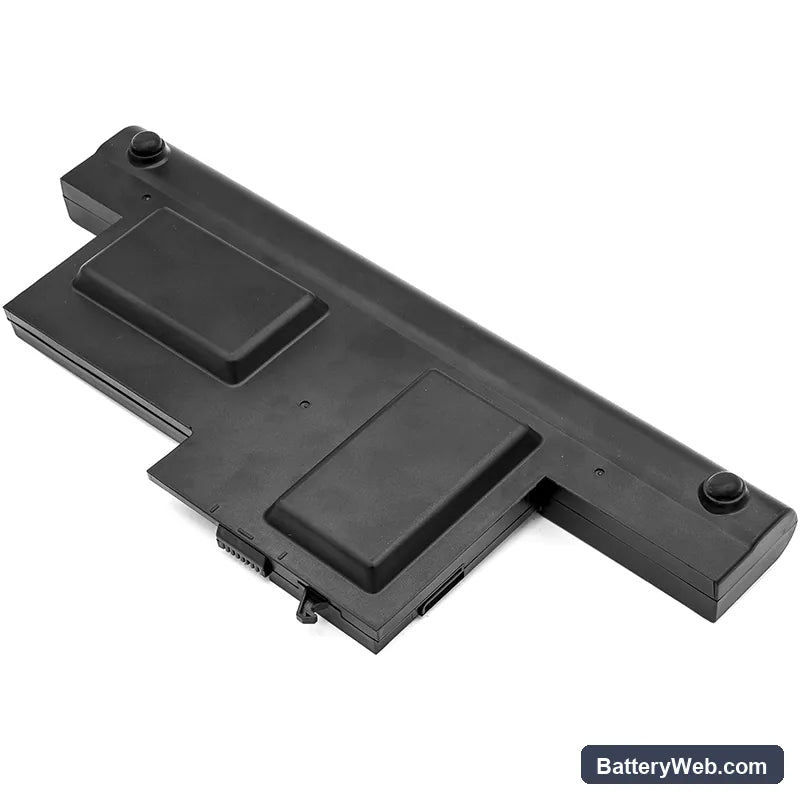

IBM ThinkPad X60 / X61 Tablet PC — 14.8V Li-ion Replacement Battery (40Y8314)

This 14.8V, 4400mAh (65.12Wh) Li-ion cell replaces the original battery in the IBM ThinkPad X60 and X61 Tablet PC convertible series. It fits models including the X60 Tablet 6364, 6365, 6367 and X61 Tablet 7764, matching the original connector, voltage rail, and BMS handshake. OEM part numbers covered include 40Y8314, 40Y8318, FRU 42T5251, FRU 42T5204, FRU 42T5206, FRU 42T5208, and ASM 42T5209.

• X60 / X61 Tablet platform fit: These models share the same four-cell 14.8V battery bay, connector pinout, and BMS communication protocol. One cell covers the full lineup without modification.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on an X61 Tablet. The BMS negotiated charge termination correctly, reported state-of-charge over SMBus without error flags, and held voltage through repeated suspend-resume cycles.
• BIOS learn cycle after install: After fitting this battery, run the ThinkPad down to hibernate cutoff under normal load — screen on, Wi-Fi active — then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the false "poor health" warning that appears after any cell swap on this platform.

Why the X60 / X61 Tablet shuts down at 20–30% after a battery swap

The ThinkPad fuel gauge IC calibrates its discharge curve against EEPROM data written by the previous cell. A new cell with different internal resistance shifts the voltage-to-capacity curve enough that the system hits the low-voltage cutoff threshold earlier than the gauge predicts. The BIOS interprets this as 20–30% remaining and triggers a shutdown to protect the cell. Running two to three full discharge-to-hibernate, charge-to-100% cycles forces the fuel gauge IC to re-map the curve against the new cell's actual characteristics. After calibration, the gauge typically tracks within 3–5% across the full discharge range.

ThinkPad reporting 0% or "unknown battery" immediately after fitting

This happens when the BIOS cannot read the SMBus data from the new cell's protection circuit — usually a loose seating in the battery bay connector rather than a faulty cell. Remove the battery, clean the gold contacts on both the cell and the bay with a dry cloth, and reseat firmly until the latch clicks. If the BIOS still shows 0%, enter ThinkPad Setup, navigate to Config → Power, and run the battery reset option to clear stale EEPROM flags. After a successful reset, the gauge should immediately report a charge value above 0V.
