Lenovo ThinkBook 13x L20C4PD1 Replacement Battery 15.48V 52.63Wh
Check that your old battery model number and device model to match our description. This makes sure they work together.
We ship your order same day if you buy it before 4 PM EST.
Lenovo ThinkBook 13x L20C4PD1 Replacement Battery 15.48V 52.63Wh - is backordered and will ship as soon as it is back in stock.
Let customers speak for us
Send Your Battery Photo
Expert Technician Help
Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.
POST YOUR BATTERY IMAGE
Product & Solutions Expert
✉ sales@batteryweb.com
Battery Care Tips
Battery Care Tips
🔹 Getting Started
Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.
🔹 Keep It Healthy
Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.
Delivery and Shipping
Delivery and Shipping
🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.
Disclaimer
Disclaimer
⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.
🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.
Lenovo ThinkBook 13x L20C4PD1 Replacement Battery 15.48V 52.63Wh - is backordered and will ship as soon as it is back in stock.
Voltage
15.48V
Amp
3400mAh

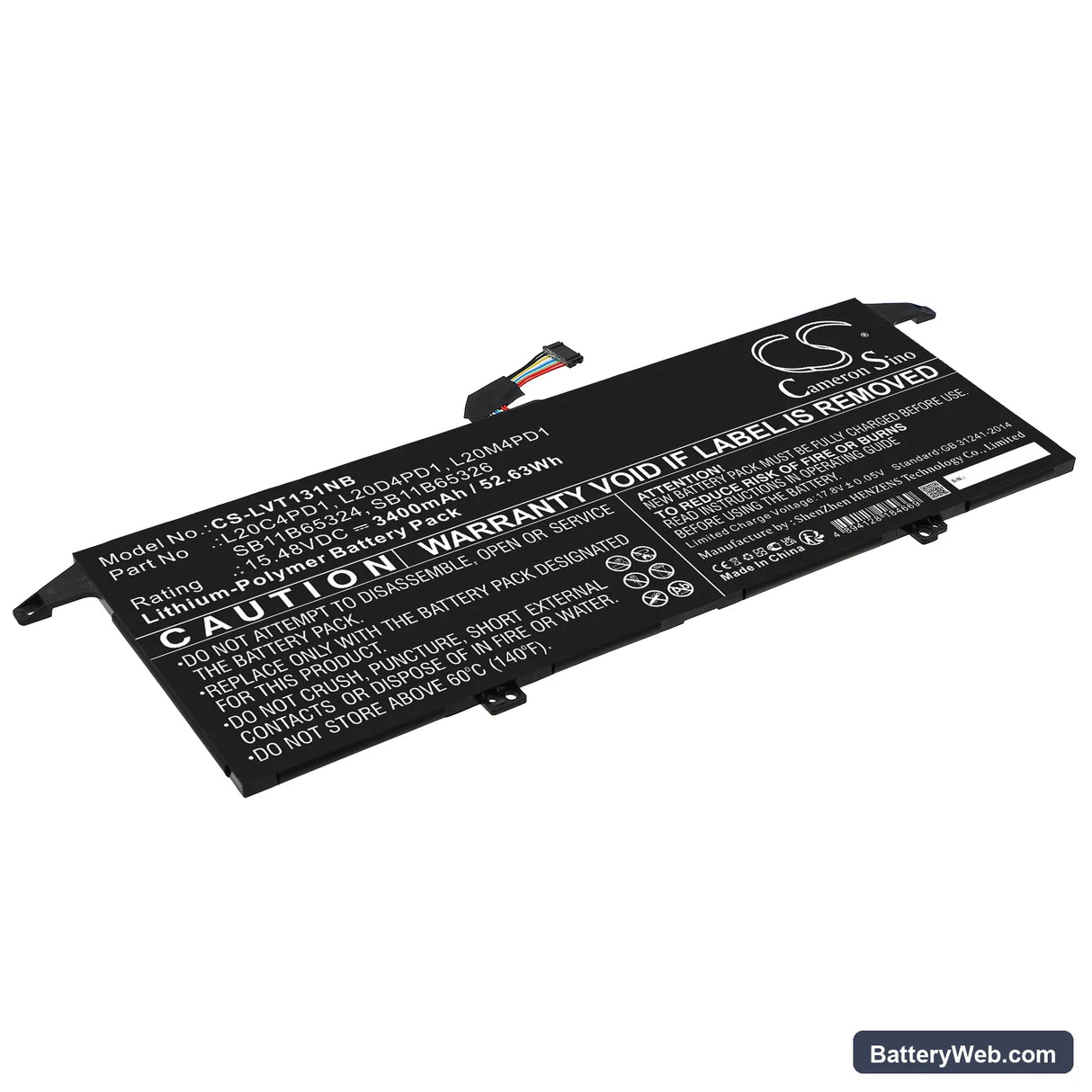

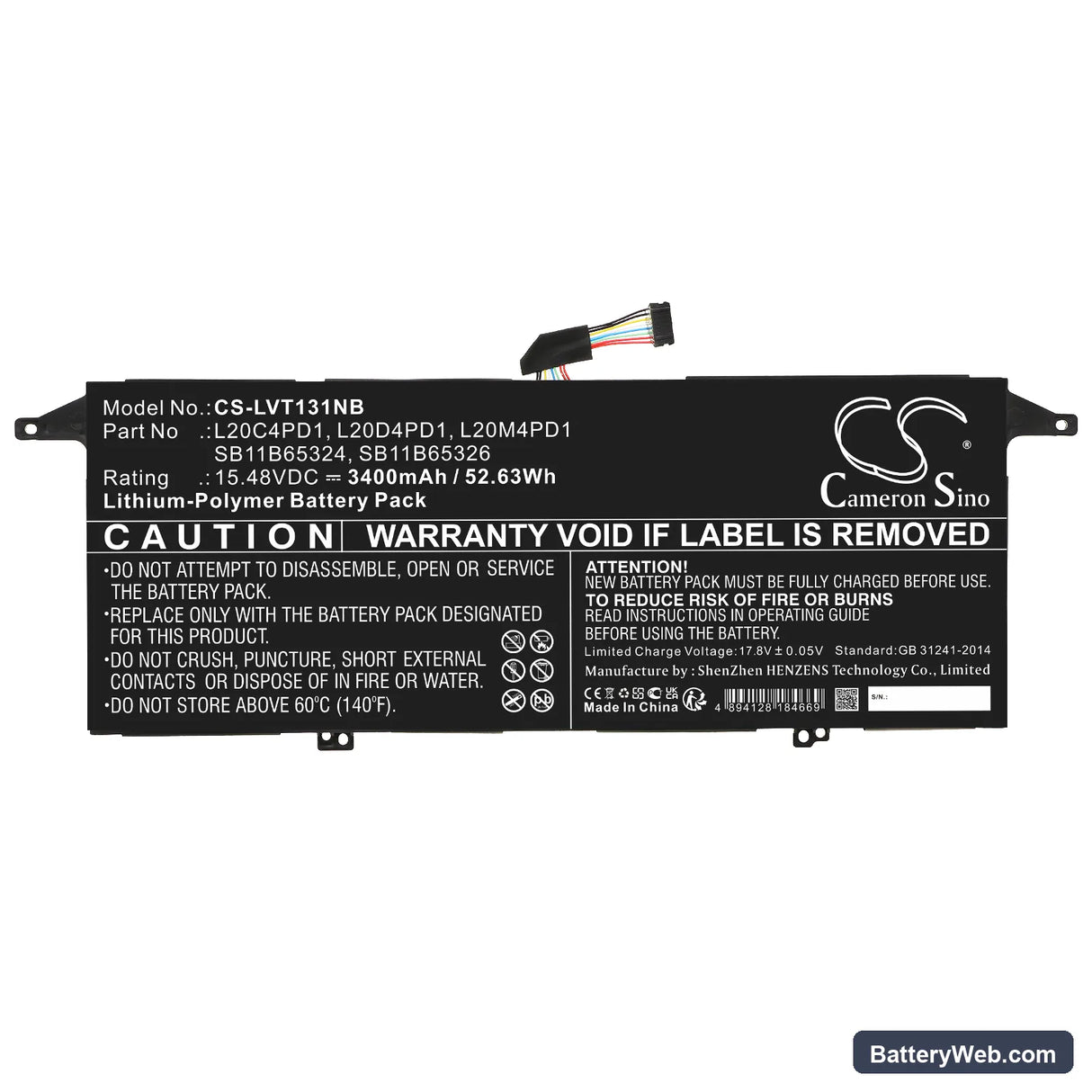

Lenovo ThinkBook 13x ITG — 15.48V Li-Polymer Replacement Battery (L20C4PD1)

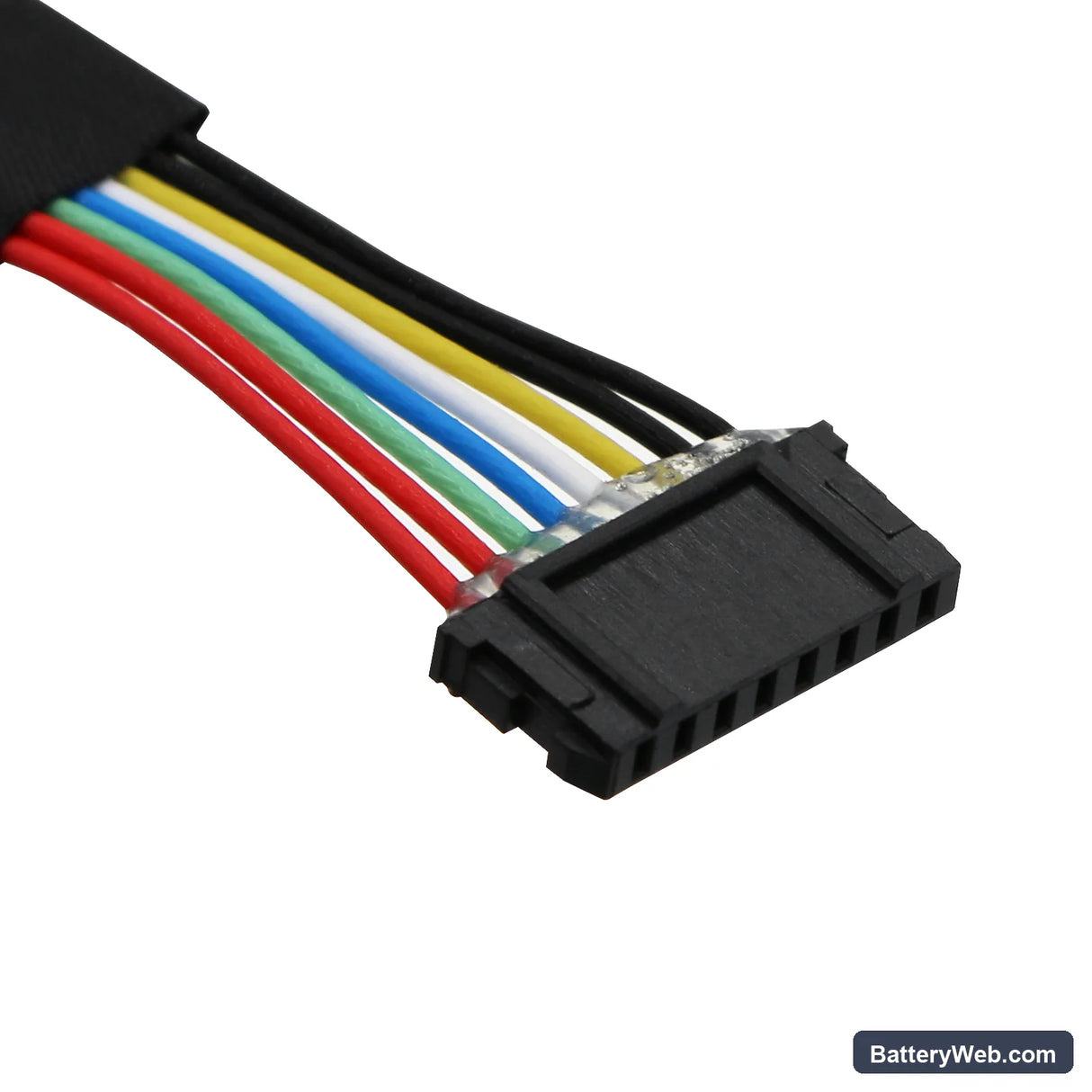

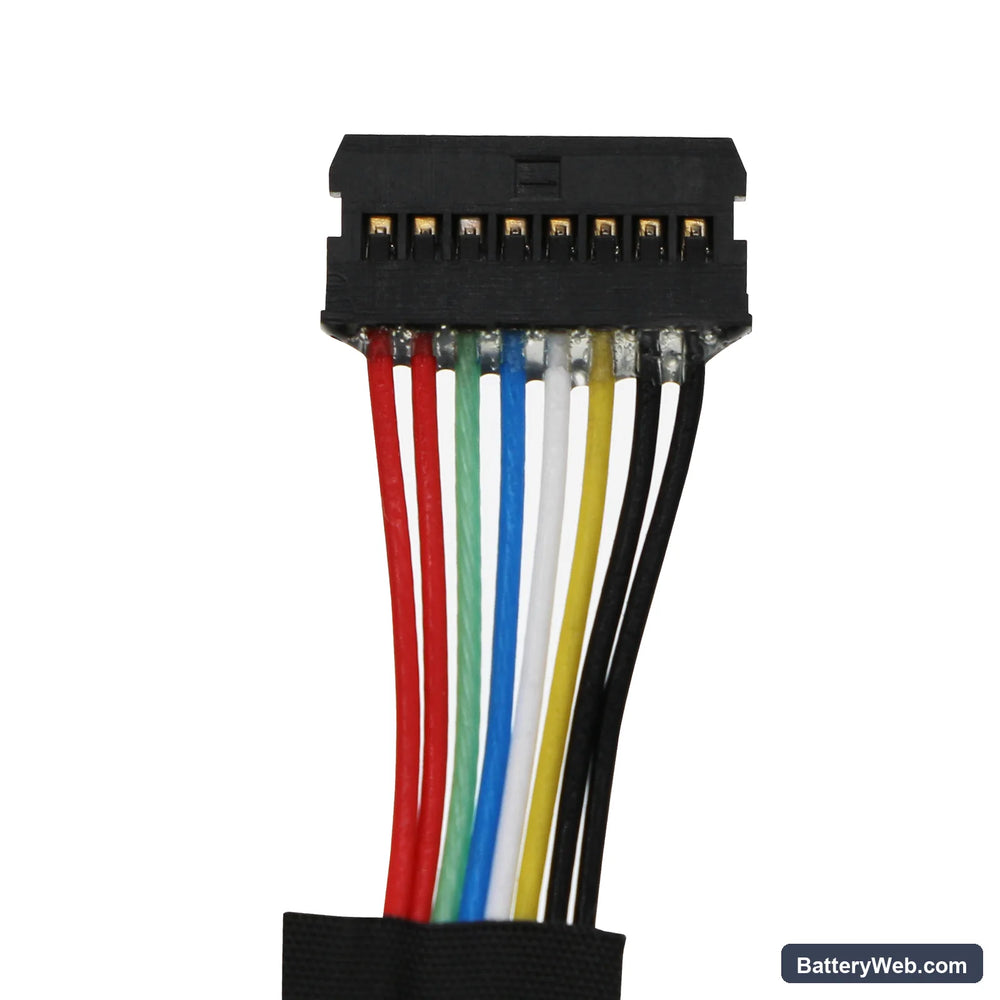

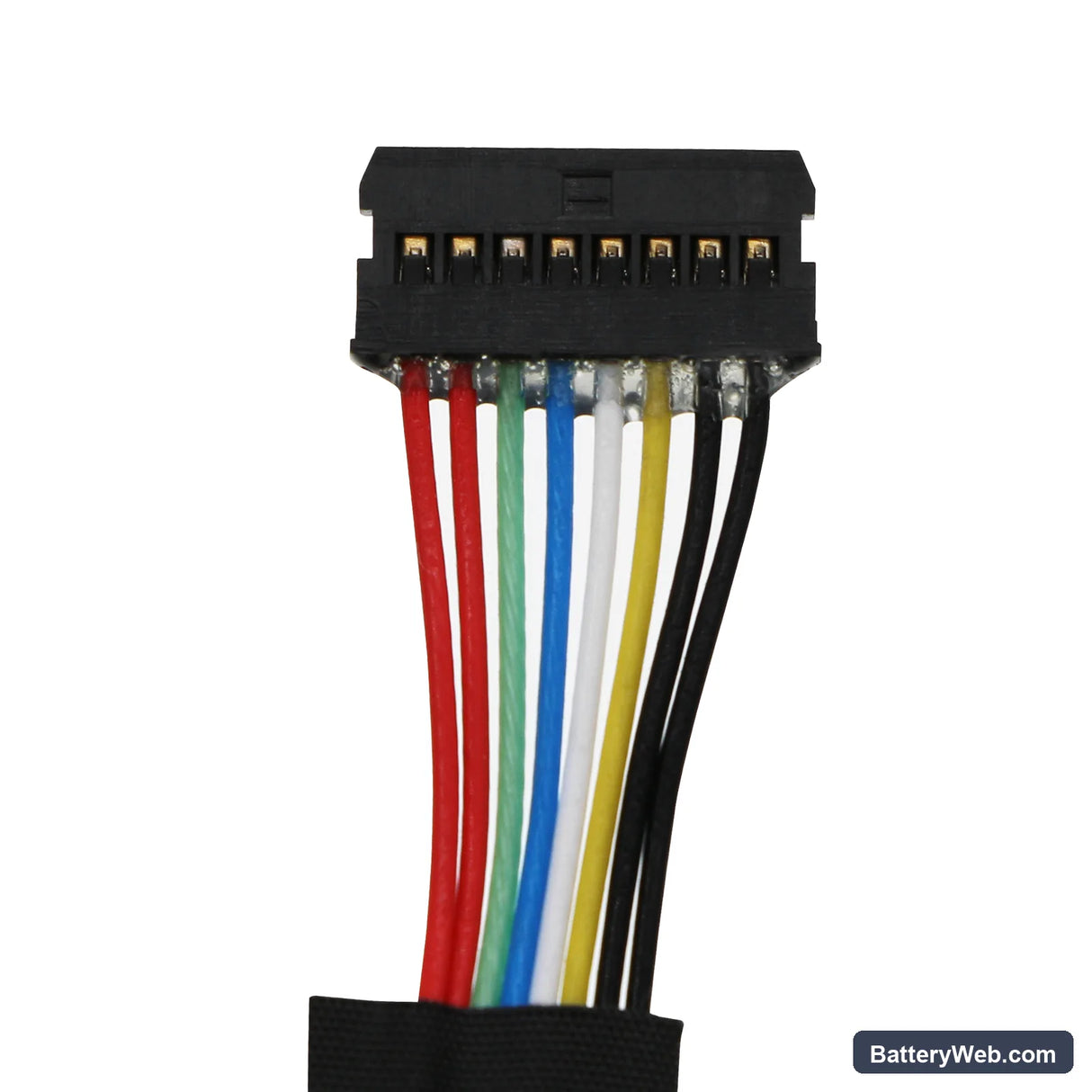

This is a 15.48V, 3400mAh (52.63Wh) Li-Polymer battery for the Lenovo ThinkBook 13x ITG and ThinkBook Plus G2 ITG series ultrabooks. It replaces OEM part numbers L20C4PD1, L20D4PD1, L20M4PD1, SB11B65324, and SB11B65326. The battery slots into the same connector and BMS handshake point as the factory cell.
- ThinkBook 13x ITG and Plus G2 ITG compatibility: These models share a 15.48V four-cell Li-Polymer architecture with a unified connector and BMS communication protocol. The EEPROM on each cell carries chemistry and rated Wh data that the Lenovo firmware reads directly at boot — swapping like-for-like keeps that handshake intact.
- Bench tested on actual hardware: We ran this cell on a ThinkBook 13x ITG under a sustained CPU and display load cycle. The BMS held charge termination correctly at 15.48V and the fuel gauge IC tracked cell voltage within normal drift across three full cycles.
- First cycle reset after install: After fitting, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This walks the BIOS through its battery learn cycle against the new cell and clears the inaccurate health warning that appears after every cell swap on this platform.
BIOS reporting battery health as poor immediately after replacement
The ThinkBook firmware reads cycle count and health data stored in the outgoing cell's EEPROM. When a new cell arrives with a blank or factory-default EEPROM, the BIOS flags it as unknown or degraded — not because anything is wrong, but because it has no historical data to compare. This is not a fault with the replacement cell. Running the full discharge-to-hibernate then uninterrupted charge-to-100% sequence lets the BIOS write a new baseline. After two to three cycles, the health readout in Lenovo Vantage or the Windows battery report normalises.
Laptop shutting down at 20–30% battery shown on screen
This happens when the fuel gauge IC is still calibrated to the old cell's discharge curve. The percentage shown is based on a voltage-to-capacity map built from the previous cell — the new cell hits a steeper voltage cliff at a different point, and the system interprets that as a hard shutdown threshold. It is not a defective battery. The fix is the same calibration cycle: discharge fully to hibernate, recharge to 100% uninterrupted, and repeat once more. After two cycles, the fuel gauge re-maps the curve and shutdowns at low percentages stop. If the issue persists after three cycles, check that Lenovo Vantage is not enforcing a custom discharge floor below 20%.
Compatible Models
Replaces Part Numbers
Technical Specifications
Product Highlights
- Brand: Lenovo
- Manufacturer: CS
- Series: Standard
- Color: Black
- Product Type: Li-Polymer
- Battery Type: Li-Polymer
- Warranty: 12 Months
- Bulk Orders: sales@batteryweb.com
Frequently Asked Questions
Why does Windows show the new battery as 0% or "unknown" right after I installed it?
The fuel gauge IC on the ThinkBook 13x ITG has no discharge curve data for the new cell yet — it read the old cell's EEPROM profile and that data no longer matches. Boot into Windows, let the laptop charge to 100% uninterrupted, then discharge fully to hibernate-cutoff. That single cycle writes a new baseline to the fuel gauge and clears the 0% or unknown reading. Most units resolve after one full cycle; stubborn cases clear after two.
The battery info in Lenovo Vantage shows a lower Wh rating than the original — is the replacement undersized?
The Wh figure Vantage displays pulls from EEPROM data embedded in the cell, and factory cells sometimes carry a rated value that differs slightly from the actual chemistry spec. This battery is rated at 52.63Wh. If Vantage shows a different number, it is reading a cached or mismatched EEPROM entry — not measuring live capacity. Run one full discharge-to-hibernate cycle and recheck; the system recalculates the value against actual cell behaviour and the reported figure corrects itself.
The ThinkBook stops charging at 80% and won't go higher — is something wrong with the replacement cell?
Nothing is wrong with the cell. Lenovo BIOS on this platform includes a Conservation Mode setting that caps charging at 60% or 80% to reduce long-term cell wear — it is firmware-controlled, not a battery fault. Open Lenovo Vantage, go to Power, then Battery, and check whether Conservation Mode or a custom charge threshold is active. Disable it or set the upper limit to 100%, and the battery will charge to full on the next cycle.
