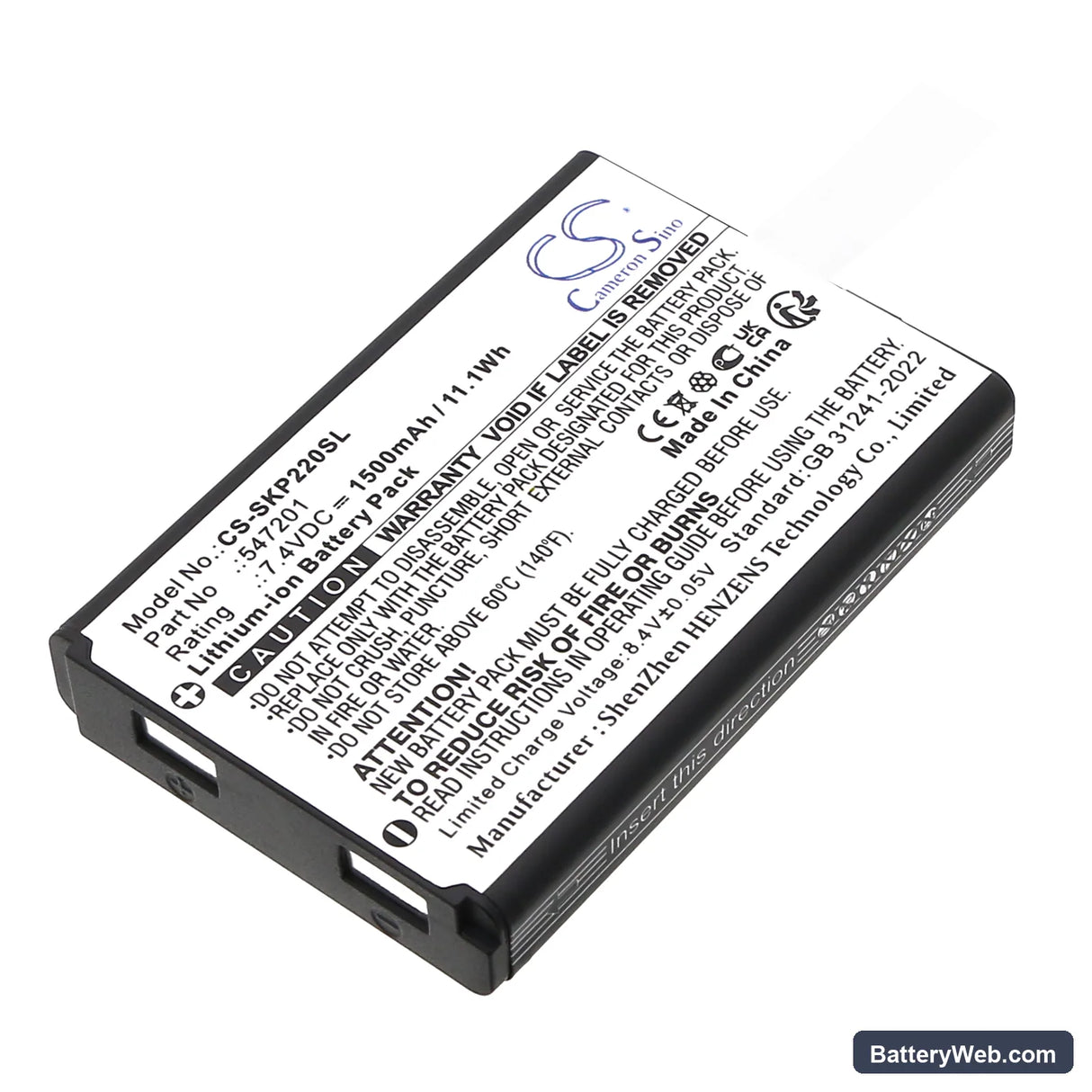

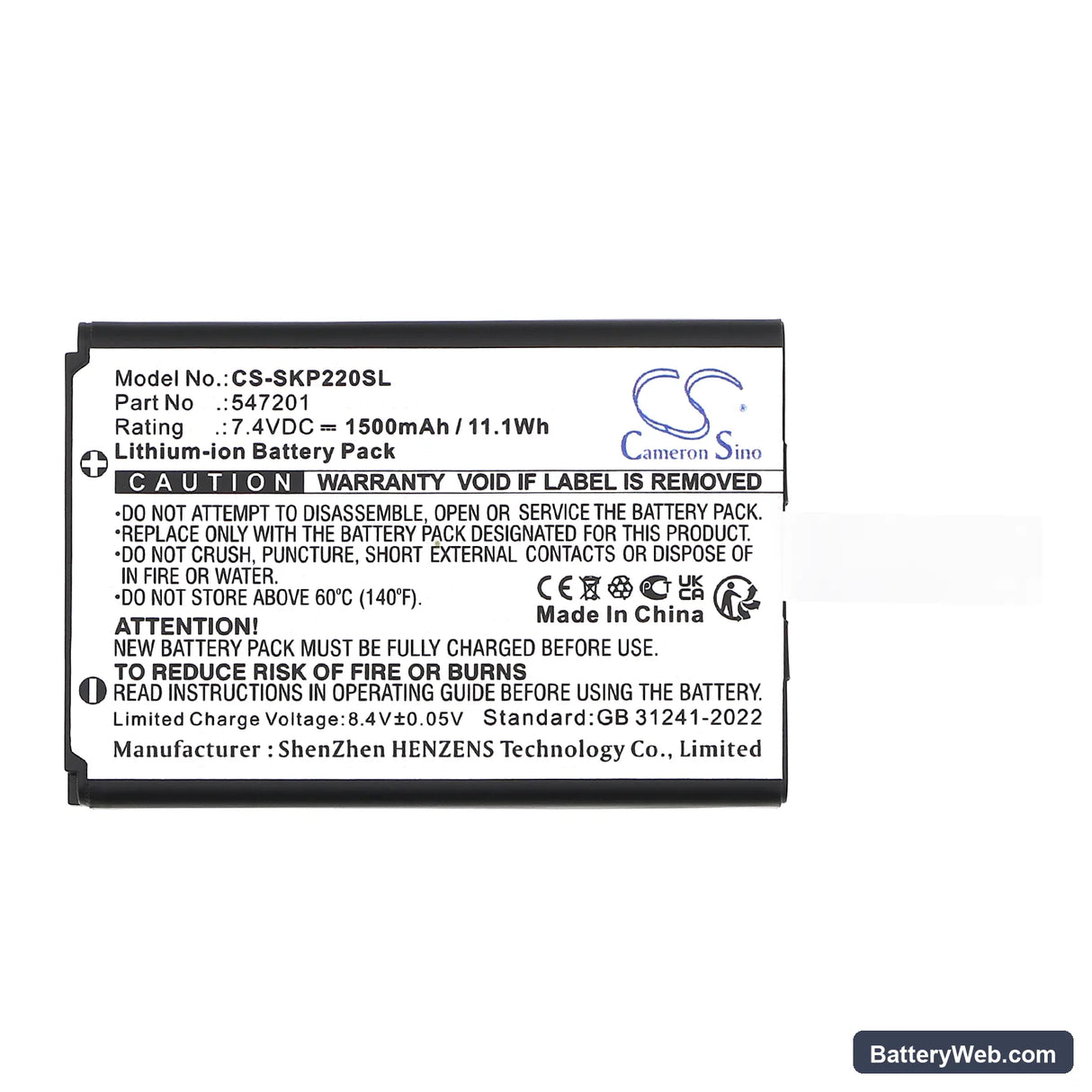

SEWOO LK-P22 / LK-P24 — 7.4V Li-ion Replacement Battery (547201 / LK-PB22)

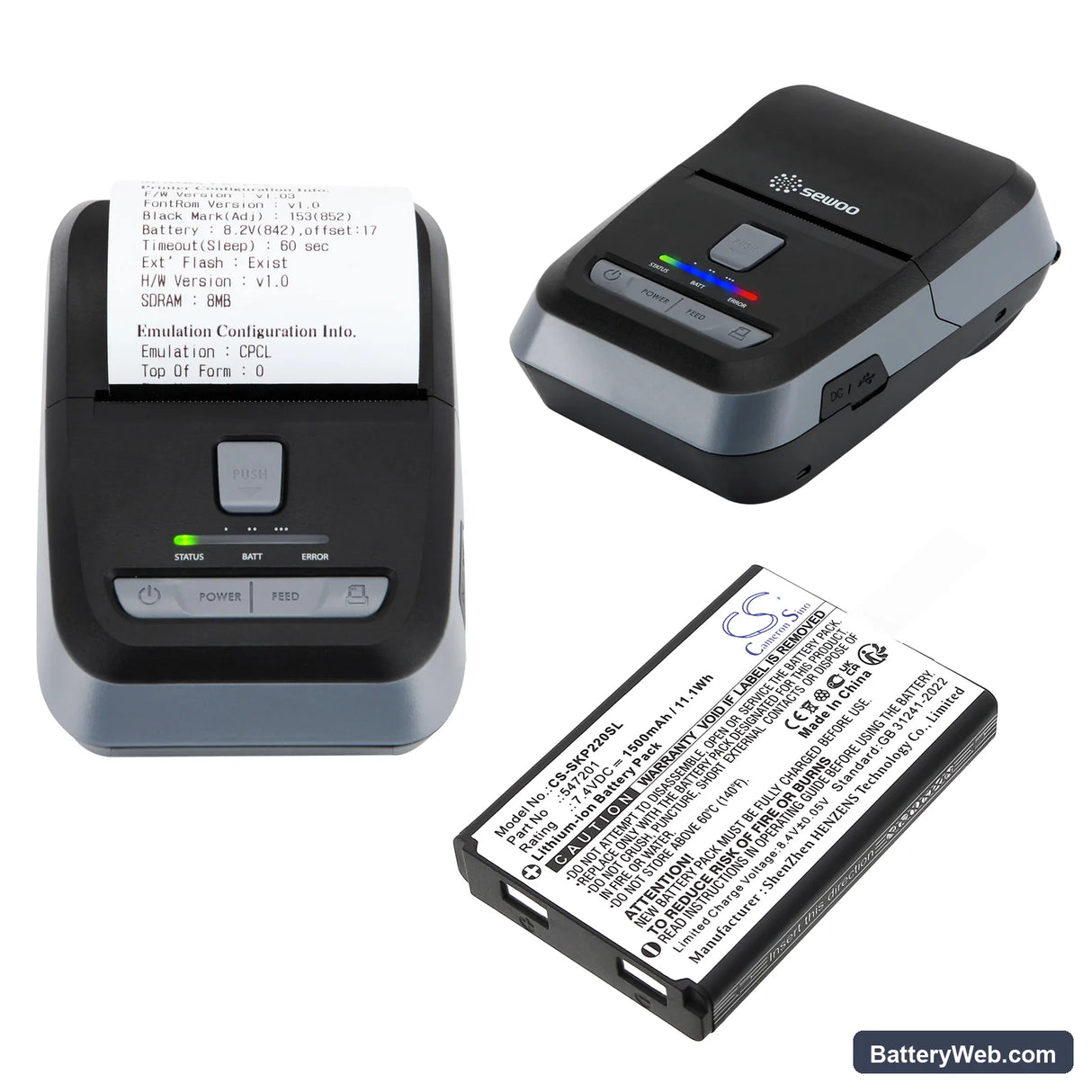

This 7.4V, 1500mAh Li-ion battery replaces the original cell in the SEWOO LK-P22 and LK-P24 portable thermal printers. It matches OEM part numbers 547201 and LK-PB22. These are compact mobile receipt and label printers used in retail, logistics, and field service where mains power is unavailable.

• LK-P22 and LK-P24 shared platform: Both models run the same 7.4V battery rail, use the same connector pinout, and share a BMS handshake protocol — one cell fits both without any adapter or firmware change.
• Bench tested on actual hardware: We cycled this battery through the LK-P22 BMS at full load — thermal head, paper feed motor, and Bluetooth radio running simultaneously. The BMS held voltage regulation without tripping cutoff under combined draw.
• First-deploy print sequence: After installing, charge the battery to full and run five continuous test receipts before putting the unit into field rotation. The paper feed motor draws a calibration-level current burst on the first few feeds, which confirms the BMS current profile is correctly matched to the new cell.

Why the LK-P22 won't print after sitting unused for weeks

Li-ion cells self-discharge at roughly 2–3% per month under ideal conditions, but the LK-P22's standby circuit draws a small parasitic load that accelerates this. After several weeks on the shelf, the cell can drop below the BMS minimum drive threshold — typically around 6.0V for a 7.4V nominal pack. At that voltage, the printer powers on but the thermal head and motor controller don't receive enough current to fire. Connect to the charger for at least 20 minutes before attempting to print, then confirm the battery indicator shows at least two bars before running a job.

Faded or uneven print lines on a fully charged battery

The thermal print head requires a stable voltage to maintain consistent heating element temperature across the full print line. When a degraded cell sags under the combined load of the head and feed motor, the temperature drops mid-line and produces faded or banded output — even if the battery indicator reads full. This is a voltage-sag symptom, not a paper or head alignment problem. If output improves when the printer is cool but degrades after several consecutive receipts, the cell is no longer holding voltage under sustained load and replacement is the correct fix.
