Brother PA-BT-009 RJ-3035B Replacement Battery 7.4V 3400mAh

Brother RJ-3035B / RJ-3055WB — 7.4V Li-ion Replacement Battery (PA-BT-009 / PA-BT-010)

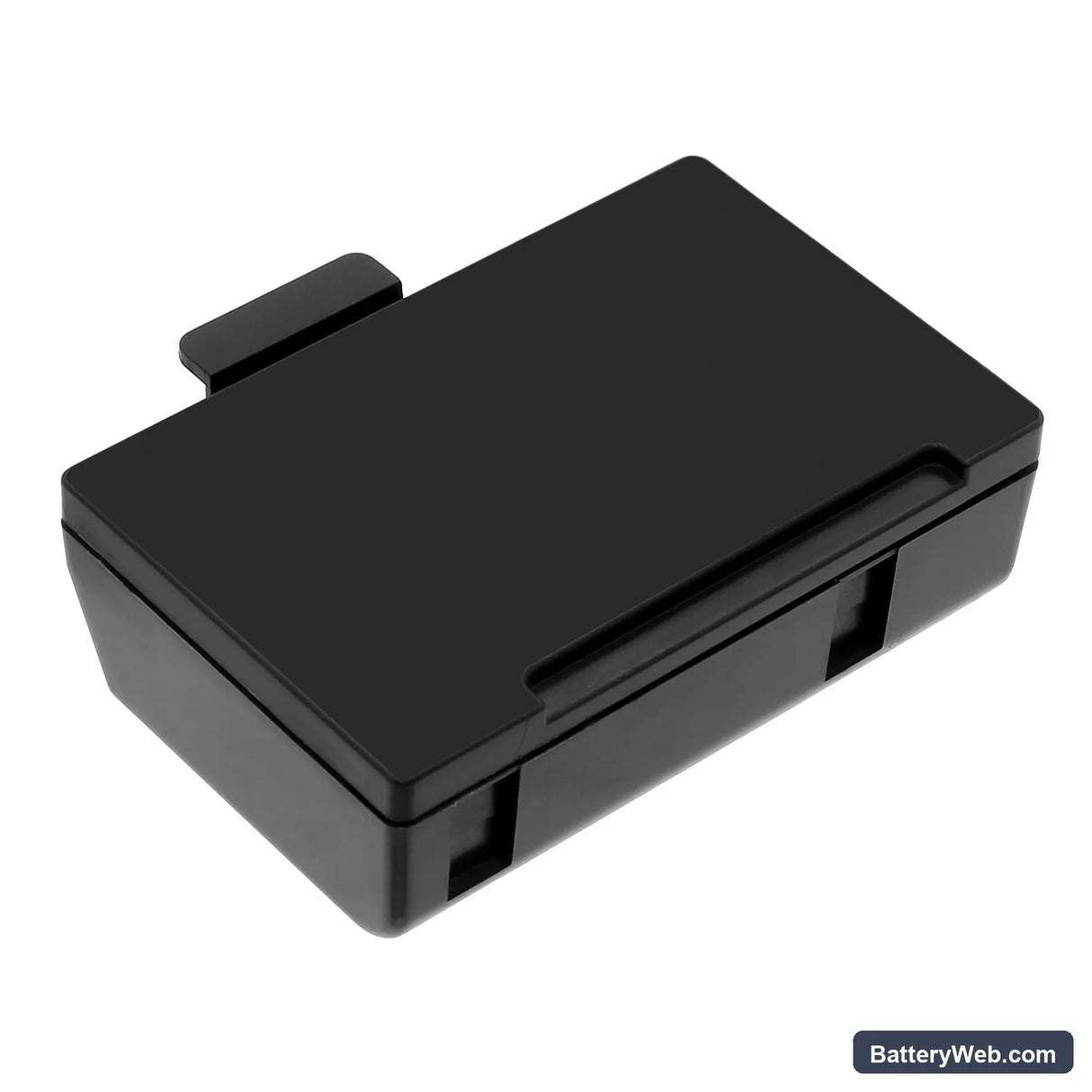

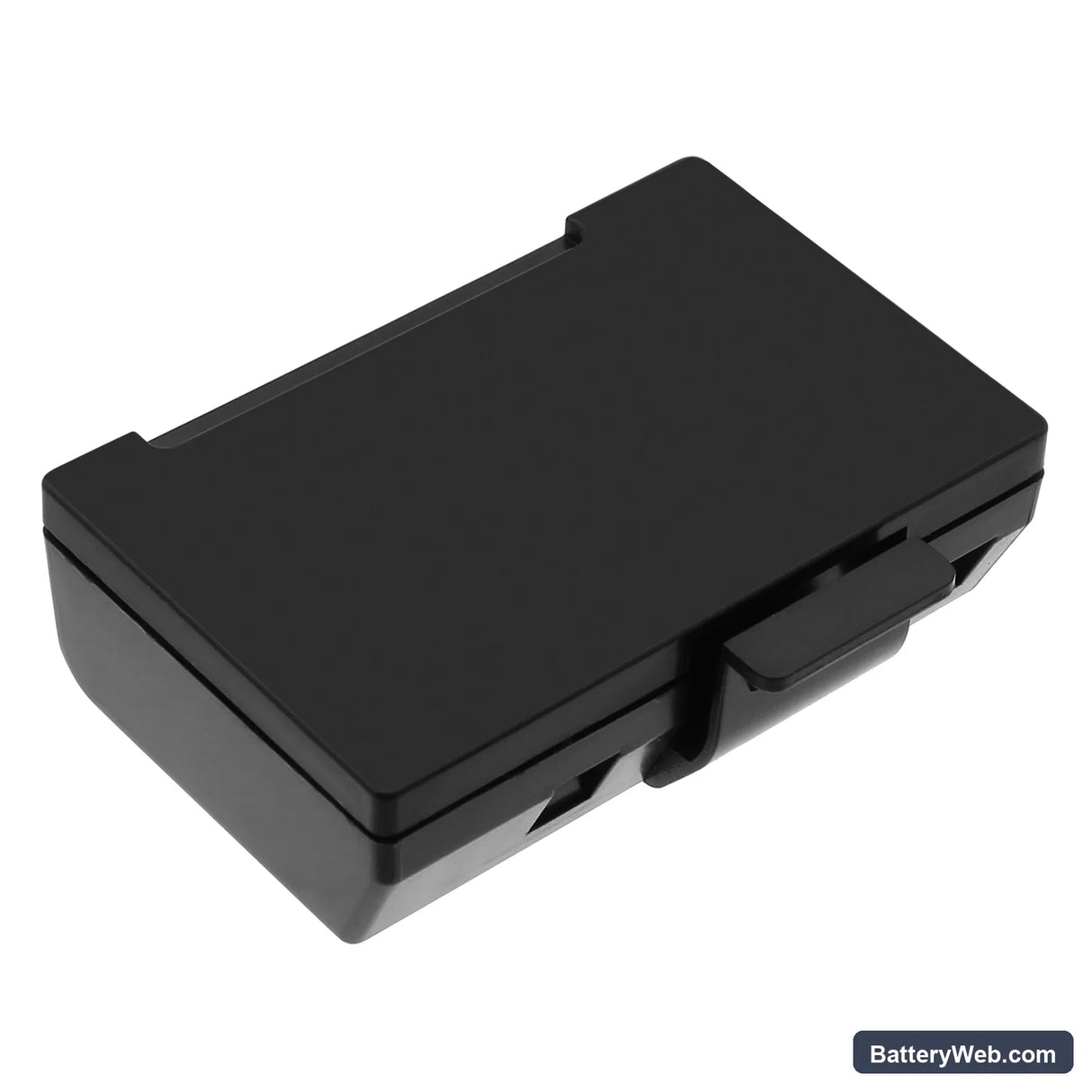

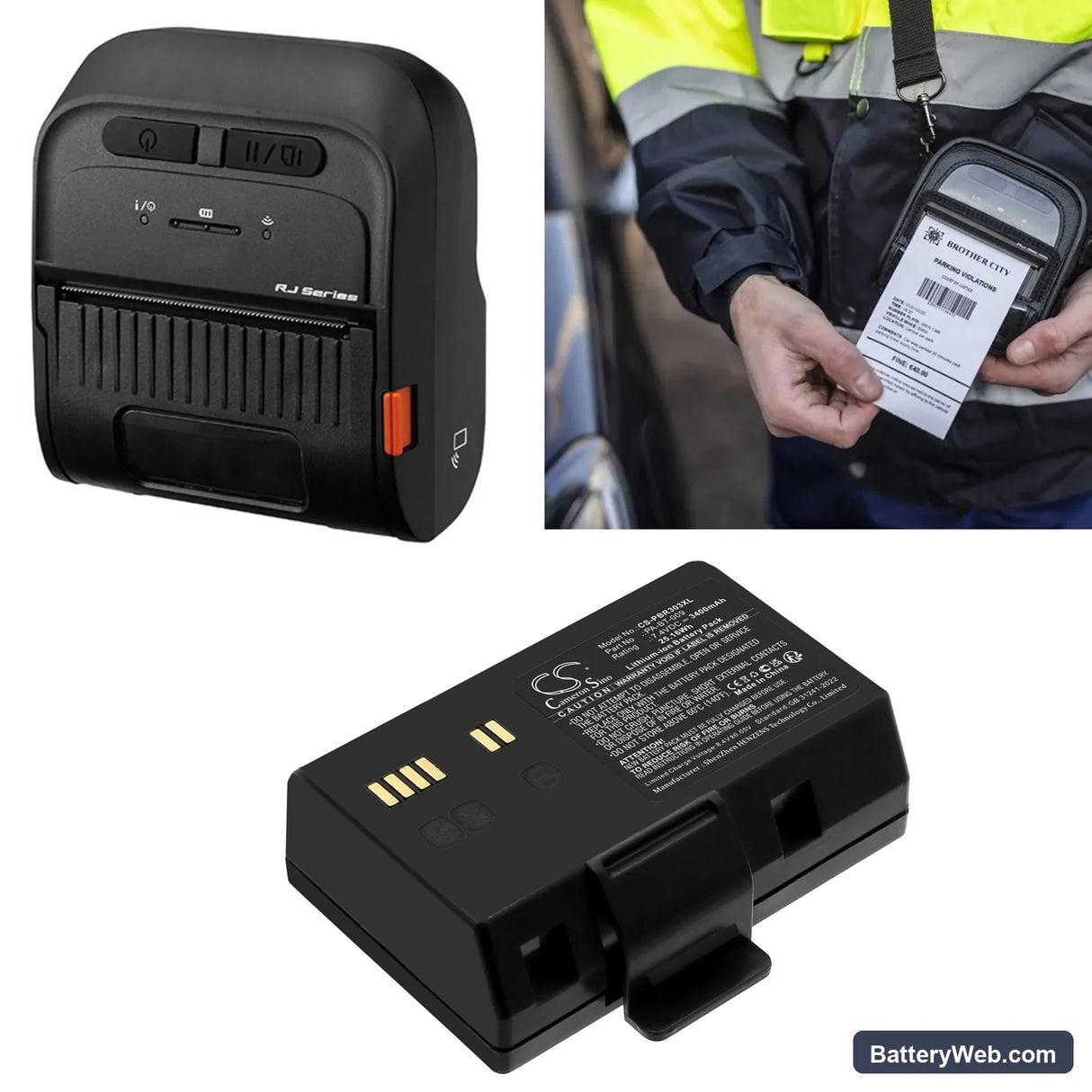

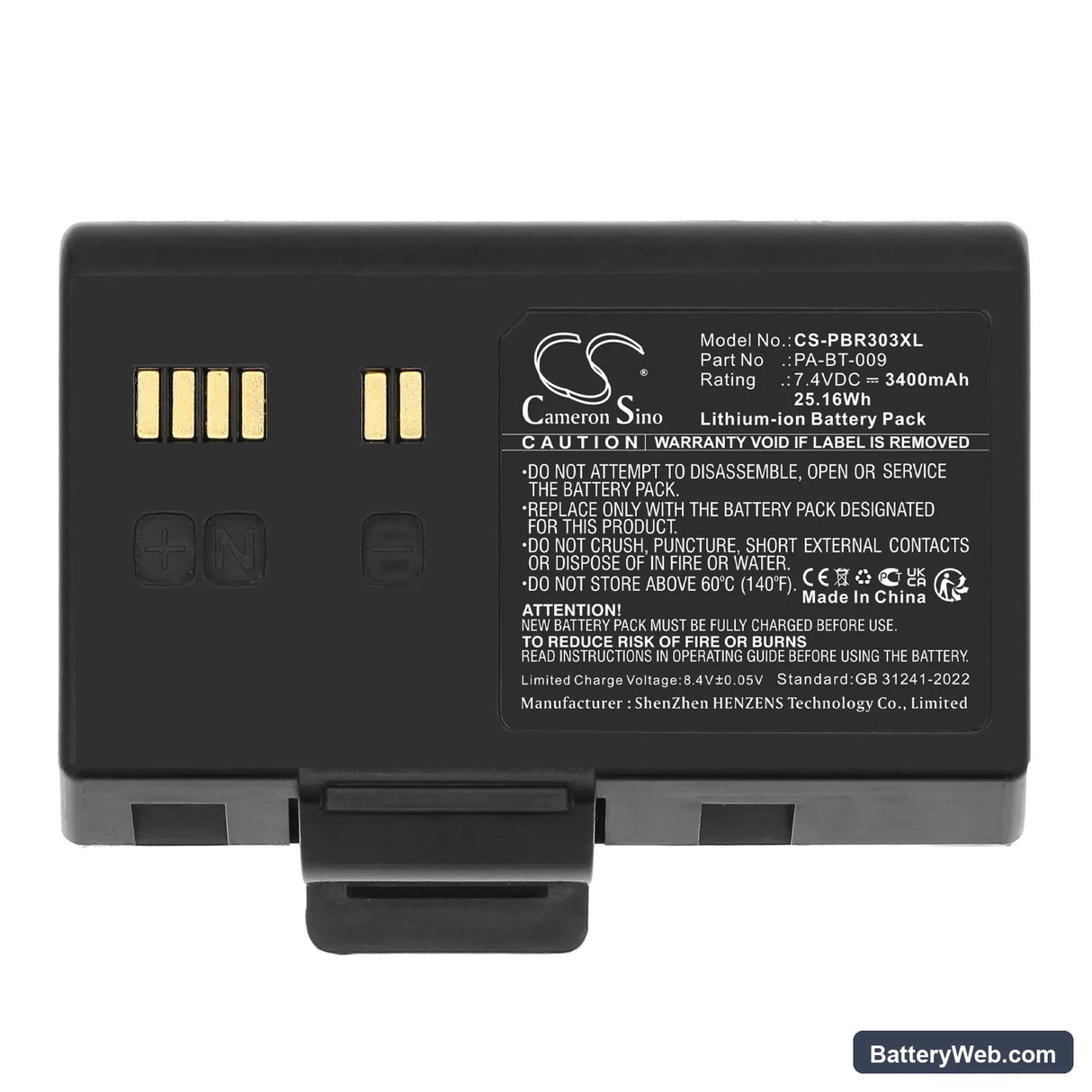

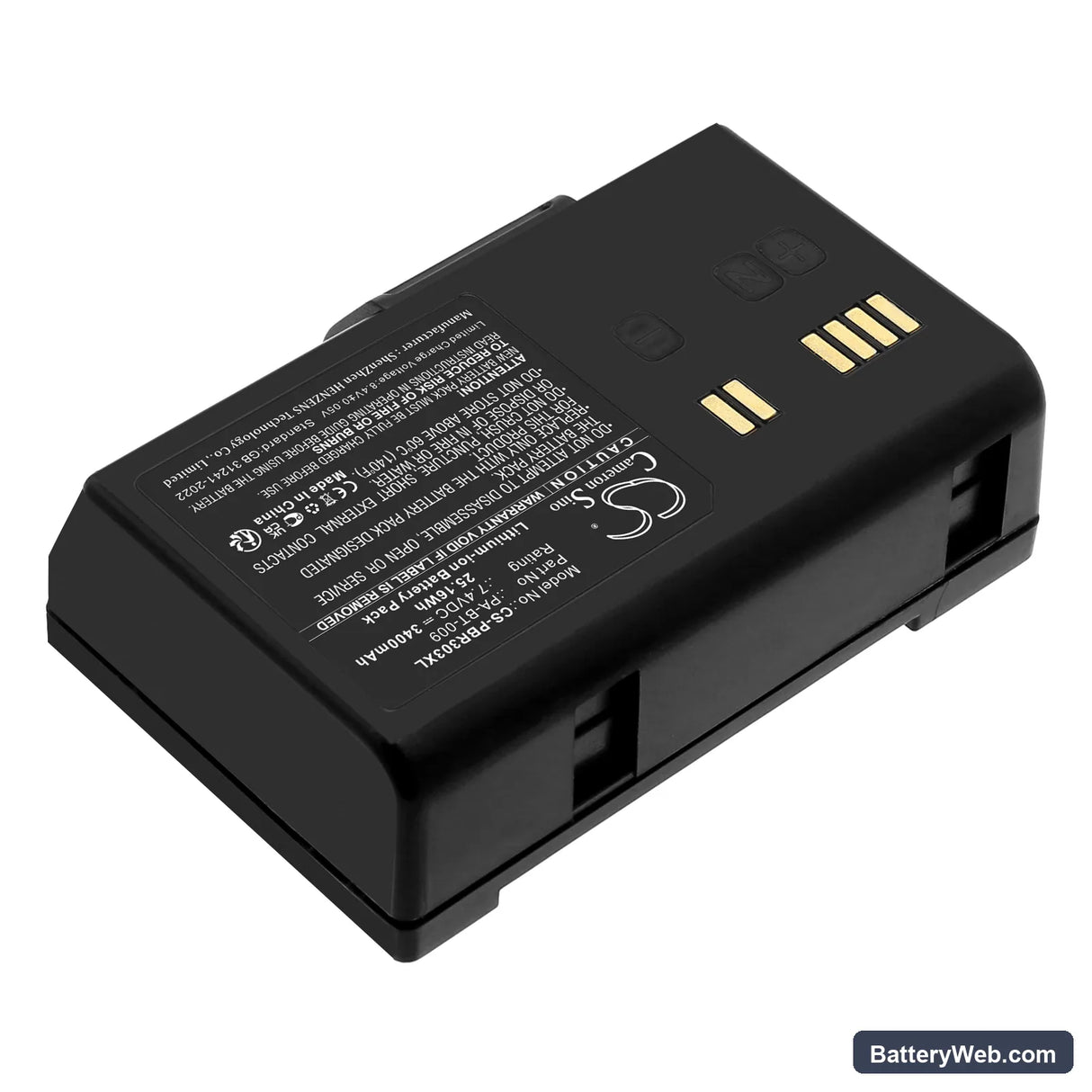

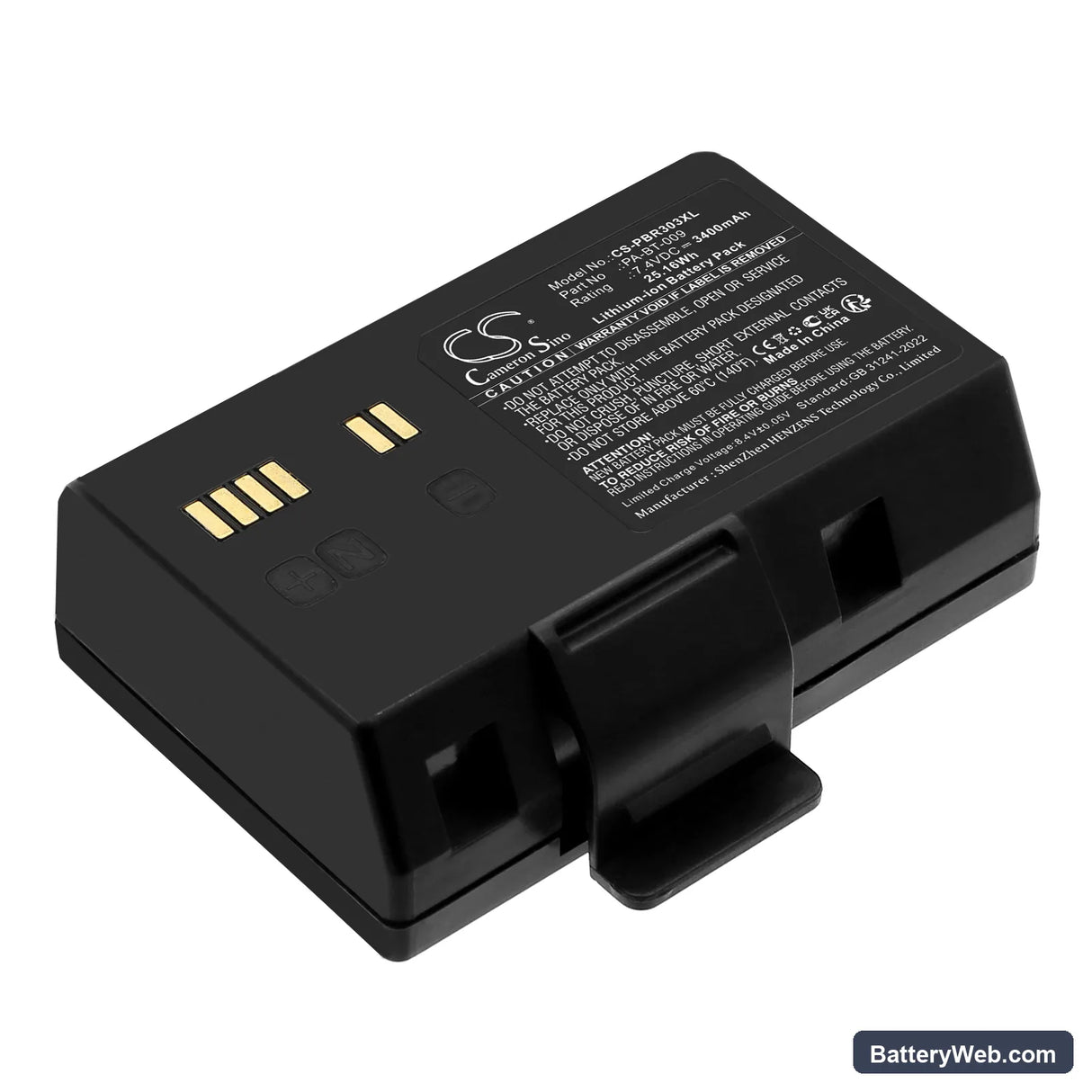

This is a 7.4V 3400mAh Li-ion replacement battery for the Brother RJ-3035B and RJ-3055WB mobile thermal printers. Both models run on the same battery platform, accepting either PA-BT-009 or PA-BT-010. It replaces the original pack when capacity fades or the unit no longer holds charge through a full shift.

• RJ-3035B and RJ-3055WB compatibility: Both units share the same 7.4V battery bay, connector pinout, and BMS handshake protocol. Either OEM part number fits both models — the difference between PA-BT-009 and PA-BT-010 is a firmware revision on the protection circuit, not a physical change.
• Bench tested on actual hardware: We ran this pack on an RJ-3035B and monitored BMS behaviour through charge, idle, and print cycles. The protection circuit held charge termination at the correct threshold and did not trip on paper feed motor start current.
• First-use print sequence: After installing, charge fully then print five test labels before deploying in the field. The paper feed motor draws a short current spike on each feed cycle — running this sequence confirms the BMS current profile has settled correctly with the new cell.

Why the RJ-3035B stops printing after sitting unused for weeks

Li-ion cells self-discharge during storage. If the printer sits long enough, the pack can drop below the BMS minimum drive voltage — typically around 6.0V for this platform. At that point, the BMS locks output to protect the cells, and the printer will not power on or respond to the charge button immediately. Connecting to a charger for 15–20 minutes allows the BMS to recover and re-enable output. Once the cell voltage climbs above the recovery threshold, normal charging resumes and the unit powers on.

Faded or uneven print output on a freshly installed battery

The thermal print head requires a stable voltage rail to reach and hold the correct burn temperature across the full print width. If the battery voltage sags during a print cycle — common when cells are not fully charged or the BMS is still settling — the head temperature drops mid-line, producing faded or streaky output. This is not a head fault. Charge the pack to 100% and run the five-label calibration sequence before judging print quality. If output is still uneven at full charge, check that the print head contact rail is clean and making full contact with the battery terminal.
