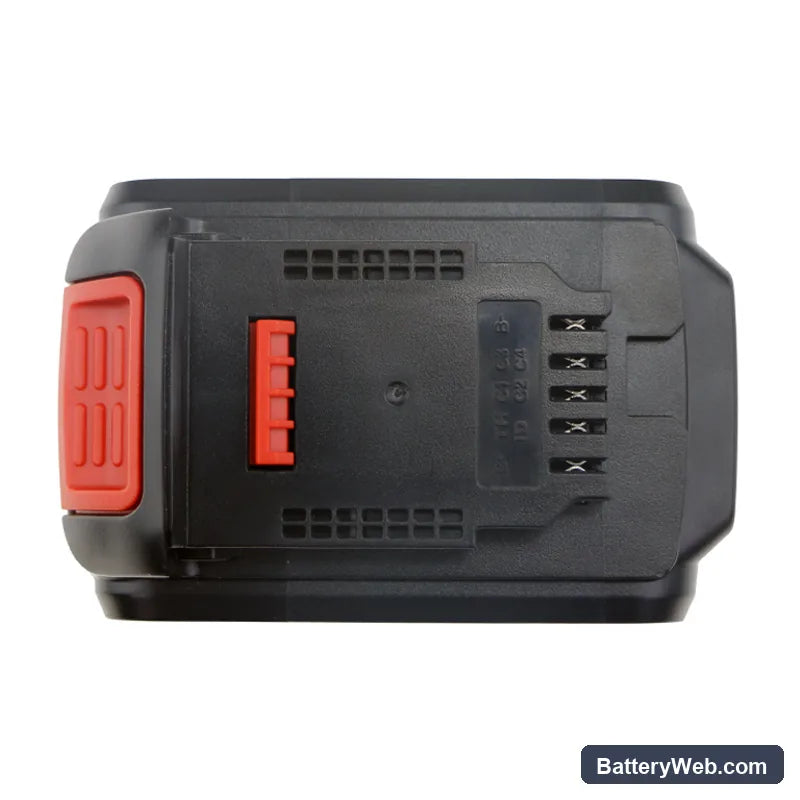

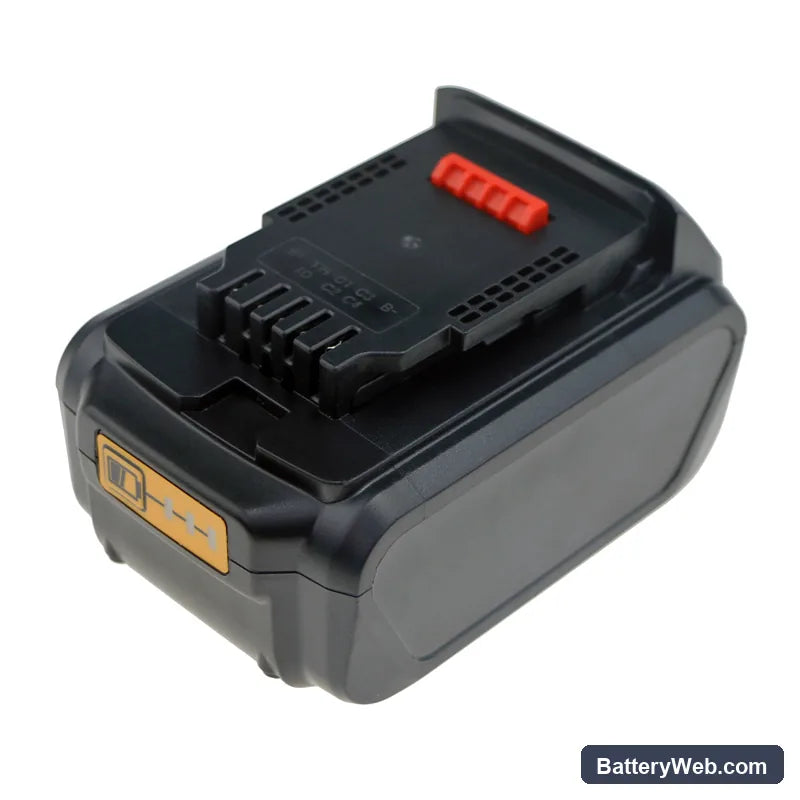

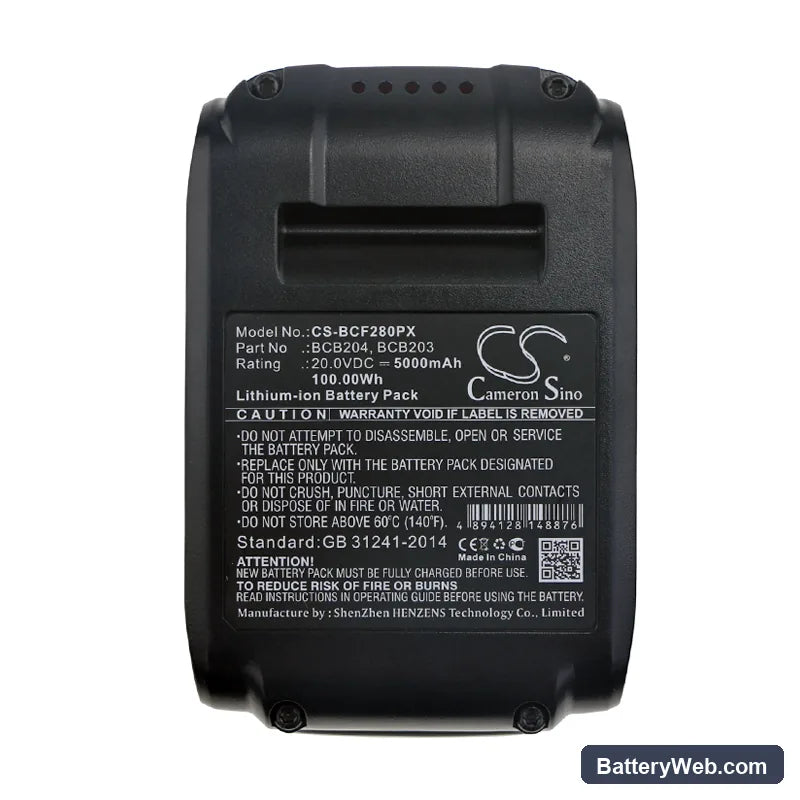

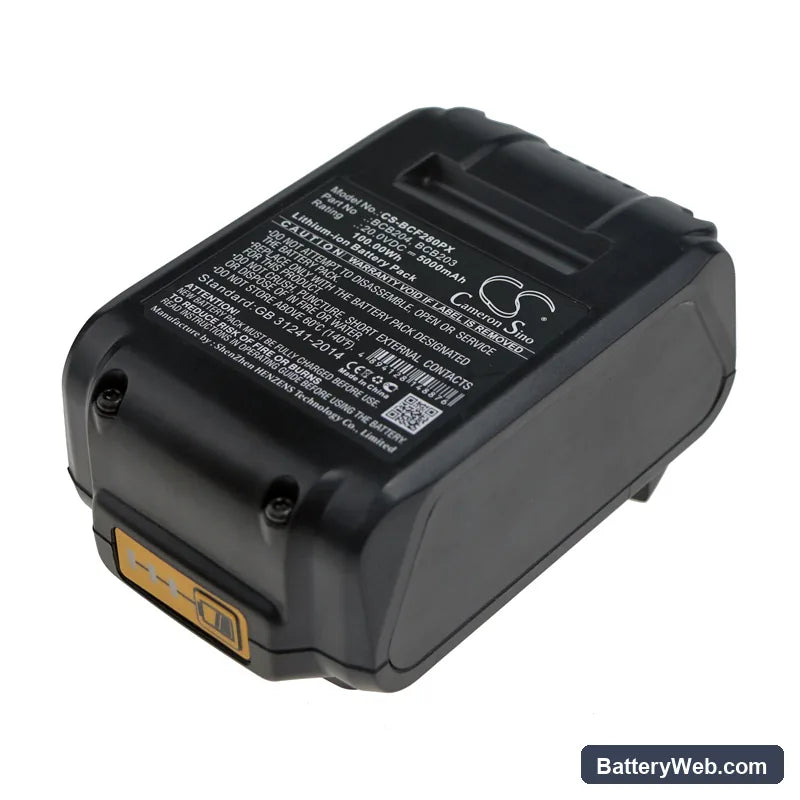

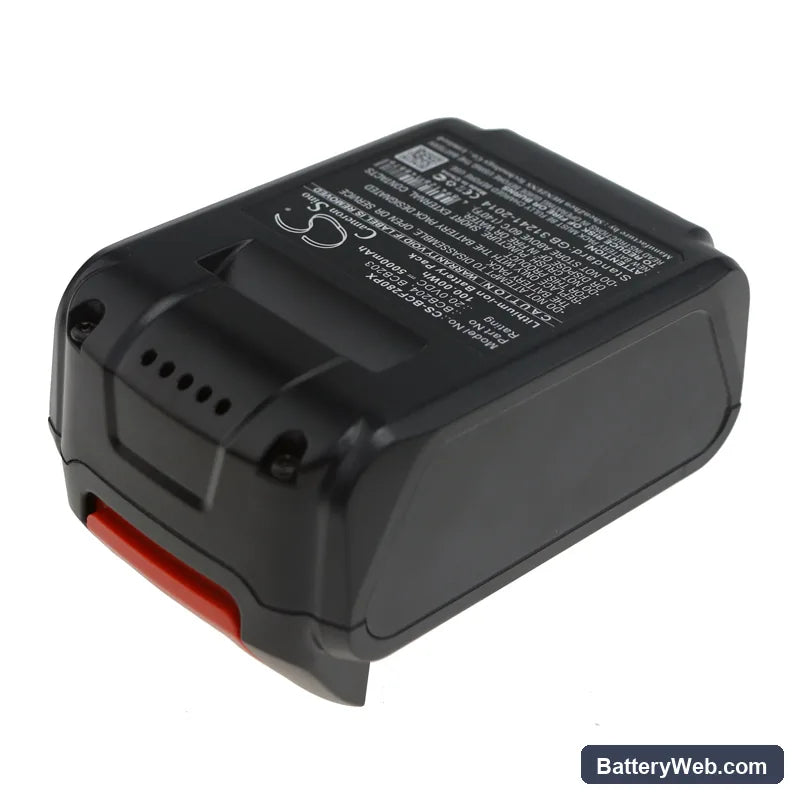

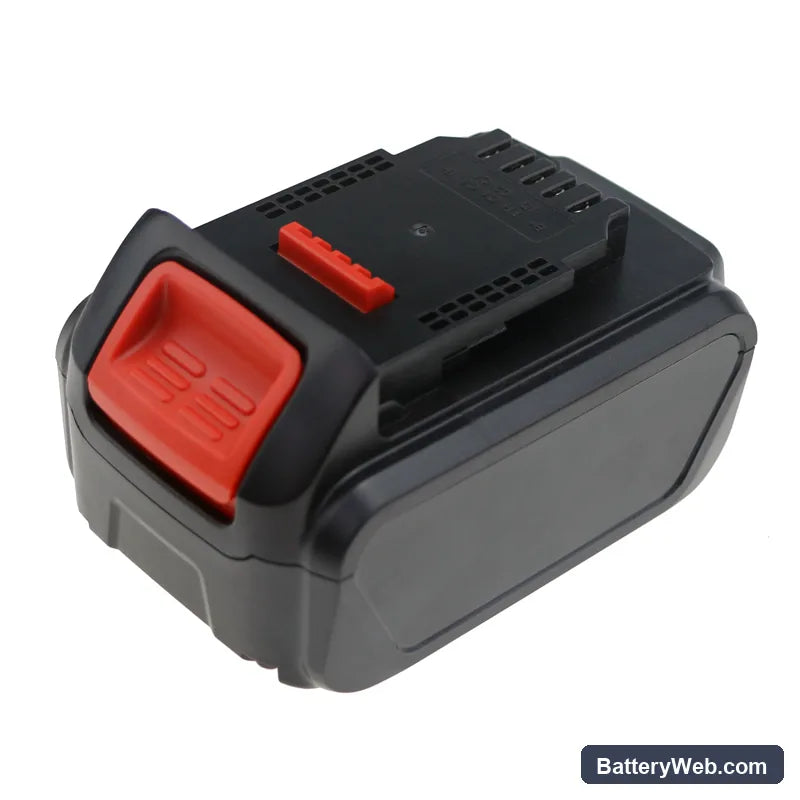

Bostitch BCB204 20V Cordless Nailer Replacement Battery 5000mAh

Bostitch BCF28WWB Series — 20V Li-ion Replacement Battery (BCB204)

This is a 20V Li-ion replacement battery rated at 5000mAh (100Wh) for the Bostitch BCF28WWB cordless brad nailer and related models including the BCF30PTB, BCN680D1, and 28 Degree Wire Weld Cordless Framing Nailer. It replaces OEM part numbers BCB204, BCB204-10, and BCB203. The pack uses the same connector and BMS handshake protocol as the original Bostitch 20V platform.

• BCF28WWB platform compatibility: All nailers in this lineup share the same 20V rail, battery slot geometry, and BMS communication protocol. Swapping between brad and framing nailer models on the same platform requires no adapter — the pack seats and communicates identically across the series.
• Bench tested on actual hardware: We ran this pack through full nail cycles on a BCF28WWB, monitoring the BMS response during trigger-pull inrush spikes. The overcurrent threshold held without nuisance trips across repeated firing sequences, and cell balancing remained stable through discharge.
• Motor inrush break-in on first use: Run the nailer at half load — shorter, lighter fasteners — for the first two cycles before moving to full framing loads. This lets the BMS log the motor's inrush current signature and calibrate its overcurrent protection threshold before you put the pack under maximum firing demand.

BMS cutoff on trigger-pull inrush in cordless nailers

Cordless nailers draw a sharp current spike the moment the trigger fires — the motor drives the driver blade from rest to full stroke in milliseconds. A BMS that hasn't yet profiled the motor can read that spike as a fault and cut the pack. This is more common with a new or recently stored battery than with a conditioned one. Two to three break-in cycles at lighter loads give the BMS enough data to set a stable overcurrent window for your specific tool.

Charger flashing red on a new pack that's been in storage

Li-ion packs self-discharge during storage, and if a cell drops below roughly 2.5V the charger's acceptance circuit rejects the pack rather than risk charging a depleted cell unsafely. The red flash is the charger detecting sub-threshold voltage, not a faulty battery. Some Bostitch chargers include a recovery or "wake" mode — hold the pack in the charger for 5–10 minutes and the trickle stage may bring cells up to acceptance voltage before the full charge cycle starts. If the charger has no recovery mode, a compatible charger with a manual boost function will bring the pack back to 20V nominal.
