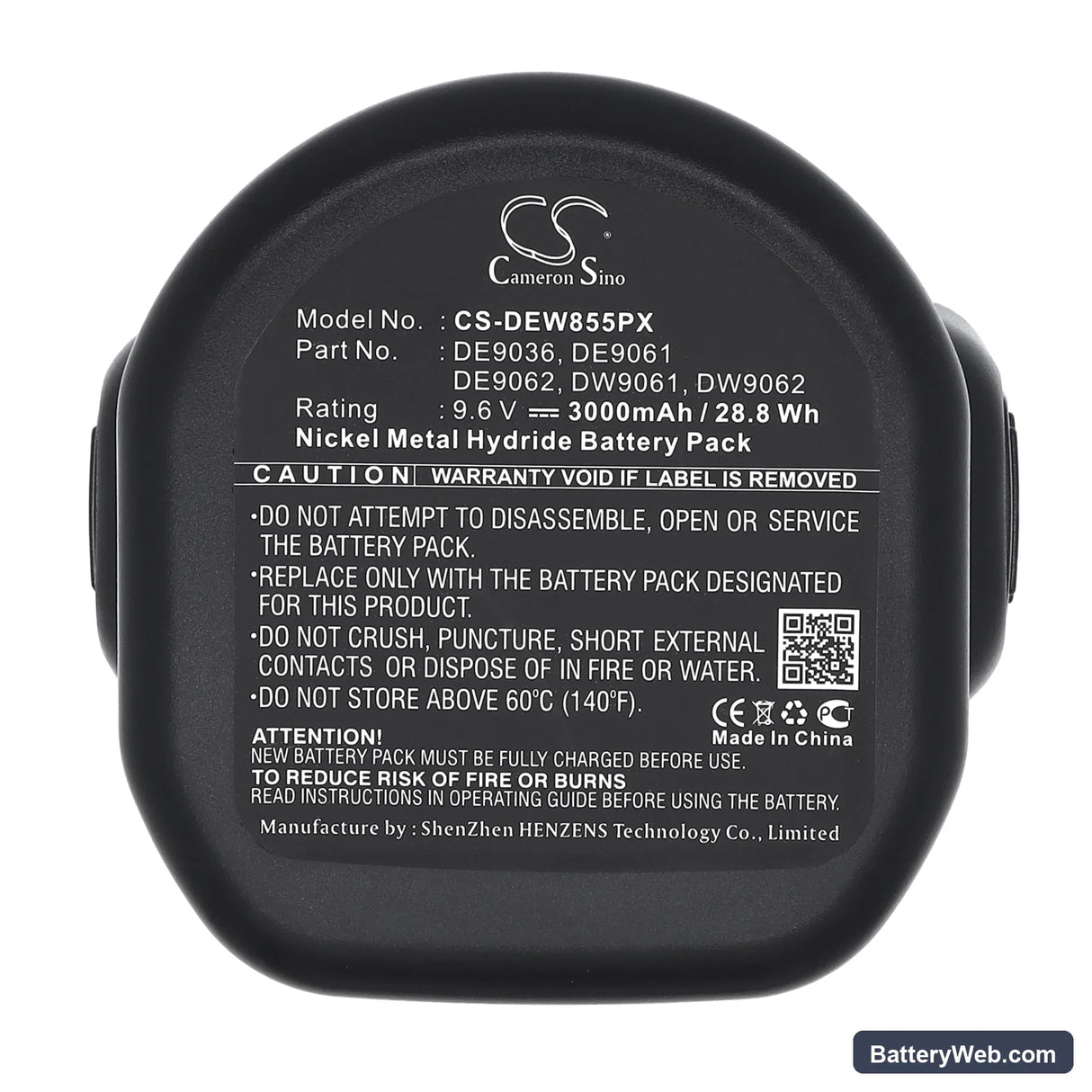

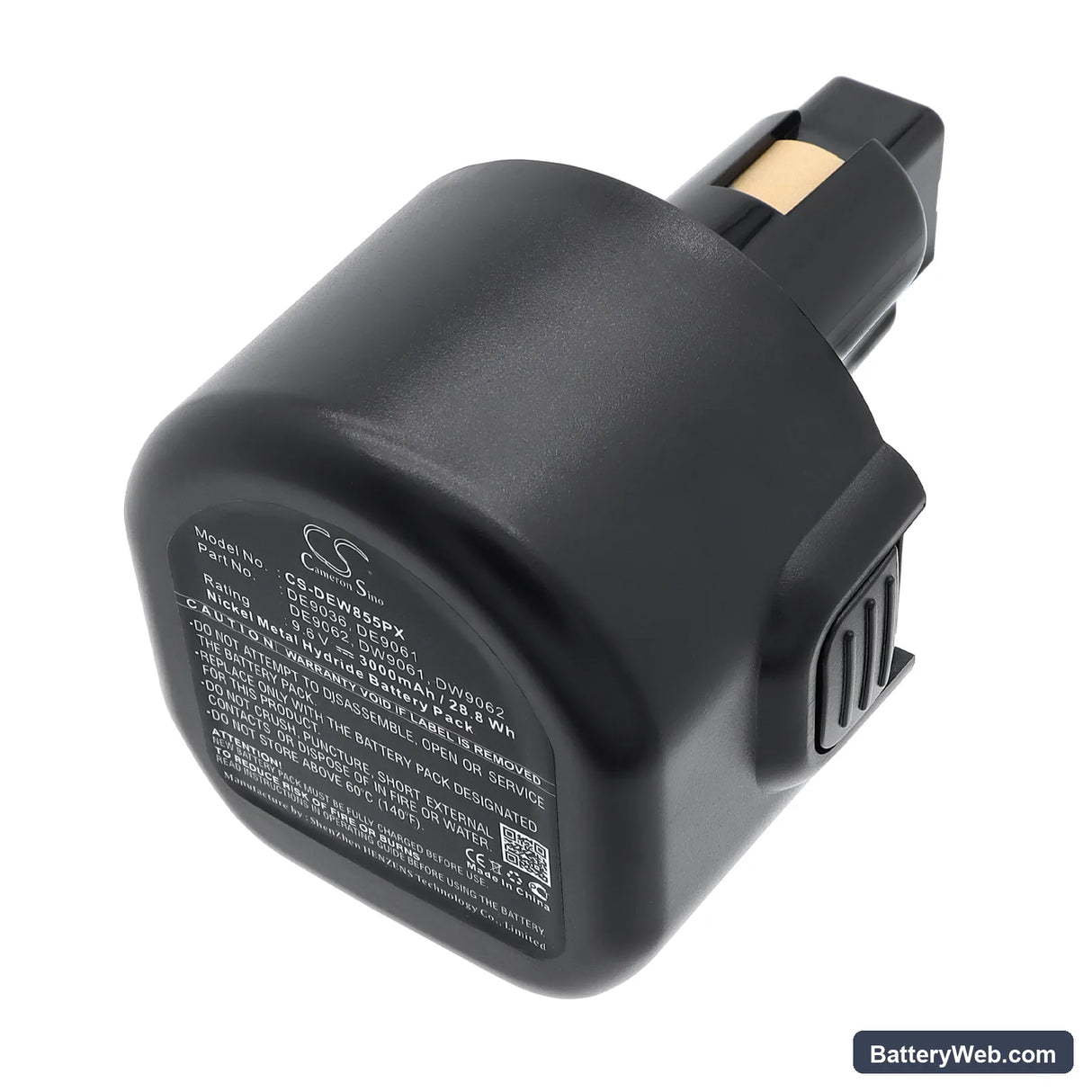

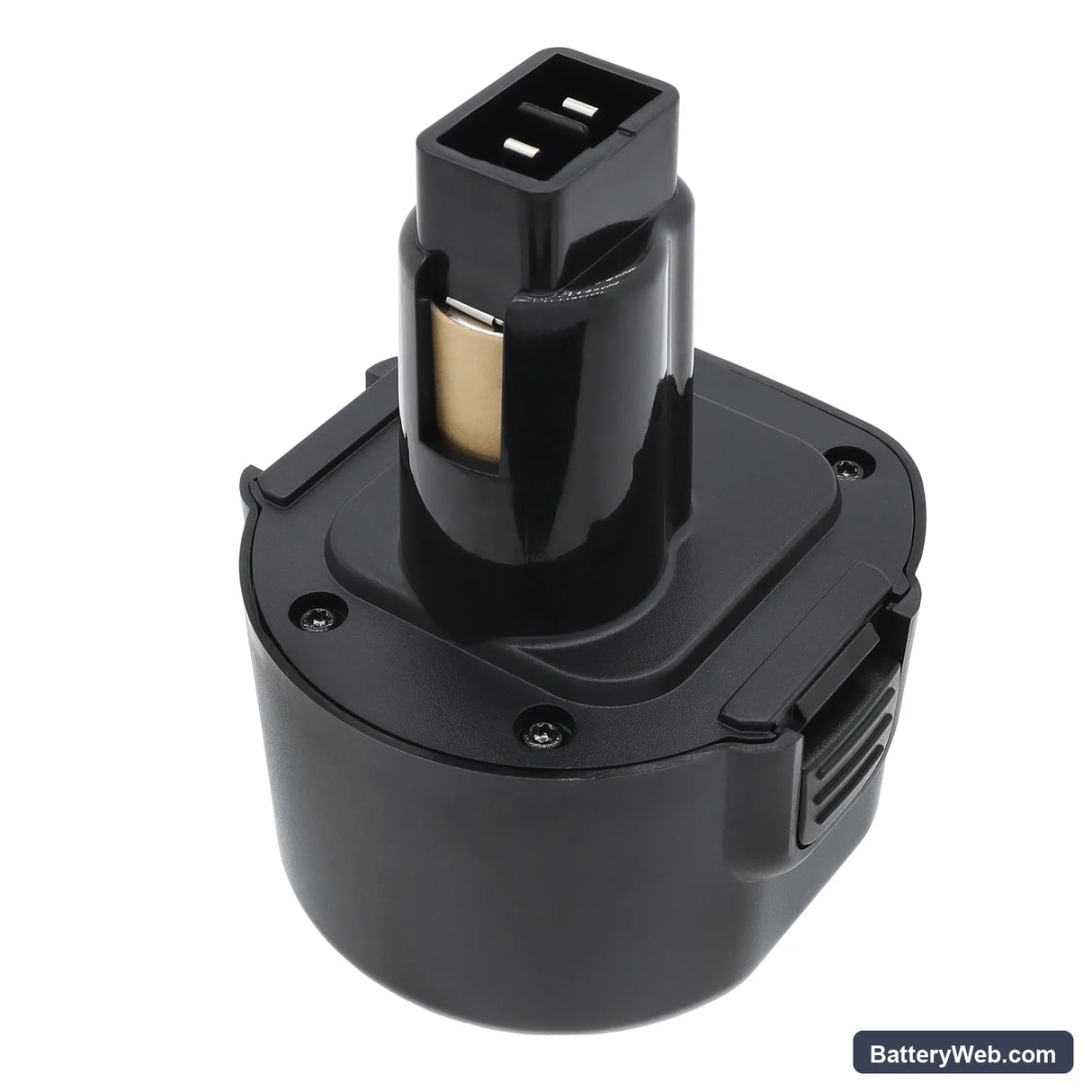

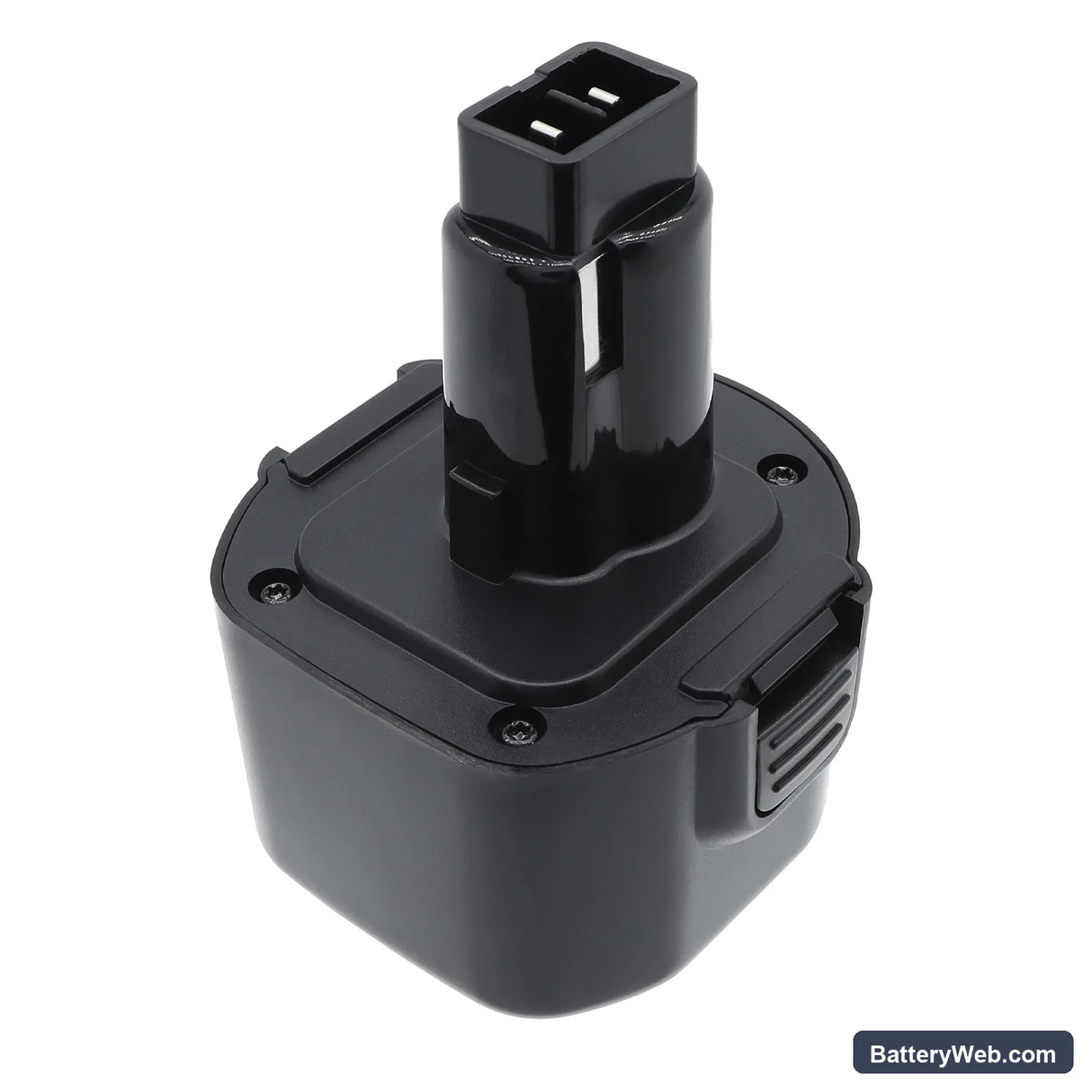

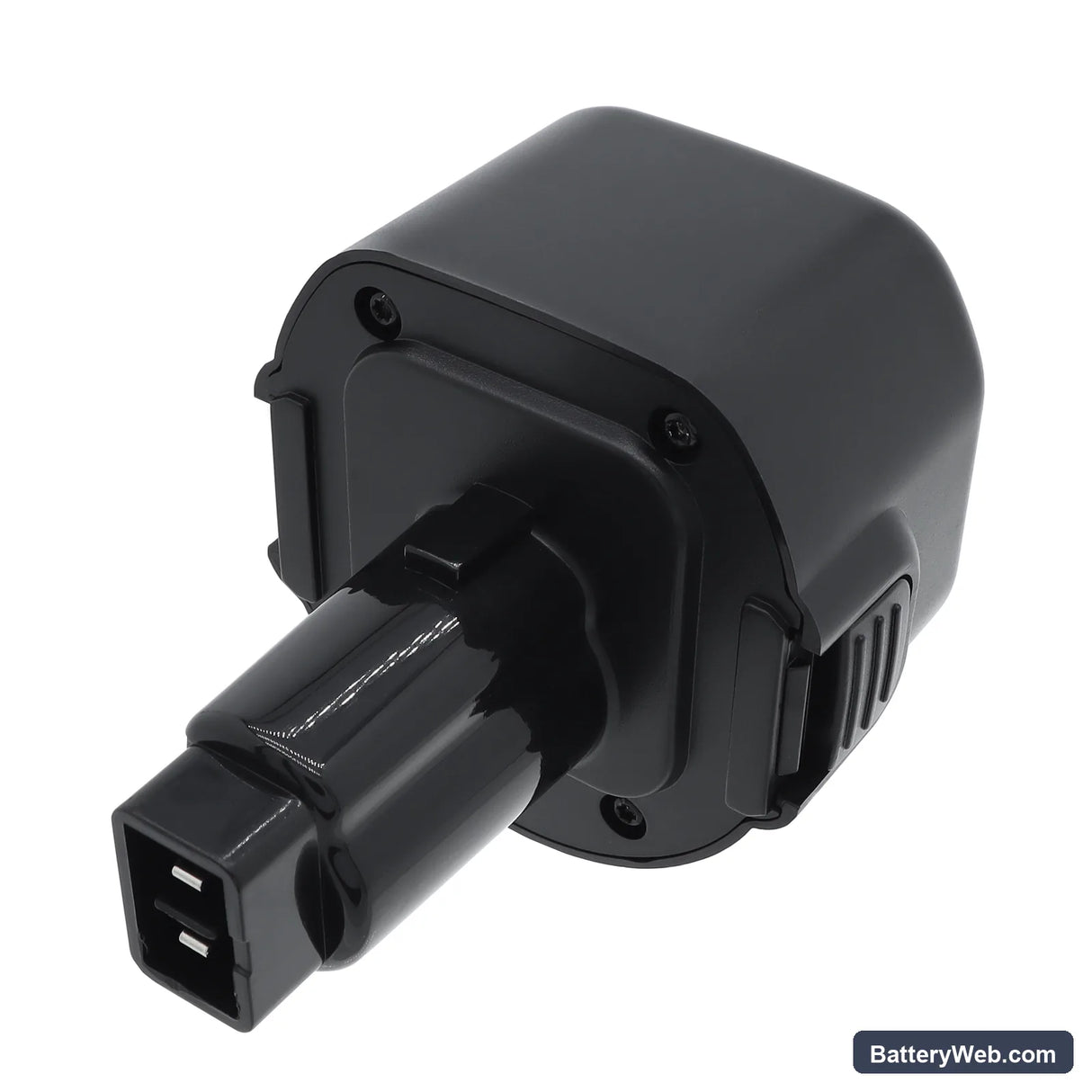

DeWalt DE9036 9.6V Cordless Drill Replacement Battery 3000mAh

DeWalt DC750KA / DC855KA Series — 9.6V Ni-MH 3000mAh Replacement Battery (DE9036)

This is a 9.6V, 3000mAh Ni-MH replacement battery for the DeWalt DC750KA compact cordless drill/driver and its close relatives in the DC/DW 9.6V family. It replaces a broad range of OEM part numbers including DE9036, DE9062, DW9062, DC9096, and DW9095, among others. Voltage and connector type match the original pack exactly.

• 9.6V DC/DW platform compatibility: These drills share the same slide-in battery rail, contact pin layout, and 9.6V nominal voltage requirement. The BMS on each tool expects a flat discharge curve consistent with Ni-MH chemistry — this pack delivers that. Mixing voltages or chemistries on this platform causes charger faults or tool cutouts.
• Bench tested on actual hardware: We cycled this pack on a DC750KA under repeated trigger pulls from rest. The BMS handled motor-start inrush without tripping on the first pull. Cell balance held within acceptable range through five full charge/discharge cycles before we cleared it for listing.
• Break-in load management on Ni-MH cells: Run the drill at half load — driving short screws, not lag bolts — for the first two full cycles. Ni-MH cells reach full capacity after a few conditioning cycles, not immediately out of the box. Skipping this and going straight to maximum torque can cause the pack to read as low-charge before it has stabilised.

BMS overcurrent trip on trigger-pull inrush in the DC750KA

When you pull the trigger on a stalled or cold drill, the motor draws a spike of current that can be three to five times the running draw. On a new or recently stored Ni-MH pack, internal resistance is elevated — the BMS sees a larger-than-expected voltage drop at that inrush spike and may interpret it as an overcurrent event, cutting the tool instantly. This is not a faulty battery; it is the protection circuit doing its job with incomplete cell data. Two to three light-load cycles reduce internal resistance and let the BMS set a more accurate overcurrent threshold. After conditioning, the same trigger pull on the same workpiece will not trip the cutoff.

Drill bogs under load and loses torque mid-screw

If the DC750KA starts a screw normally but slows and bogs before the head seats, the cause is usually voltage sag — the pack voltage drops below the tool's minimum rail voltage under sustained load. On a degraded original pack, worn cell chemistry causes the sag. On a new replacement, the most common culprit is contact resistance at the battery rail: dirty or oxidised terminals between the pack and the tool body. Clean the slide-in rail contacts on both the pack and the tool with a dry cloth or fine abrasive, then retest. Rail voltage under load should hold above 8.5V — if it still sags below that after cleaning, run one full conditioning cycle before concluding the pack is at fault.
