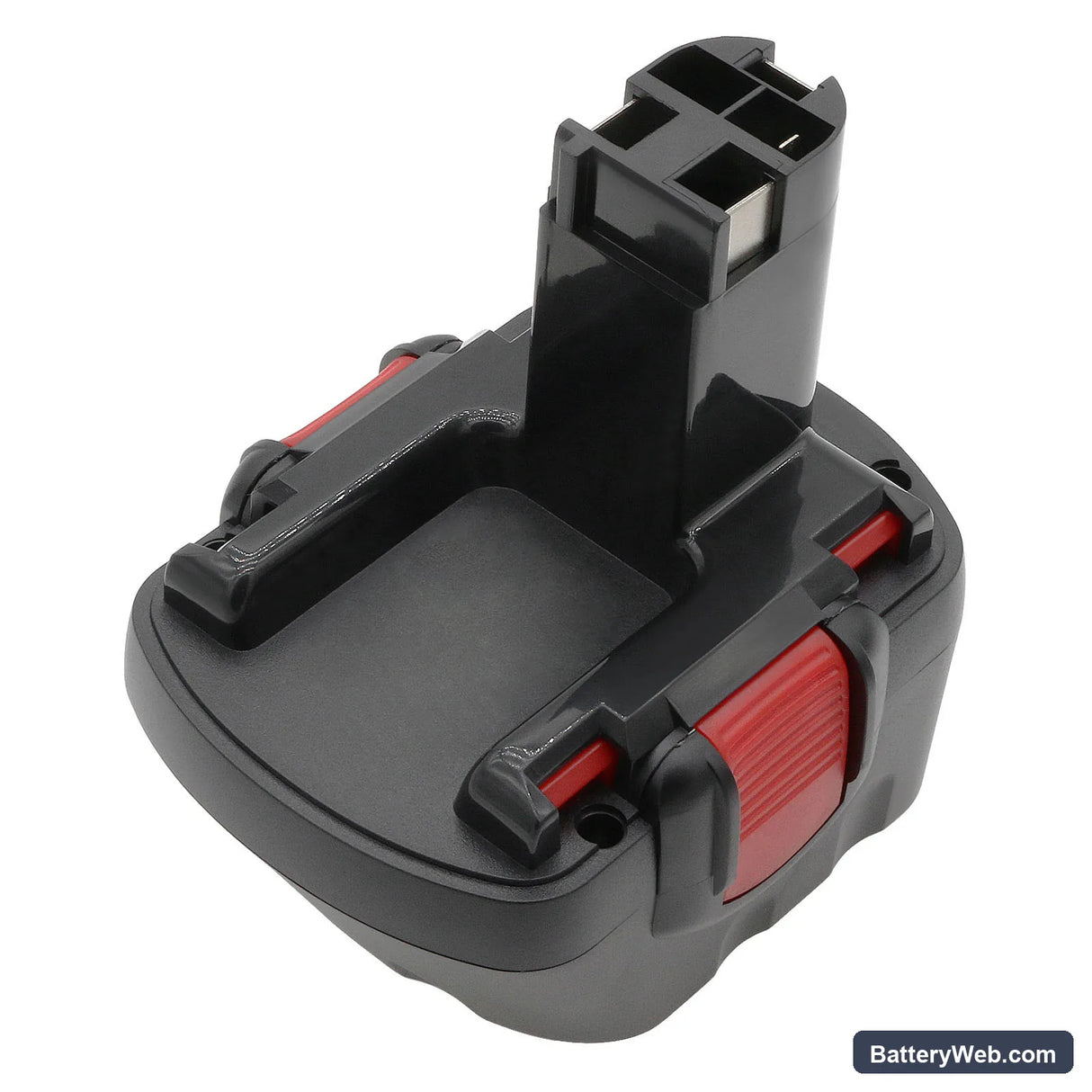

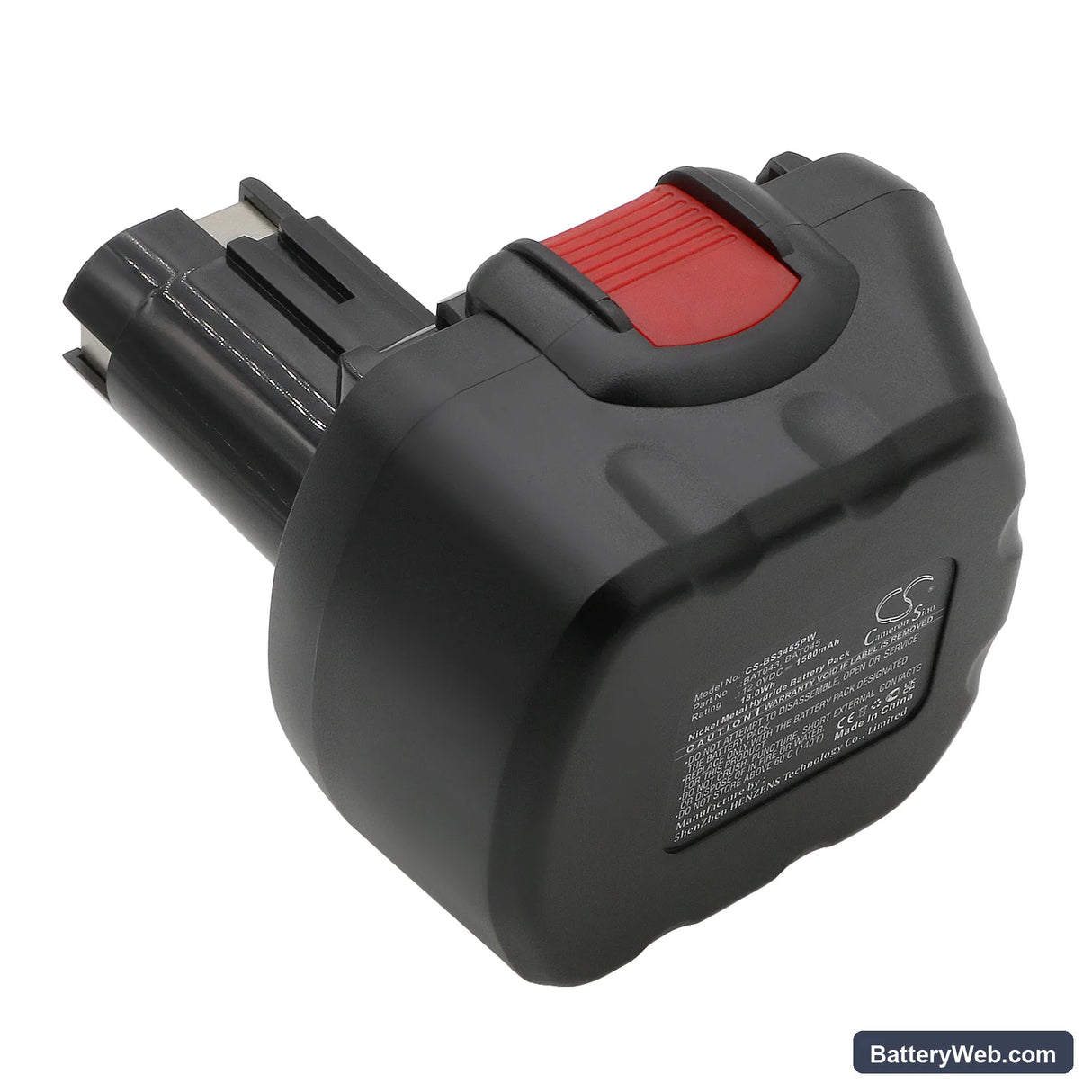

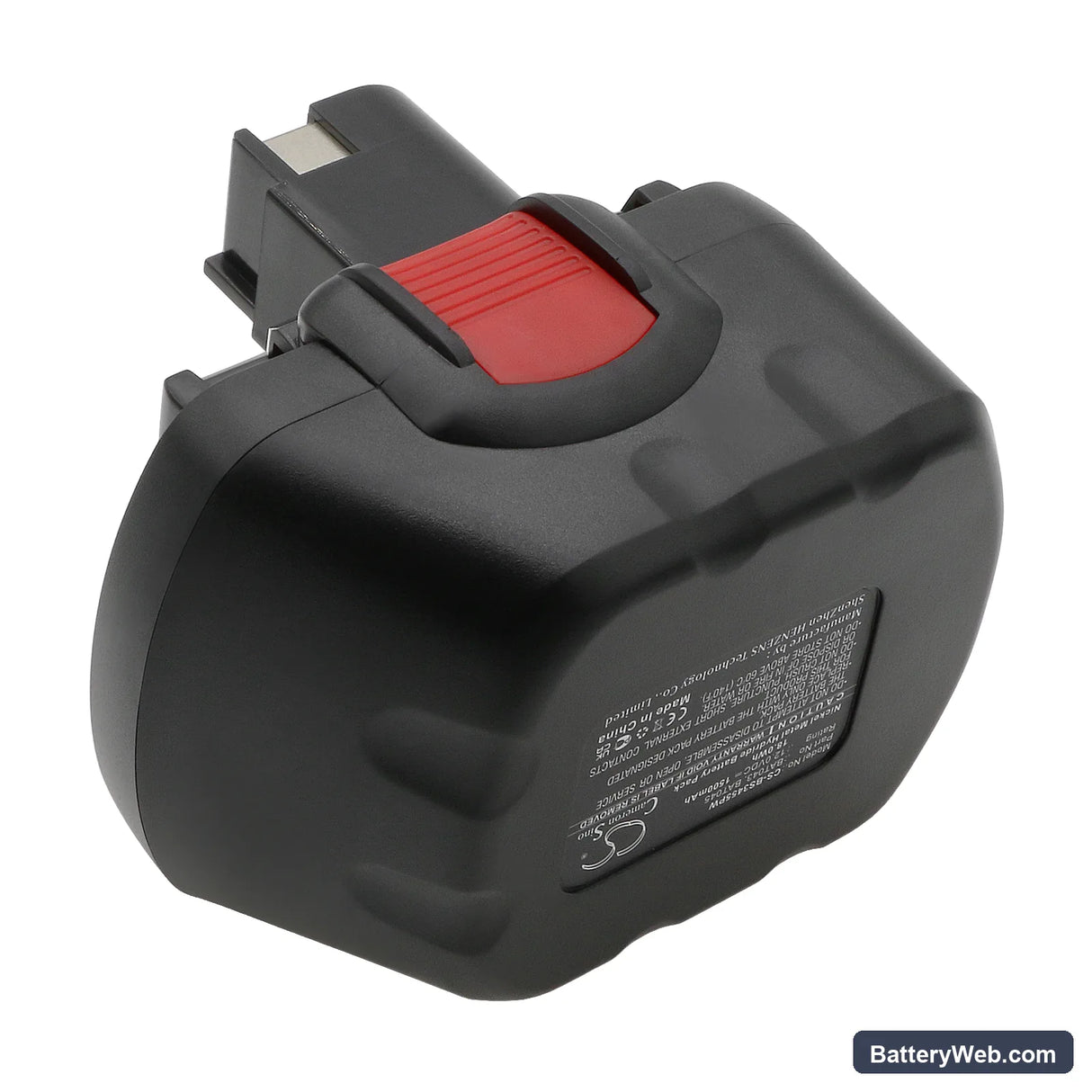

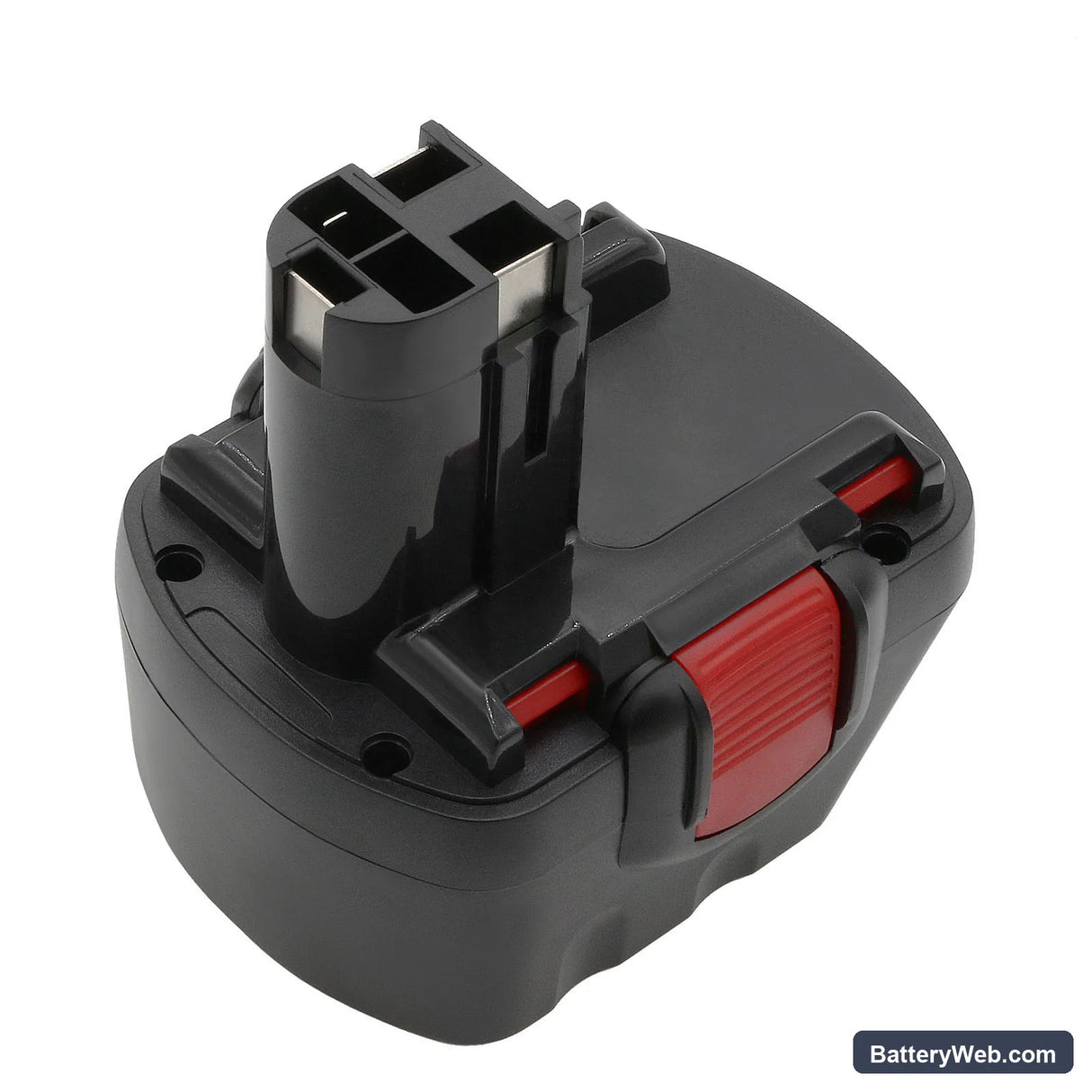

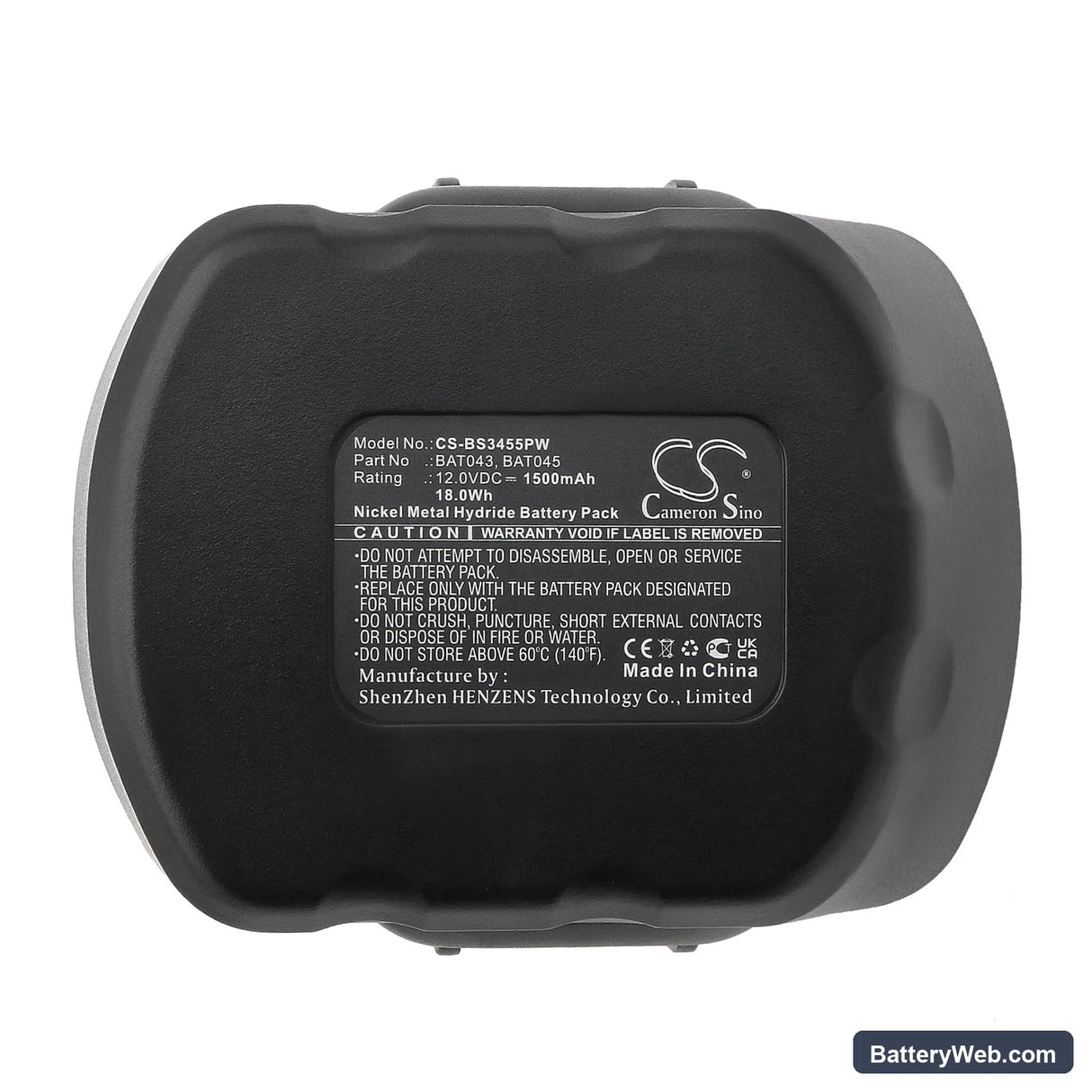

Signode BXT 19 Replacement Battery 12V 1500mAh Ni-MH

Signode BXT 19 / BXT10 / BXT13 — 12V Ni-MH Replacement Battery

This is a 12V 1500mAh Ni-MH replacement battery for the Signode BXT 19, BXT10, and BXT13 portable strapping tools. These are battery-operated units used in industrial packaging lines to tension and seal plastic strapping around pallets and cartons. Voltage and connector must match the original pack — this one does.

• BXT 19, BXT10, BXT13 platform fit: All three models share the same 12V battery bay, connector footprint, and BMS handshake protocol. That means one pack covers the full BXT series without modification or adapter.
• Bench tested on actual hardware: We ran this pack through full charge-discharge cycles on a BXT-series tool body and confirmed the BMS accepted the pack without error codes. Cell voltage under motor-start inrush held within spec, and the pack did not trip the overcurrent threshold during tensioning strokes.
• Strapping tool cycle care: For the first two uses, run the tool through standard tensioning cycles at moderate strap tension before applying maximum torque. This lets the BMS log the motor's inrush current signature and calibrate its overcurrent trip threshold accurately before high-load use.

BMS cutoff during the tensioning stroke on motor-start inrush

The BXT series motor draws a short current spike the moment tensioning begins — this is normal inrush behavior on any brushed DC drive. On a degraded or cold pack, internal resistance is high enough that this spike causes the cell voltage to sag below the BMS cutoff floor, tripping the protection circuit before the strap is fully tensioned. A fresh Ni-MH pack at 12V nominal has lower internal resistance than an aged cell, so it absorbs the inrush without dropping rail voltage into the cutoff window. If the new pack still trips on the first pull, charge it fully before the next cycle — Ni-MH packs can arrive partially discharged after shipping.

Tool bogs mid-stroke under heavy strap tension

This is voltage sag, not a BMS trip — the tool keeps running but loses torque and slows noticeably through the tensioning arc. It usually traces back to high contact resistance at the battery terminal, not a dead cell. Pull the pack, clean both the tool-side and battery-side contacts with a dry cloth, then reseat firmly. If the sag continues, check that the pack is reading at or above 12V resting voltage with a multimeter — anything below 11.5V at rest after a full charge cycle indicates a cell fault.
