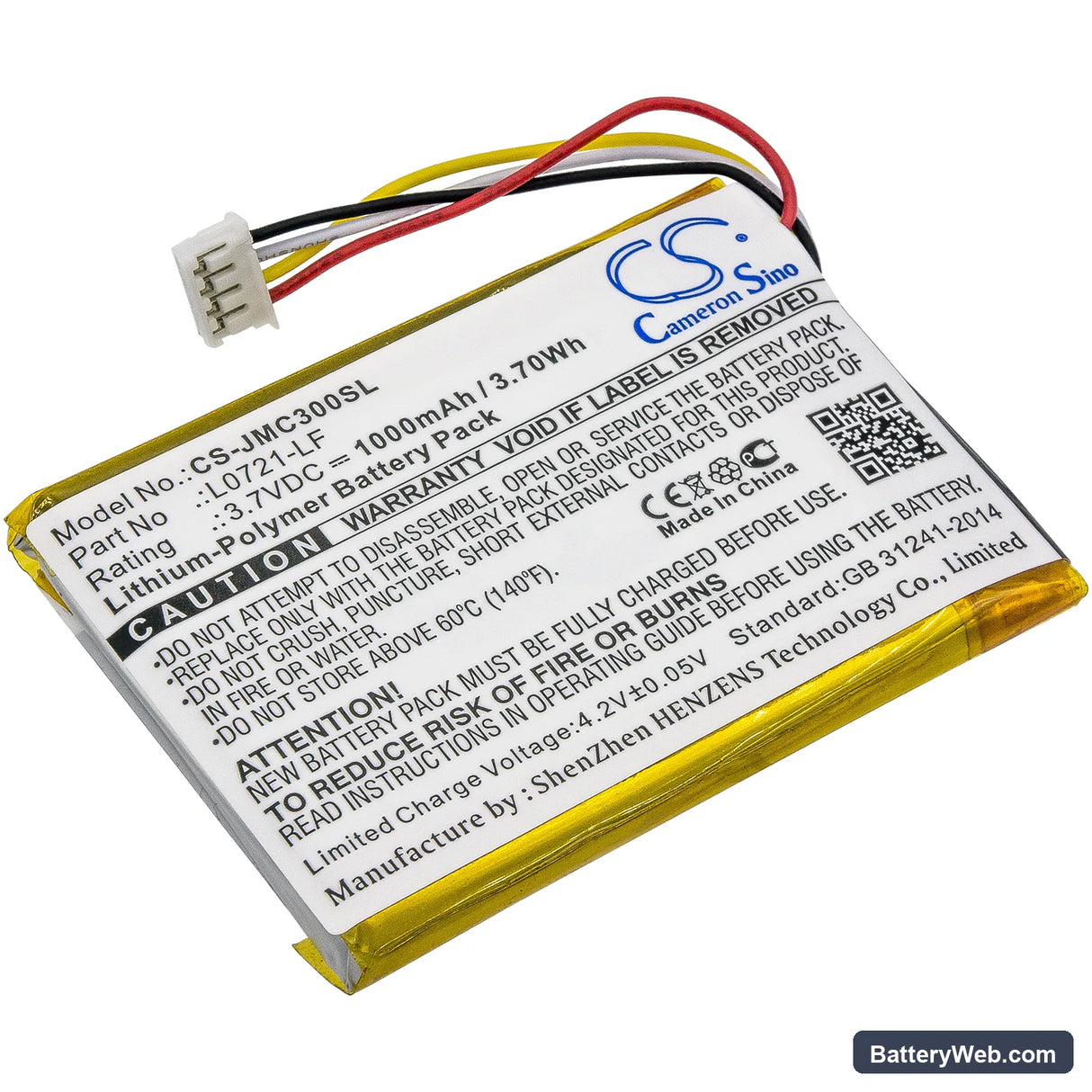

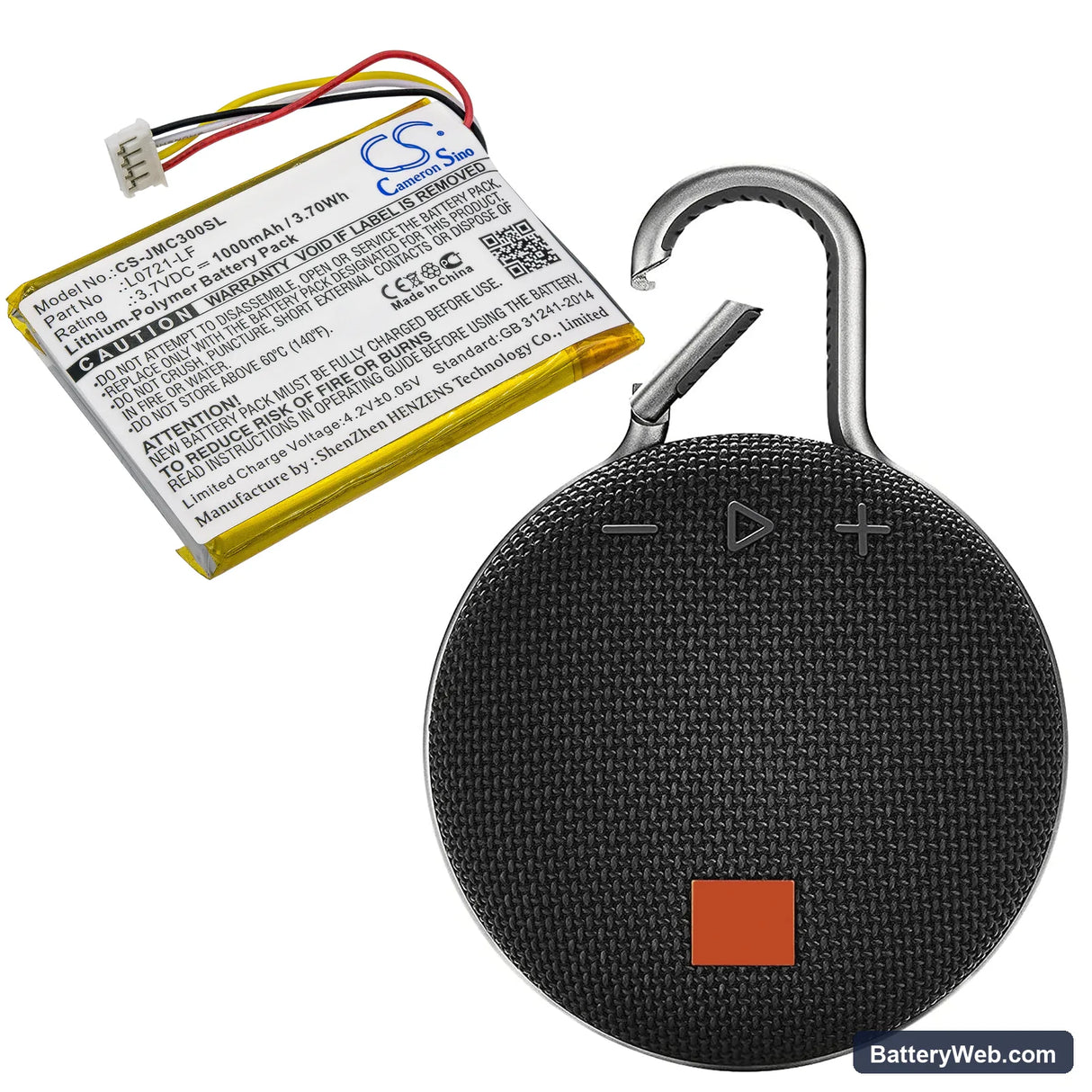

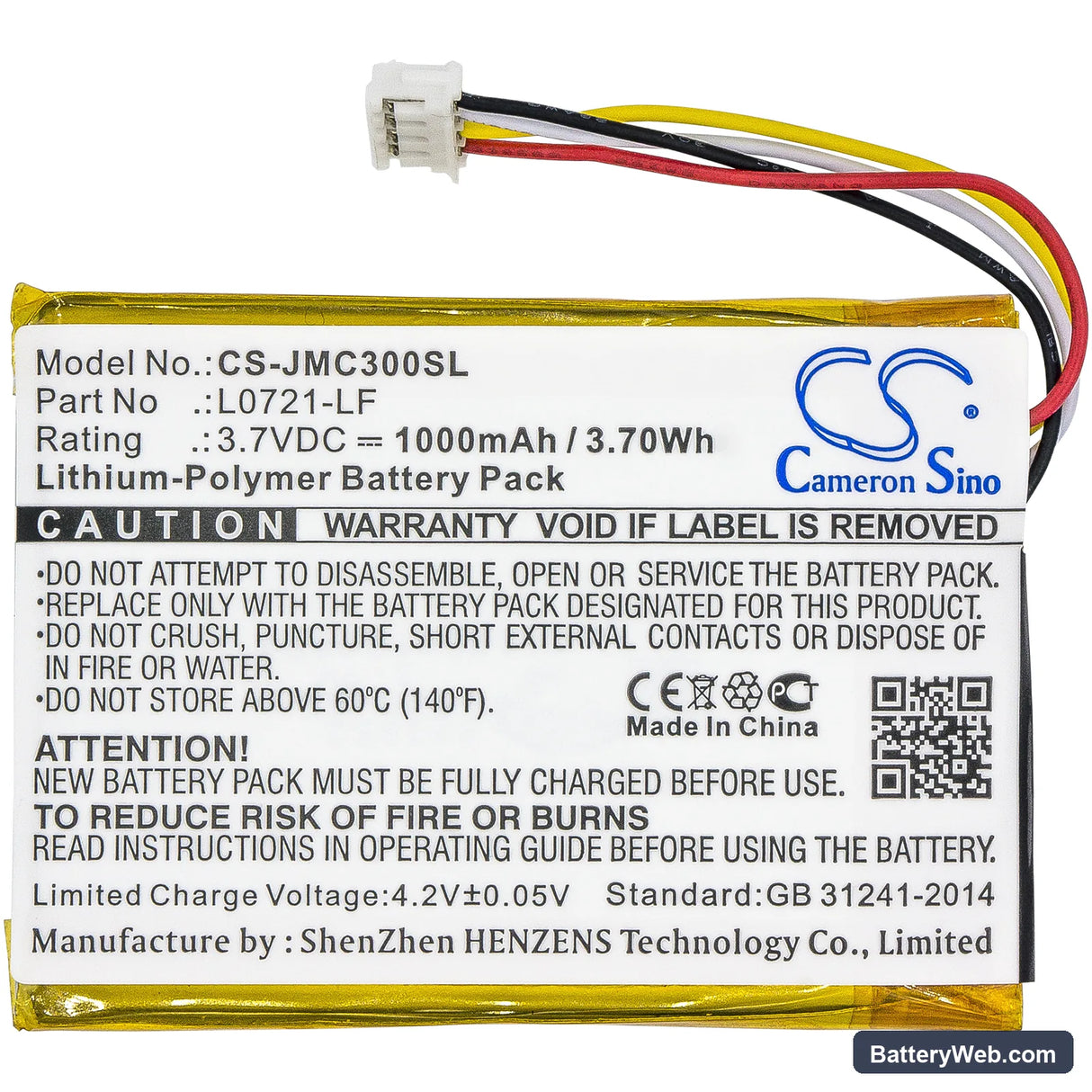

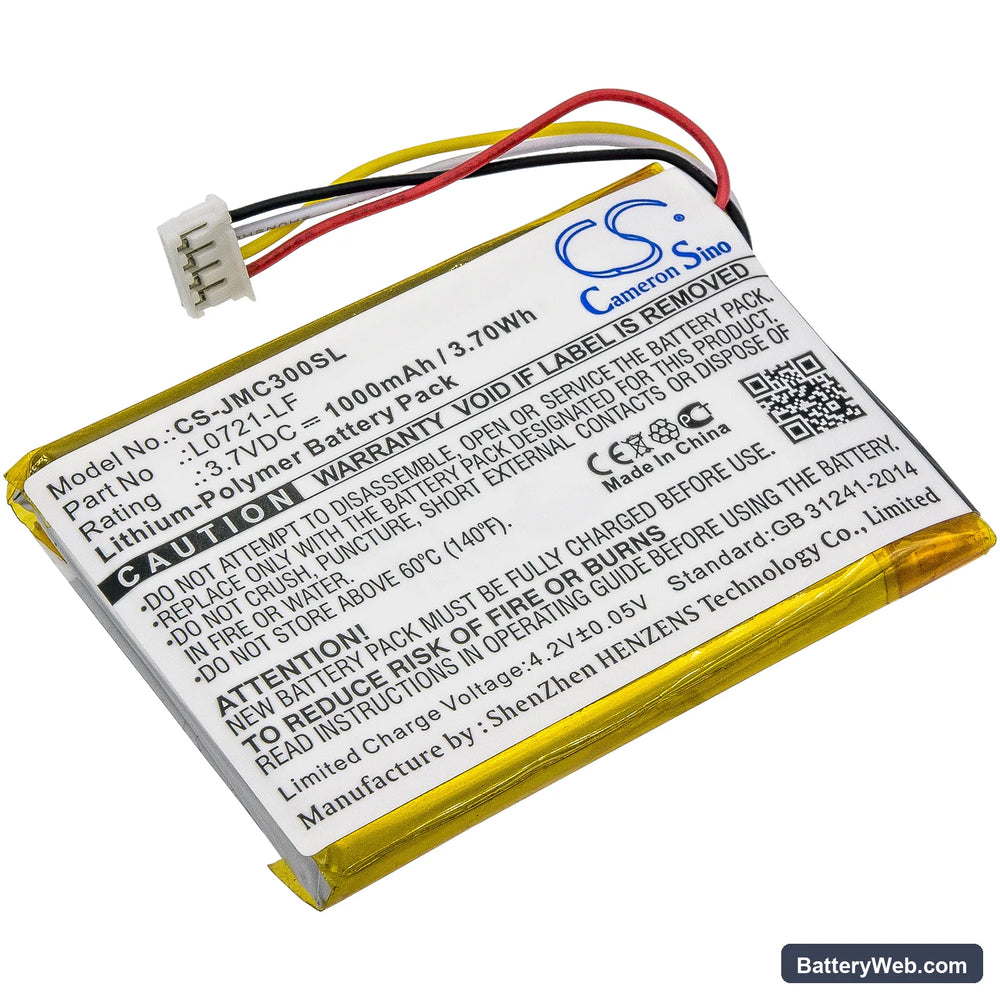

JBL Clip 3 Replacement Battery 3.7V 1000mAh L0721-LF

JBL Clip 3 / Clip 3AN / Clip 3SAND — 3.7V Li-Polymer Replacement Battery (L0721-LF)

This 3.7V, 1000mAh Li-Polymer battery replaces OEM part L0721-LF in the JBL Clip 3, Clip 3AN, and Clip 3SAND portable Bluetooth speakers. It fits the compact 54.50 × 34.00 × 5.00mm cell cavity inside the speaker housing. When the original cell swells or holds little charge, this replacement restores full audio and wireless function.

• Clip 3, Clip 3AN, Clip 3SAND compatibility: All three variants share the same internal cell format, connector orientation, and BMS handshake protocol — one part number covers the whole family without modification.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a Clip 3 unit. The BMS accepted the cell without fault codes, maintained stable voltage through high-volume audio output, and balanced current draw across both the amplifier and Bluetooth radio without tripping cutoff.
• Fuel gauge recalibration after swap: After fitting this battery, run the speaker down until it powers off on its own, then charge it uninterrupted to 100% before use. Skipping this step causes the onboard fuel gauge to read inaccurate charge levels from the first session.

Why the Clip 3 reads full charge but audio cuts out after extended play

The Clip 3 combines amplifier current draw and Bluetooth radio draw on the same cell simultaneously. As the cell ages or after a replacement without recalibration, the fuel gauge can lag behind actual cell voltage. The speaker's protection circuit sees the real voltage drop below threshold and shuts down audio output — even though the indicator still shows bars. Running a full discharge-to-cutoff cycle after battery replacement resets the gauge baseline and eliminates this mismatch.

USB charging not starting on a deeply discharged Clip 3

If a Clip 3 sits unused for weeks, the cell can drop below the USB charging acceptance threshold — typically under 2.5V on a Li-Polymer cell at this capacity. The charger handshake never completes, so the indicator shows nothing and the speaker stays off. Connect the speaker to a 5V USB source and leave it for 15–20 minutes without disconnecting — the BMS recovery circuit applies a trickle pre-charge to bring the cell back above 3.0V before switching to normal CC/CV charge. If the indicator still does not respond after 30 minutes, the original cell has likely failed and replacement is the next step.
