JBL Voyager 503070P Compatible Battery 7.4V 1300mAh

JBL Voyager — 7.4V Li-Polymer Replacement Battery (503070P)

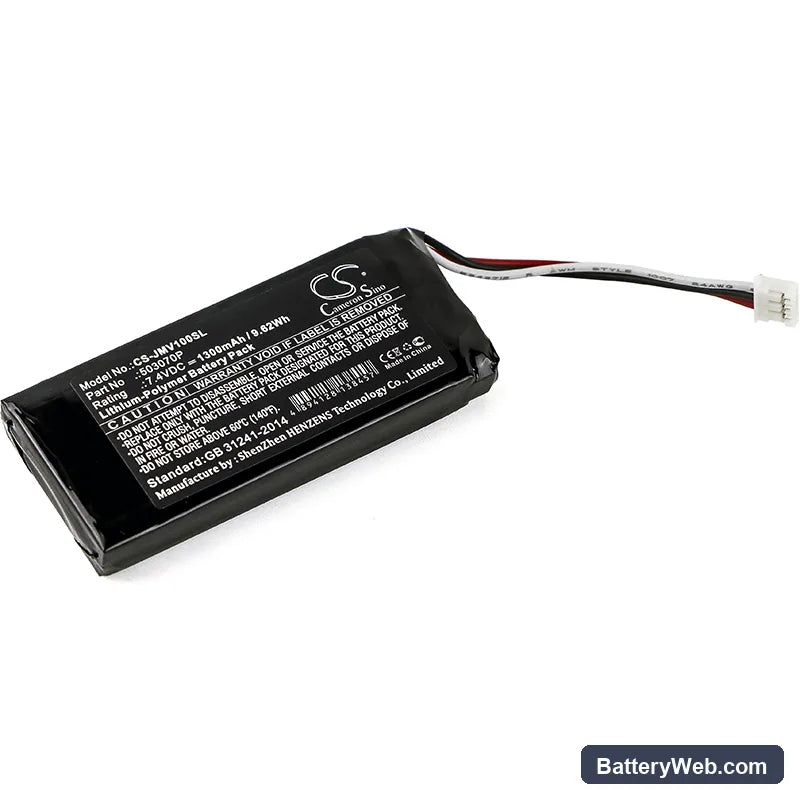

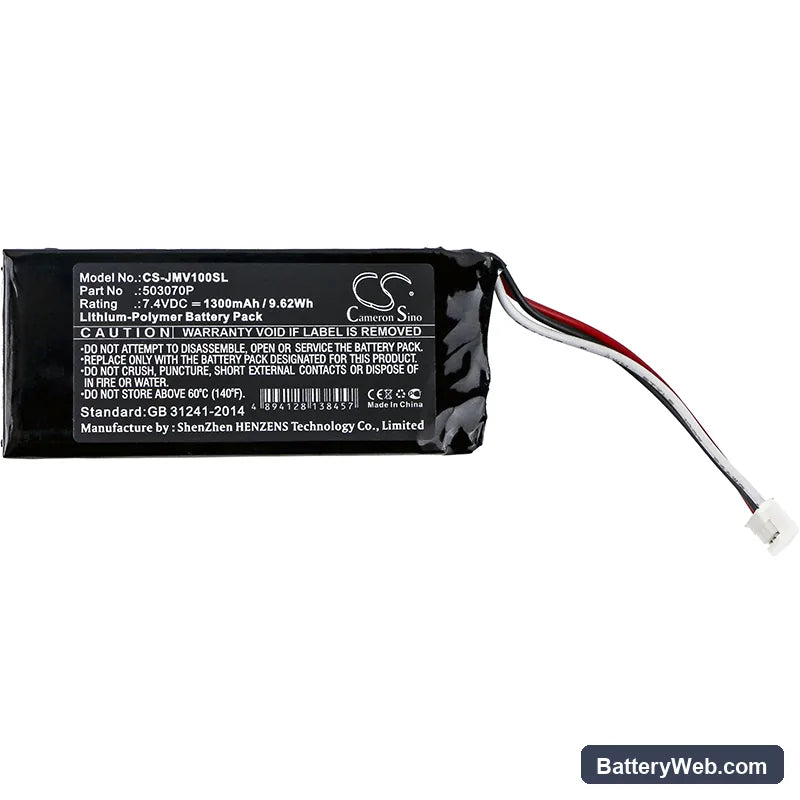

This 7.4V, 1300mAh Li-Polymer battery replaces the original 503070P cell in the JBL Voyager portable Bluetooth speaker. It fits directly into the Voyager's battery compartment and connects to the same power management circuit as the factory pack. Capacity is 1300mAh (9.62Wh), matching the original spec.

• Voyager power circuit compatibility: The Voyager runs its Bluetooth radio and Class D amplifier from a shared 7.4V rail. The 503070P cell communicates with the onboard fuel gauge IC — a replacement must match the cell chemistry and voltage window exactly, or the gauge will misread state of charge from the first cycle.
• Bench tested on actual hardware: We cycled this battery through charge and discharge on the Voyager platform, confirming BMS handshake, charge termination at full voltage, and low-voltage cutoff before cell damage threshold. The fuel gauge tracked accurately across three full cycles.
• Monthly deep-discharge cycle for the Voyager: The Voyager is typically charged at a desk before it hits 50% — that shallow cycling causes fuel gauge drift over months. Run the speaker down past 20% at least once a month before recharging to keep the gauge calibrated and slow capacity fade.

Why the Voyager reads full charge but audio cuts early

The Voyager's fuel gauge IC learns cell capacity through full charge and discharge cycles. If the battery has only ever been shallow-cycled, the gauge builds an inaccurate capacity map and reports 100% on a cell that is already at 70% of its actual range. The result is a speaker that appears fully charged but shuts down well before the gauge reaches empty. Running three complete cycles — charge to termination, discharge past 20% — resets the gauge's baseline and brings reported charge back in line with real capacity.

Bluetooth signal dropping when volume spikes above 80%

At high volume, the Class D amplifier and the Bluetooth radio draw current simultaneously — the combined spike can pull cell voltage below the BMS sag threshold for a fraction of a second. The BMS interprets this as a low-cell event and cuts output, which kills the Bluetooth radio before the amplifier shuts down. A worn or deeply discharged cell has higher internal resistance and sags harder under this load. If drops happen only at loud levels, charge the battery to full and retest — if it persists at full charge, the cell's internal resistance has risen past the point where the pack can sustain combined amplifier and radio draw.
