Philips Fidelio E6 Compatible Battery 7.4V 2500mAh

Philips Fidelio E6 / HTL9100 — 7.4V Li-Polymer Replacement Battery (HD104050E6)

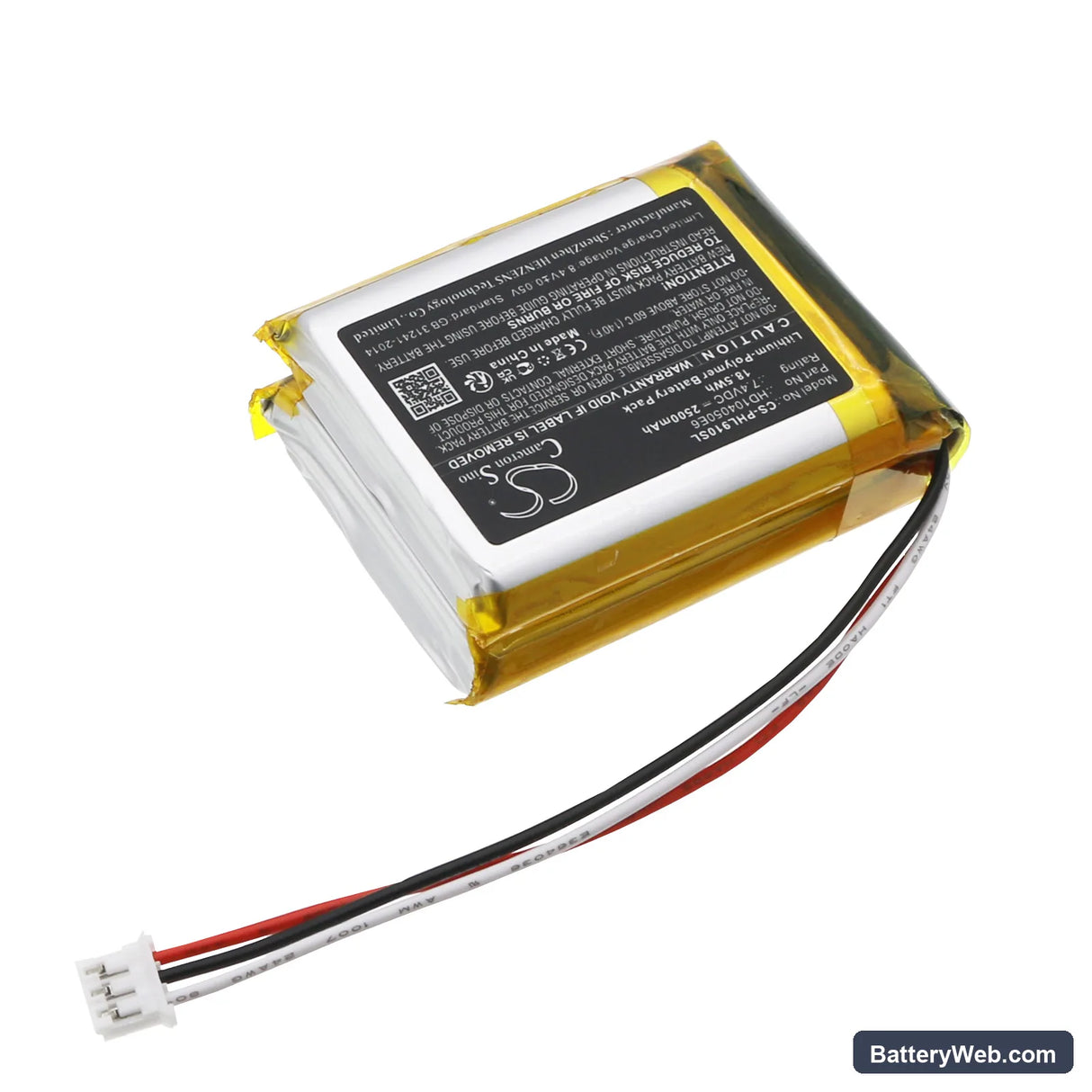

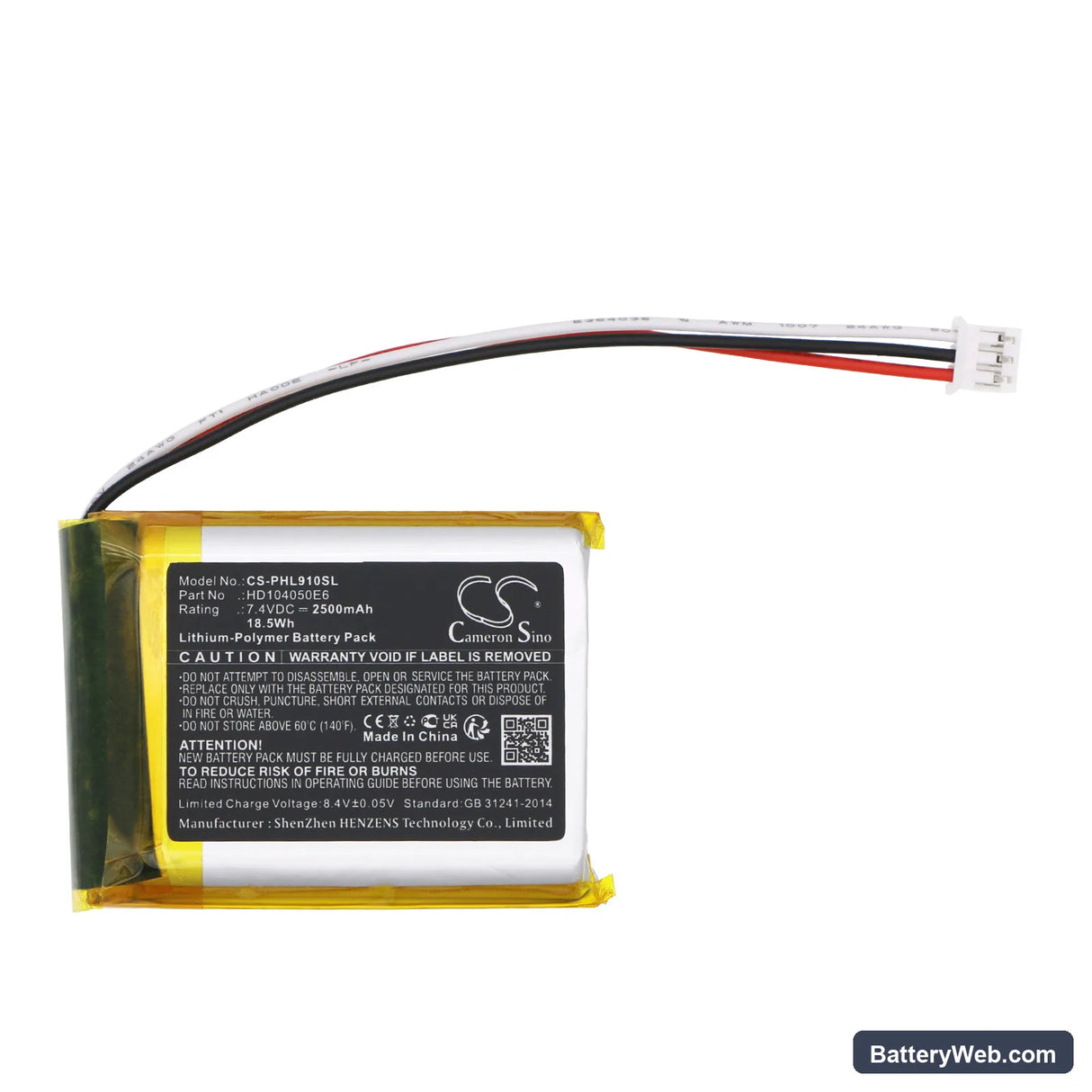

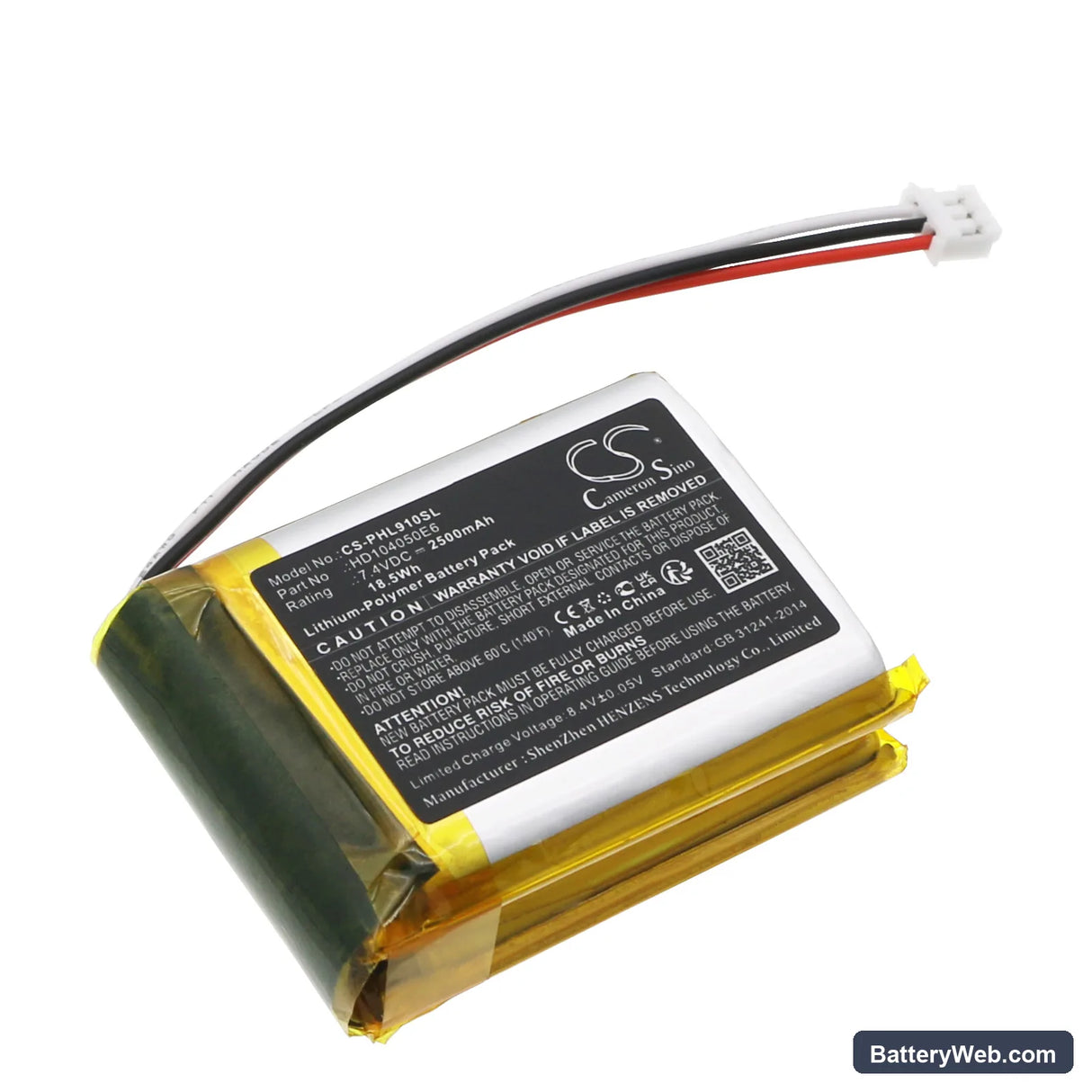

This is a 7.4V, 2500mAh (18.5Wh) lithium-polymer battery for the Philips Fidelio E6 wireless speaker and the Fidelio HTL9100 soundbar system. Both units run on the same cell format and connector, so this pack covers either device. Use the OEM part number HD104050E6 to confirm you have the right battery before ordering.

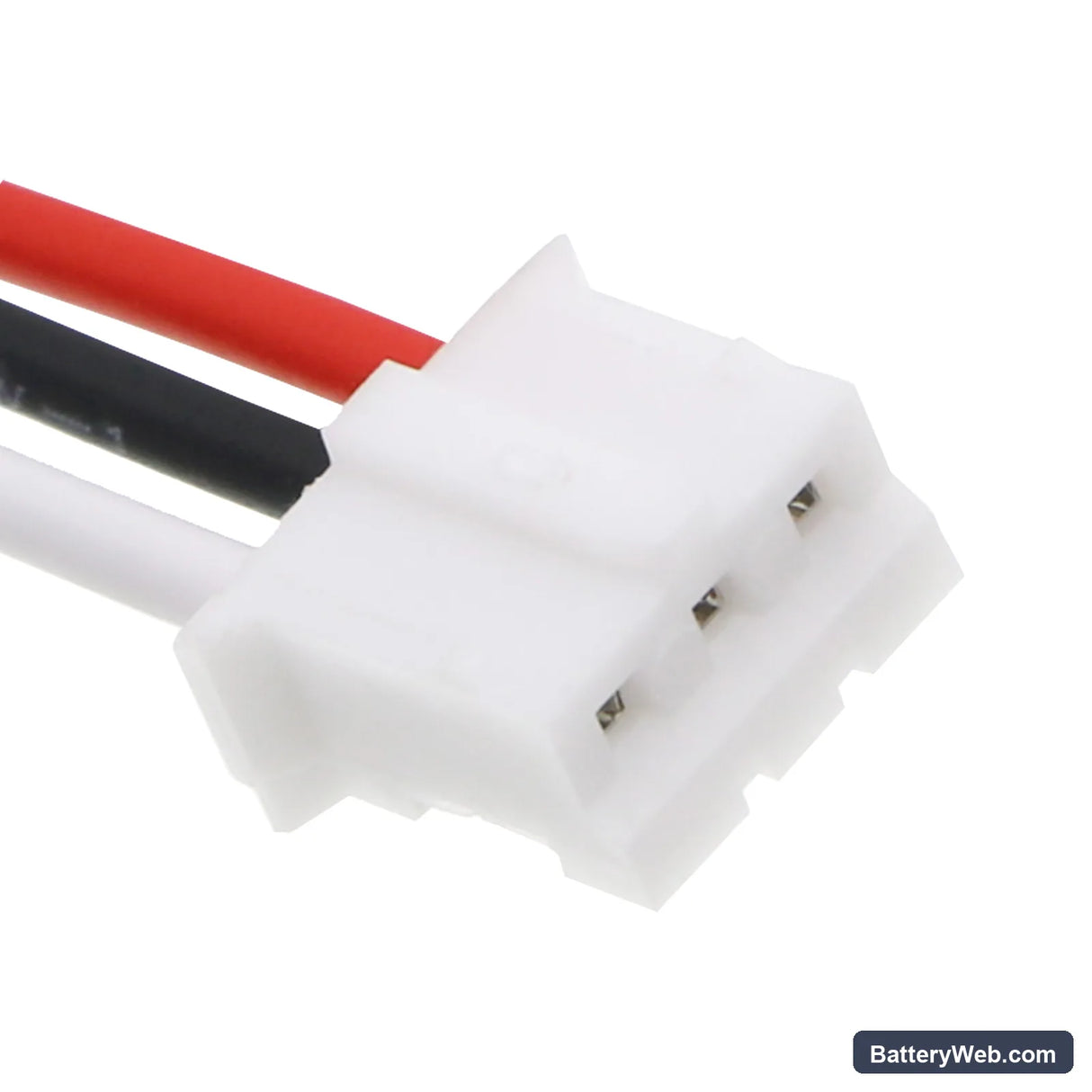

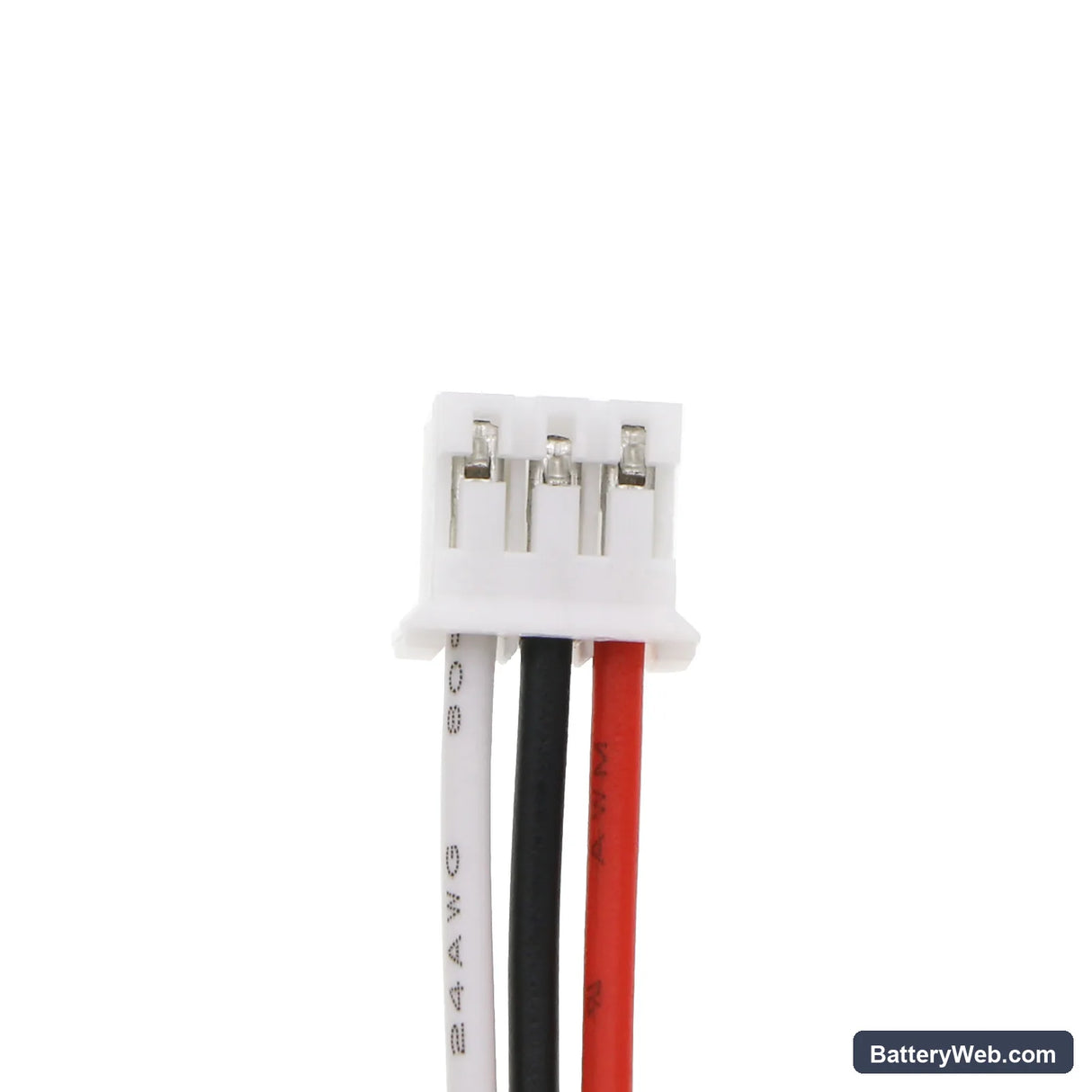

• Fidelio E6 and HTL9100 compatibility: Both the E6 speaker and HTL9100 share the same 7.4V dual-cell Li-Polymer pack, identical connector pinout, and matching BMS handshake protocol. Swapping between units does not require firmware changes or adapters.
• Bench tested on actual hardware: We cycled this pack through charge and discharge on the Fidelio E6 platform. The onboard BMS accepted the cell, balanced both internal cells correctly, and reported accurate state-of-charge to the speaker's fuel gauge from the first cycle.
• Monthly discharge cycle on desk-use speakers: If the Fidelio E6 sits on a desk and gets topped off constantly, run it down below 20% at least once a month before recharging. Continuous shallow cycling without a full discharge causes fuel gauge drift — the speaker will report full charge but cut out earlier than expected.

Audio distorting before the battery indicator reaches empty on the Fidelio E6

As the Li-Polymer cells discharge toward their lower voltage threshold, the pack's output voltage sags under amplifier load. The Fidelio E6 amplifier draws a spike of current at higher volumes, and if the cell voltage drops below roughly 6.8V under that load, the amp clips before the battery indicator flags low. The speaker sounds distorted or compressed even though the on-screen gauge still shows charge remaining. If distortion appears consistently at the same volume level, check the actual cell voltage with a multimeter at the charge port — below 7.0V at rest signals a degraded or end-of-life cell.

USB charging not starting after the Fidelio E6 battery was left fully drained

If a Fidelio E6 is left discharged for several weeks, the Li-Polymer cells can drop below the minimum acceptance voltage that the USB charging circuit requires to begin a charge session. The speaker will show no response — no LED, no charge indicator — when plugged in. Connect the unit to a 5V USB power source and hold the power button for 10 seconds to trigger the BMS pre-charge recovery routine, which trickle-charges the cell back above the threshold. If the LED still does not respond after two attempts, measure cell voltage directly — a reading below 5.5V across the pack means the BMS has locked the cell out for safety and the battery needs replacing.
