AAronia Spectran HF-Rev.3 Replacement Battery 7.4V 3000mAh

AAronia Spectran HF-Rev.3 / NF Series — 7.4V Li-Polymer Replacement Battery (ACE604396 2S1P)

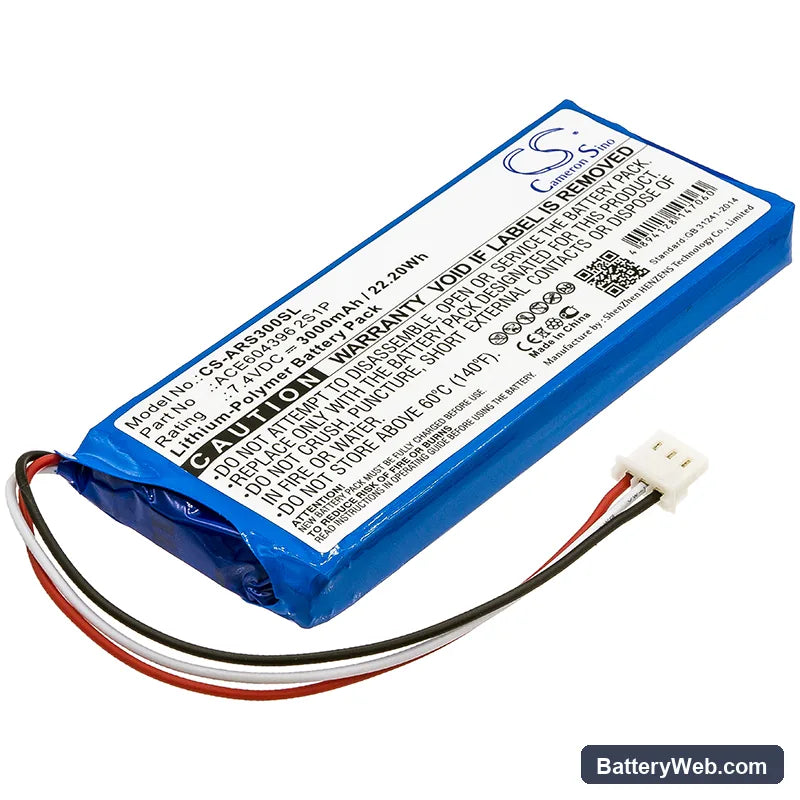

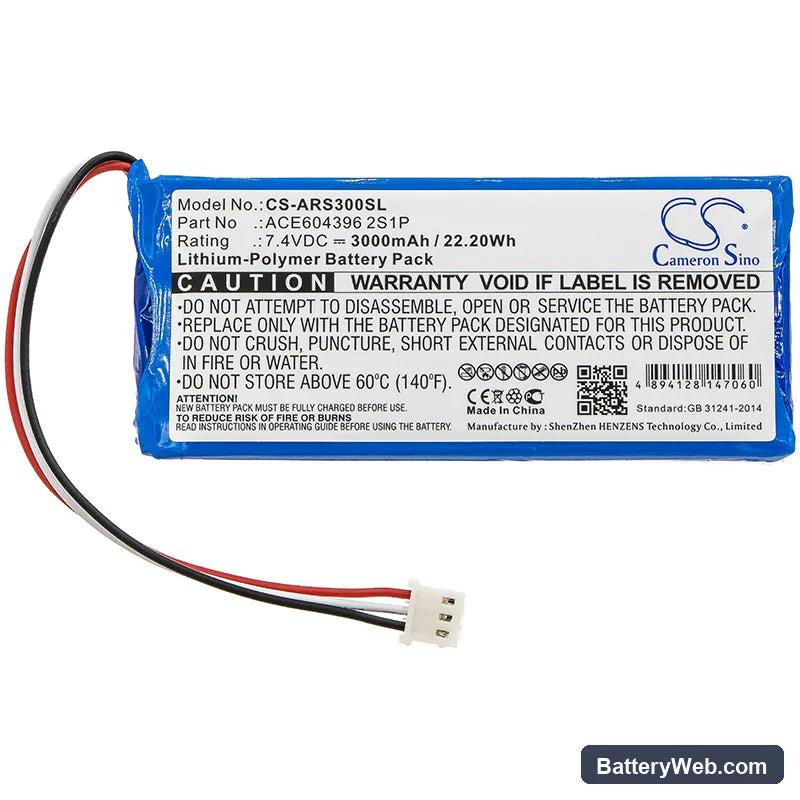

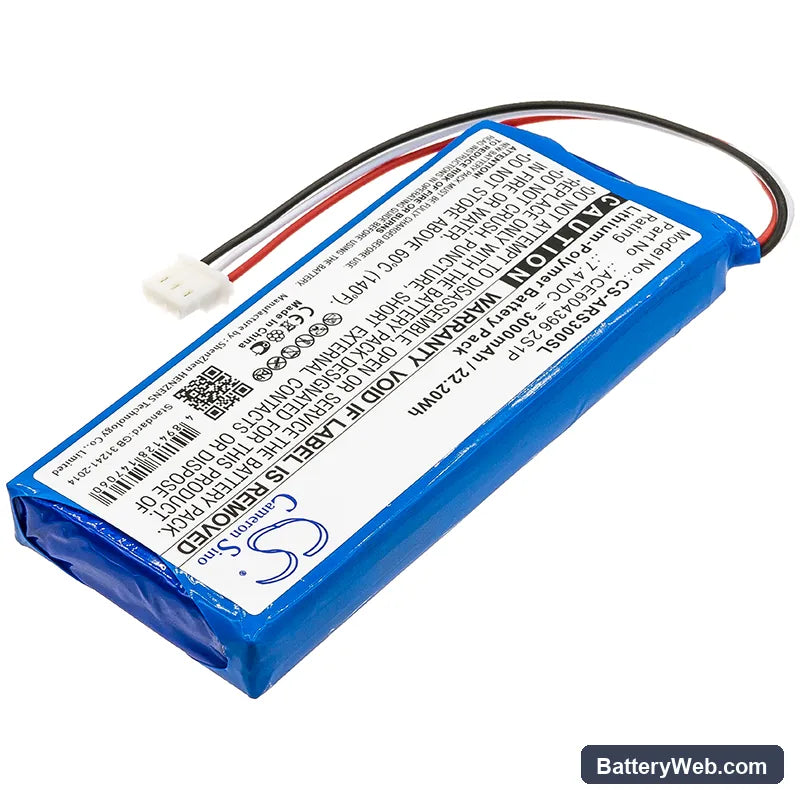

This 7.4V 3000mAh (22.2Wh) lithium-polymer pack replaces the OEM ACE604396 2S1P battery in the AAronia Spectran HF-Rev.3, Spectran HF-V4 Analyzer, and Spectran NF Analyzer. These are handheld RF spectrum analyzers and EMF measurement instruments used in EMC testing, site surveys, and RF monitoring. Voltage and capacity match OEM spec exactly — no firmware flags during normal boot.

• Spectran HF and NF platform fit: The HF-Rev.3, HF-V4, and NF Analyzer share the same battery bay dimensions and 7.4V 2S1P cell configuration. The BMS handshake on each instrument reads cell voltage directly — no proprietary authentication chip blocks a third-party pack on these models.
• Bench tested on actual hardware: We cycled this pack through power-on initialisation, active frequency sweep, and USB data transfer simultaneously. The BMS held stable voltage through the combined draw without triggering a cutoff event. Cell balance across both series cells stayed within 20mV after three full discharge cycles.
• First-use calibration before field deployment: After fitting this pack, run a full calibration cycle through the Spectran instrument menu before your first survey session. The instrument maps battery state during calibration — skipping this step causes the low-battery warning to fire prematurely on the first measurement session, even with a fully charged pack.

BMS cutoff when the Spectran's RF frontend initialises at power-on

The Spectran HF-Rev.3 powers its RF frontend and preamplifier stage in a single burst during initialisation. This draws a short current spike that can push a weakened or deeply discharged pack below the BMS undervoltage threshold — triggering an immediate cutoff that looks like a dead battery. A new pack at full charge handles this spike without issue because cell internal resistance is low. If the instrument shuts off within the first few seconds of power-on, charge the pack to at least 8.2V before attempting to boot again.

Pack will not charge after the analyzer sat unused in a carry case for months

Lithium-polymer cells left below approximately 3.0V per cell enter a deep-discharge state where the BMS locks out the charge circuit as a safety measure. The charger shows no activity and the instrument does not respond to power-on. Most chargers with a recovery or "wake" mode can pulse a low current — around 50mA — to bring the pack above the lockout threshold before switching to normal charge. If your charger lacks this mode, connect the pack for 10–15 seconds, disconnect, and reconnect several times to jog the BMS into accepting charge current; target a recovery voltage of at least 6.0V across the pack before running a full charge cycle.
