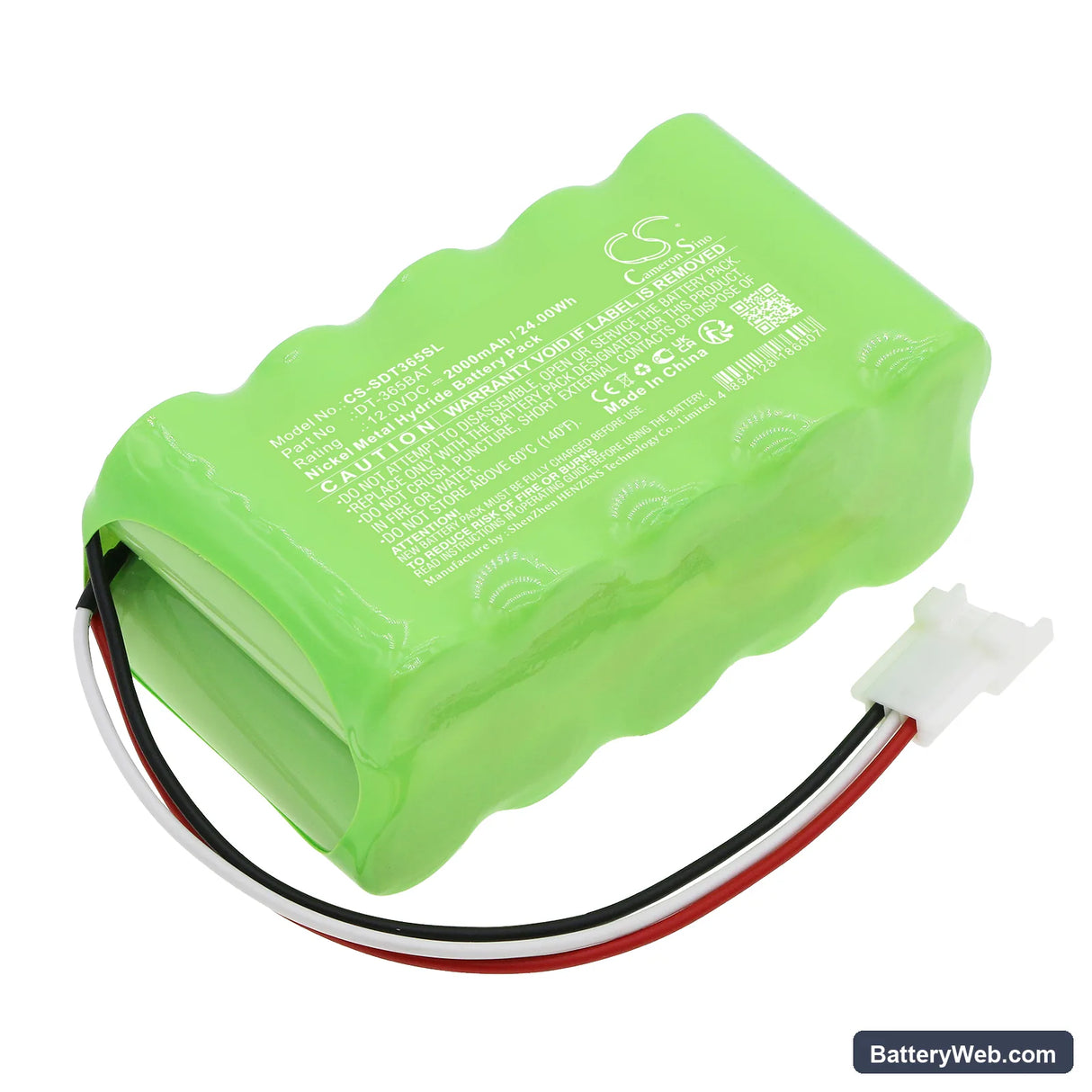

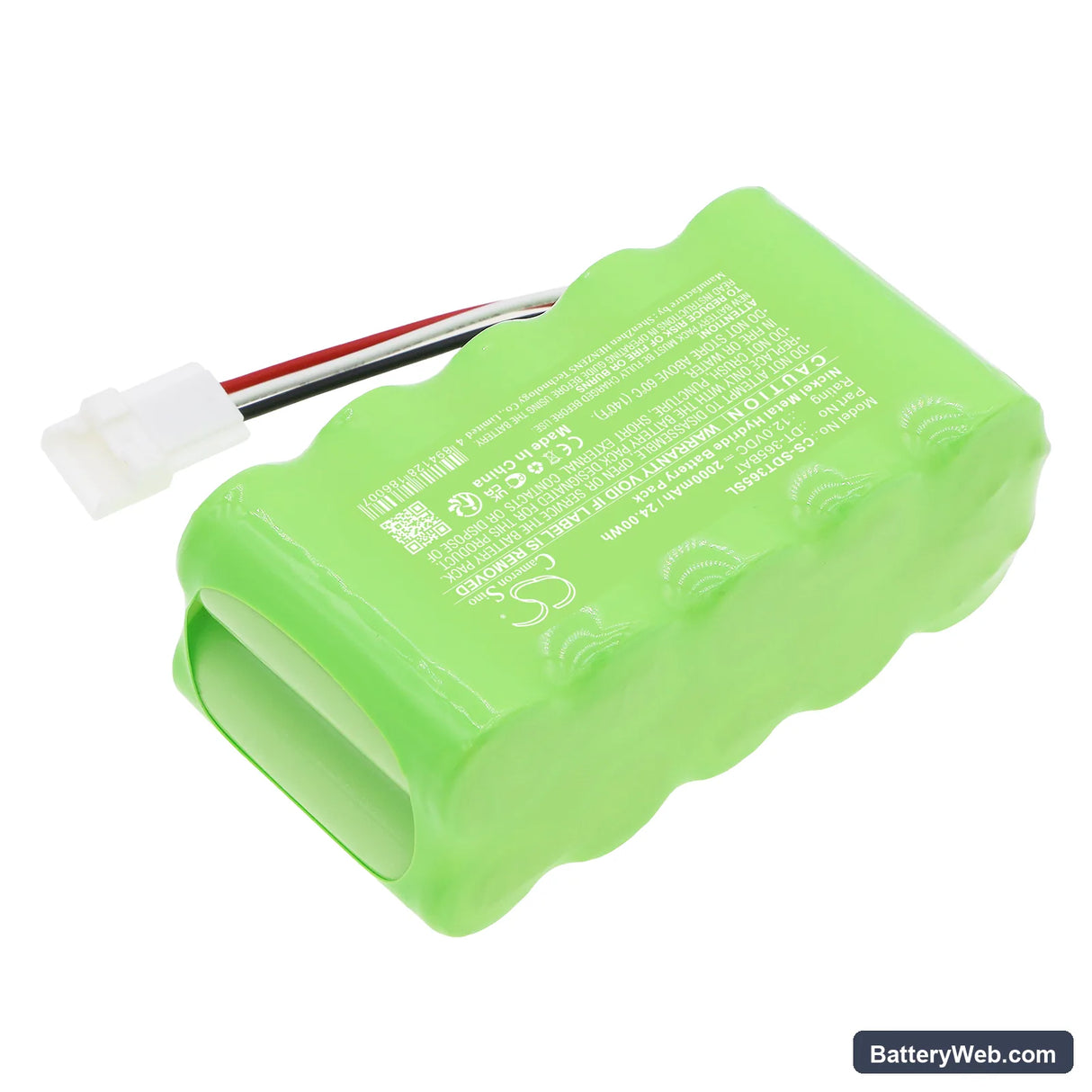

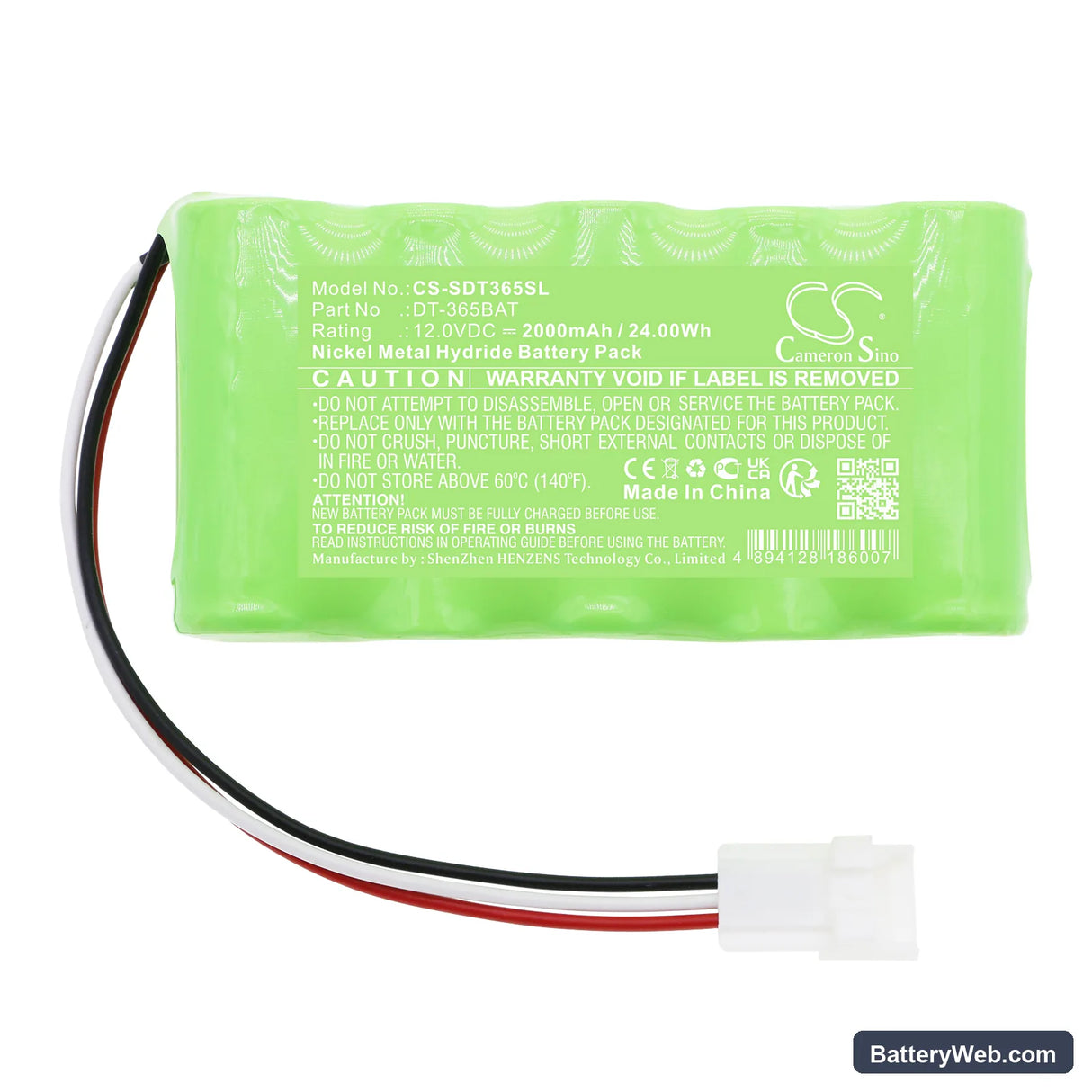

Shimpo DT-365 Replacement Battery 12V 2000mAh Ni-MH

Shimpo DT-365 — 12V Ni-MH Replacement Battery (DT-365BAT)

This is a 12V 2000mAh Ni-MH replacement battery for the Shimpo DT-365 digital tachometer. It fits the DT-365 contact and non-contact handheld tachometer used in industrial speed measurement and equipment testing. Voltage and capacity match the OEM specification: 12V, 2000mAh (24Wh).

• DT-365 platform fit: The DT-365 runs a single battery bay at 12V with a fixed connector orientation. This pack matches the cell count, terminal layout, and BMS handshake the instrument expects. No adapter or wiring modification needed.
• Bench tested on actual hardware: We cycled this pack through the DT-365's power-on sequence and simulated probe activation loads. The BMS held voltage within spec during both contact and optical sensor initialisation, where current draw spikes briefly at measurement start.
• Instrument calibration after install: After fitting this pack, run a full calibration cycle through the DT-365 instrument menu before field use. The instrument maps battery state during calibration — skipping this causes premature low-battery warnings to appear during the first measurement session, even with a fully charged pack.

BMS lockout after the DT-365 sat unused in a carry case for months

Ni-MH cells self-discharge at roughly 1–2% per day at room temperature. A DT-365 left in storage for several months can drain the pack below the BMS recovery threshold — typically around 9V for a 12V Ni-MH pack. At that point, the BMS enters a protective lockout and the instrument will not power on even when placed on charge. To recover, connect the charger and leave it for a full 12–14 hours before attempting to power on; some chargers require the voltage to climb above 10.5V before they recognise the pack and begin a normal charge cycle.

DT-365 readings drifting or display resetting mid-logging session

During a sustained logging run, the optical sensor and display draw continuous current that Ni-MH cells handle differently from a short burst. As cell voltage sags under this sustained load, the instrument's internal voltage regulator can momentarily drop out, causing the display to reset or RPM readings to become erratic. This is not a sensor fault — it is a voltage dropout under load. Check resting pack voltage before a long session; if open-circuit voltage reads below 11.5V, charge the pack fully before deploying.
