Cecotec HydroBoost 10000 Liberty — 20V Li-ion Replacement Battery (B02-1825A)

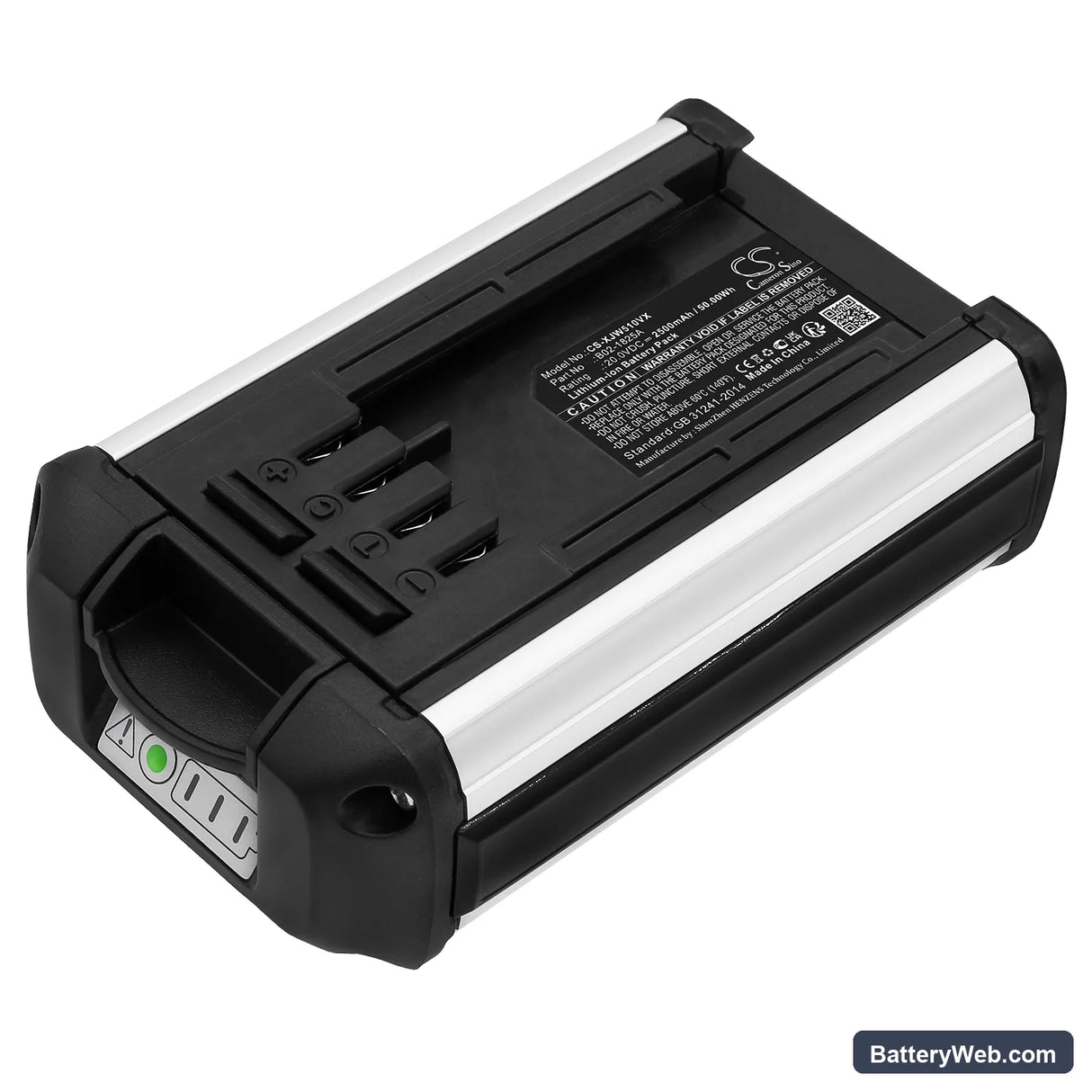

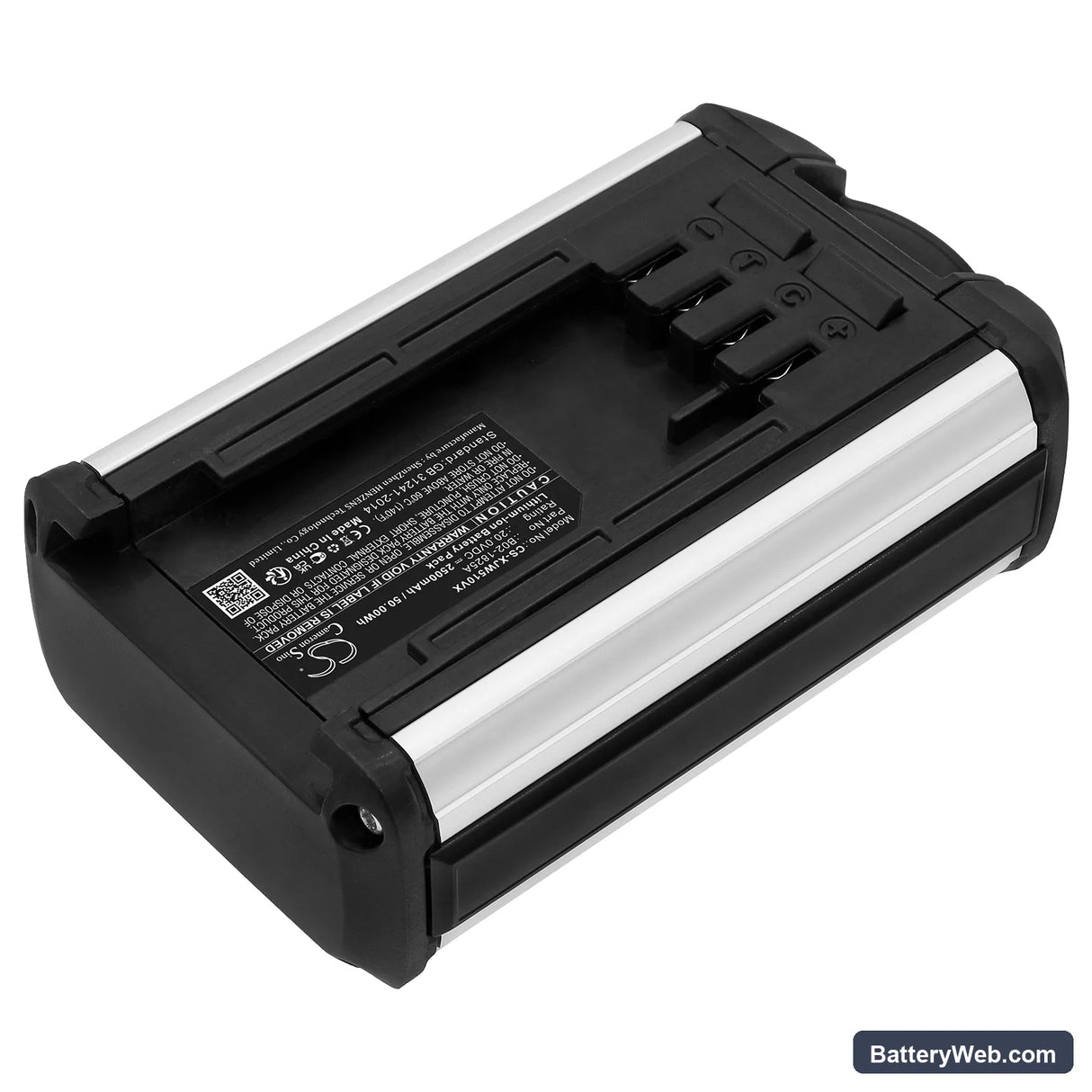

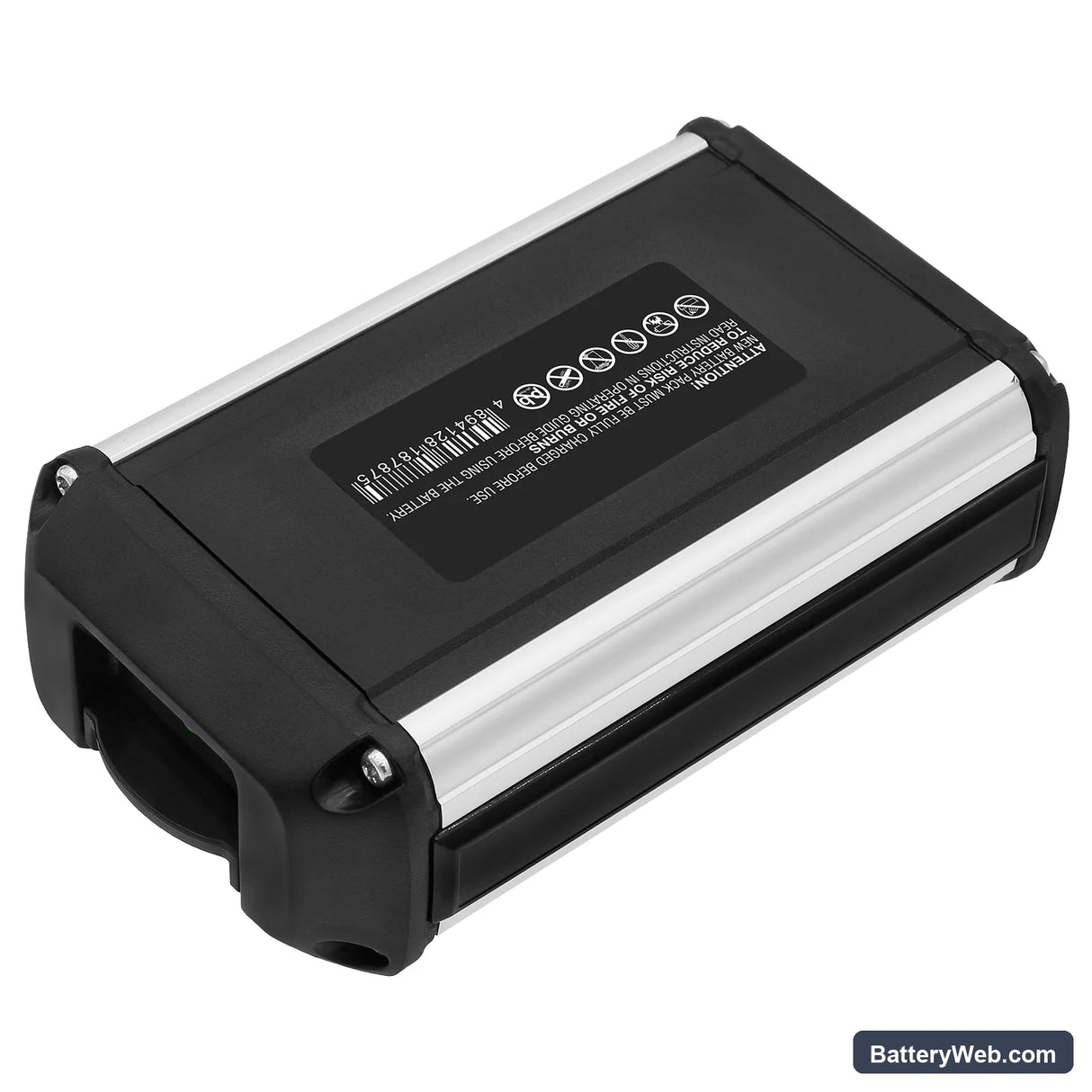

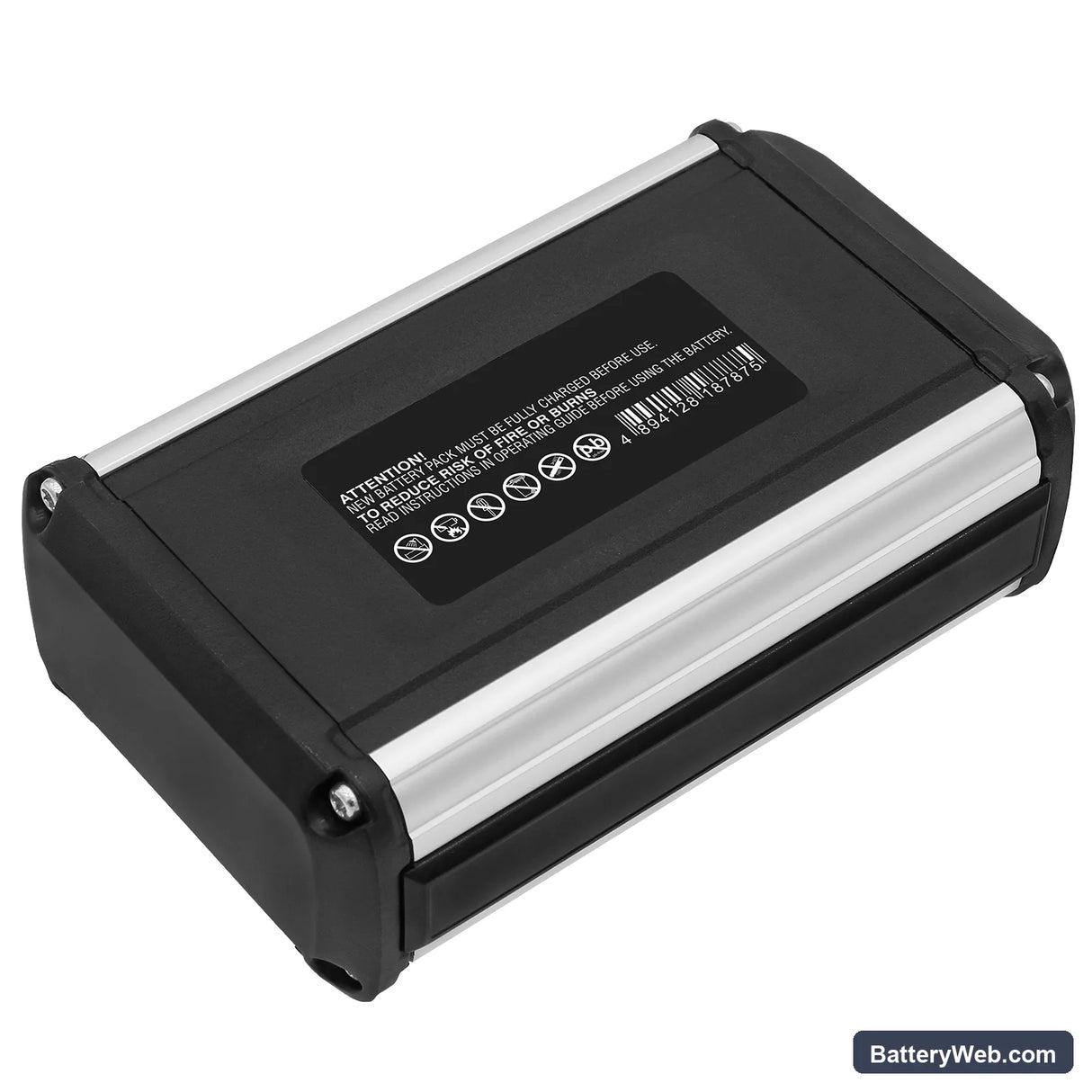

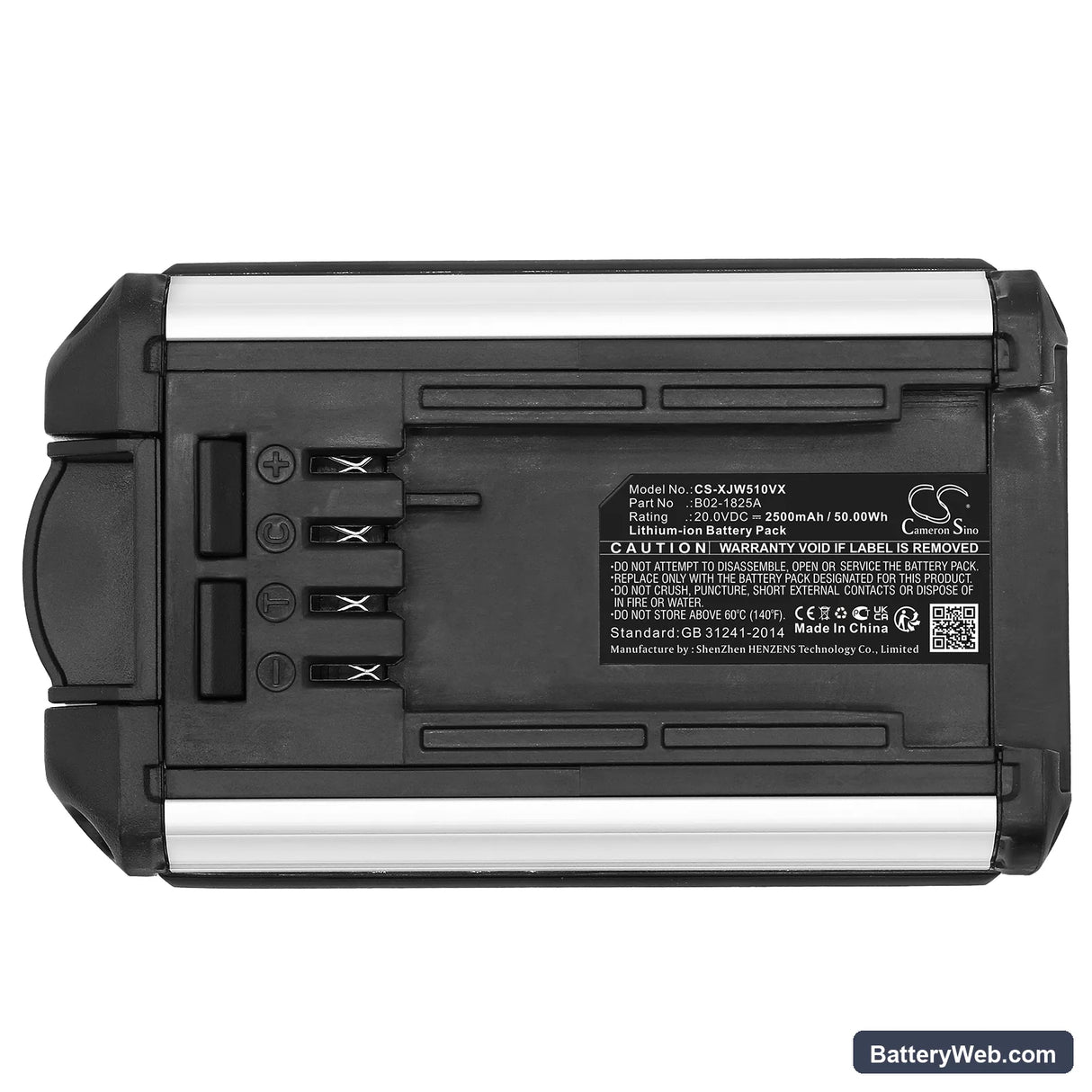

This is a 20V Li-ion battery rated at 2500mAh (50Wh), built to the same electrical spec as the original B02-1825A cell. It fits the Cecotec HydroBoost 10000 Liberty cordless wet-dry vacuum. When the original cell degrades and suction weakens before the indicator reads low, this is the direct swap.

• HydroBoost 10000 Liberty fit: The HydroBoost 10000 Liberty runs a 20V motor rail with a BMS that monitors cell voltage and current draw across both wet and dry cleaning cycles. This battery matches that voltage rail and connector pin layout, so the BMS handshake completes without fault codes.
• Bench tested on actual hardware: We cycled this battery through sustained motor loads — including the elevated current draw that occurs on carpet mode. The BMS held cutoff thresholds correctly and did not trip during normal operating loads.
• Dock charging on the HydroBoost 10000 Liberty: Do not leave this vacuum on the charging dock continuously. Cordless vacuums kept on permanent dock charge develop capacity fade faster than those charged only when depleted. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low

This happens because the motor draws more current when suction is restricted — a partially blocked filter forces the motor to work harder, pulling the cell voltage down faster than normal. The battery indicator reads state-of-charge, not available power, so voltage sag under load can drop suction well before the indicator triggers. A degraded original cell makes this worse because internal resistance rises with age, causing sharper voltage sag under the same load. Check and clean the filter first; if suction still drops early, the cell itself needs replacement.

Motor cuts out mid-clean then recovers after a short pause

This is a BMS overcurrent trip, not a motor fault. When suction is blocked — by a full dustbin, a clogged filter, or a floor seal that's too tight — the motor draws above the BMS current threshold and the pack shuts off to protect the cells. The brief pause lets the BMS reset and voltage recover, which is why the vacuum restarts on its own. Empty the dustbin, clean the filter, and run the vacuum again; if the cutout persists on a clear filter, measure the pack voltage at rest — a healthy 20V Li-ion cell should read between 20V and 21V fully charged.
