Concept VP4353 Cordless Vacuum Replacement Battery 18.5V 2600mAh

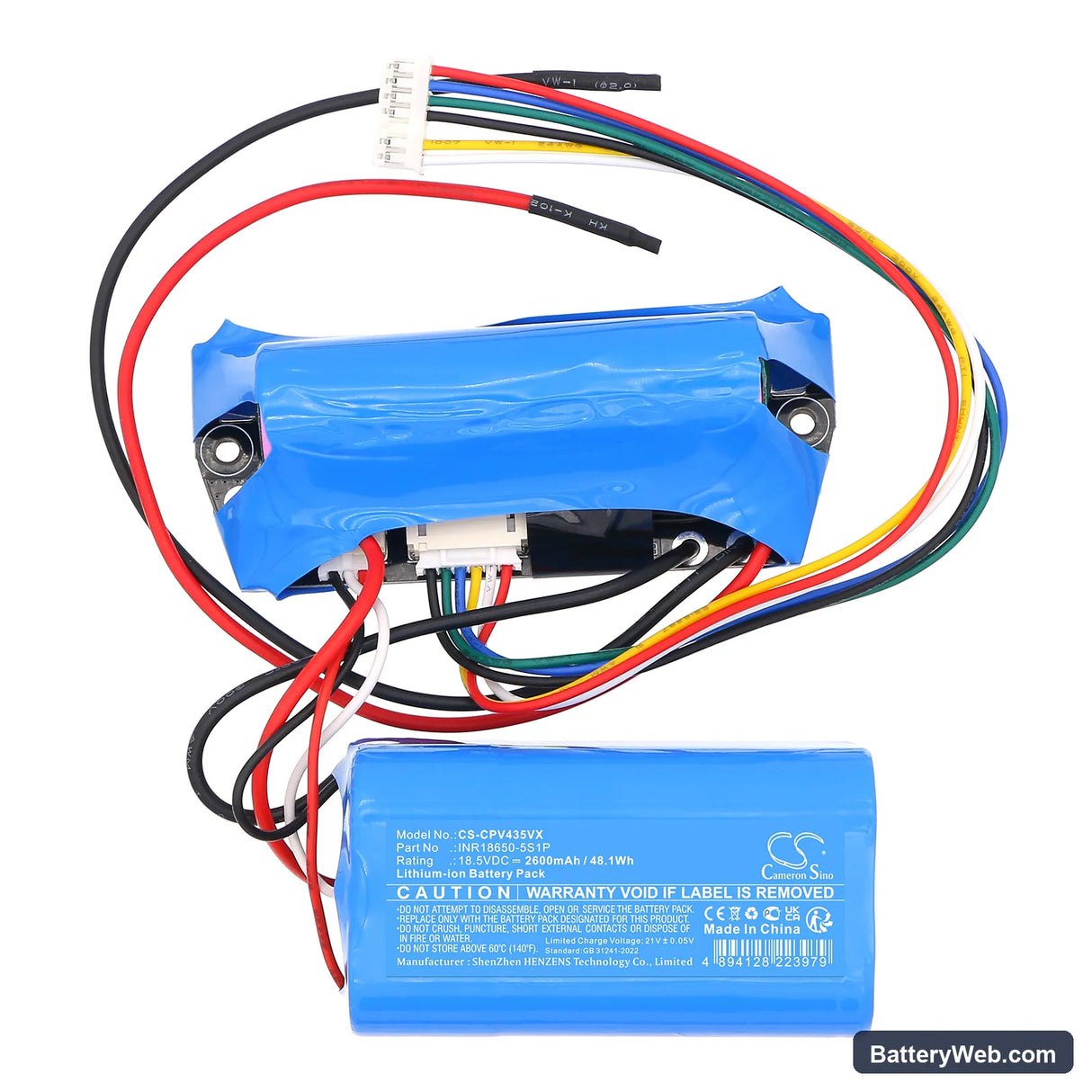

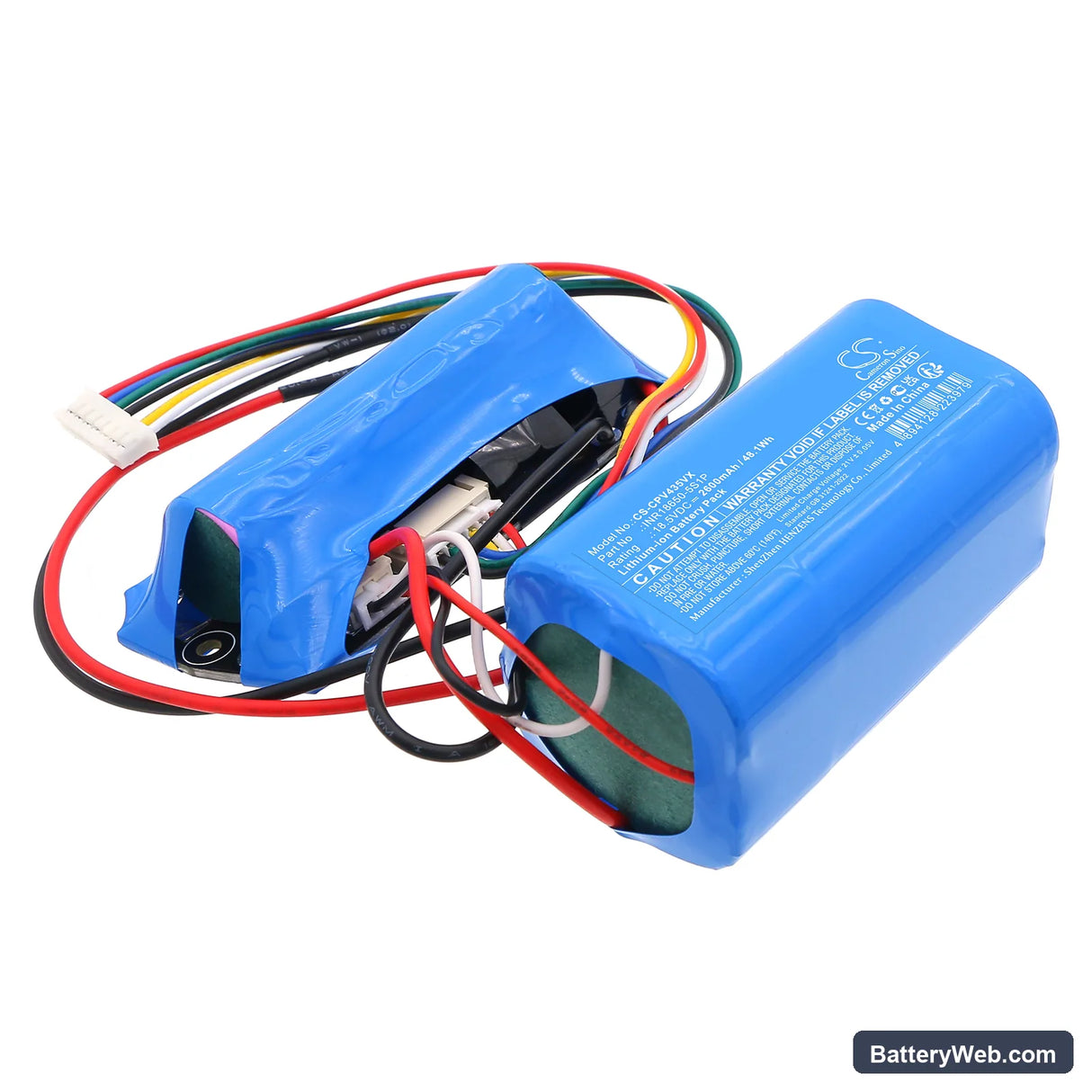

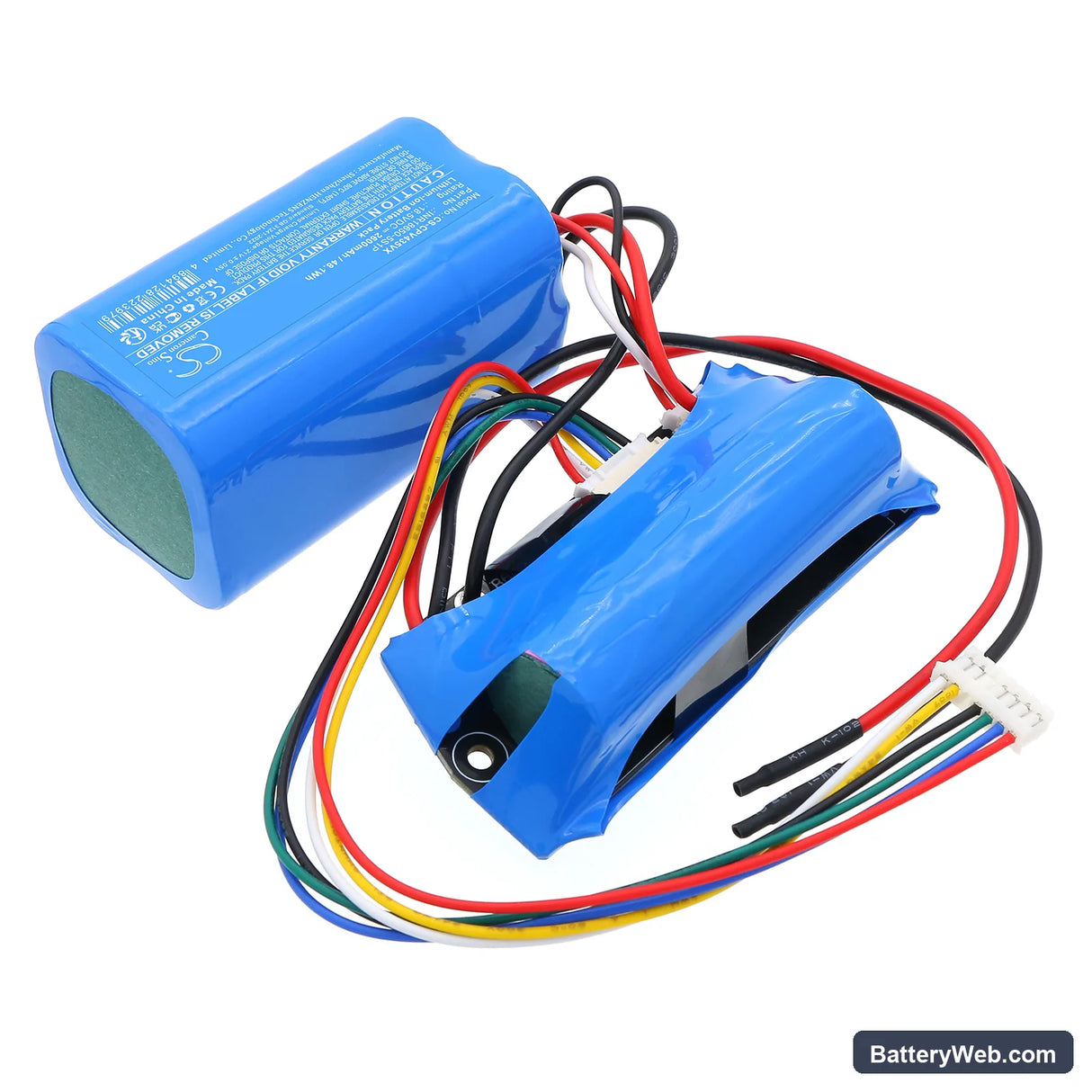

Concept VP4353 / VP4354 — 18.5V Li-ion Replacement Battery (INR18650-5S1P)

This is a 18.5V 2600mAh (48.1Wh) Li-ion replacement battery for the Concept VP4353 and VP4354 cordless stick vacuums. It matches the original INR18650-5S1P cell configuration and drops into the same battery bay. If your vacuum has lost charge capacity over time, this battery restores full motor voltage.

• VP4353 and VP4354 compatibility: Both models run the same 18.5V motor rail and use the same physical housing and connector pinout, which is why they share one battery part number. The BMS communicates over the same lines on both units.
• Bench tested on actual hardware: We cycled this battery through full discharge and recharge on the VP4353 platform. The BMS handled overcurrent spikes during sustained motor load without tripping, and charge acceptance was consistent across multiple cycles.
• Dock charging on cordless vacuums: Do not leave the VP4353 sitting on the charging dock continuously between uses. Cordless vacuums on permanent dock charge develop capacity fade significantly faster than those charged only when the battery is depleted. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low

This is a voltage sag issue, not a capacity issue. When the filter is partially blocked, the motor draws more current to maintain airflow. Higher current draw pulls the cell voltage down faster than the indicator circuit registers. The vacuum feels like a weak battery because motor torque drops, but the battery may still show two or three bars. Clean or replace the filter first — if suction then holds steady through a full charge cycle, the battery is not the cause.

Motor cuts out mid-use then recovers after a short pause

This is the BMS tripping on an overcurrent condition, not a failing battery. When airflow is restricted — blocked filter, clogged nozzle, or hair wrapped around the brush roll — the motor stalls briefly and draws a current spike above the BMS threshold. The BMS cuts power to protect the cells, then resets after a few seconds. Clear the restriction at the nozzle or brush roll first. If the cutout continues on a clean, unobstructed path, check that the battery contacts are seated fully and battery voltage at rest reads at or above 18.5V.
