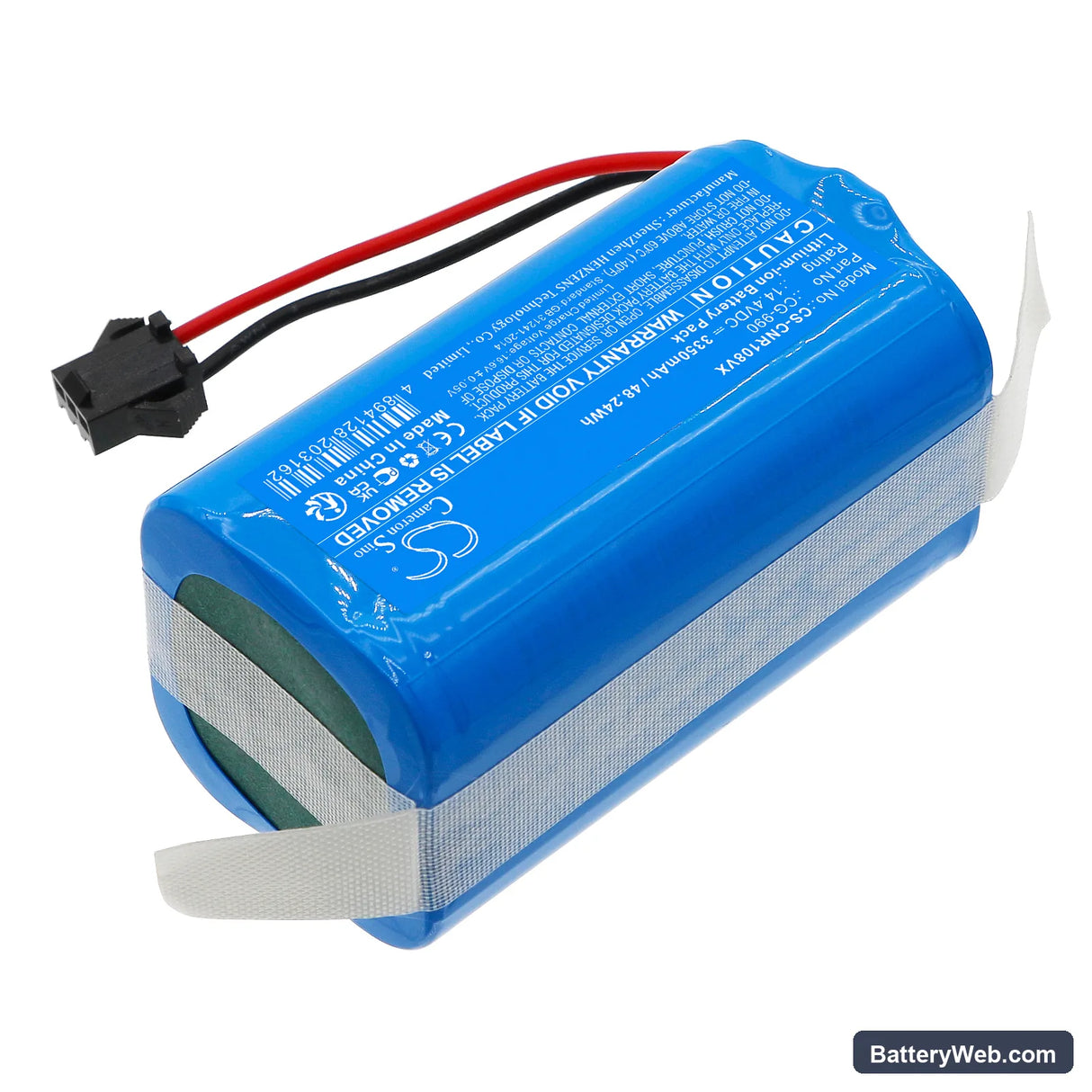

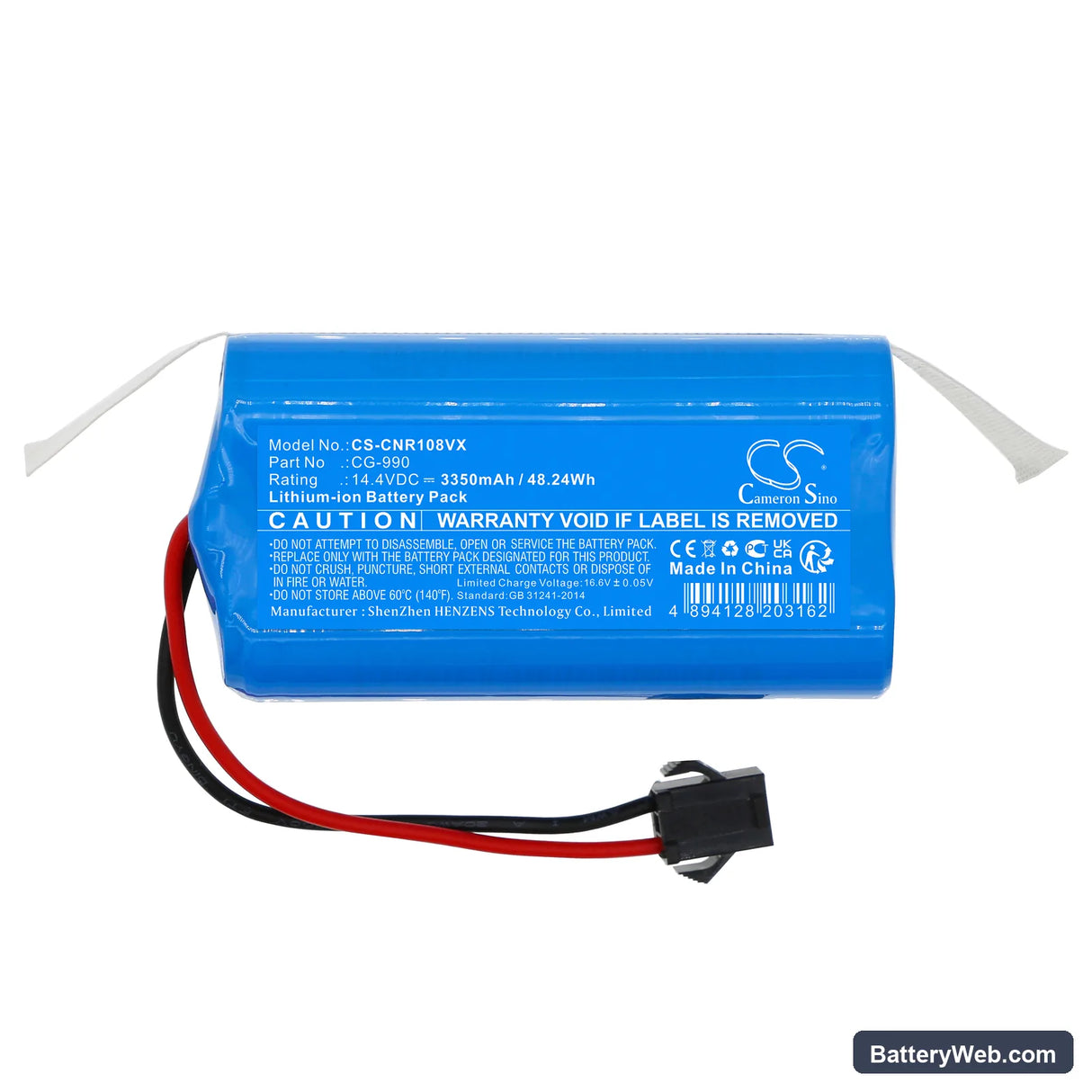

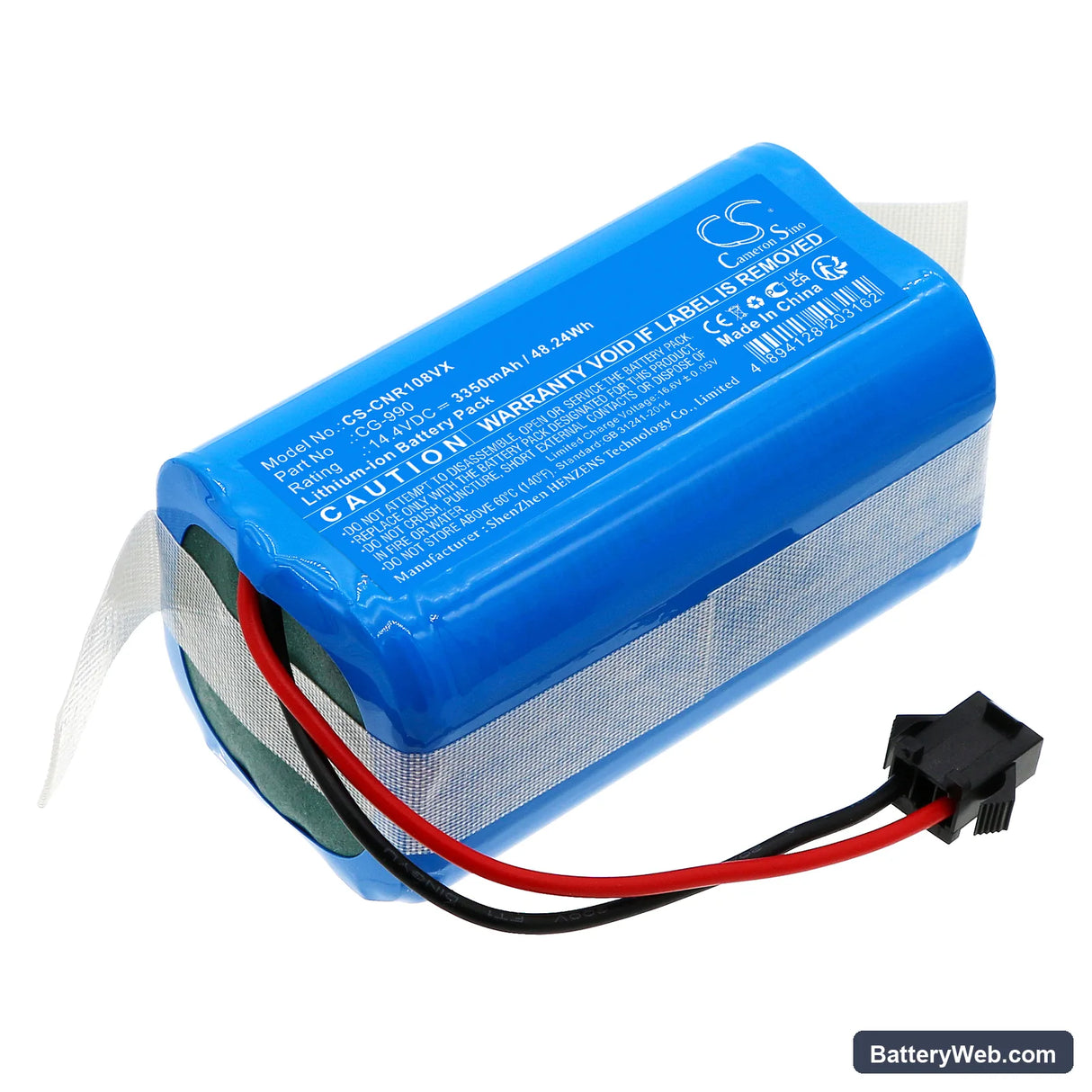

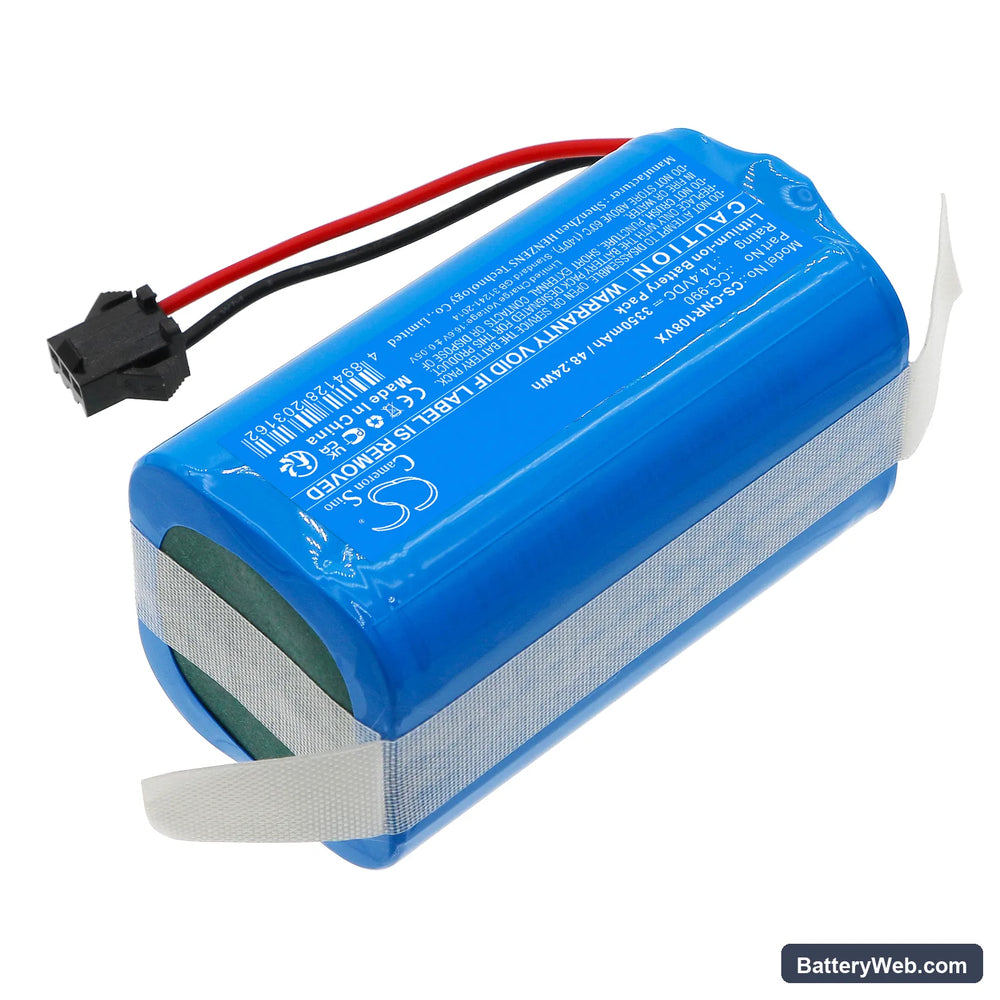

Infiniton Cleaner 1080 Replacement Battery 14.4V 3350mAh

Infiniton Cleaner 1080 / 1020 / 720 — 14.4V Li-ion Replacement Battery (CG-990)

This is a 14.4V 3350mAh (48.24Wh) lithium-ion battery for the Infiniton Cleaner 1080, Cleaner 1020, and Cleaner 720 robotic vacuums. It replaces OEM part CG-990 and fits the same battery bay with the same connector orientation. Use the capacity figure from this listing — 3350mAh — not third-party sources, which vary.

• Cleaner 1080, 1020, and 720 compatibility: All three models share the CG-990 battery format — same 14.4V rail, same physical envelope (69.70 × 37.60 × 37.10mm), and the same BMS handshake the charger expects. Swapping between models is not supported — keep this battery with the unit it was installed in.
• Bench tested on actual hardware: We cycled this cell through the Cleaner 1080's charge and discharge routine and confirmed the BMS communicates correctly with the dock charger — charge termination triggers at the right threshold and protection circuits respond normally to motor-start draw spikes.
• Dock charging discipline for robotic vacuums: Do not leave the robot sitting on the dock between scheduled cleans indefinitely. Continuous trickle charging degrades lithium cell capacity faster than normal cycling. Charge the battery to full, then remove from the dock if the unit will sit unused for more than a few days.

Cordless vacuum losing suction before the battery indicator reaches low

This happens when the motor draws more current than rated — usually because the filter is partially blocked. A restricted filter forces the motor to work harder, which pulls higher current and triggers the BMS to reduce output voltage before the fuel gauge registers low. The robot then underperforms at what appears to be a full charge. Clean or replace the filter first, then retest suction — if it recovers, the battery is not the issue.

Motor cutting out mid-clean and then recovering after a short pause

This is a BMS overcurrent trip, not a dead battery. The protection circuit cuts power when sustained current draw exceeds its threshold — most often caused by a blocked brush roll or clogged filter creating backpressure on the motor. The BMS resets itself after a short cooldown, which is why the robot resumes. Clear the brush roll, clean the filter, and confirm the robot runs on a hard floor without interruption before testing on carpet again. If the cut-out persists on a clear floor, check that the battery voltage after a full charge sits at or above 16.4V.
