Panasonic MC-WMD85 Replacement Battery 14.4V 2000mAh

Panasonic MC-WMD85 — 14.4V Ni-MH Replacement Battery (AVV97V-QXZ)

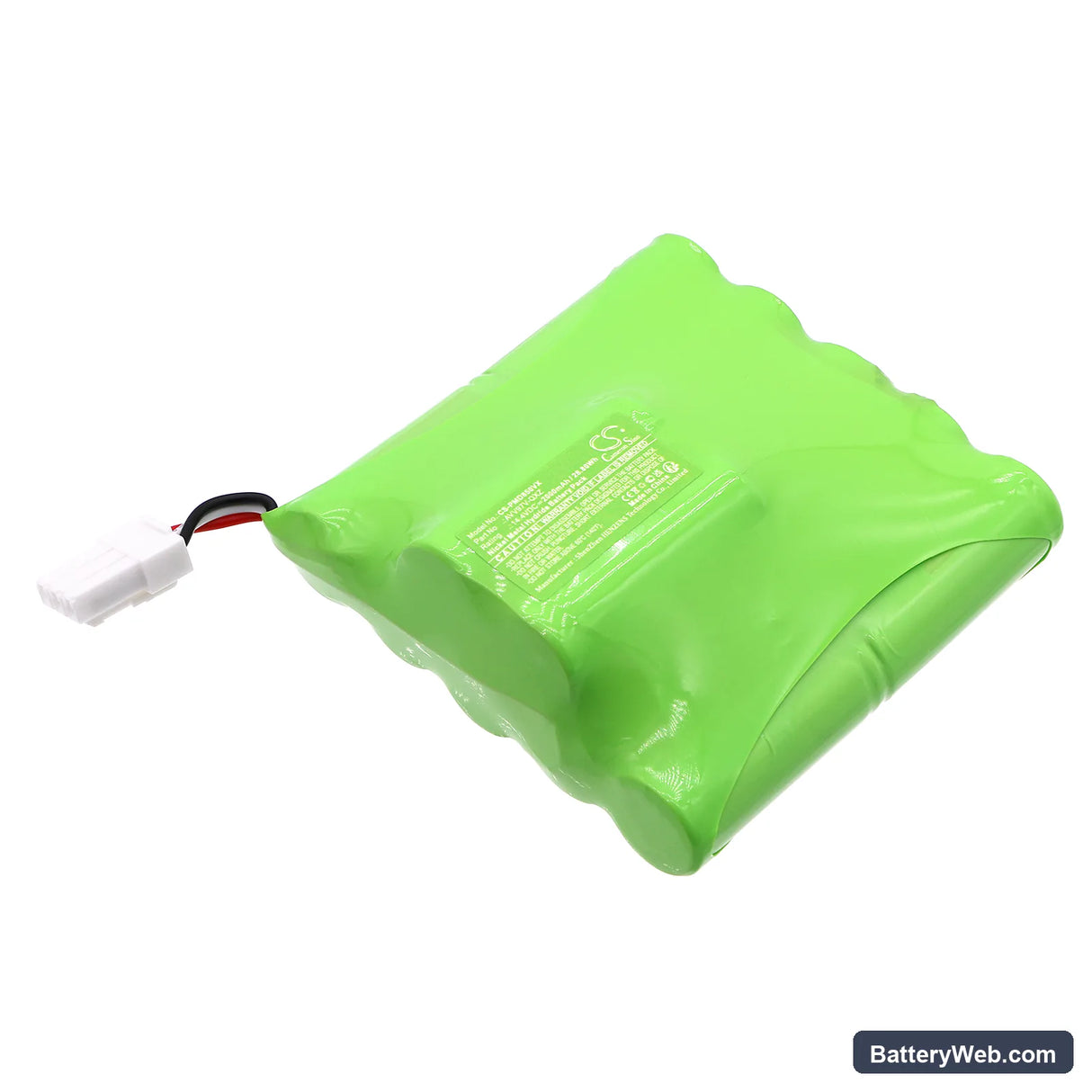

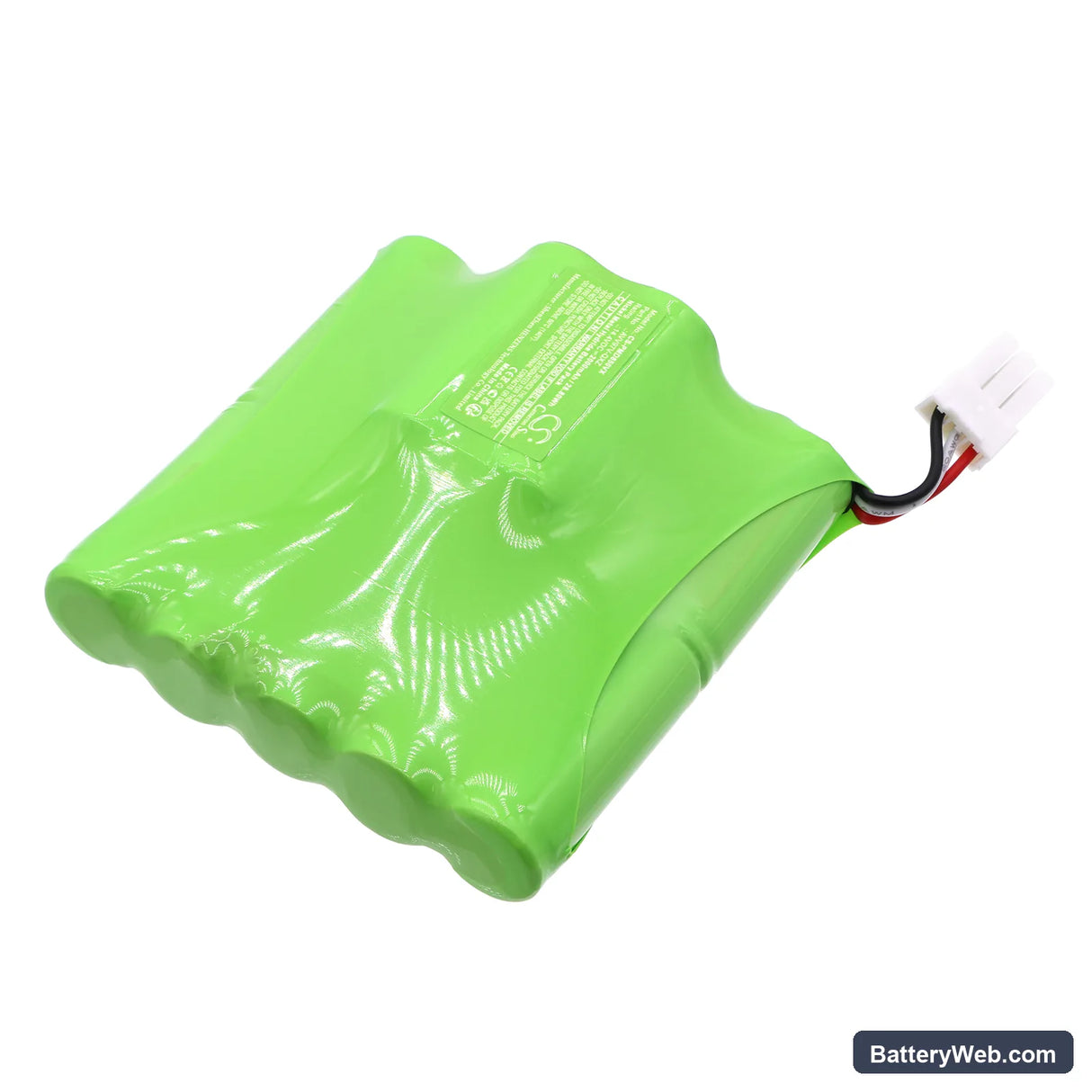

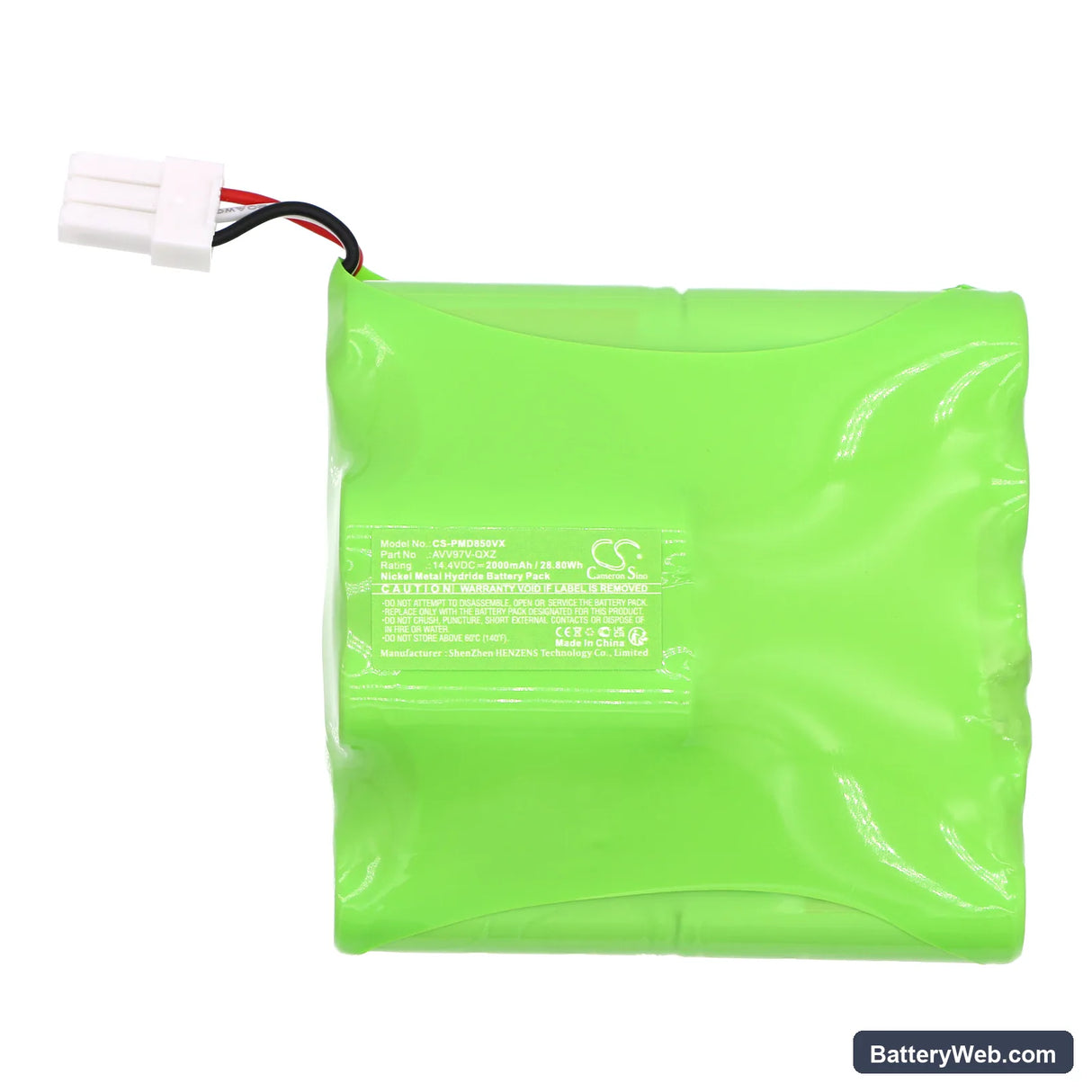

This is a 14.4V, 2000mAh Ni-MH replacement battery for the Panasonic MC-WMD85 cordless vacuum cleaner. It replaces OEM part AVV97V-QXZ and fits directly into the MC-WMD85 battery bay. Order this when the original cell no longer holds charge or suction drops well before the indicator reaches low.

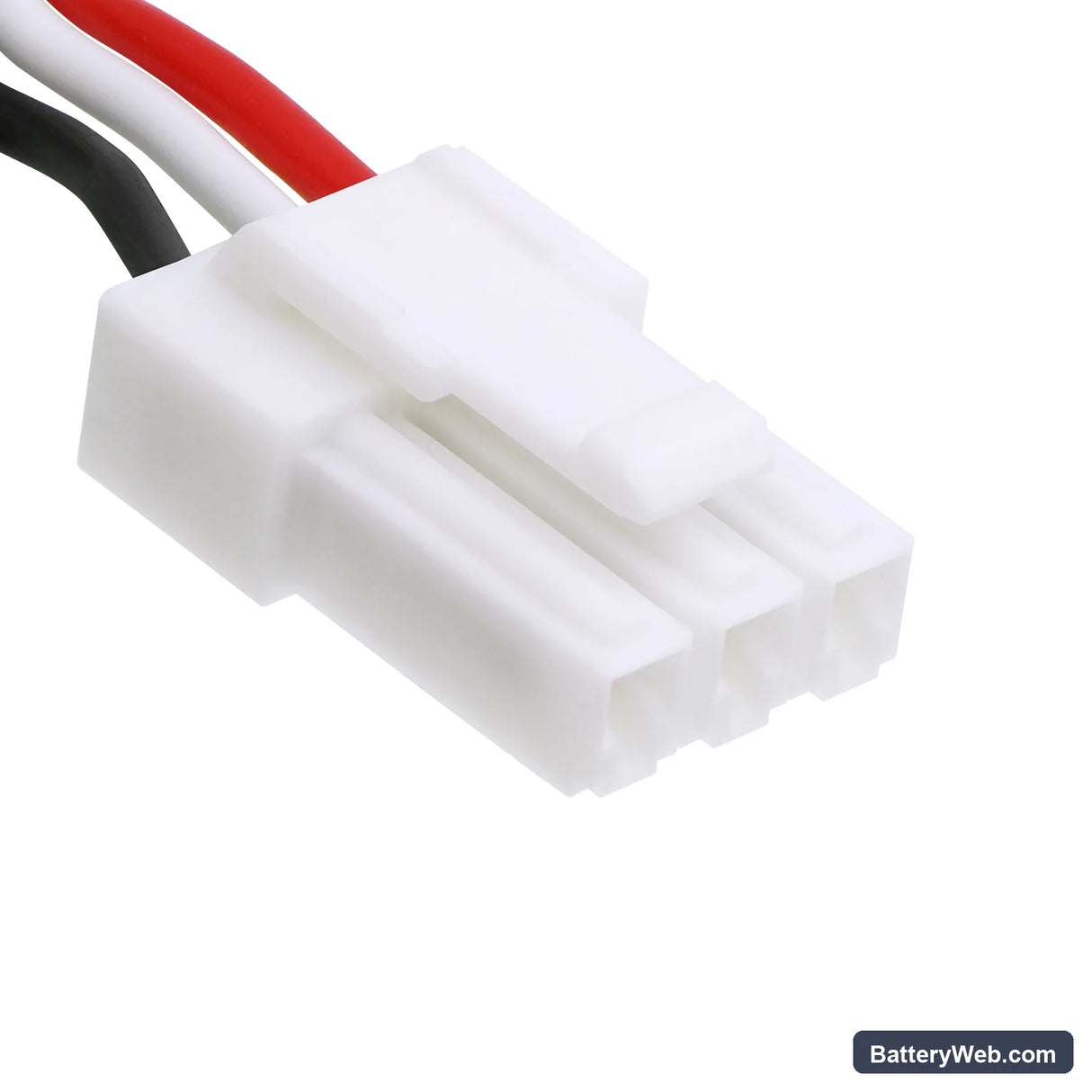

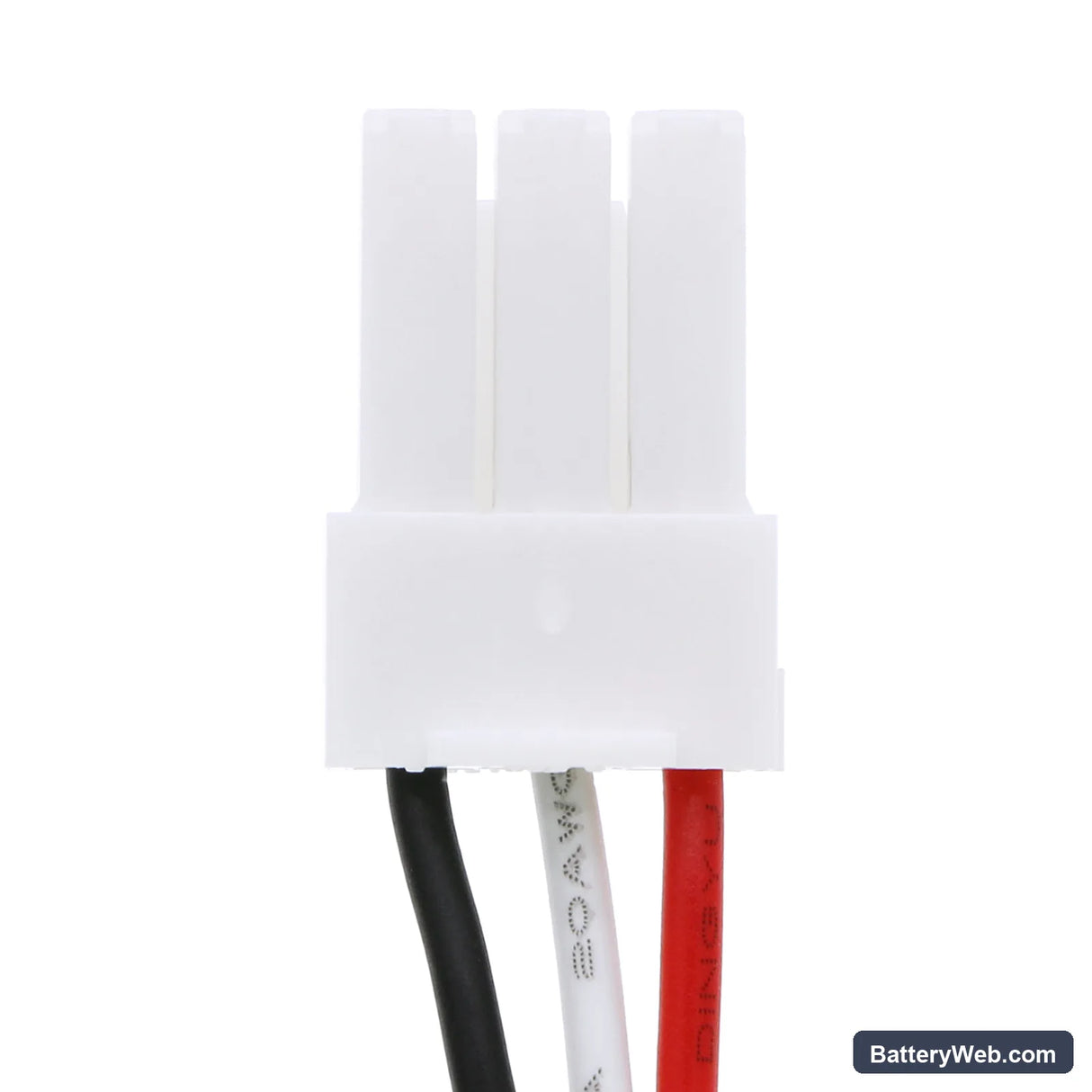

• MC-WMD85 fit: The MC-WMD85 uses a 14.4V Ni-MH pack with a specific connector orientation and BMS communication line. This cell matches that voltage rail and connector — the vacuum's charge circuitry recognises it and initiates the standard charge cycle without fault codes.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the MC-WMD85 platform. The BMS held cutoff at the correct low-cell threshold and the charge indicator responded normally at each stage — no premature shutoffs during the test runs.
• Dock charging habit for Ni-MH cells: Ni-MH chemistry is particularly sensitive to trickle charge damage. Do not leave the MC-WMD85 on the charging dock permanently. Charge it fully, then remove it from the dock. Continuous dock contact accelerates capacity fade faster than regular discharge-and-charge cycling does.

Suction dropping before the battery indicator reaches low on the MC-WMD85

Ni-MH cells show voltage sag under load before overall capacity is exhausted. On the MC-WMD85, a partially blocked filter forces the motor to draw above its rated current — this pulls cell voltage down early and triggers the BMS to reduce output before the indicator registers low. The vacuum feels like a weak battery when the actual cause is airflow restriction. Clean the filter first and retest; if suction recovers and holds, the filter was the problem, not the cell.

Motor cuts out mid-clean then recovers after a few seconds

This is a BMS overcurrent trip, not a faulty battery. Sustained restricted suction — blocked brush roll, packed filter, or sealed nozzle — forces motor current above the BMS threshold and the pack disconnects to protect the cell. After a few seconds the BMS resets and power returns. Clear the blockage and check that the filter is seated correctly. If the cutout stops after clearing the restriction, the pack and BMS are functioning as intended.
