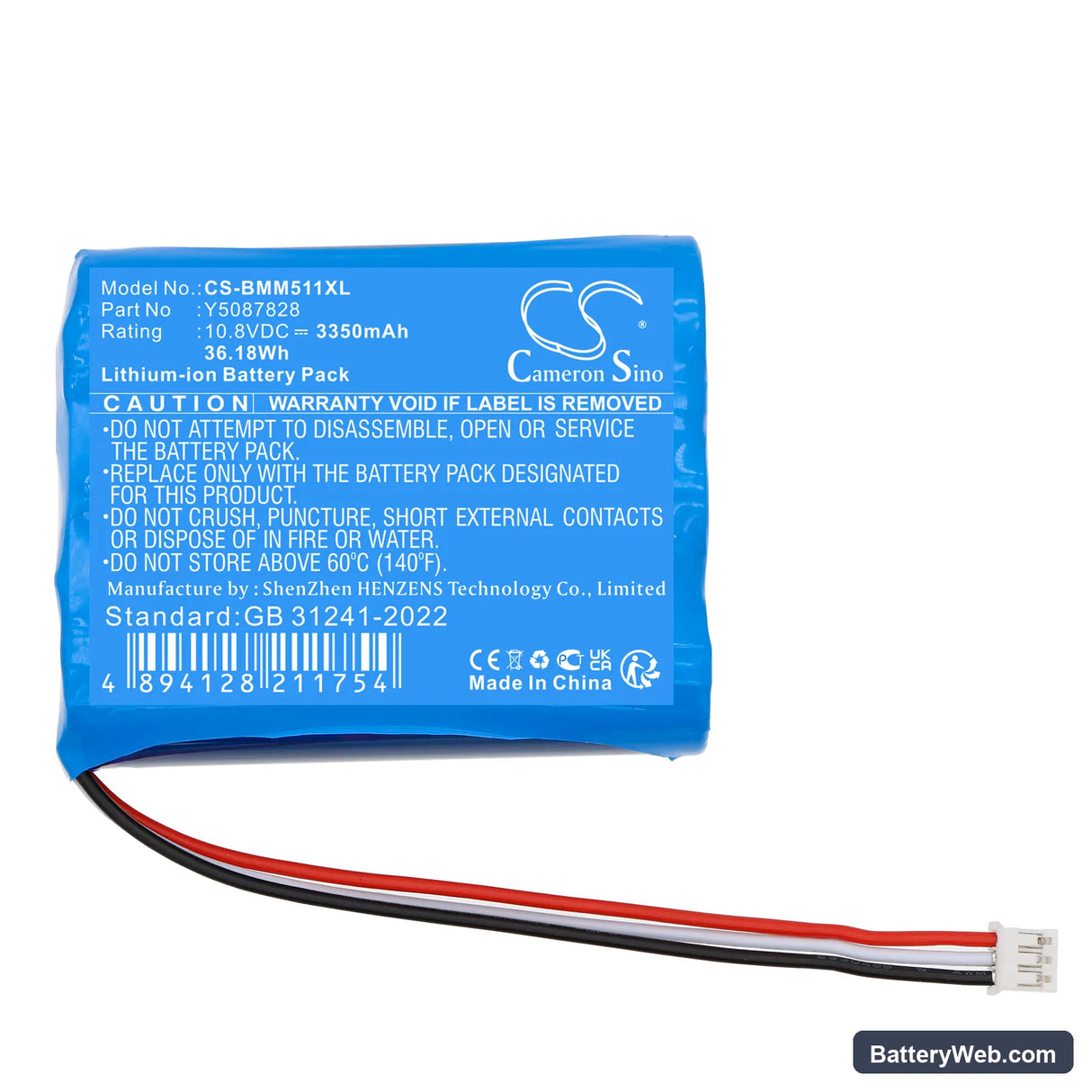

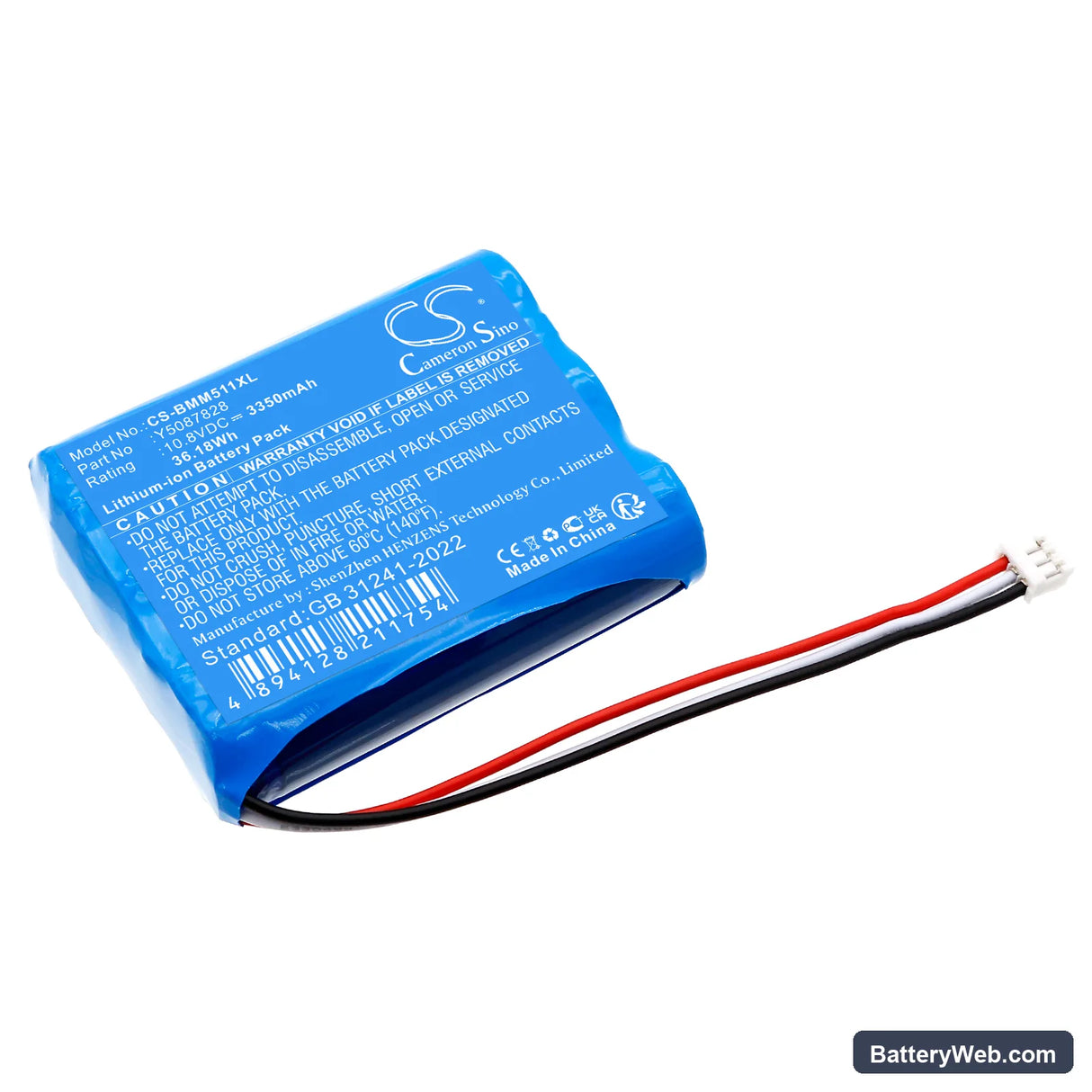

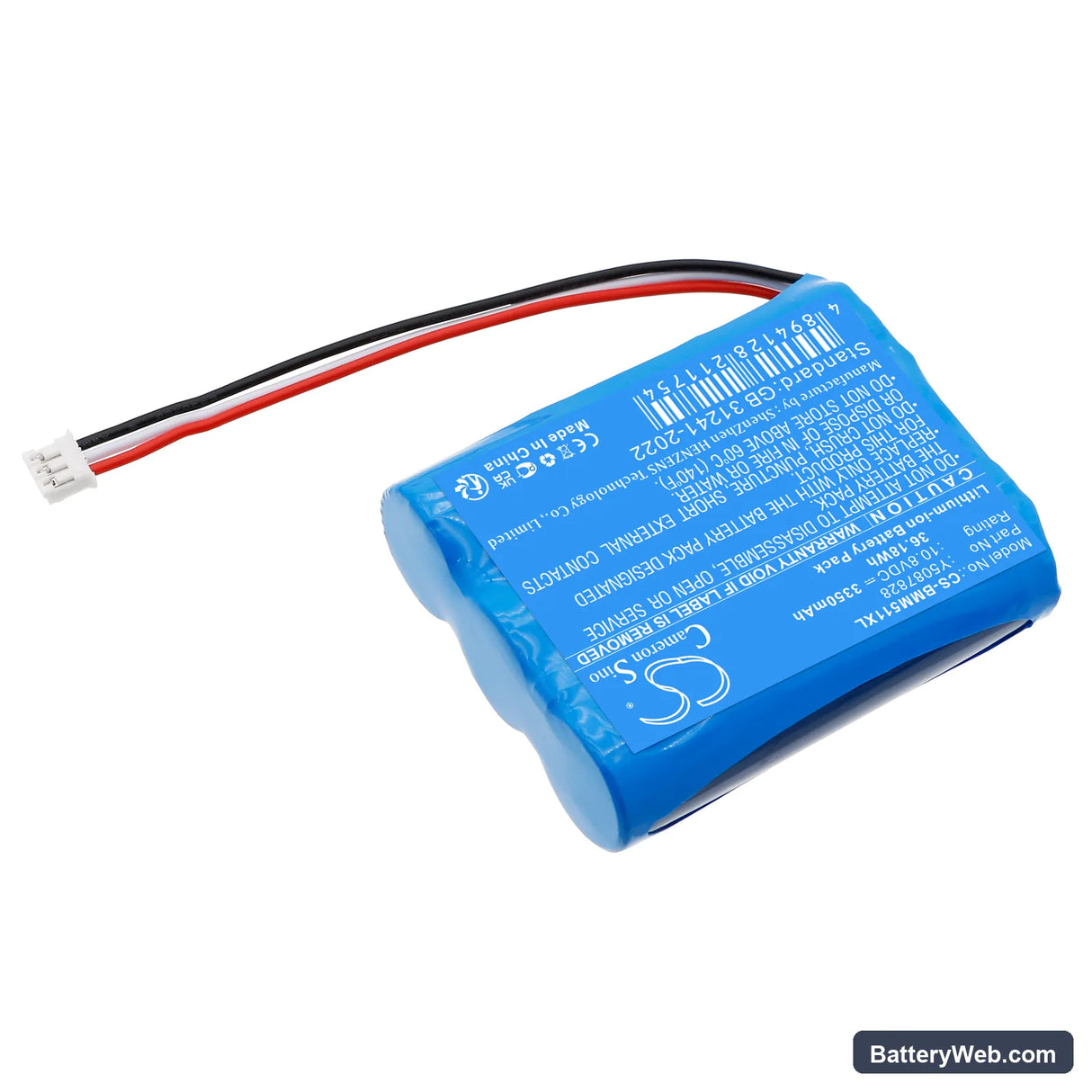

Brady M511 Label Printer Replacement Battery 10.8V 3350mAh

Brady M511 — 10.8V Li-ion Replacement Battery (Y5087828)

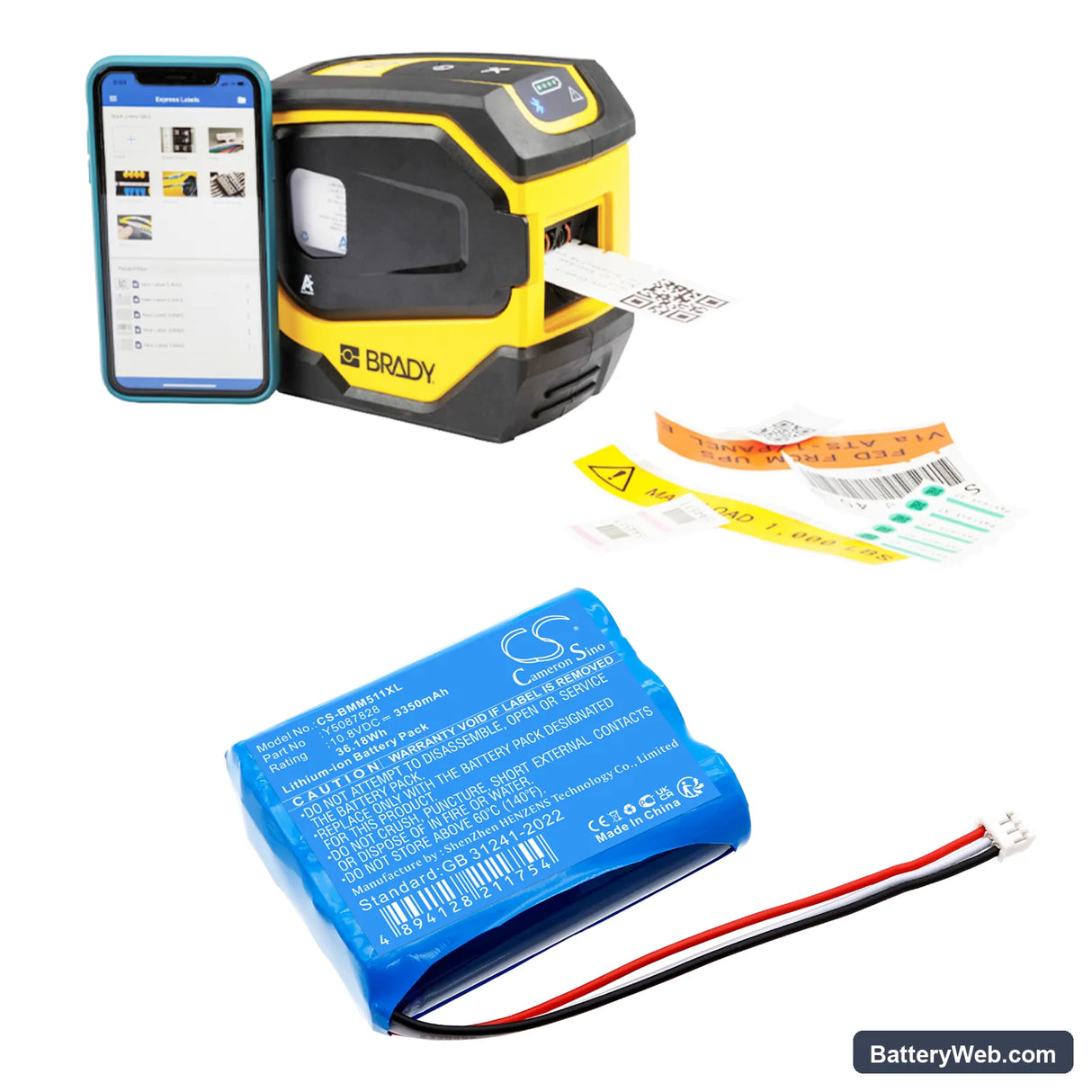

This 10.8V, 3350mAh Li-ion battery replaces the original pack in the Brady M511 portable label printer. It fits the M511 handheld thermal printer used in industrial and office labeling workflows. Swap it in when the factory battery no longer holds a usable charge between print jobs.

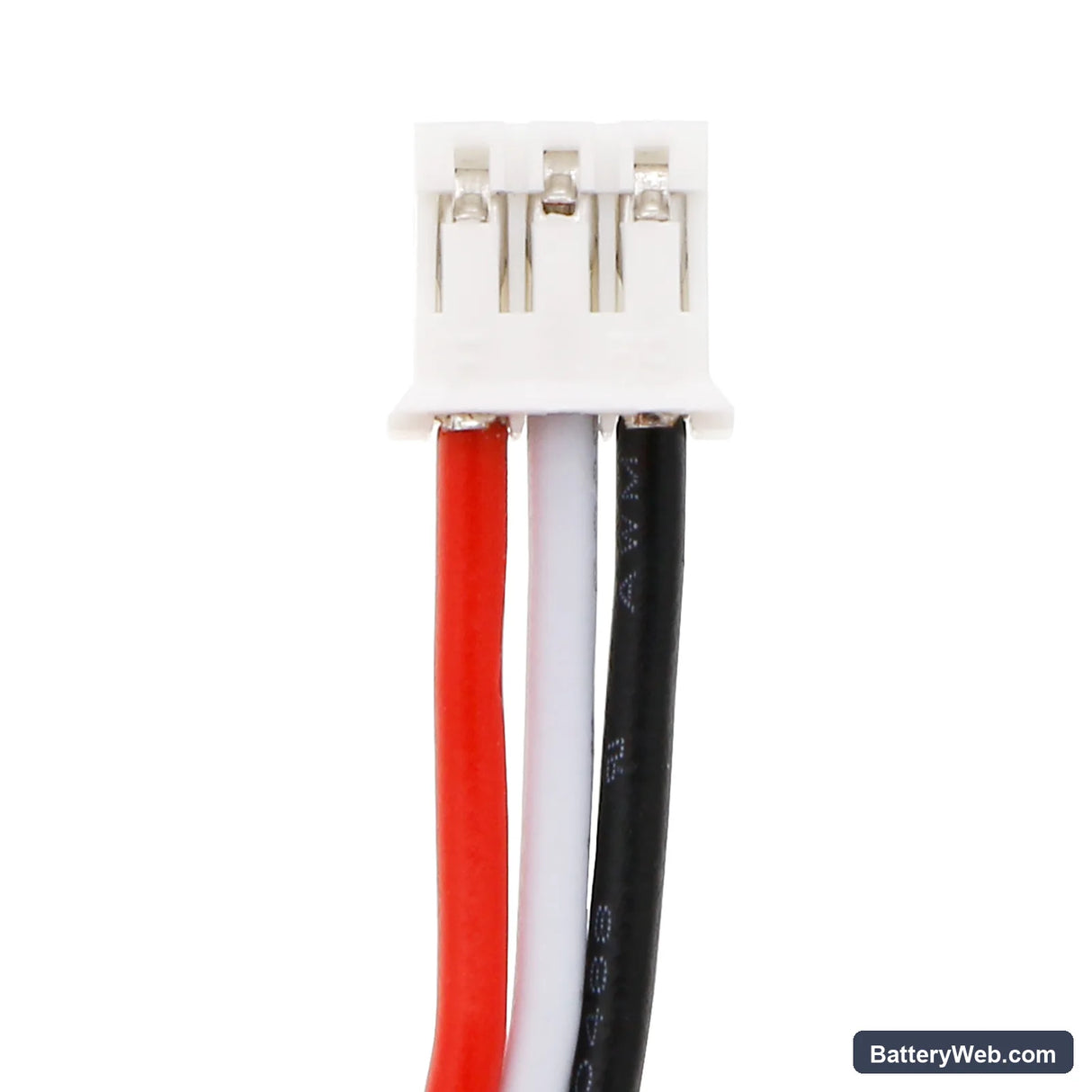

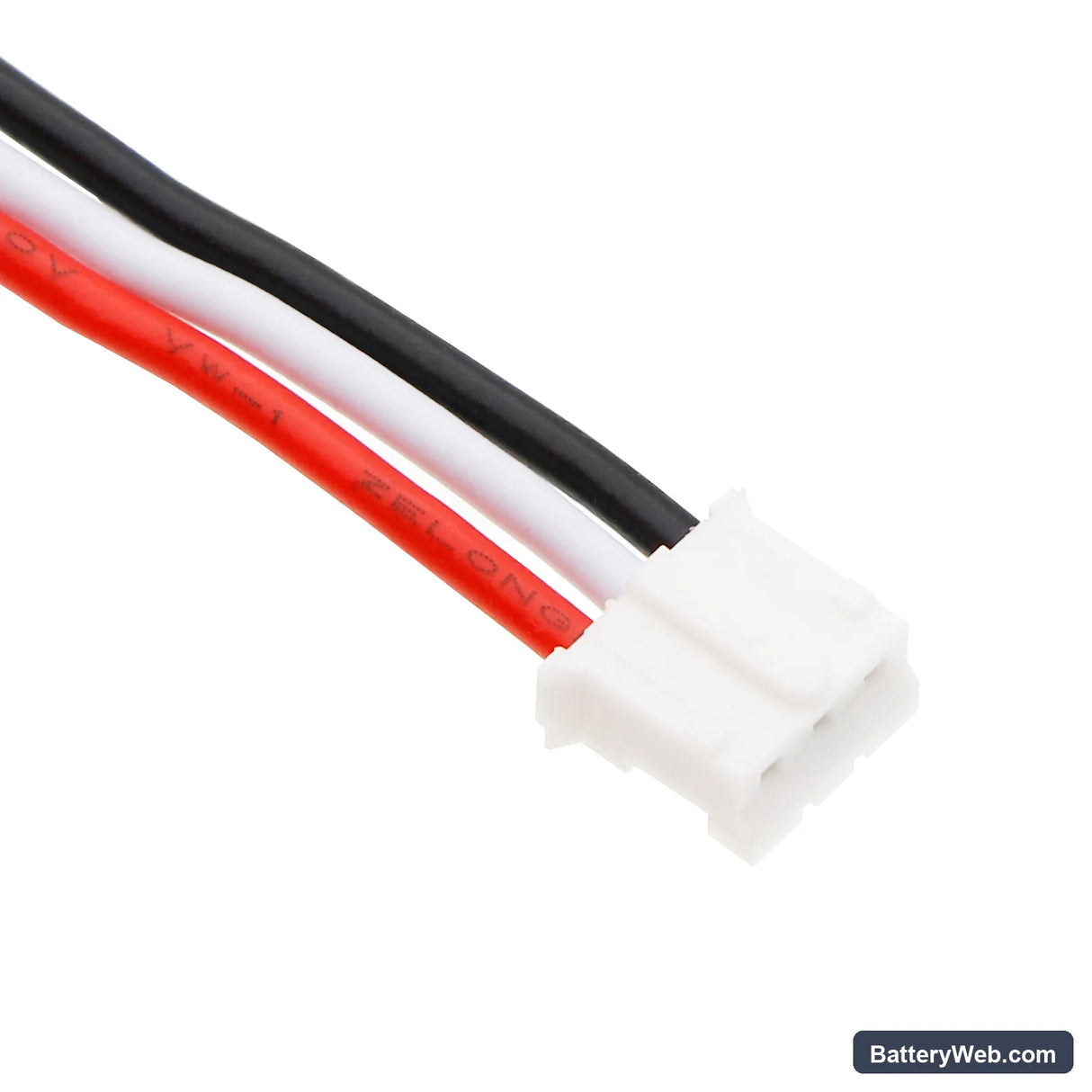

• M511 platform fit: The M511 uses a proprietary pack form factor with a specific connector pinout and BMS handshake. This replacement matches that voltage rail and connector, so the printer's firmware recognises the cell and does not block operation.
• Bench tested on actual hardware: We ran this battery through charge cycles on the M511 and confirmed the BMS communicates correctly with the printer controller — no low-battery lockout triggered at a full state of charge, and the thermal head received stable voltage throughout the test cycle.
• First-use print sequence: After installing, charge the battery fully, then print five test labels before deploying. The M511's paper feed motor draws a calibration current profile on the first several cycles — running test prints lets the BMS register the correct load signature for the new cell.

Why the M511 thermal head produces faint print at low battery

The M511's thermal print head requires a stable voltage supply to maintain consistent head temperature across the full label width. When battery voltage sags — typically below 9.5V under load — the head temperature drops unevenly, and print density falls off at the edges or mid-label. This is not a head fault or paper fault. Charging the battery to full and re-printing will restore normal output. If faint print persists on a fully charged replacement, check the print darkness setting in the Brady Express Labels app before assuming a hardware fault.

M511 disconnecting from Bluetooth mid-job

The M511's Bluetooth radio shares power draw with the thermal head and feed motor. At lower battery states, the printer's power management trims radio output to protect motor drive current, and the Bluetooth link drops. Users see this as the Brady Express Labels app losing connection partway through a print queue. The fix is straightforward: charge to full before a large batch job. If disconnects occur on a freshly charged battery, confirm the replacement cell voltage reads above 10.5V at rest using a multimeter before further troubleshooting.
