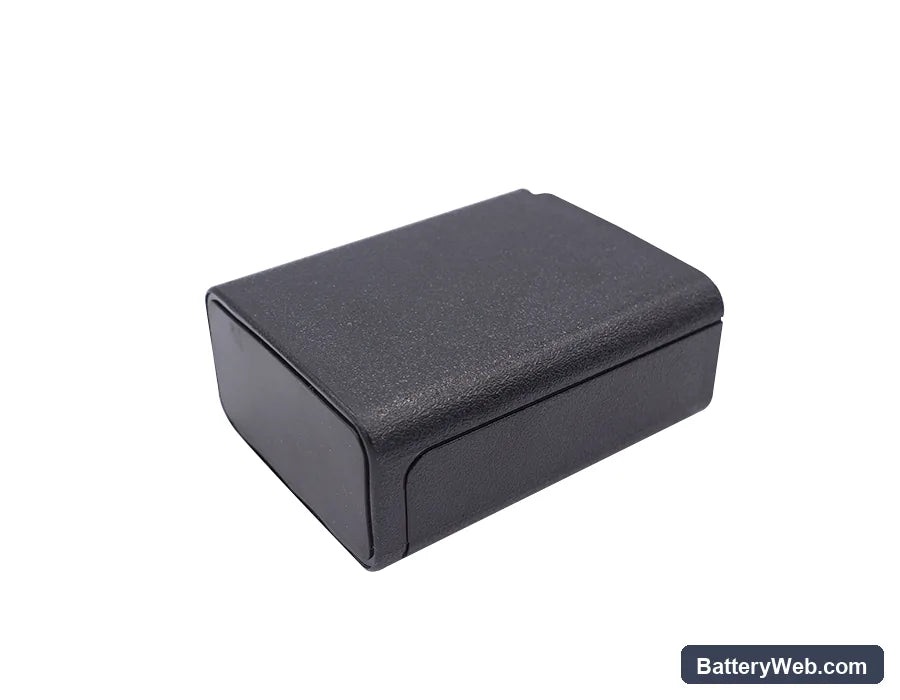

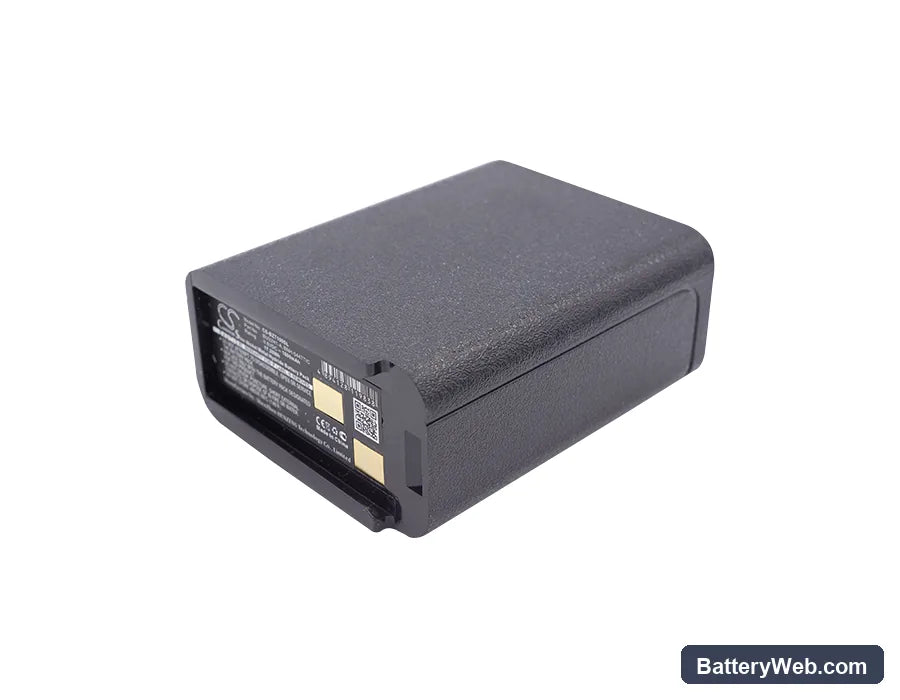

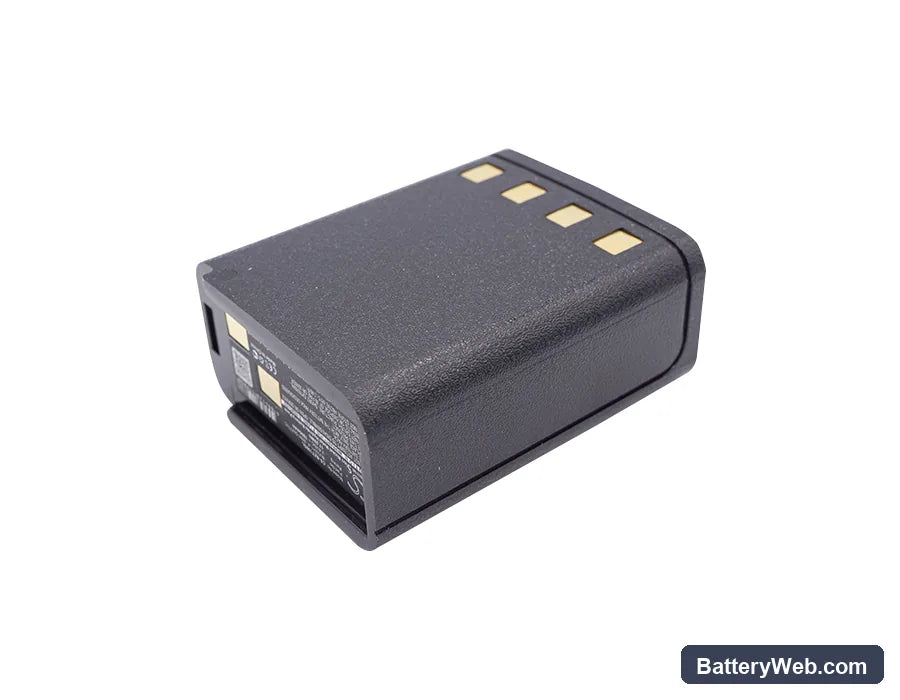

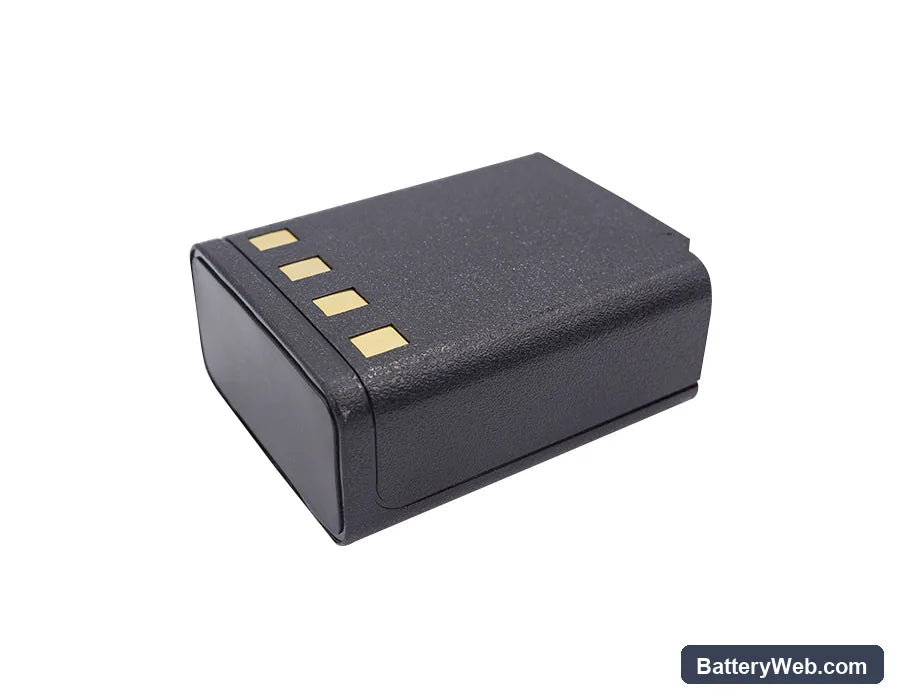

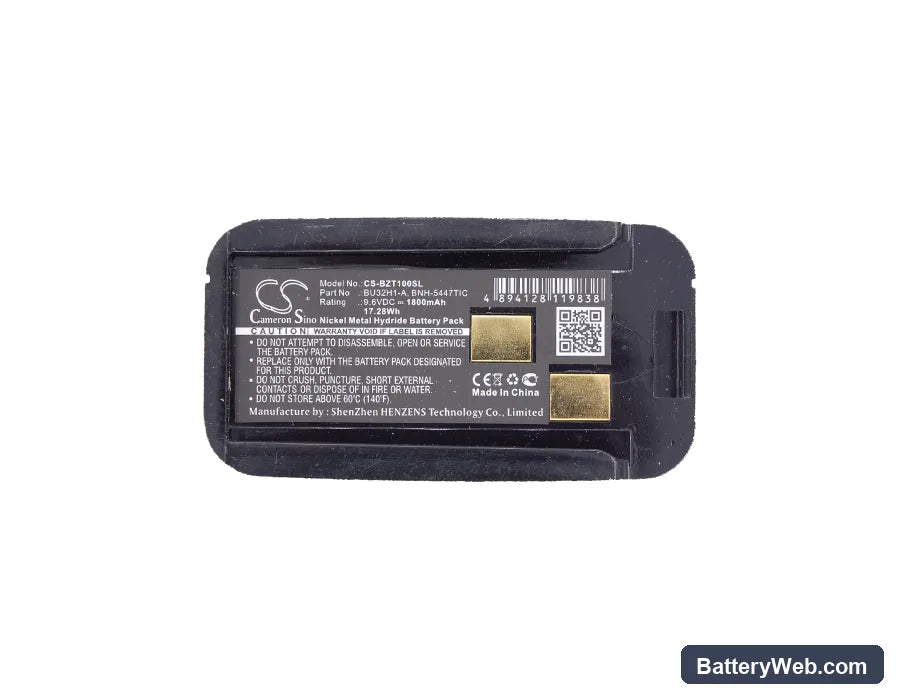

Bullard BST Thermal Camera Compatible Battery 9.6V 1800mAh

Bullard BST / BSX / T1 / TI Series — 9.6V Ni-MH Replacement Battery (BU32H1-A)

This is a 9.6V 1800mAh Ni-MH replacement battery for the Bullard BST, BSX, T1, and TI thermal imaging cameras. It replaces OEM part numbers BU32H1-A and BNH-5447TIC. These cameras are used in firefighting and emergency response, where a failed battery is not a minor inconvenience.

• BST, BSX, T1, and TI compatibility: These models share the same 9.6V battery platform, connector layout, and BMS handshake protocol. One cell pack fits the full group without modification.
• Bench tested on actual hardware: We ran this pack under a combined load simulating the display backlight and thermal detector heating element. The BMS held voltage above the cutoff threshold without nuisance tripping under sustained draw.
• Post-storage cycling before field use: Ni-MH cells that have been sitting in storage lose capacity through self-discharge. Run two full charge-discharge cycles before deploying this battery in the field — this restores the cells to their rated 1800mAh capacity and stabilises the BMS voltage reference.

Thermal accuracy degrading before the battery indicator shows low

The thermal detector in these cameras is voltage-sensitive. As the pack approaches the lower end of its discharge curve, detector heating element performance drops slightly before the battery gauge registers a warning. This causes subtle accuracy drift — temperature readings shift by a small but meaningful margin. The battery gauge in Bullard cameras is calibrated to the display and processor load, not the detector circuit specifically. If readings seem inconsistent late in a charge cycle, swap the pack rather than trusting the indicator.

Camera shuts down mid-inspection despite showing partial charge

The combined draw of the display, processor, and thermal detector heating element creates current spikes that can trip BMS protection on a cell pack that is partially discharged. The pack voltage sags under that combined load even when the gauge shows 50% or more. This is more common with aged cells that have high internal resistance — a new pack with fresh cells holds voltage more firmly during those spikes. If unexpected shutdowns persist with a new battery, check that the pack is fully charged to 9.6V before use.
