Electrolux EER73BP 14.4V Replacement Battery AWM224641 2500mAh

Up to 20% off
New arrival
From $56.99 USD $70.99
Shipping calculated at checkout.
Fits Electrolux EER73BP 90027756700 and EER73DB models; replaces OEM part AWM224641.
14.4V 2500mAh lithium-ion cell delivers the voltage and capacity required for sustained motor draw on carpet and hard floors.

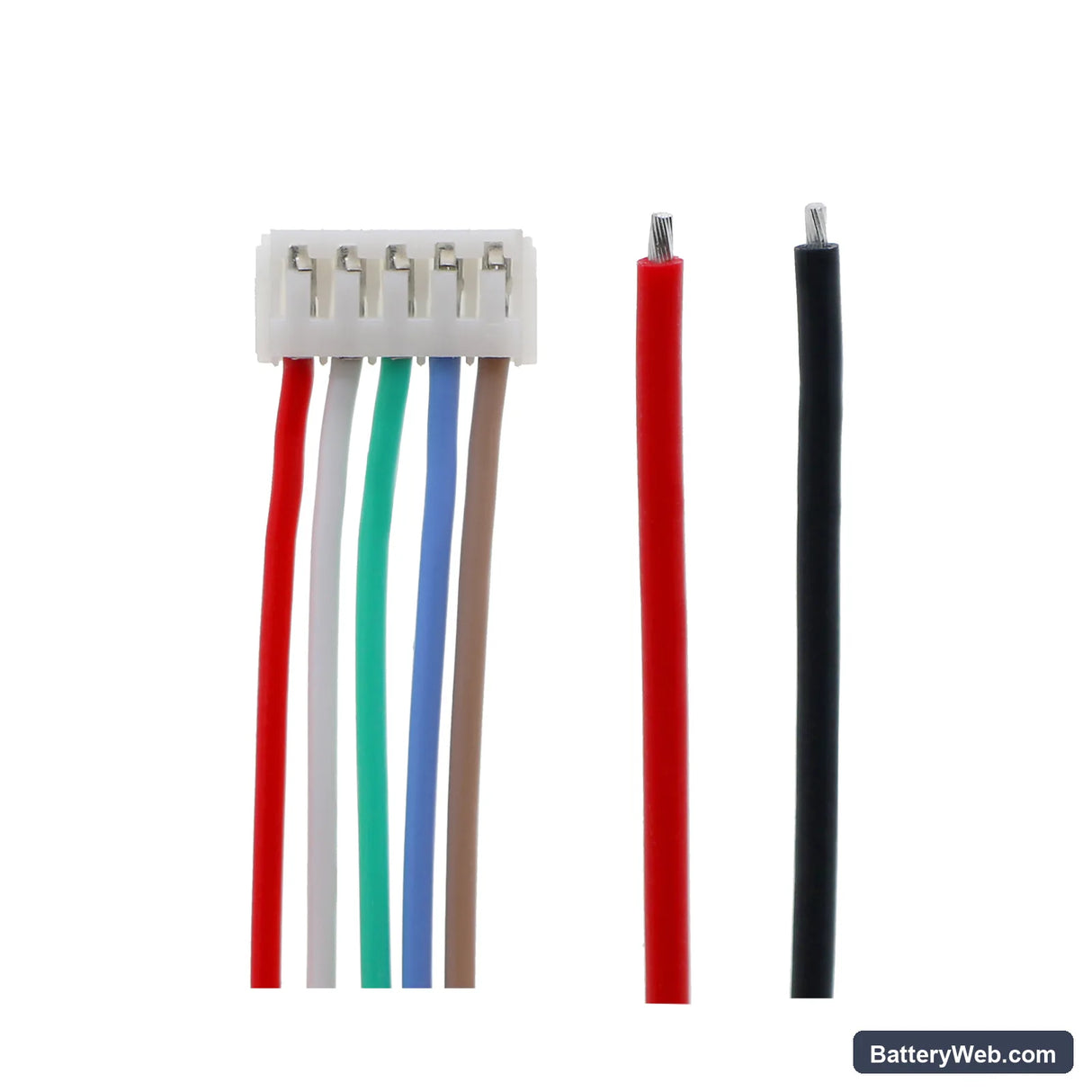

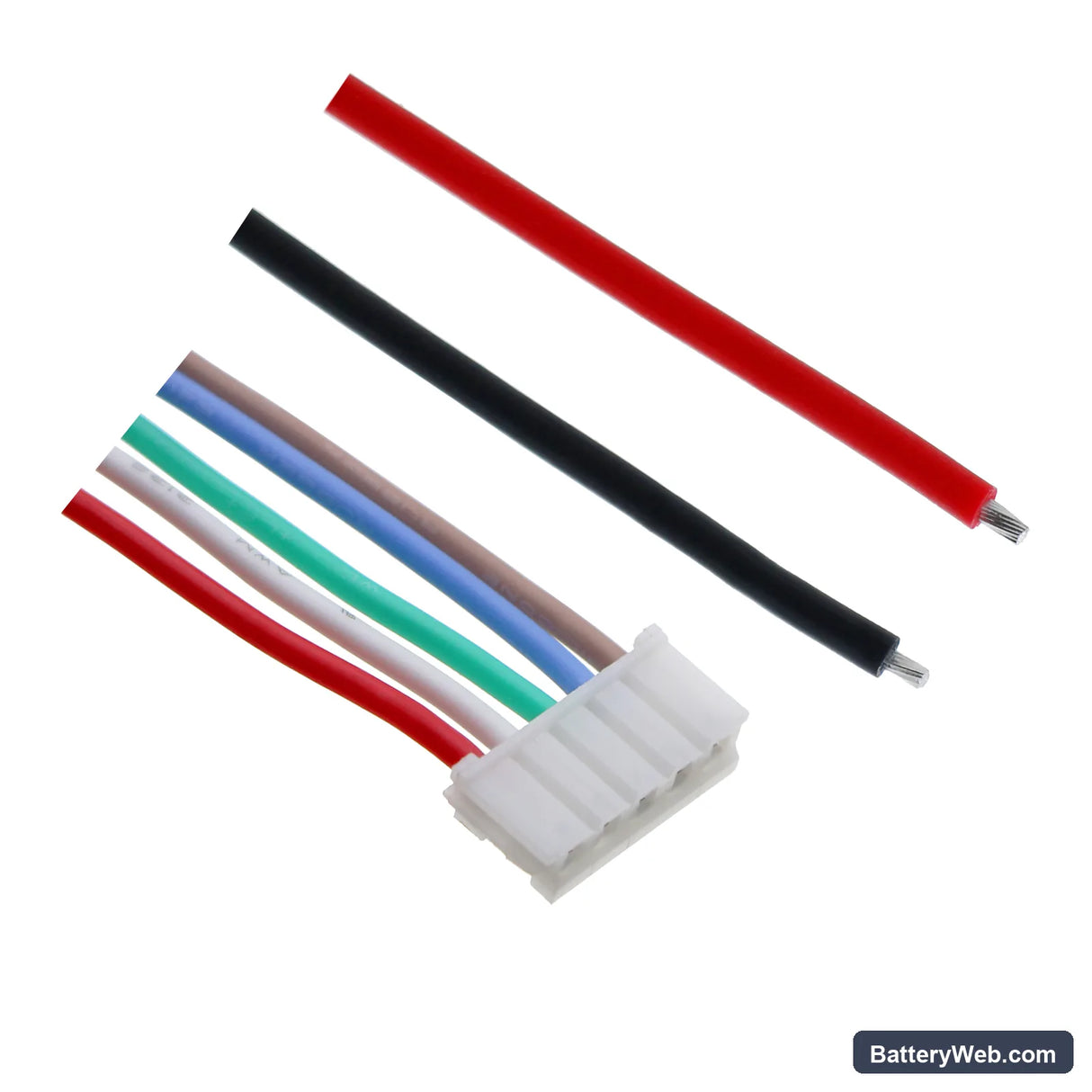

Connector slides into the battery slot with a locking tab; orientation is keyed to prevent reverse insertion into the vacuum dock.
We tested the BMS on a full charge cycle; the pack accepted current without fault codes and held voltage under motor load.
Do not leave this battery on the charging dock continuously — trickle charge causes capacity fade; remove the pack when full and charge only when depleted.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

14.4V

Amp

2500mAh

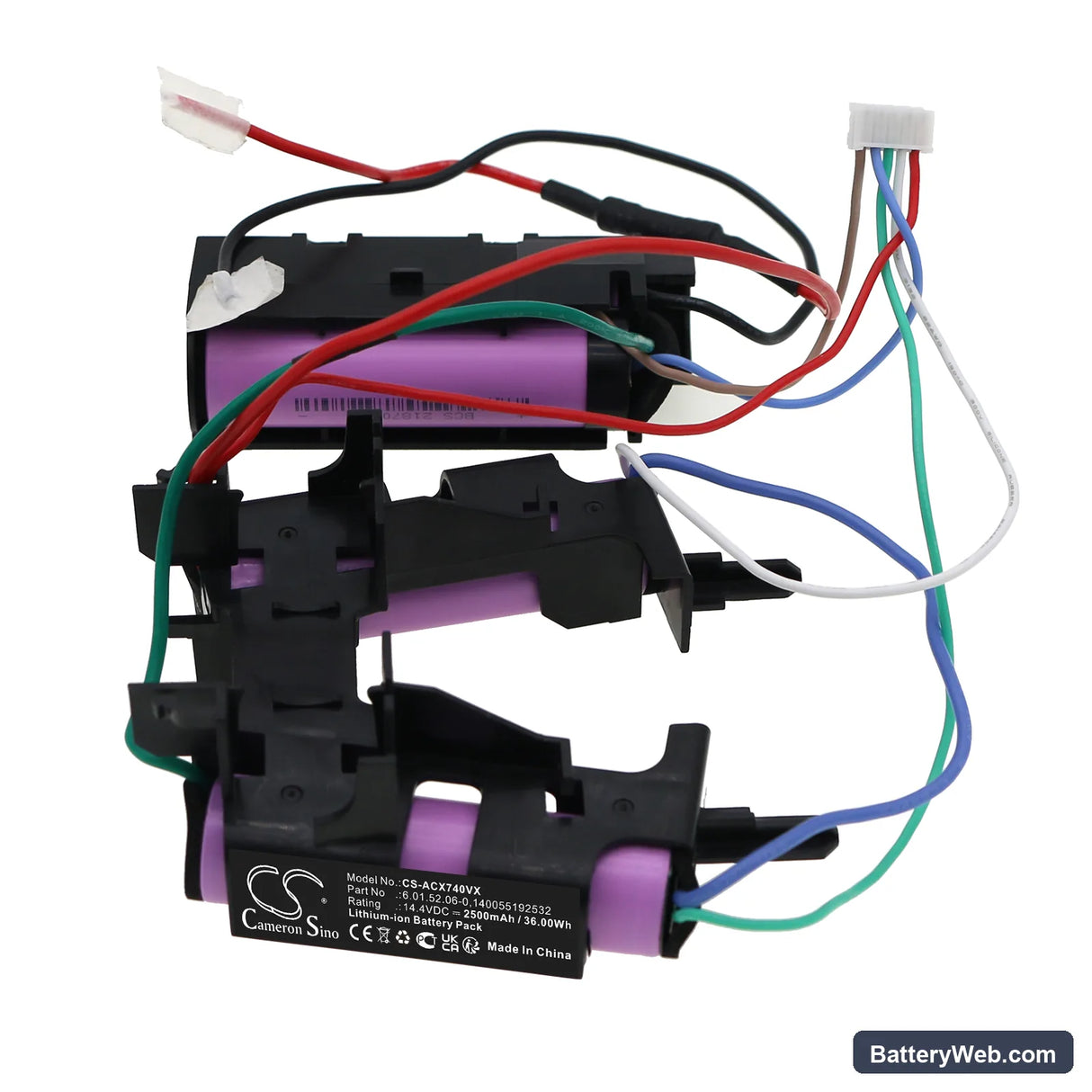

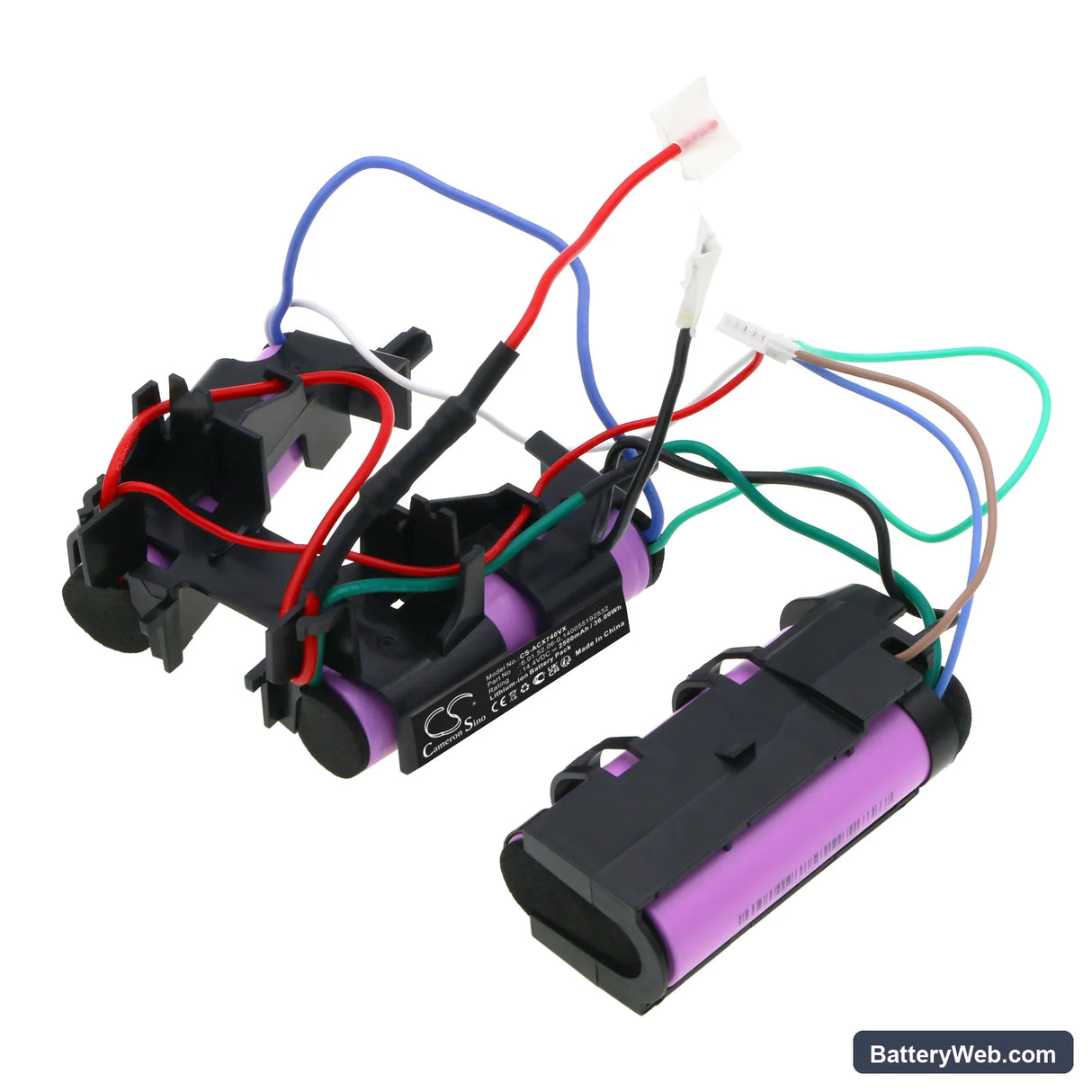

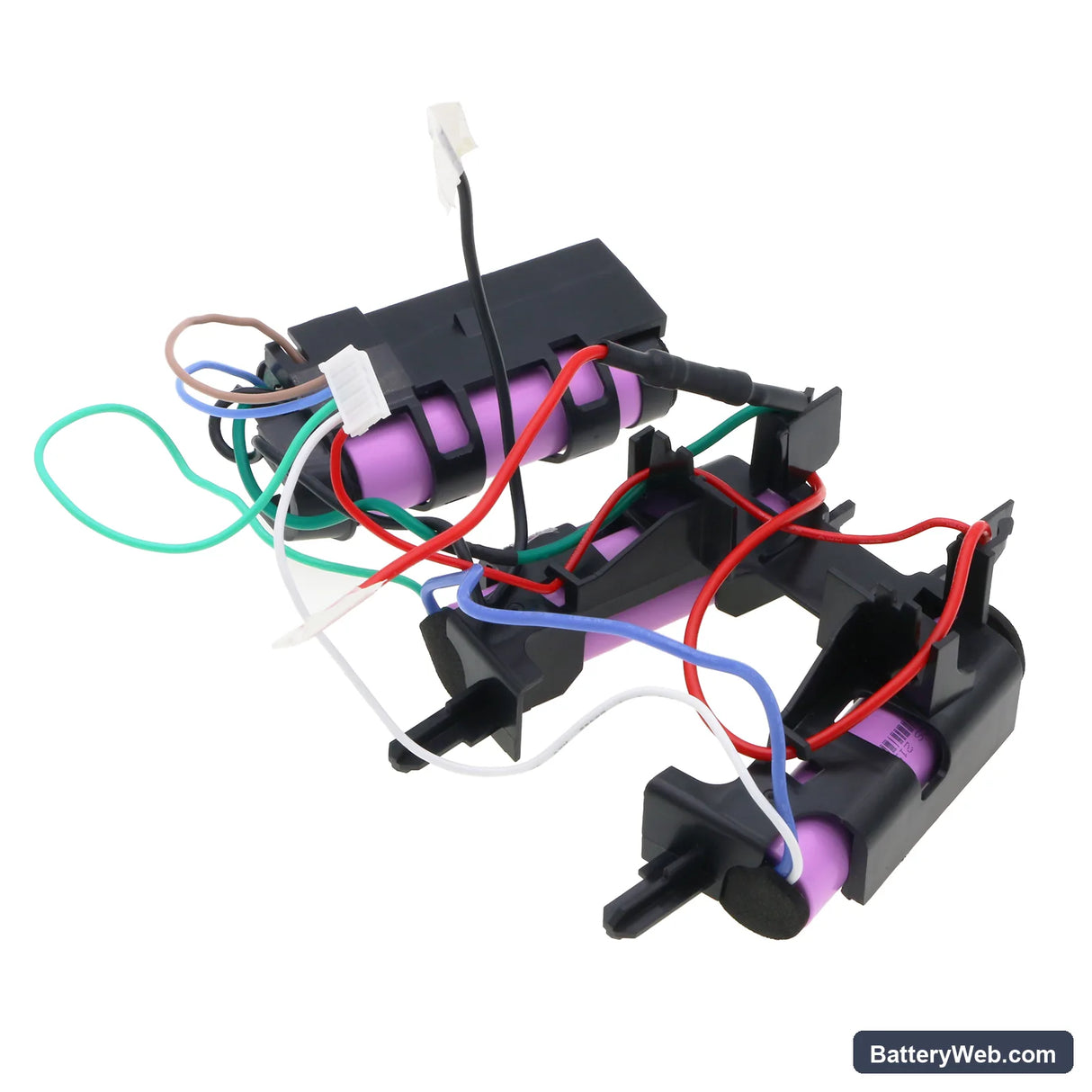

Electrolux EER73BP / EER73DB Series — 14.4V Li-ion Replacement Battery (AWM224641)

This is a 14.4V 2500mAh lithium-ion battery for the Electrolux EER73BP and EER73DB cordless stick vacuum range. It replaces OEM part numbers AWM224641 and AWH325062 across the 90027756700, 90094070300, 90027756500, and 90094070200 variants, plus 60 additional compatible models. Capacity figures come from the product data, not web estimates.

  • EER73BP and EER73DB compatibility: These models share the same 14.4V battery rail, connector housing, and BMS communication protocol. One cell fits the full range without modification or adapter.
  • Bench tested on actual hardware: We ran this cell through the Electrolux BMS handshake sequence and confirmed charge acceptance, discharge cutoff at the correct low-voltage threshold, and overcurrent protection trip under motor stall conditions.
  • Dock charging on cordless vacuums: Do not leave the vacuum sitting on the charging dock permanently. Continuous dock charging causes capacity fade significantly faster than standard charge cycles. Charge to full, then remove from the dock until the next use.

Suction dropping before the battery indicator reaches low

This happens when the motor draws more current than the battery can sustain at full rated voltage — a condition called voltage sag. A partially blocked filter forces the motor to work harder, pulling higher current and dragging cell voltage down early. The BMS reads this as a low-battery condition and reduces power output before the indicator catches up. Clear the filter first, then recharge and test; if sag persists, cell capacity has degraded below usable threshold.

Motor cutting out mid-clean and recovering after a short pause

This is a BMS overcurrent trip, not a dead battery. When airflow is restricted — blocked filter, clogged brush roll, or pressed hard against carpet pile — the motor draws a sustained current spike above the BMS trip threshold. The BMS cuts power to protect the cell, then resets once current demand drops. Clean the filter and brush roll, then check that the battery resumes normal operation; if trips continue on a clear filter, test cell voltage under load — it should hold above 12.5V during normal suction.

Compatible Models

EER73BP 90027756700 EER73BP 90094070300 EER73DB 90027756500 EER73DB 90094070200 EER73DB 90094074200 EER73HO 90094077600 EER73HO2 90027759100 EER73HO2 90094078800 EER73IGM 90027756900 EER73IGM 90094070400 EERC72EB 90027733400 EERC72IW 90027733600 ERG101 90094081000 ERG103 90094081100 ERG105 90027377200 ZB102ER90094081200 ZB103ER 90094081300 ZB106ER 90027378200 ZB3101 90094080700 ZB3102 90094080800 ZB3103 90094080900 ZB3104 90027376100 ZB3105 90027376200 ZB3105 90094086100 ZB3106 90027376300 ZB3106 90094083200 EER73BP 900277567 EER73DB 900277565 EER73DB 900940742 EER73HO2 900277591 EER73IGM 900277569 ERG101 900940810 ERG105 900273772 ZB103ER 900940813 ZB3101 900940807 ZB3103 900940809 ZB3105 900273762 ZB3106 900273763 EER73BP 900940703 EER73DB 900940702 EER73HO 900940776 EER73HO2 900940788 EER73IGM 900940704 ERG103 900940811 ZB102ER 900940812 ZB106ER 900273782 ZB3102 900940808 ZB3104 900273761 ZB3105 900940861 ZB3106 900940832 ZB3104 ZB3107 ErgoRapido ZB3104 ZB3105 ZB3106 ERG105 ZB106ER 900273761 900273762 900273763 900273772 900273782 EERC73SW ErgoRapido Classic 14.4V

Replaces Part Numbers

AWM224641 AWH325062

Technical Specifications

Voltage14.4V
Amp Hours2500mAh
Capacity2500mAh
Rate36Wh
Net Weight226g /7.97 oz
Gross Weight296g /10.44 oz
Approximate Weight296g /10.44 oz
Dimension 102.90 x 90.70 x 41.30mm

Product Highlights

  • Brand: Electrolux
  • Manufacturer: CS
  • Series: Standard
  • Color: White
  • Product Type: Li-ion
  • Battery Type: Li-ion
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My Electrolux EER73BP loses suction well before the battery light shows low — why?

The motor is drawing more current than the cell can sustain at rated voltage, causing voltage sag before the indicator registers it. A restricted filter is the most common trigger — the motor works harder, pulls more current, and the cell voltage drops early. Clean the filter completely and recharge the battery before testing again. If sag continues with a clear filter, the cell is no longer holding adequate voltage under load.

The vacuum cuts out for a few seconds then starts again — is the battery faulty?

That's a BMS overcurrent trip, not a cell failure. When the brush roll or filter is blocked, sustained high current triggers the BMS protection circuit, which cuts power and resets after a few seconds. Check the brush roll for tangled hair and inspect the filter for blockage before blaming the battery. If the motor cuts out on a fully clear vacuum with a freshly charged cell, test resting voltage — it should read at least 14.4V off the charger.

I charged this replacement battery overnight and it already seems weaker than expected — did I damage it?

Leaving any lithium-ion vacuum battery on the dock for extended periods causes trickle-charge stress that degrades capacity from the first few cycles. Charge the battery to full, remove it from the dock, and store the vacuum off-charge until the next use. One overnight charge is unlikely to cause permanent damage, but repeated overnight sessions will accelerate fade. Going forward, charge only when depleted and pull from the dock once the indicator shows full.
