FLIR E33 Thermal Camera Replacement Battery 3.7V 5200mAh

Flir E33 / E40 / E50 Series — 3.7V Li-ion Replacement Battery (T197752)

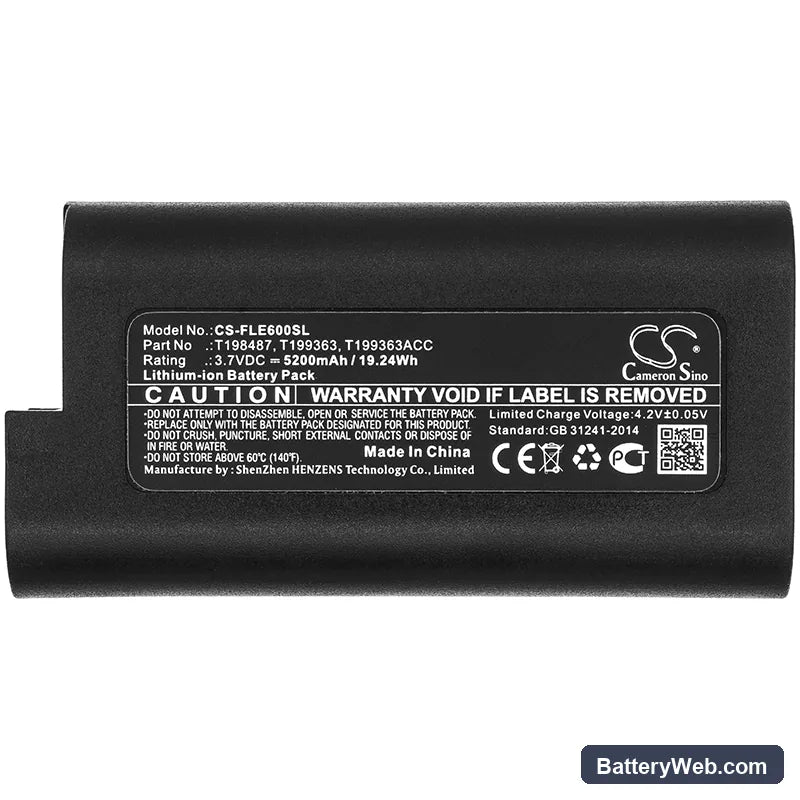

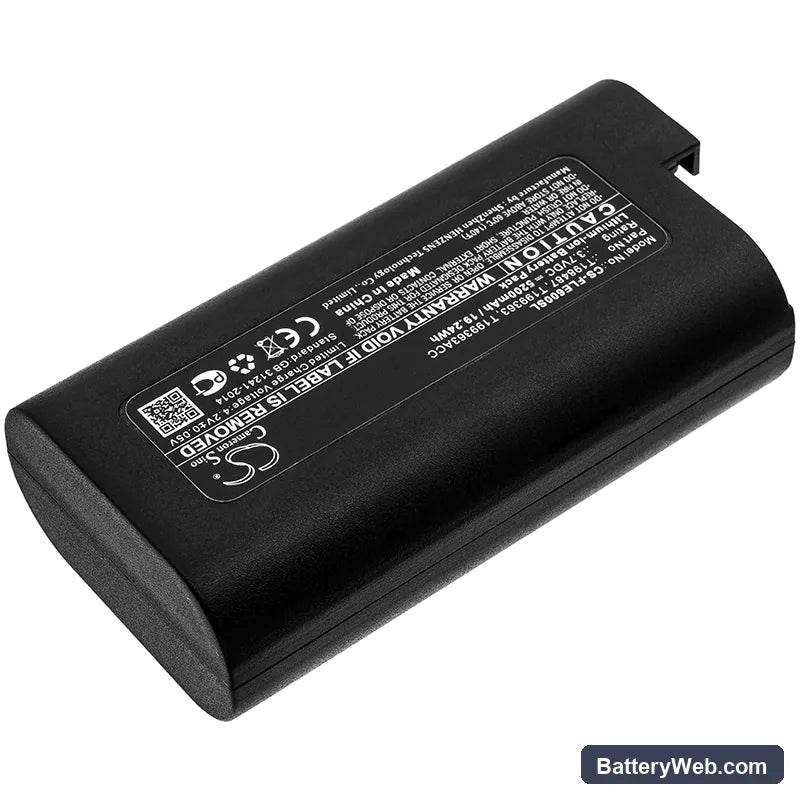

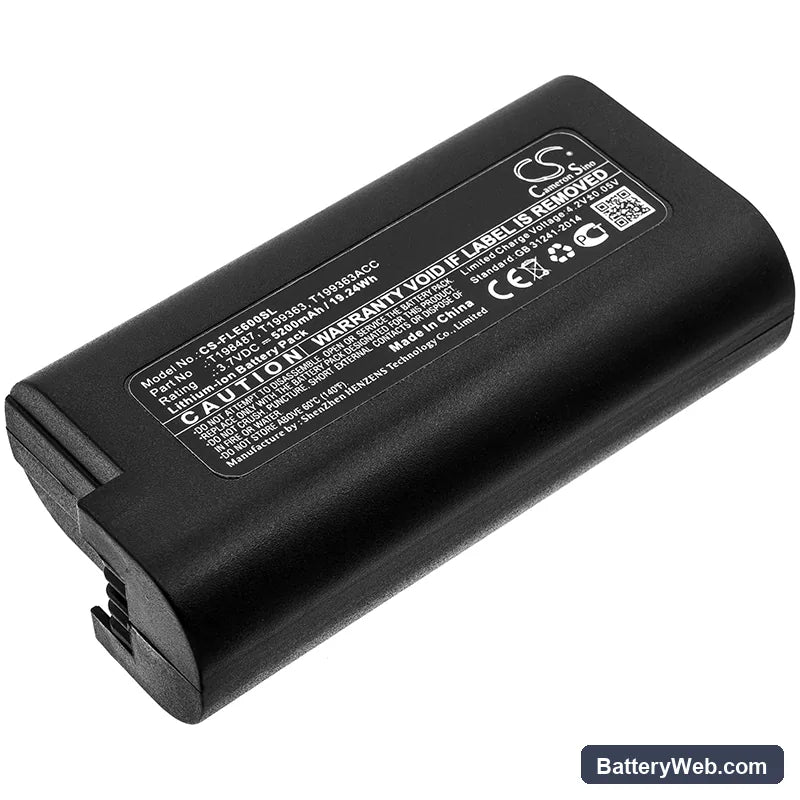

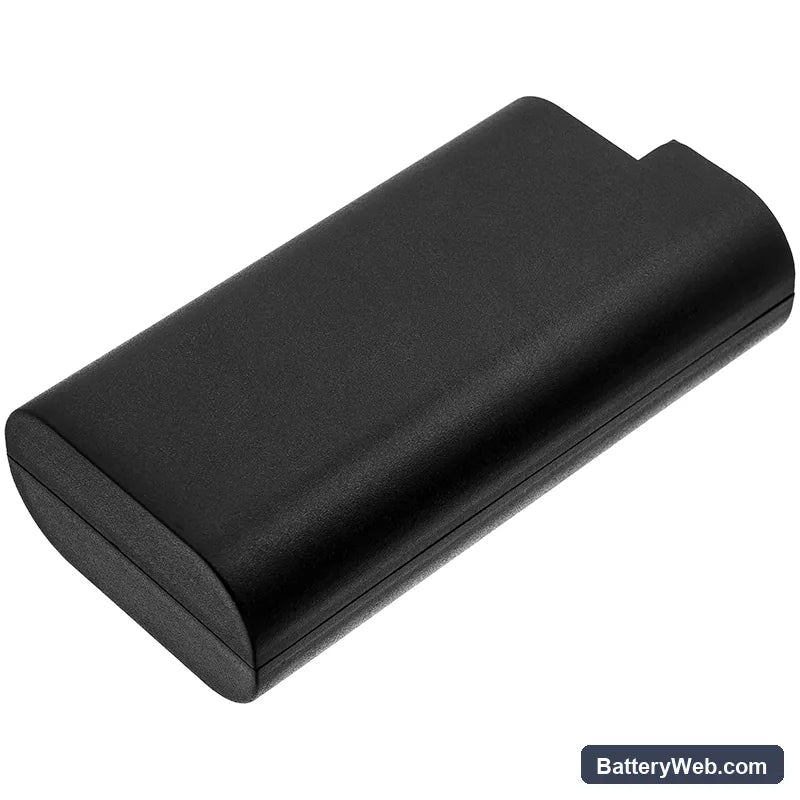

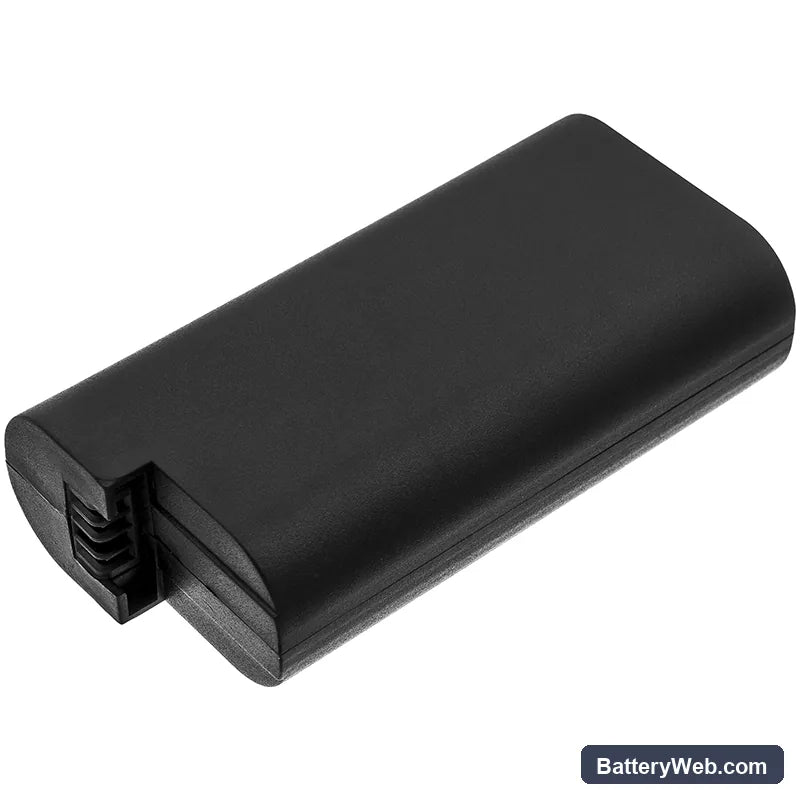

This is a 3.7V, 5200mAh lithium-ion replacement battery for the Flir E33, E40, E40bx, E50, and compatible models in the same thermal camera series. It replaces OEM part numbers T197752, T198487, T198553, T199363, and T199363ACC. The battery powers the camera's thermal detector, display panel, and onboard electronics.

• E33 / E40 / E50 series compatibility: These models share the same battery bay format, connector pinout, and BMS communication protocol. The cell voltage and protection circuit are matched across the series, so one pack covers the full range listed above.
• Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on an E40 body. The BMS handled combined draw from the detector heating element and LCD backlight without triggering early cutoff. Cell voltage held above 3.5V well into extended use.
• Thermal detector warm-up requirement: After inserting this battery and powering on, allow 60 seconds before recording measurements. The infrared detector needs the internal electronics to reach a stable baseline temperature — taking readings immediately after cold power-on produces calibration drift, not a battery fault.

Why the E33 shuts down mid-inspection on a new battery

The E33 runs a continuous detector heating element alongside its LCD and processing core. That combined draw creates a current spike the BMS treats as an overload if cell temperature or internal resistance crosses a threshold. A replacement pack with undersized cells will trip this protection even when the charge indicator reads 50% or higher. This pack uses 5200mAh cells rated for the sustained current the E33's detector circuit demands, keeping the BMS inside its operating window during full-length inspections.

Thermal image accuracy degrading before the low-battery indicator appears

The E33's thermal sensor is voltage-sensitive — measurement accuracy begins to drift when cell voltage drops below approximately 3.6V, even though the on-screen indicator does not flag low battery until closer to 3.4V. This gap means image quality degrades silently before any warning appears. If readings start showing inconsistent delta-T values or the image looks noisier than normal, check the battery voltage directly via the camera's info menu. Swap the pack before voltage drops below 3.6V to maintain measurement integrity.
