JBL EON ONE Compact Replacement Battery 14.8V 6000mAh

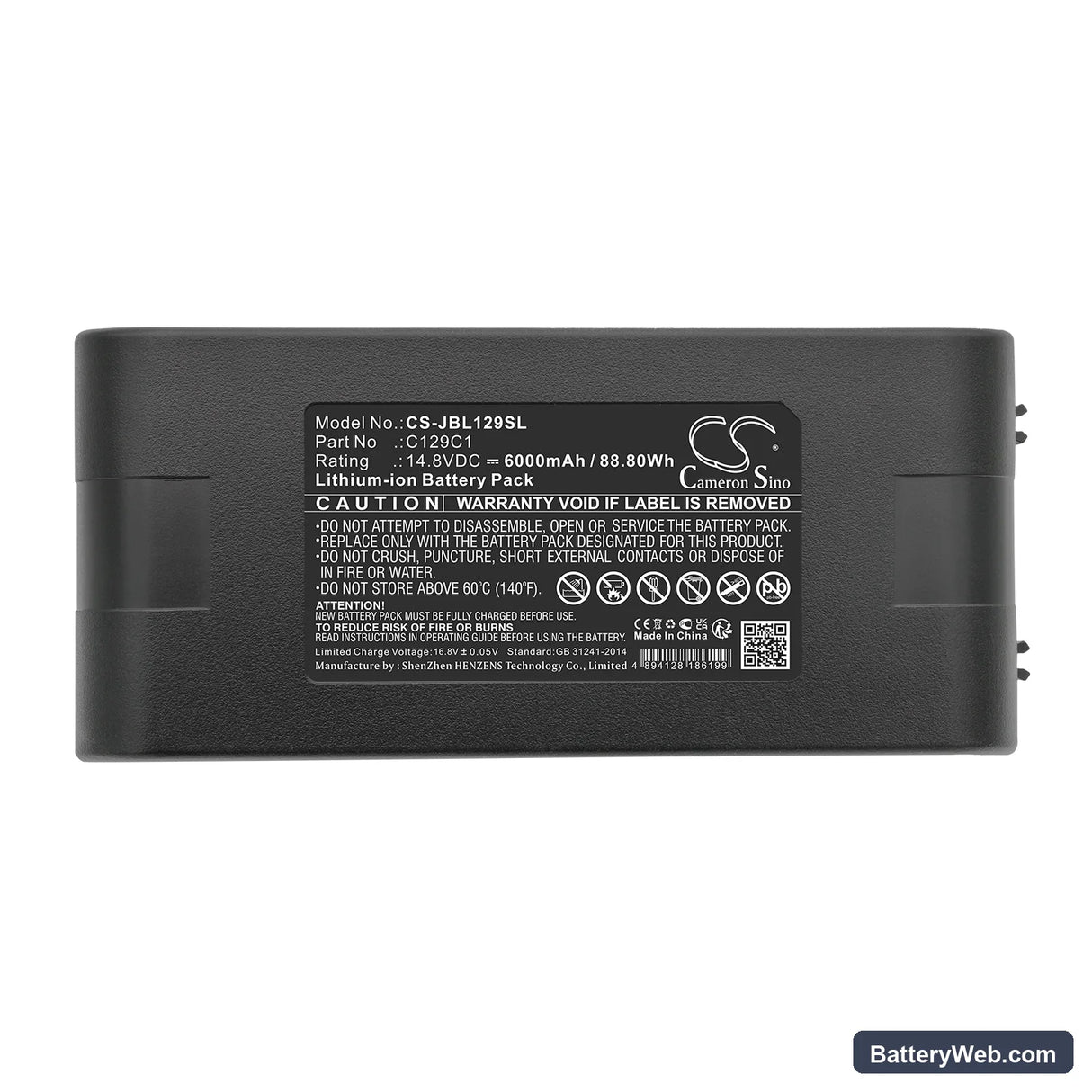

JBL EON ONE Compact — 14.8V Li-ion Replacement Battery (C129C1)

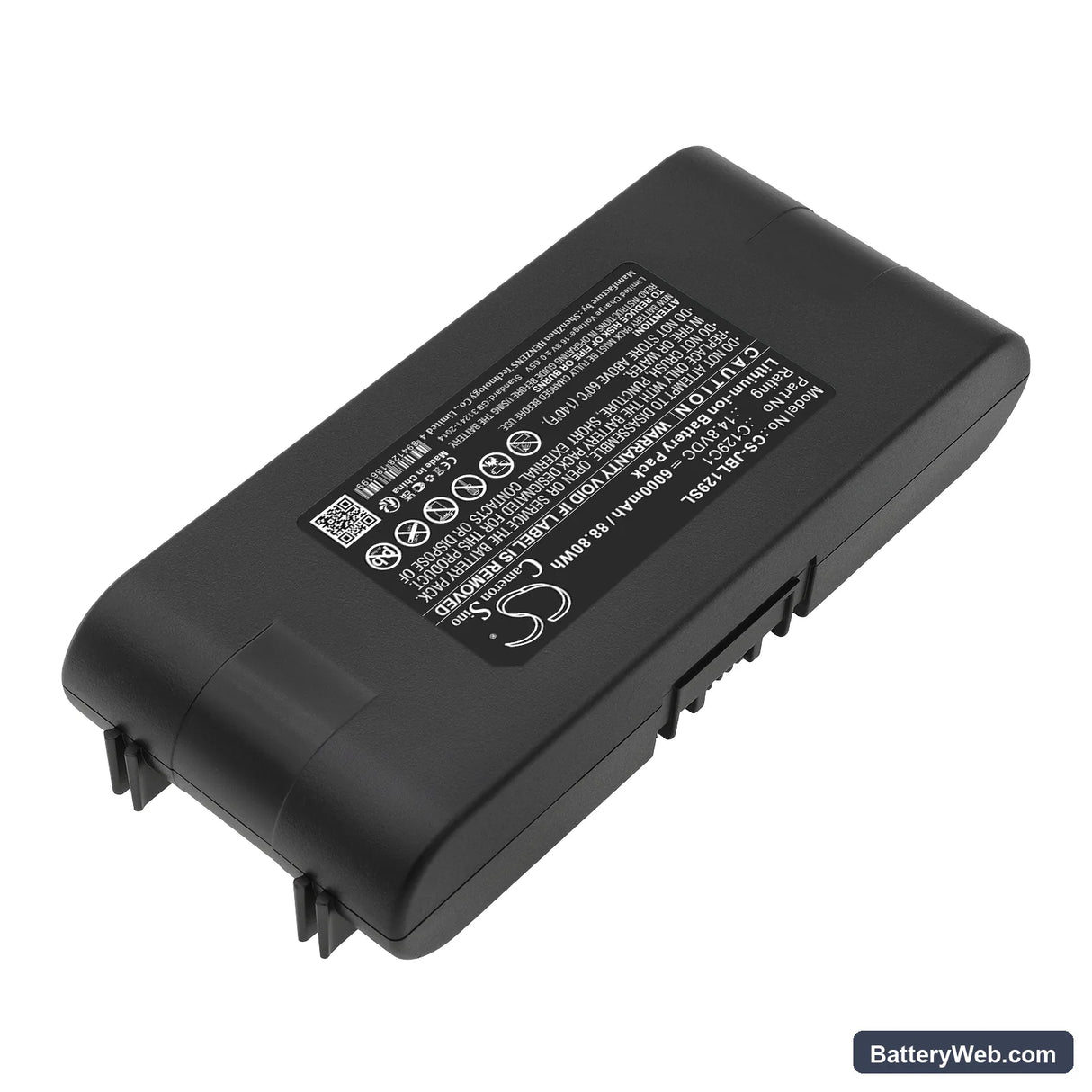

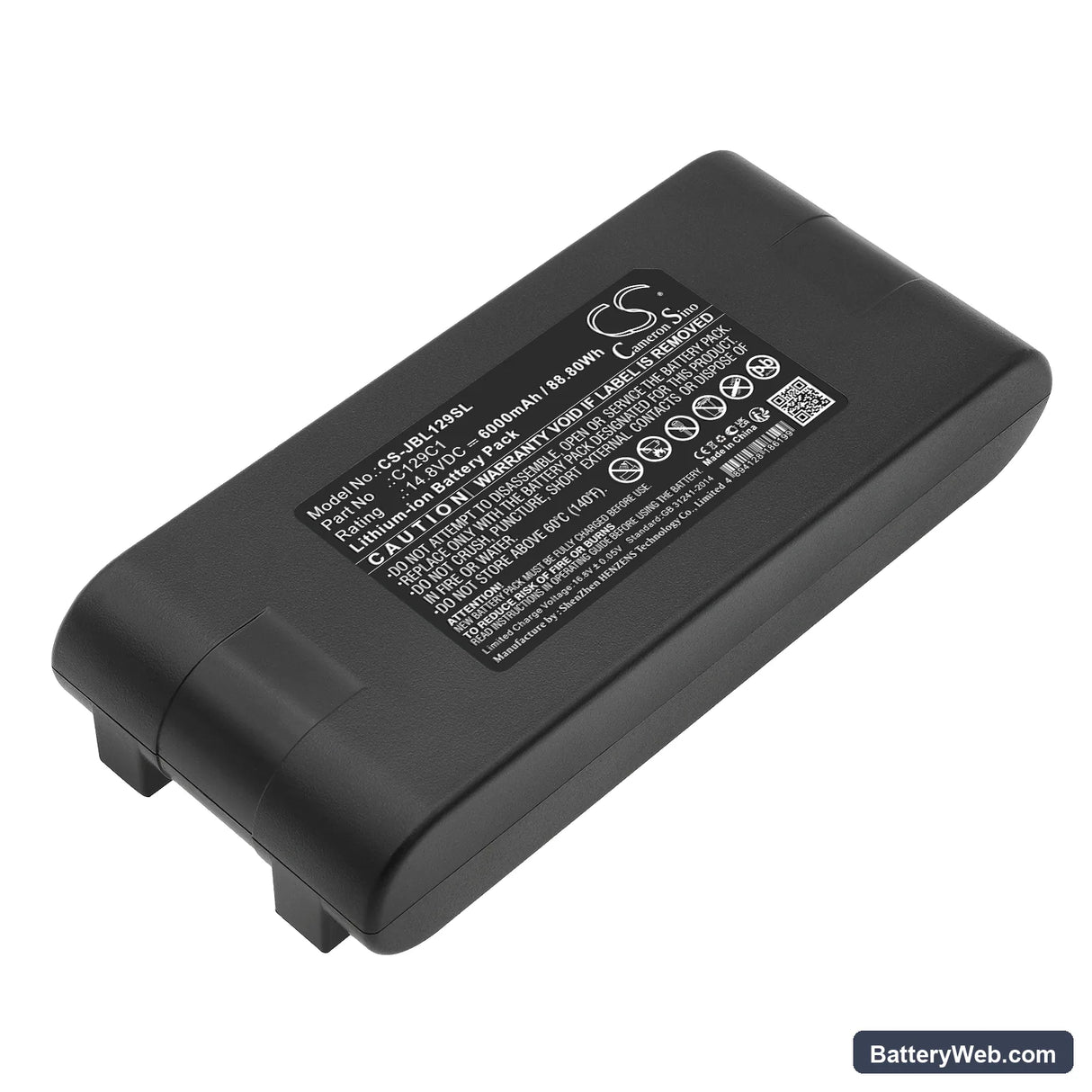

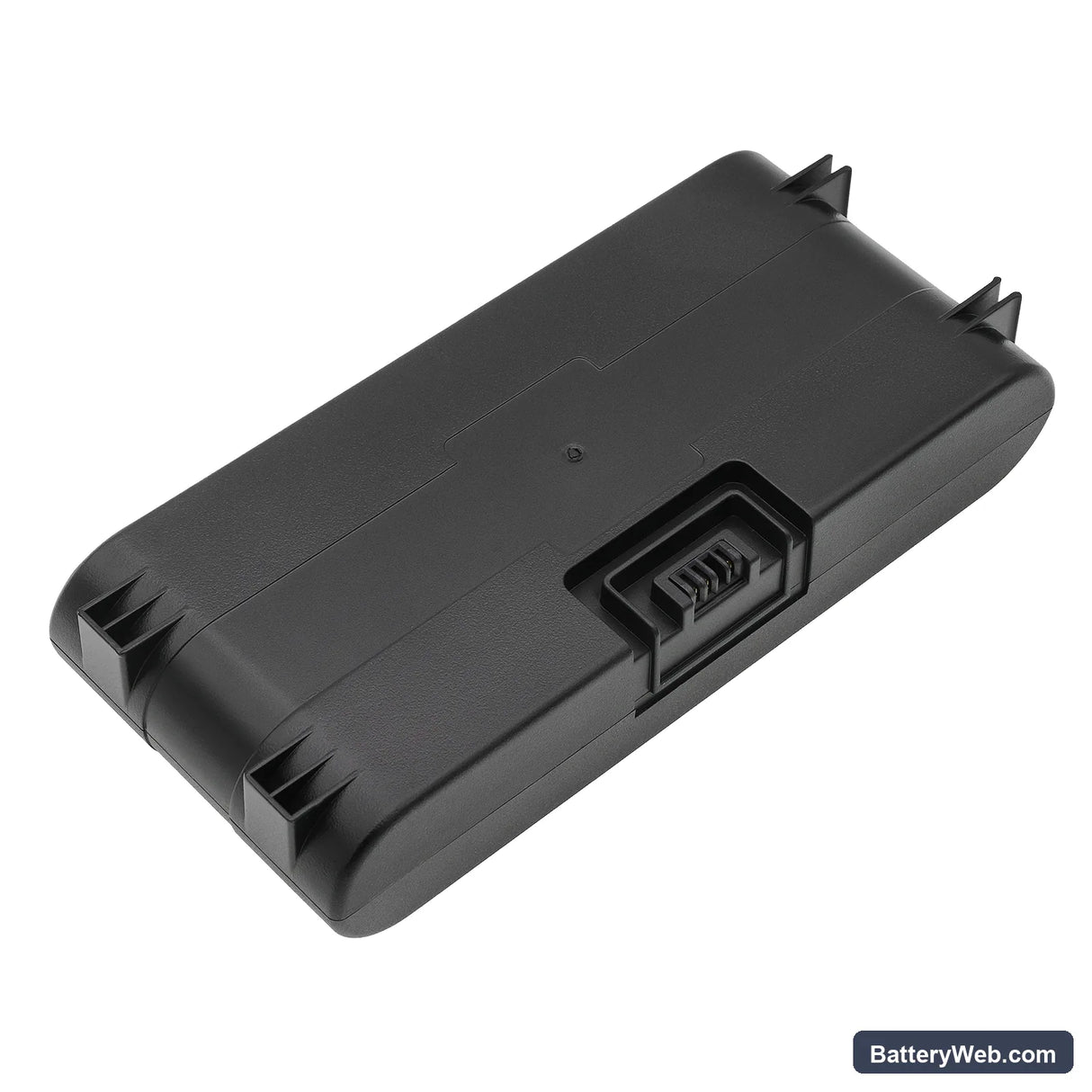

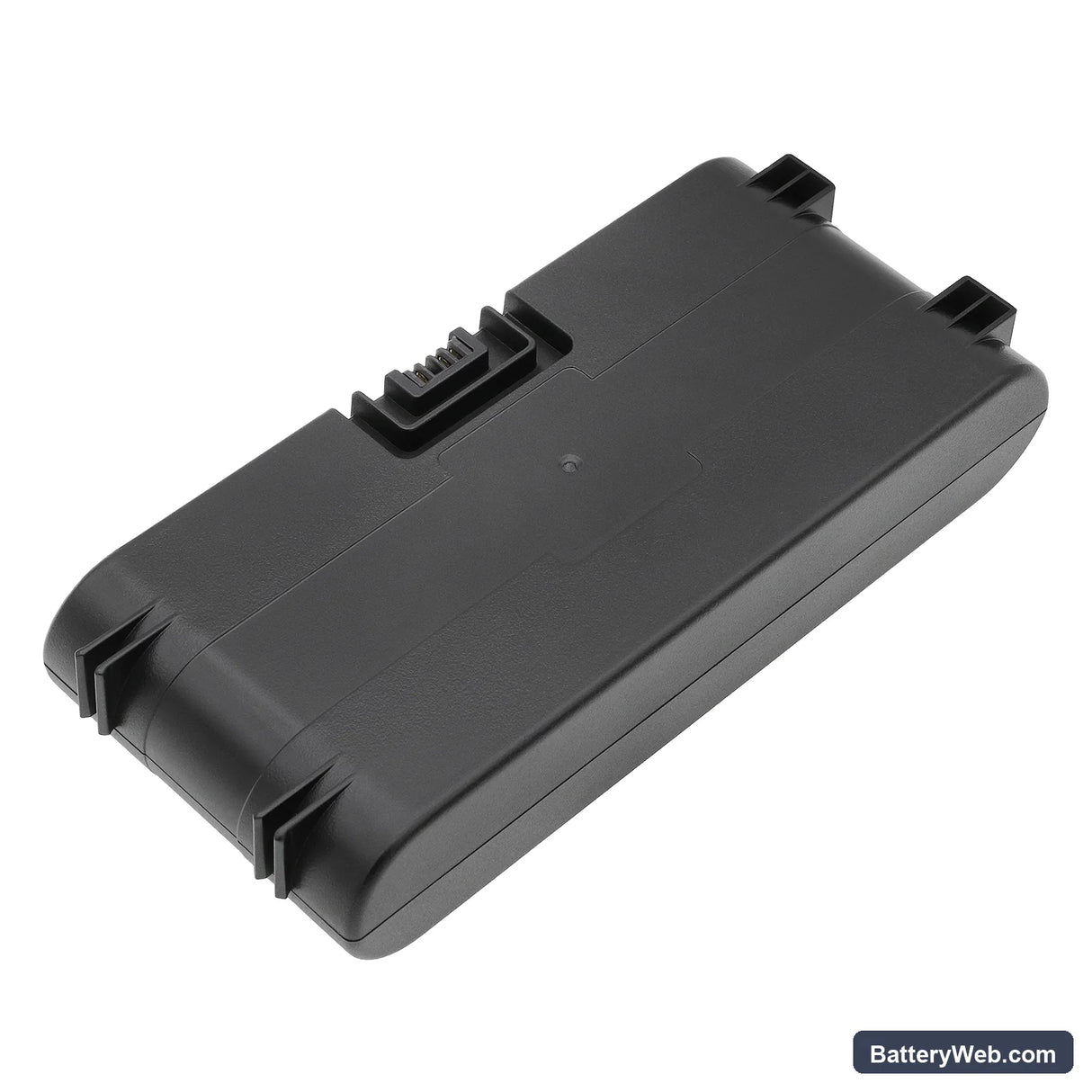

This is a 14.8V, 6000mAh (88.8Wh) Li-ion replacement battery for the JBL EON ONE Compact portable PA speaker. It slots into the EON ONE Compact's internal battery bay and powers the onboard amplifier, mixer, and DSP. If your original pack no longer holds charge or the speaker shuts down mid-set, this is the direct swap.

• EON ONE Compact battery platform: The EON ONE Compact uses a 4S Li-ion configuration at 14.8V nominal to supply the Class D amplifier, the digital mixer stage, and the Bluetooth radio from a single pack. All three draw from the same cell stack, so a weak battery affects audio, connectivity, and DSP simultaneously.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the EON ONE Compact platform. The BMS communicated cell voltage correctly to the speaker's fuel gauge, and protection circuits triggered as expected at low-cell cutoff — no false shutdowns during amplifier load spikes.
• Fuel gauge calibration for the EON ONE Compact: The speaker's onboard gauge drifts when the pack is constantly topped off before dropping below 30%. Run the EON ONE Compact down past the first LED bar at least once a month, then charge fully — this re-anchors the gauge's empty reference point and prevents premature low-battery warnings mid-performance.

Why the EON ONE Compact cuts audio when the battery indicator still shows charge

The Class D amplifier inside the EON ONE Compact pulls high instantaneous current during loud transients. When the cell stack is aged or partially discharged, internal resistance causes voltage to sag below the amplifier's minimum rail voltage during those peaks — the amp clips or mutes even though the average state of charge looks fine. The speaker's fuel gauge reads average voltage, not instantaneous sag, so it can display two or three bars while the actual delivery voltage is dipping too low under load. Replacing the pack with a fresh 6000mAh cell stack reduces internal resistance and restores stable voltage delivery through loud passages.

Bluetooth dropping only at high volume on the EON ONE Compact

At high output, the amplifier and the Bluetooth radio compete for current from the same 14.8V pack. A degraded or deeply discharged battery can't supply both simultaneously without voltage sag pulling the radio module below its operating floor. The result is Bluetooth dropout that looks like a wireless interference problem but is actually a supply voltage issue — it disappears at lower volumes because the amp draw drops enough to leave headroom for the radio. Check the resting cell voltage with a multimeter; a healthy 4S Li-ion pack should read between 15.6V and 16.4V off the charger.
