Lenovo L18M3PF8 IdeaPad S540 Replacement Battery 11.4V 4500mAh

Lenovo IdeaPad S540-15iml — 11.4V Li-Polymer Replacement Battery (L18M3PF8)

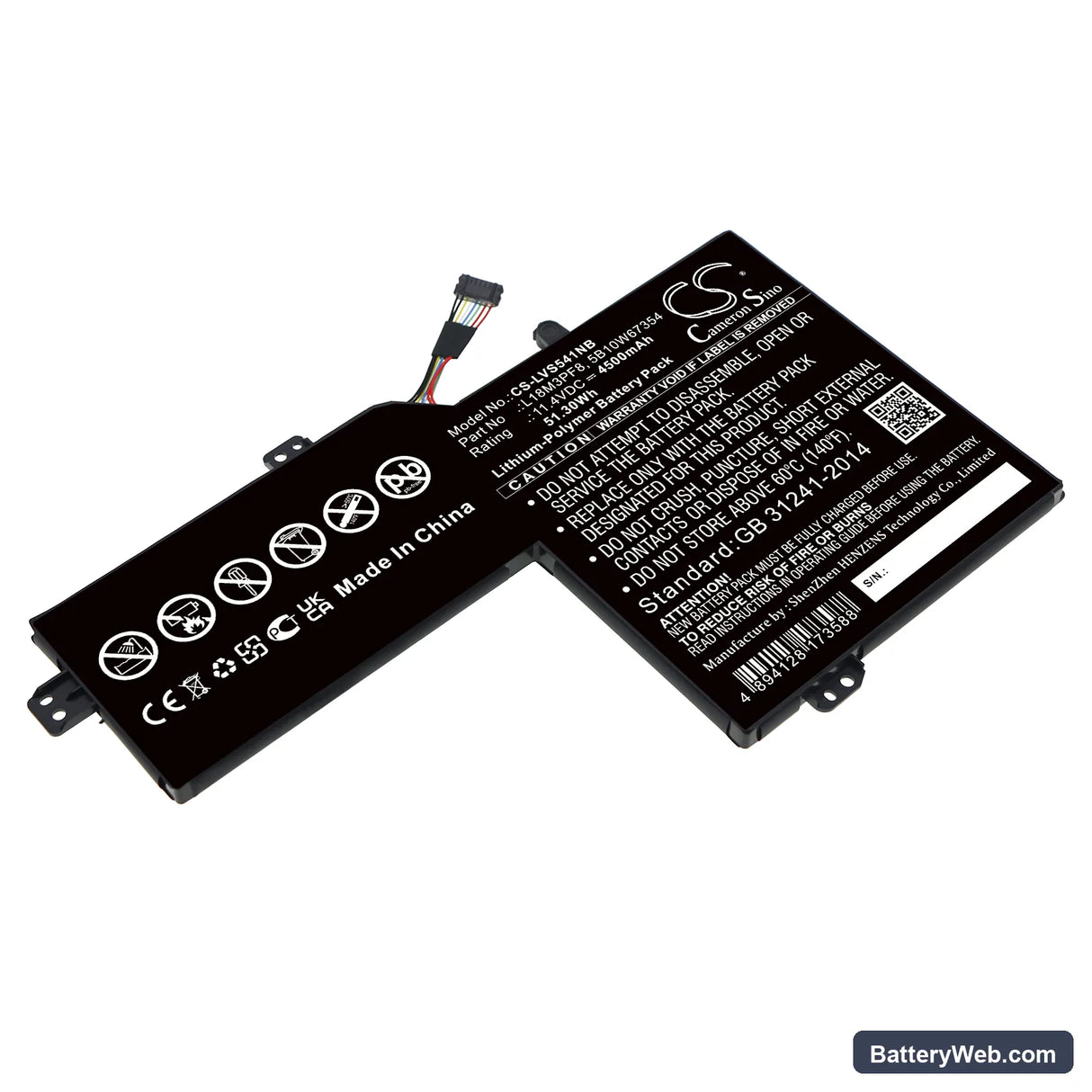

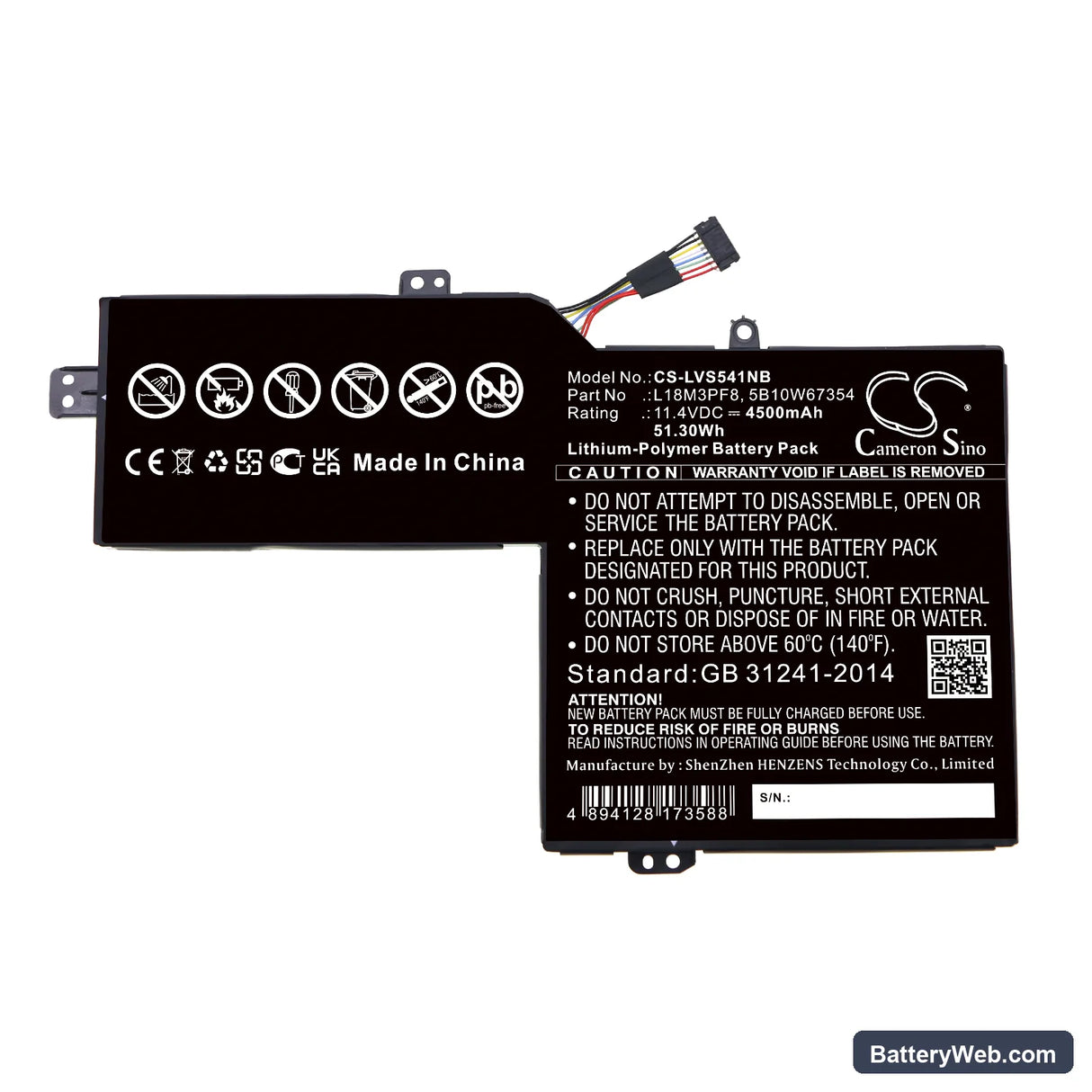

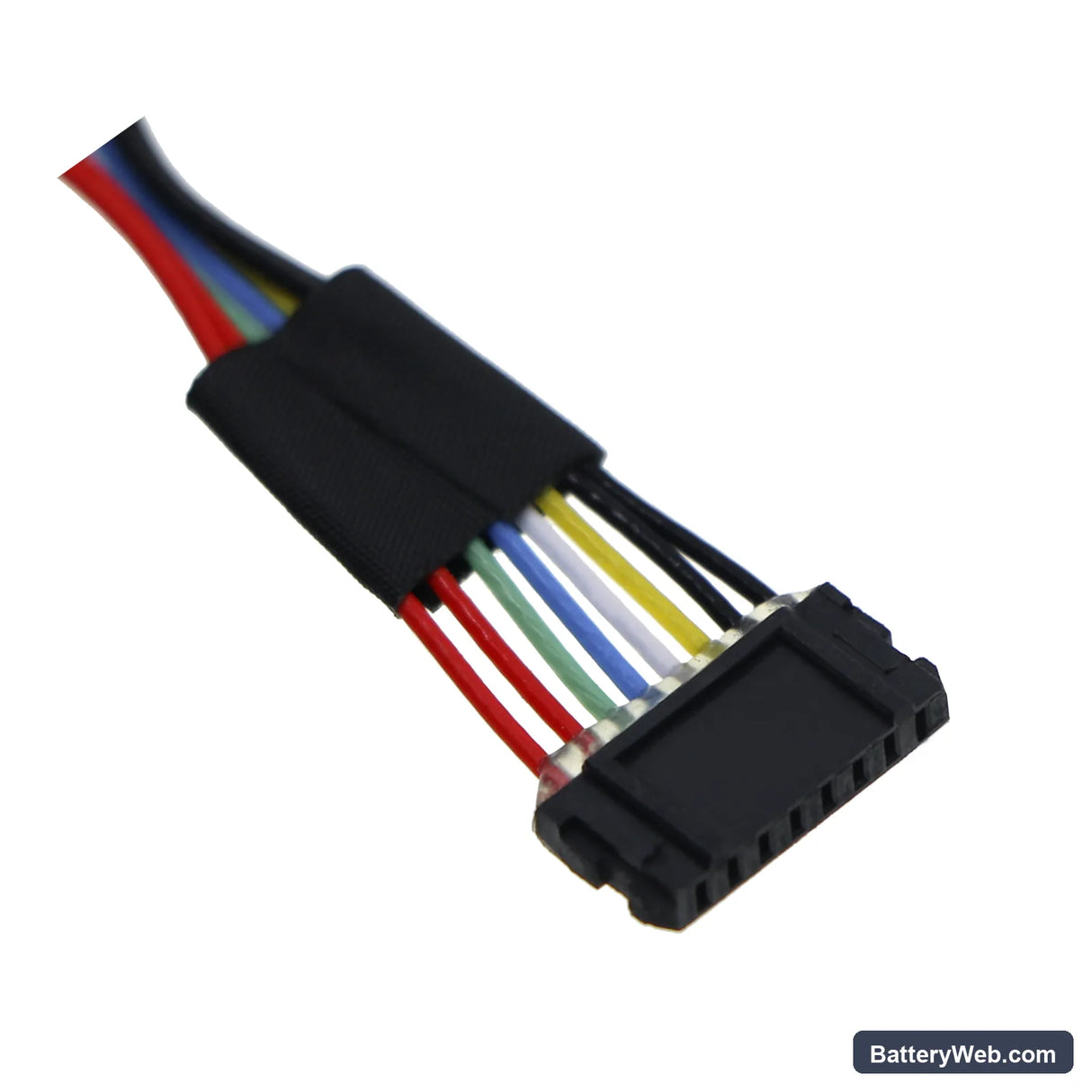

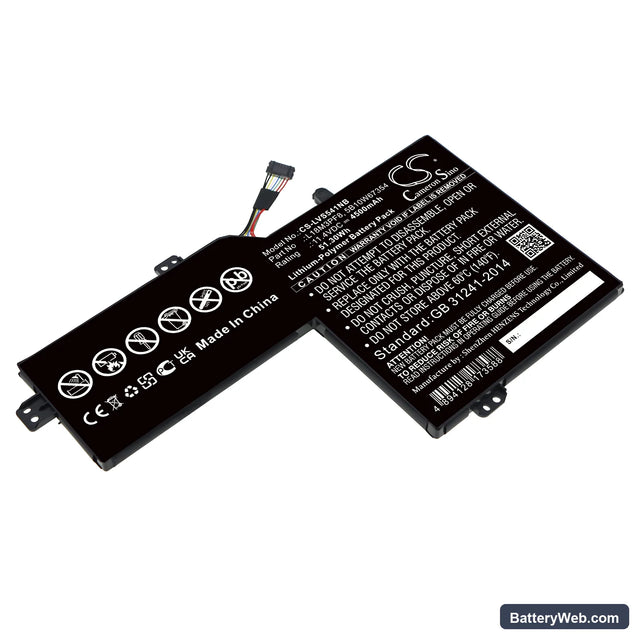

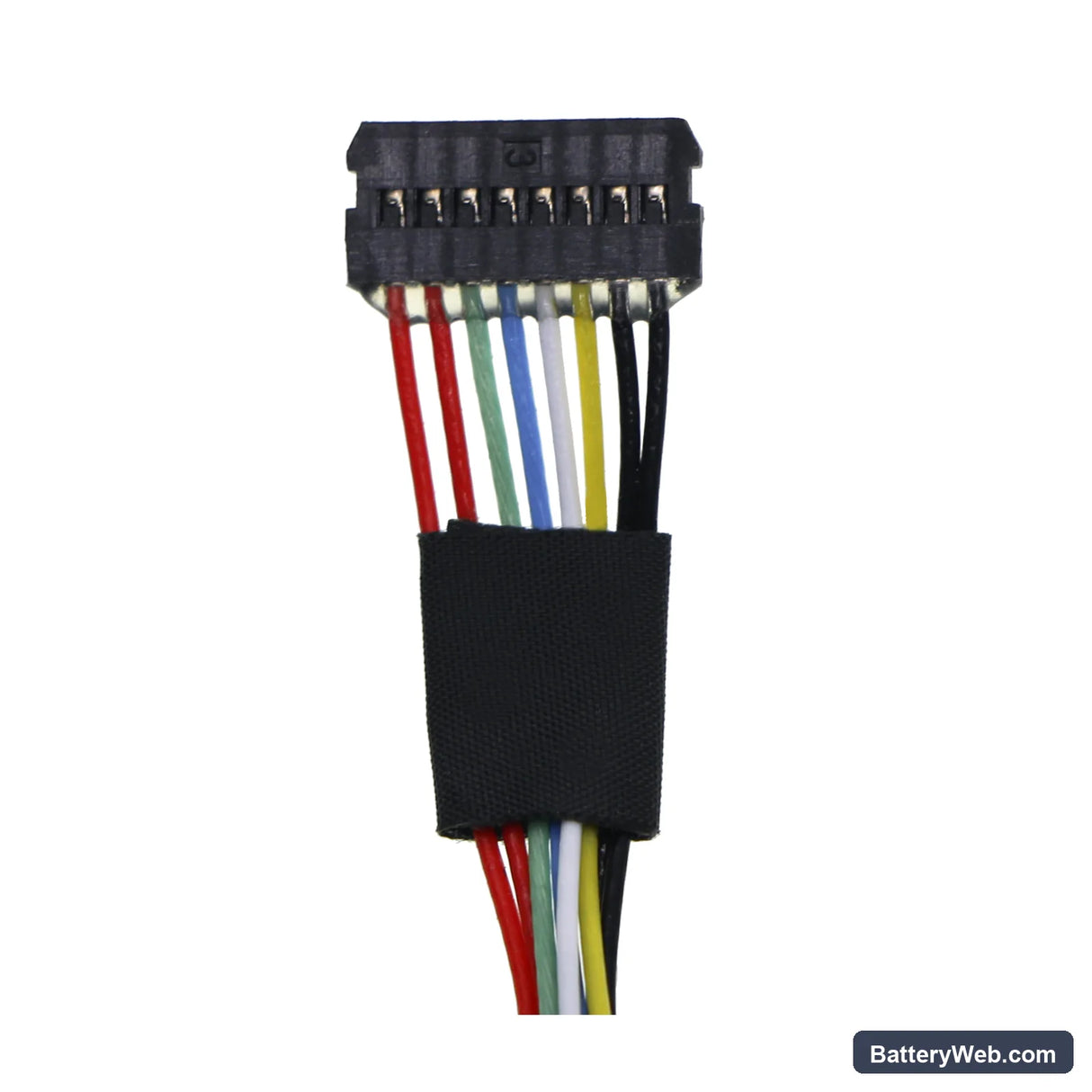

This 11.4V, 4500mAh (51.3Wh) lithium-polymer battery is a direct replacement for the Lenovo IdeaPad S540-15iml and S540-15 series notebooks. It fits models including the 81ng001kau, 81ng00bjar, and 81ng00byvn variants, along with 34 additional S540-15 configurations sharing the same OEM part number L18M3PF8. The physical cell measures 216.10 × 134.10 × 6.50mm and connects via the original S540 battery harness.

• S540-15 series compatibility: All listed S540-15iml variants run the same 11.4V three-cell Li-Polymer architecture with the same BMS connector and EEPROM handshake. The L18M3PF8 and 5B10W67354 part numbers cross-reference the same cell specification, so one SKU covers the full model range without connector or firmware conflict.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on an S540-15 unit. The BMS handshake completed correctly, charge current ramped normally from CC to CV phase, and the controller terminated at 100% without triggering an overcharge fault.
• Post-install battery learn cycle: After fitting this cell, run one full discharge to hibernate cutoff, then charge uninterrupted to 100% without unplugging. This resets the BIOS battery learn cycle and clears the inaccurate health warning the S540 commonly displays after any cell swap.

BIOS reporting battery health as poor immediately after replacement

The S540's embedded controller reads health data from the cell's EEPROM, which stores charge cycle count and rated capacity from the previous battery. When a new cell is installed, the controller compares its stored cycle data against the new cell's EEPROM and flags a mismatch as degraded health. This is a firmware behaviour, not a fault with the replacement cell. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% allows the BIOS to rewrite its fuel gauge baseline against the new cell's actual capacity. After two to three cycles the health status normalises.

S540 shutting down at 20–30% charge shown on screen

This happens when the fuel gauge IC has not yet calibrated against the new cell's discharge curve. The gauge was trained on the old cell's voltage profile, so it reads 20–30% remaining at a voltage point where the new cell is actually near depletion. Under full CPU and display load the cell voltage drops sharply, the BMS trips on undervoltage, and the laptop cuts out before the OS can hibernate. To fix this, let the laptop discharge completely to automatic hibernate cutoff under normal use — do not force-shutdown it — then charge fully to 100% without interruption. Repeat this once more and the fuel gauge IC recalibrates to the correct voltage-to-capacity curve for the new cell, typically settling to accurate readings by cycle three.
