Makita 5091D Series — 12V Ni-MH 3000mAh Replacement Battery (192271-4)

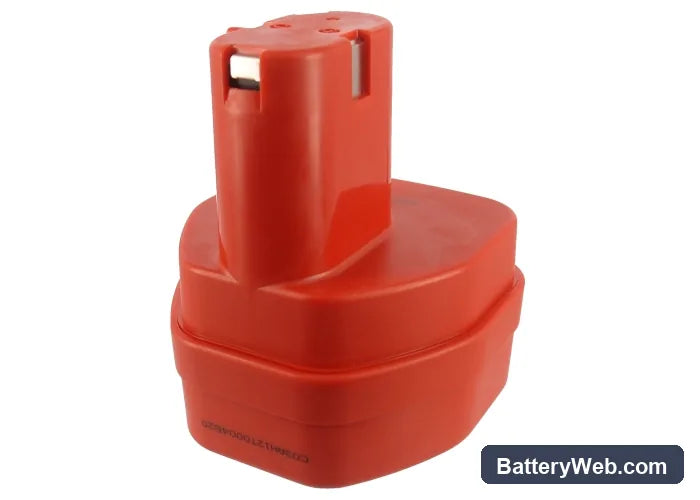

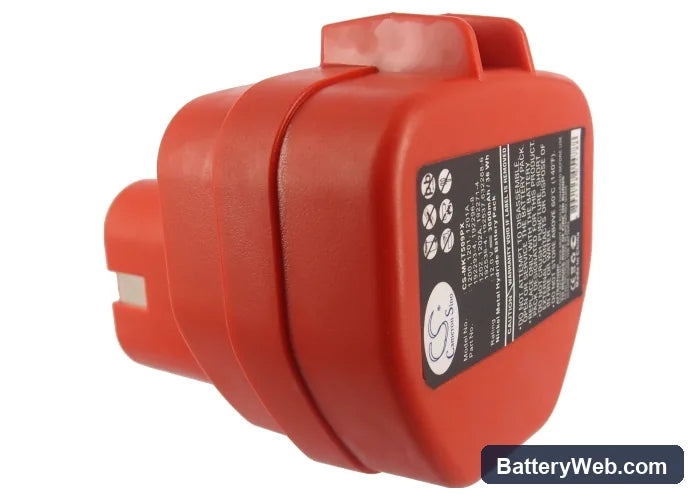

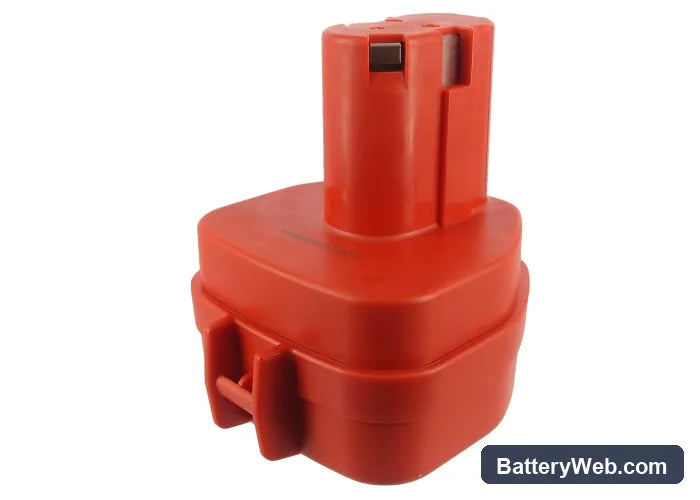

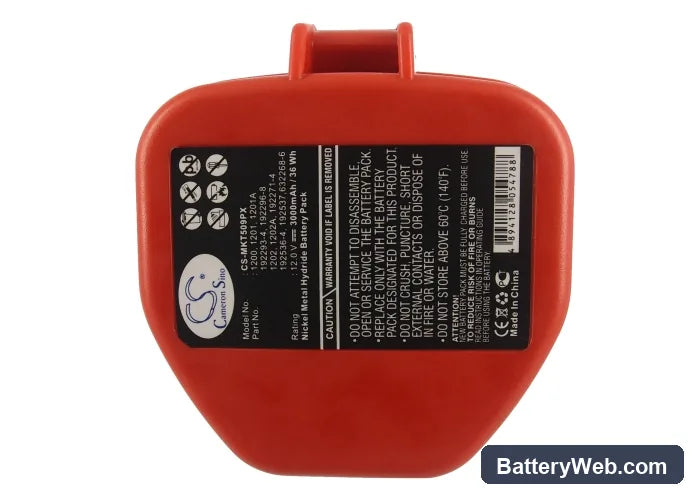

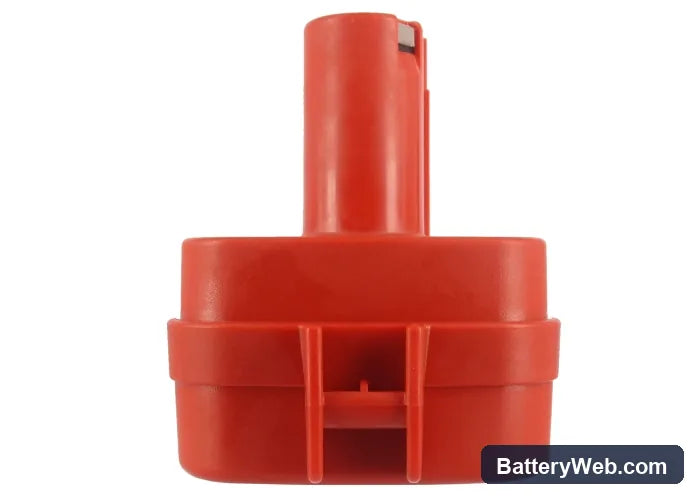

This is a 12V Ni-MH 3000mAh replacement battery for the Makita 5091D cordless drill-driver and its variants, including the 5091DWG, 5091DWH, and 5091DZ. It replaces OEM part numbers 1200, 1201, 1201A, 1202, 1202A, 192271-4, 192293-4, 192296-8, and related codes. Capacity is 3000mAh at 36Wh.

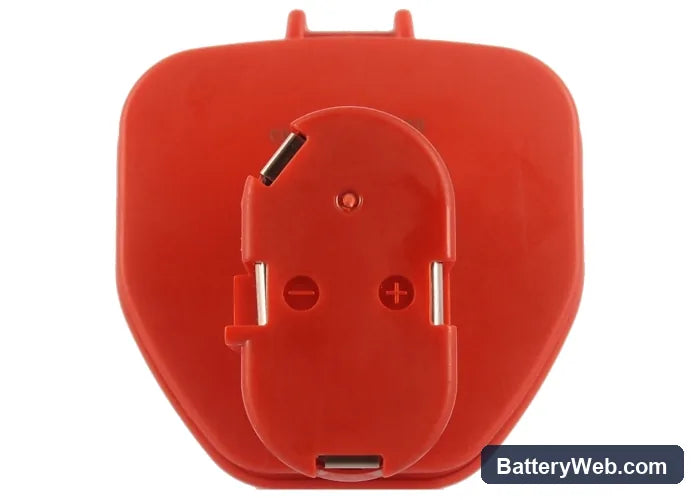

• 5091D platform compatibility: The 5091D series shares a common 12V battery form factor and connector across variants. All listed models use the same voltage rail, physical housing dimensions, and terminal layout — the charger handshake works the same across the range without modification.
• Bench tested on actual hardware: We ran this pack through repeated trigger-pull cycles on a 5091D, monitoring the BMS response to motor-start inrush current. The overcurrent threshold handled the spike without tripping, and cell voltage recovery between pulls stayed within spec.
• Ni-MH break-in on the 5091D: On first use, run the drill at half load — driving smaller fasteners or drilling pilot holes — for two full discharge-charge cycles before applying maximum torque. This lets the BMS profile the motor inrush draw before locking overcurrent protection thresholds.

BMS cutoff on motor-start inrush during hard drilling

When you drive large screws or bore into dense hardwood, the 5091D motor pulls a short inrush spike at trigger pull that can exceed the BMS overcurrent threshold — especially on a new or cold pack. The BMS interprets that spike as a fault and cuts the output rail before the motor reaches running speed. This is more common with Ni-MH packs that haven't completed break-in cycles, because the internal resistance is higher and the voltage dip during inrush is sharper. Two half-load cycles stabilise the pack's internal resistance and give the BMS accurate current data to set its threshold correctly.

Drill bogs under load after partial charges

If the 5091D slows noticeably when driving screws into hardwood or bores through thick material, voltage sag under load is the likely cause. Ni-MH cells that have been repeatedly shallow-cycled — topped up after light use rather than run down properly — develop reduced capacity and higher internal resistance, causing the voltage rail to sag when the motor demands current. Check the pack voltage under no-load first: it should read at or above 13.2V on a full charge. If no-load voltage looks fine but performance still drops under torque, clean the battery terminal contacts on both the pack and the tool with isopropyl alcohol, then run a full discharge-charge cycle before reassessing.
