Panasonic CF-V25U75R Toughbook Replacement Battery 7.2V 6800mAh

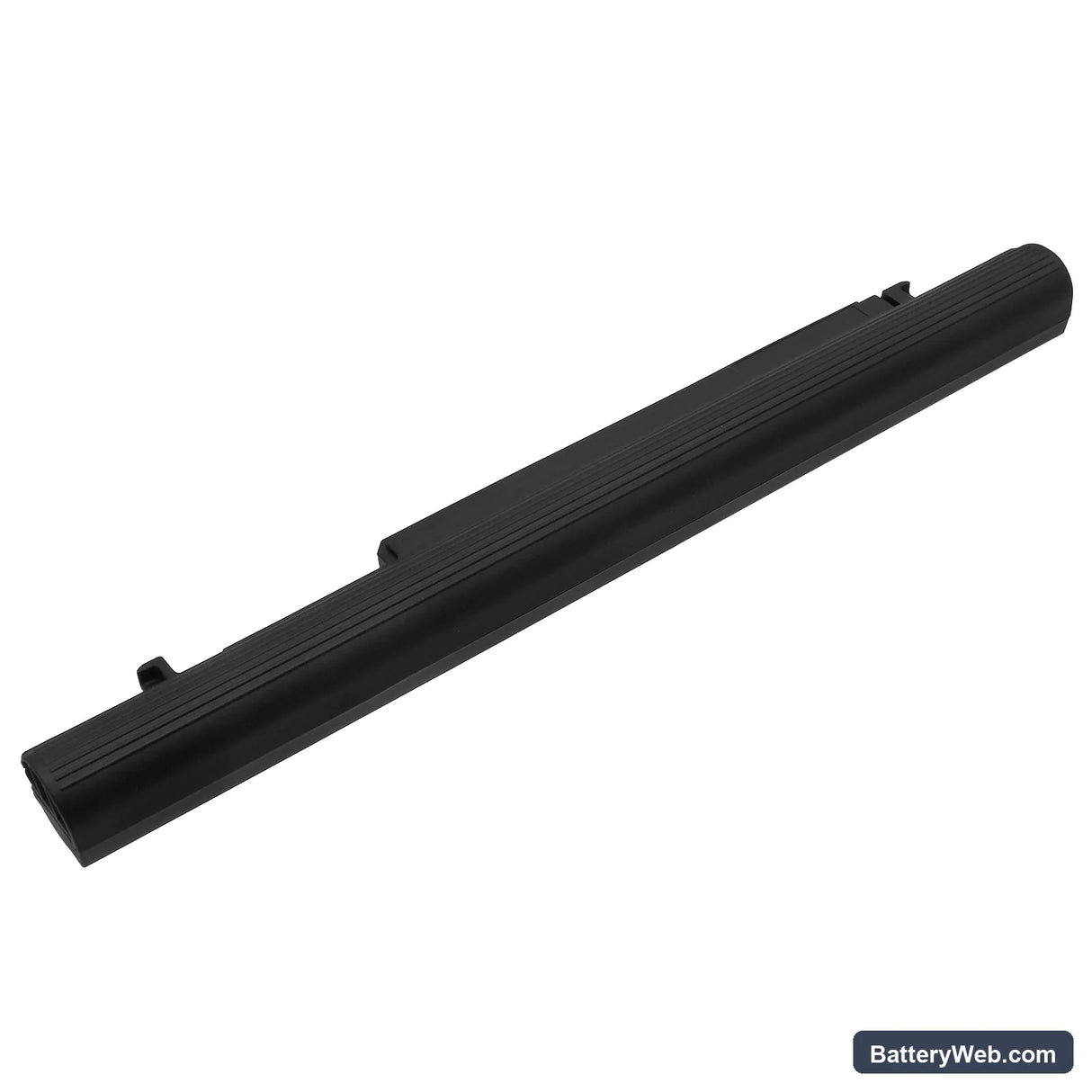

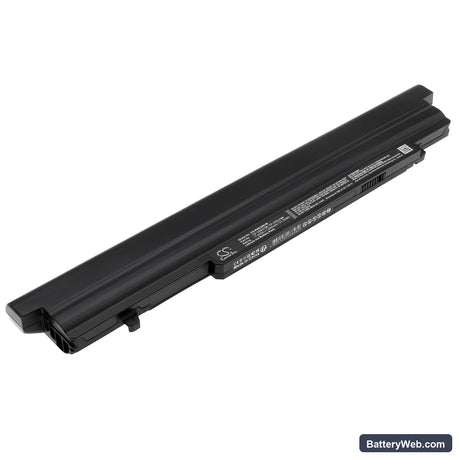

Panasonic CF-SX2JDT2FW / CF-SX3 / CF-NX4 — 7.2V Li-ion Replacement Battery (CF-V25U75R)

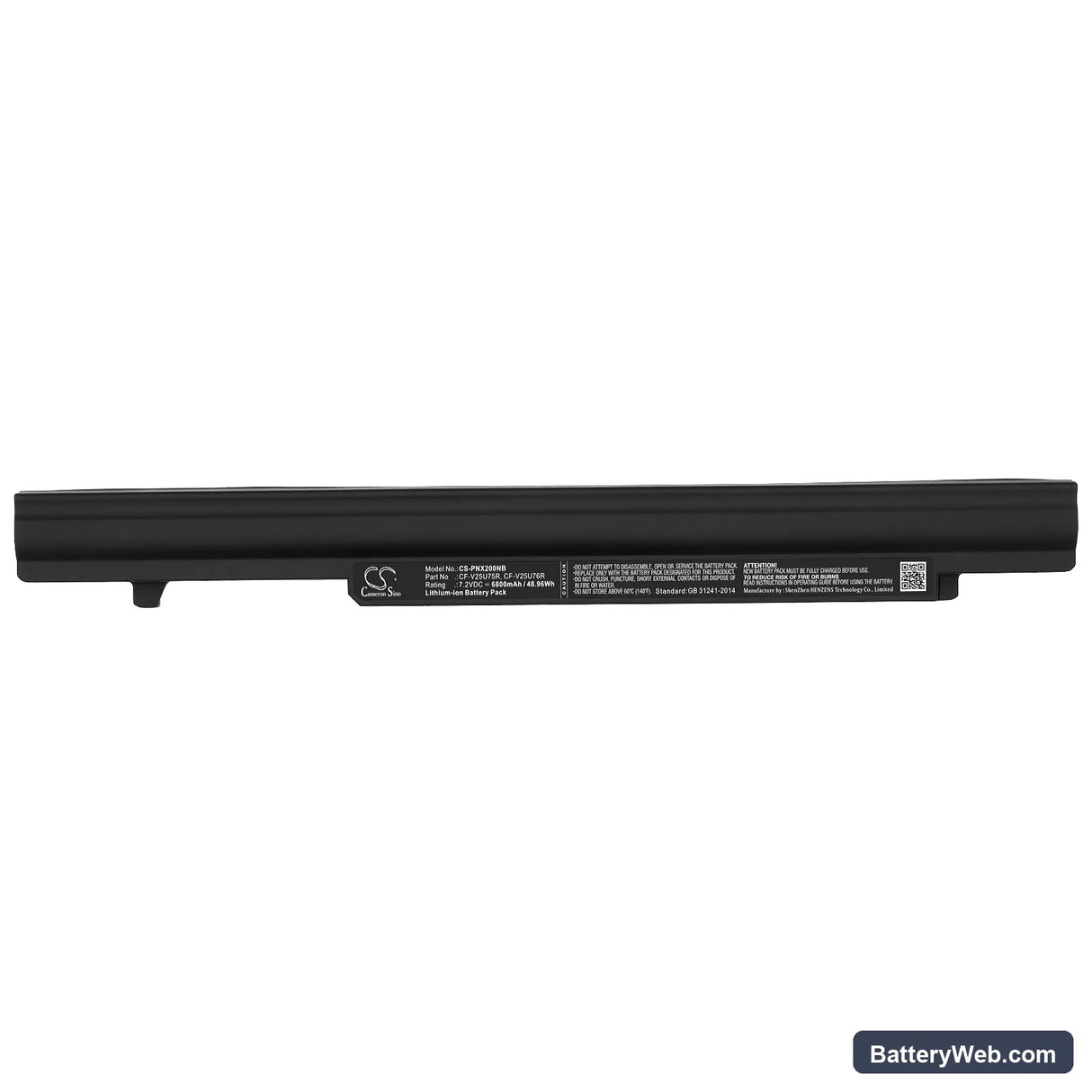

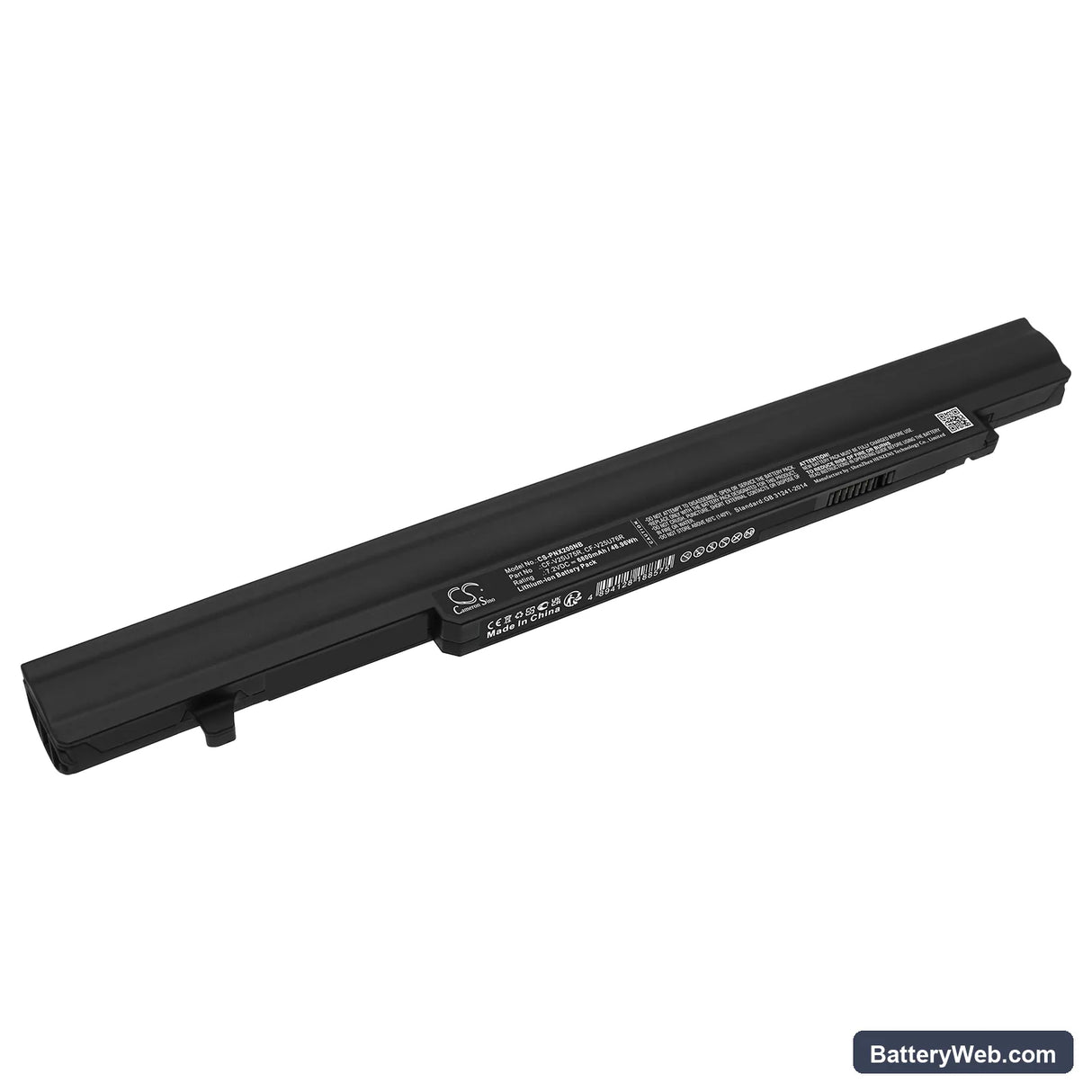

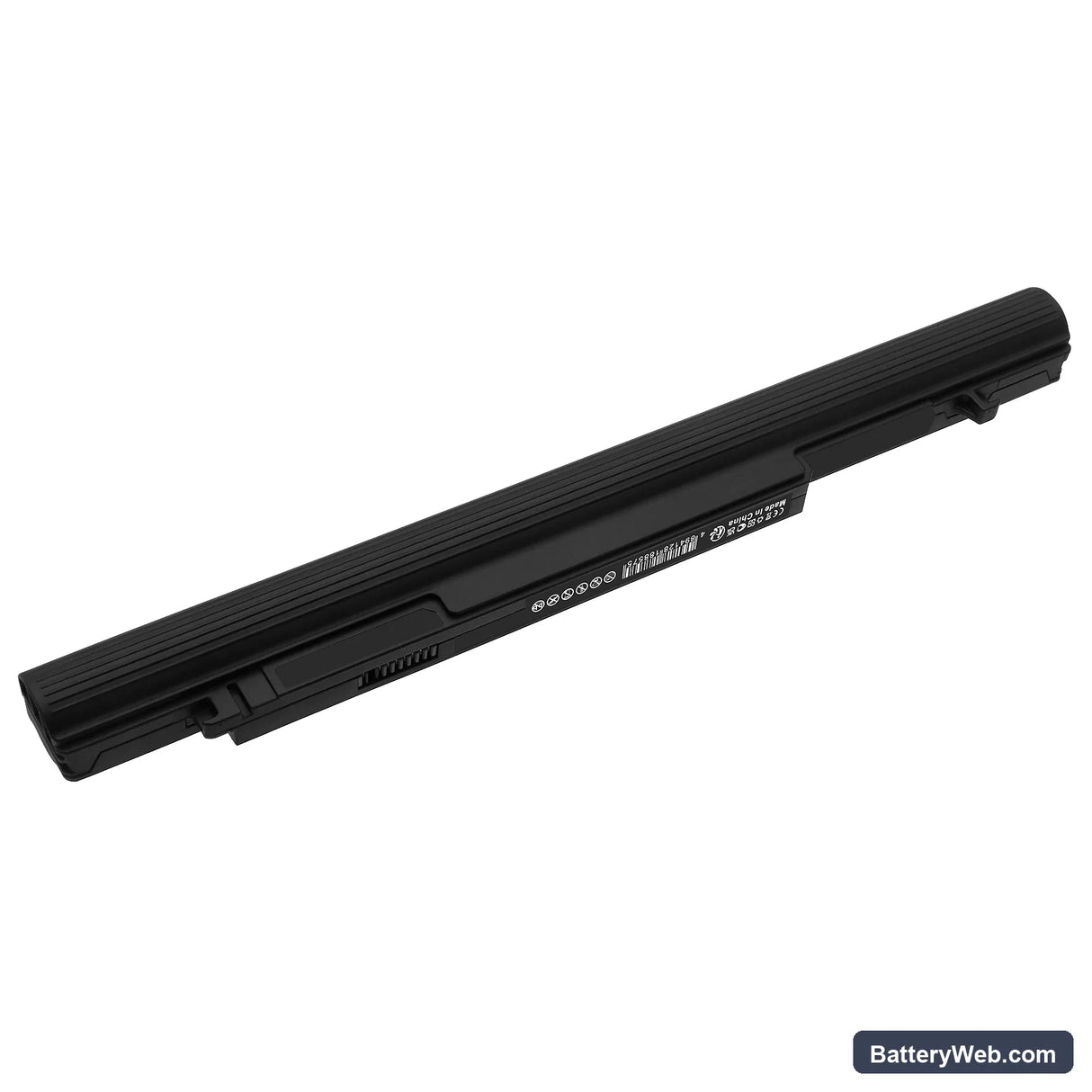

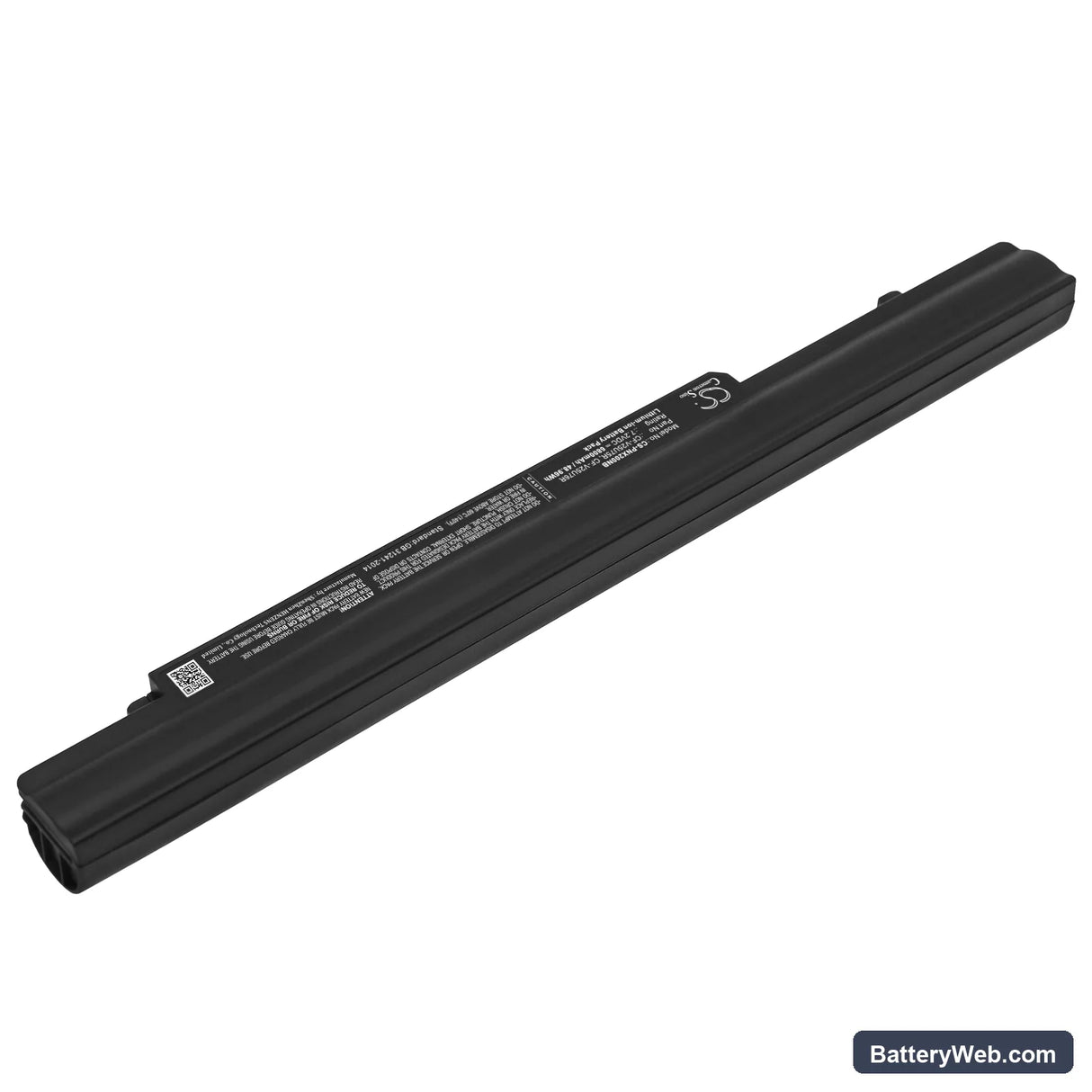

This is a 7.2V, 6800mAh (48.96Wh) lithium-ion battery for the Panasonic Toughbook CF-SX2, CF-SX3, CF-NX4, and CF-SX4 series laptops. It replaces OEM part numbers including CF-V25U75R, CF-VZSU75R, CF-VZSU76R, CF-VZSU78R, CF-VZSU79R, and related variants. The cell slots into the original bay using the existing connector and locking tab — no tools needed.

• CF-SX2 / CF-SX3 / CF-NX4 / CF-SX4 platform fit: These four Toughbook lines share the same battery bay geometry, connector pinout, and BMS handshake protocol, which is why a single cell covers all of them. The EEPROM on this replacement carries the correct charge and identification data for the platform's embedded controller to accept it without a firmware flag.
• Bench tested on actual hardware: We ran this cell through a full charge-discharge cycle on a CF-SX2 unit. The BMS accepted the cell at first insertion, charge current ramped normally through CC phase, and the protection circuit tripped correctly at the low-voltage cutoff threshold with no error codes logged.
• Post-install calibration on Toughbook firmware: After installing this cell, run one full discharge down to the hibernate cutoff, then charge uninterrupted to 100%. This forces the BIOS battery learn cycle to recalibrate against the new cell's actual capacity — it clears the "poor health" or low Wh warning that the Toughbook firmware throws after any cell swap.

BIOS reporting battery health as poor immediately after swap

The Toughbook BIOS reads health data from the battery's EEPROM, not from live voltage alone. When a new cell arrives, its EEPROM cycle count and rated capacity don't yet match the learn data the BIOS built up against the old cell. The result is a "battery needs replacement" or "poor condition" flag even on a brand-new cell. One full discharge-to-hibernate followed by an uninterrupted full charge resets the learn cycle. After that single pass, the BIOS health indicator should clear and report accurately.

Toughbook shutting down at 20–30% charge shown on screen

This happens when the fuel gauge IC's stored capacity model no longer matches the real cell — the gauge counts down to what it thinks is 20%, but the actual cell voltage has already hit the cutoff cliff. It is common after any cell swap and is not a fault with the replacement. The fix is two to three full calibration cycles: discharge fully to hibernate, charge to 100% without interruption each time. After those cycles the fuel gauge re-anchors its empty and full voltage references to the new cell, and the shutdowns stop. Confirm the gauge has stabilised by checking that the reported percentage matches the charge LED state at 4.2V per cell.
