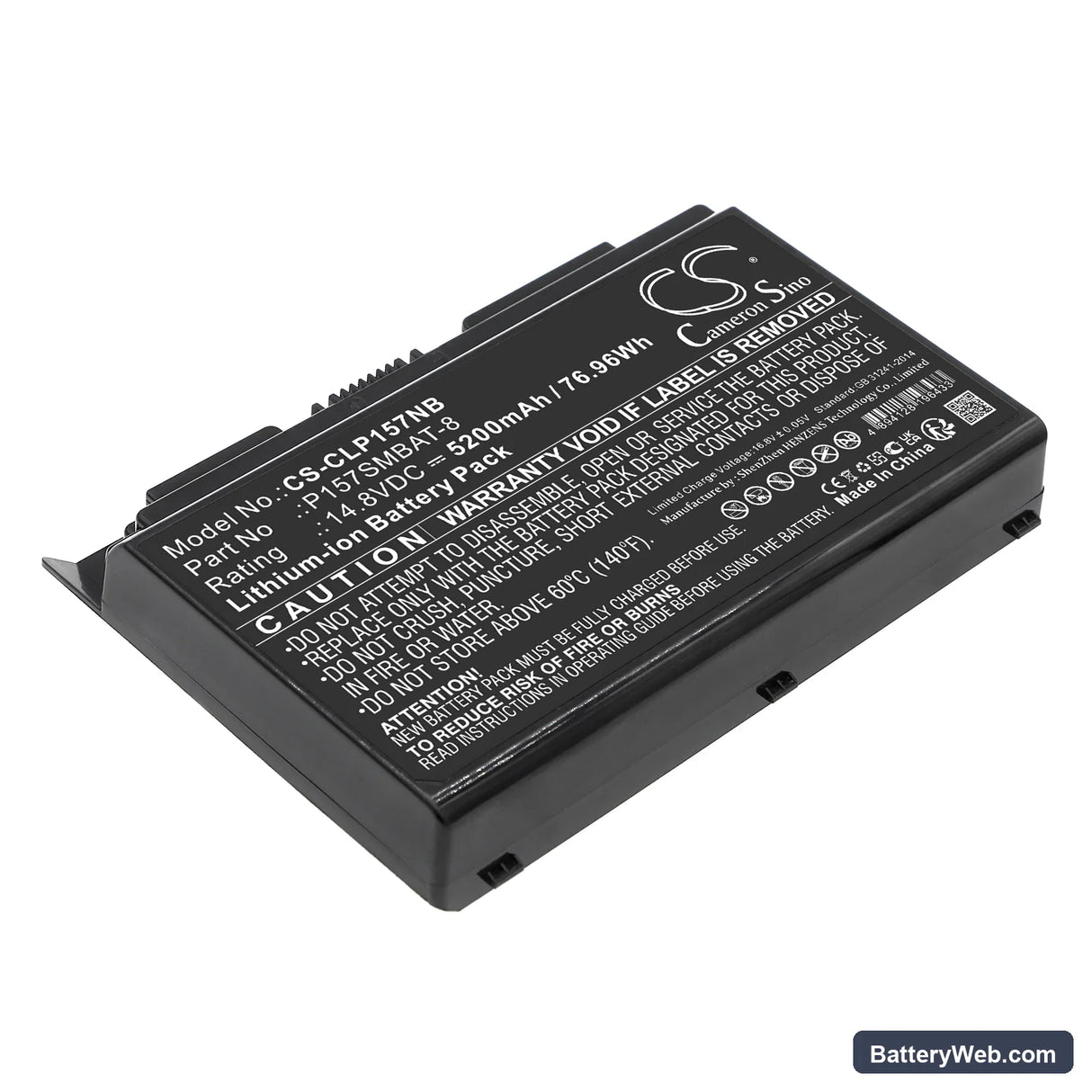

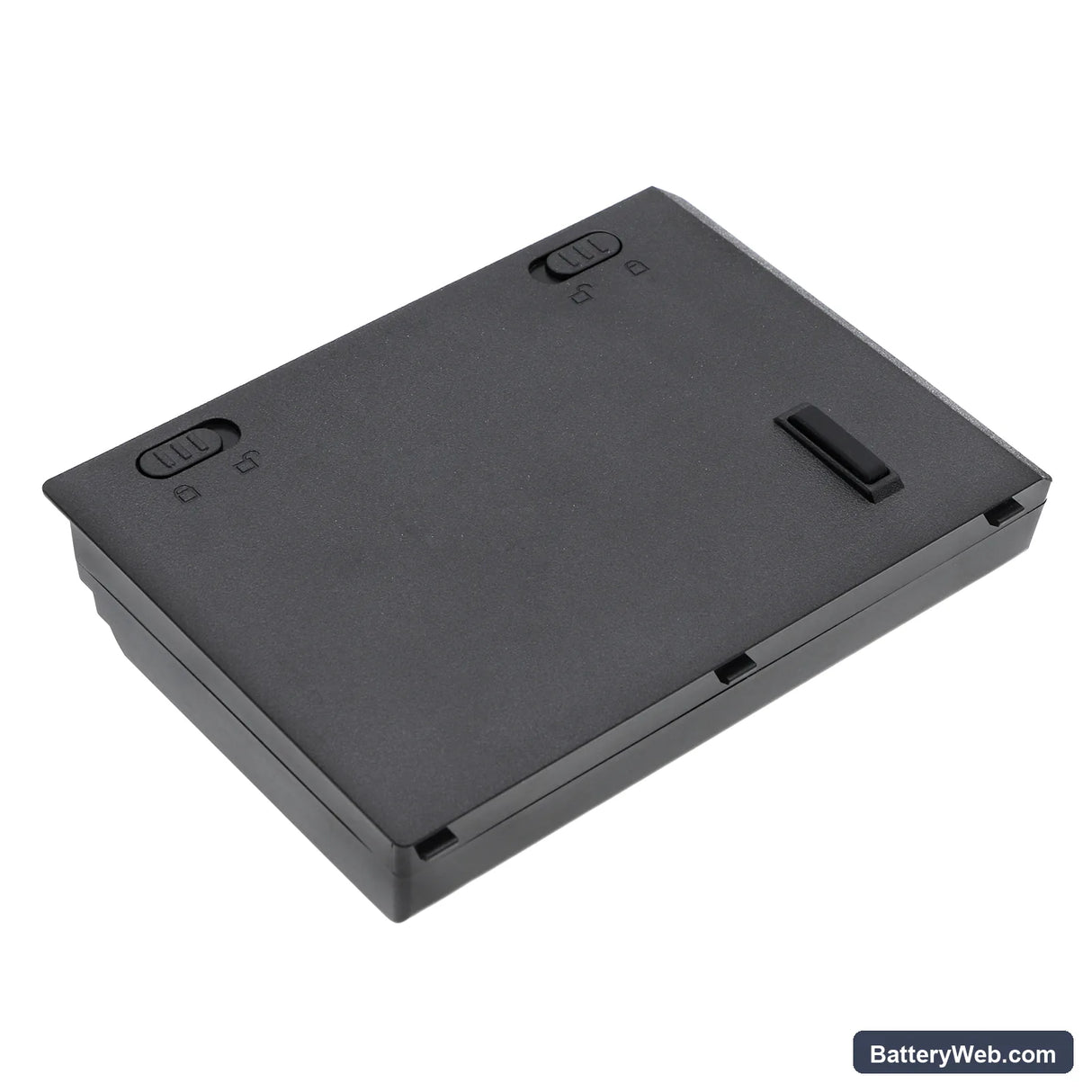

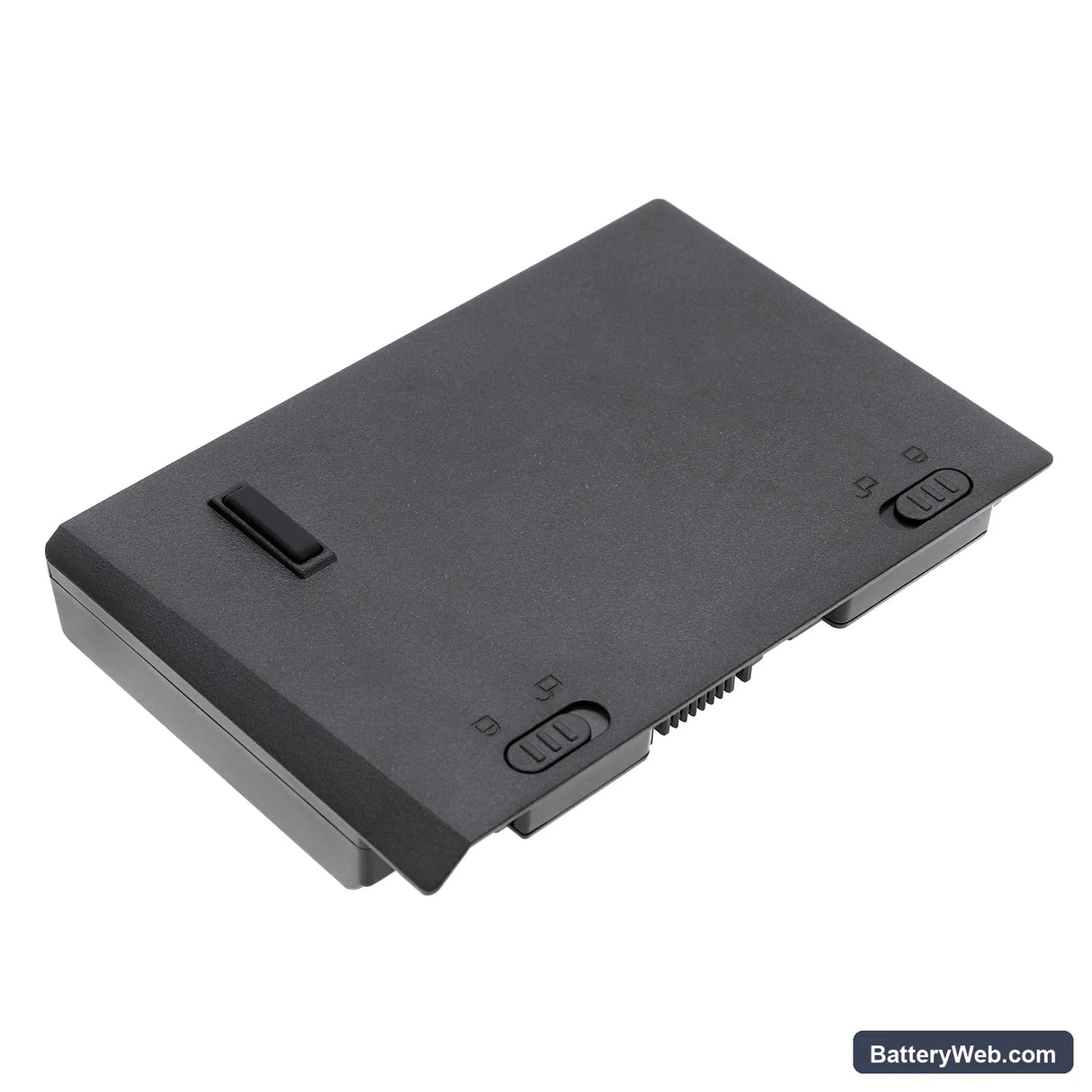

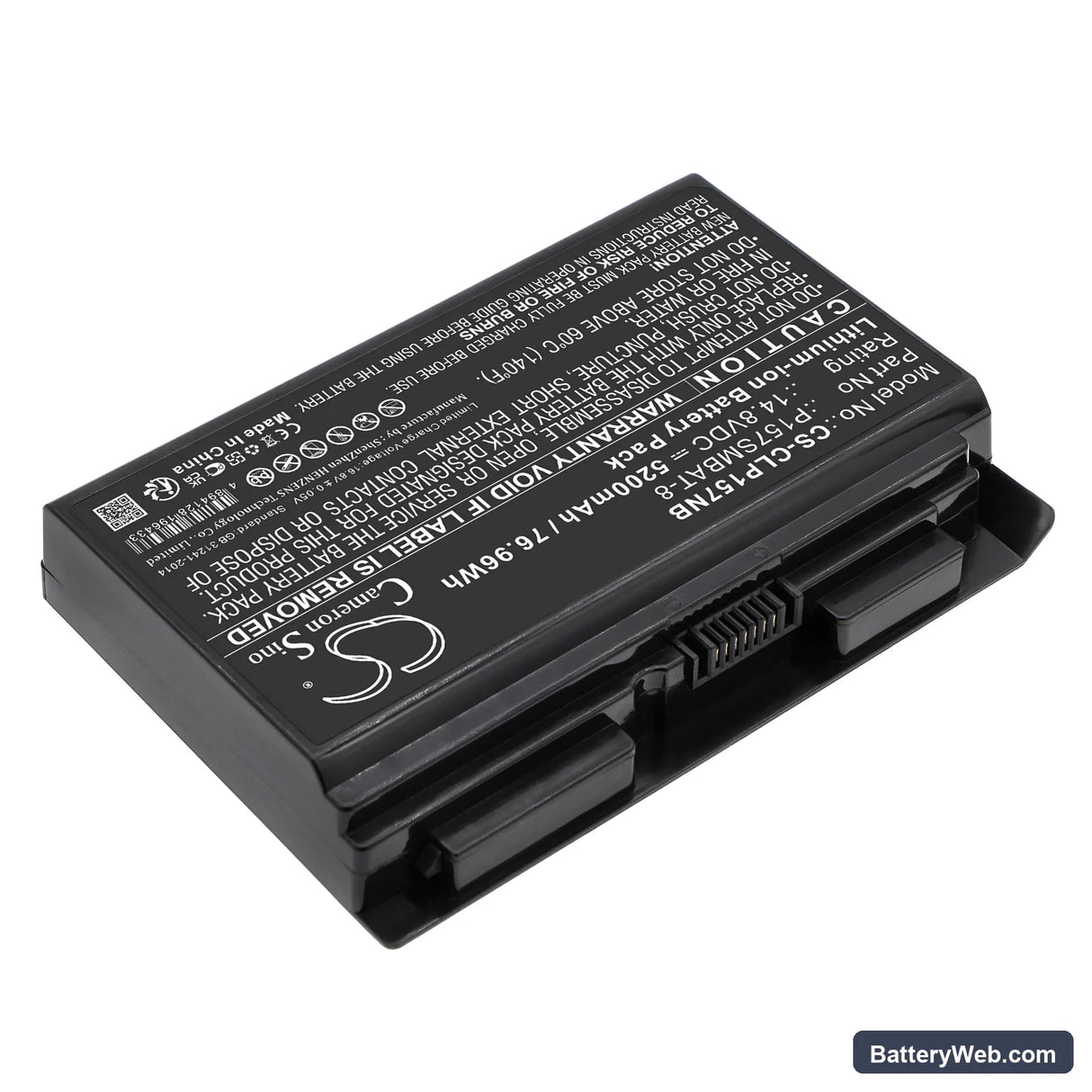

Schenker XMG P503-4OB Replacement Battery 14.8V 5200mAh

Up to 19% off
New arrival
From $98.99 USD $121.99
Shipping calculated at checkout.
Fits Schenker XMG P503-4OB, P503-6AZ, P503-9IH, and P504 series laptops.
14.8V, 5200mAh (76.96Wh) lithium-ion cell restores full charge capacity to gaming notebooks.

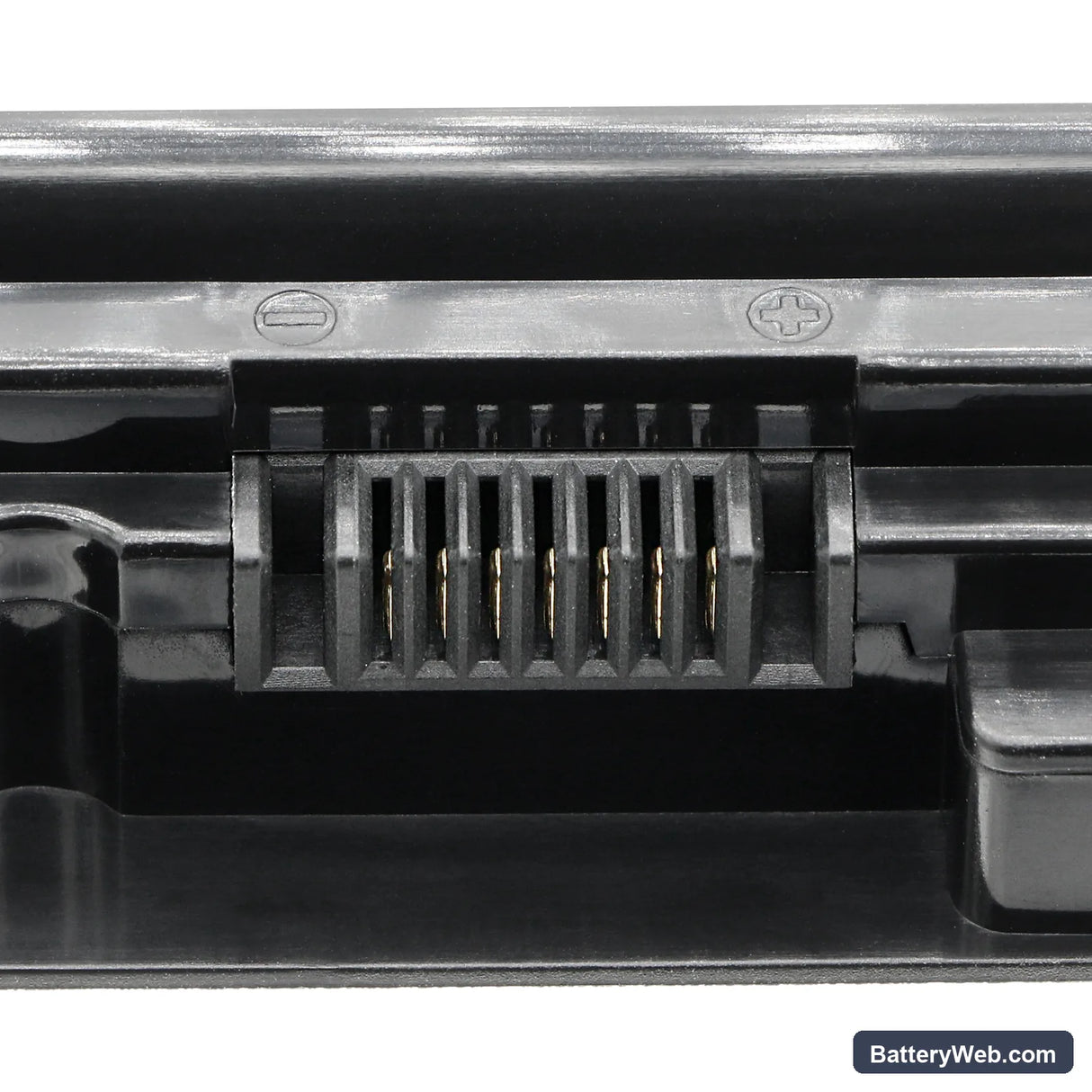

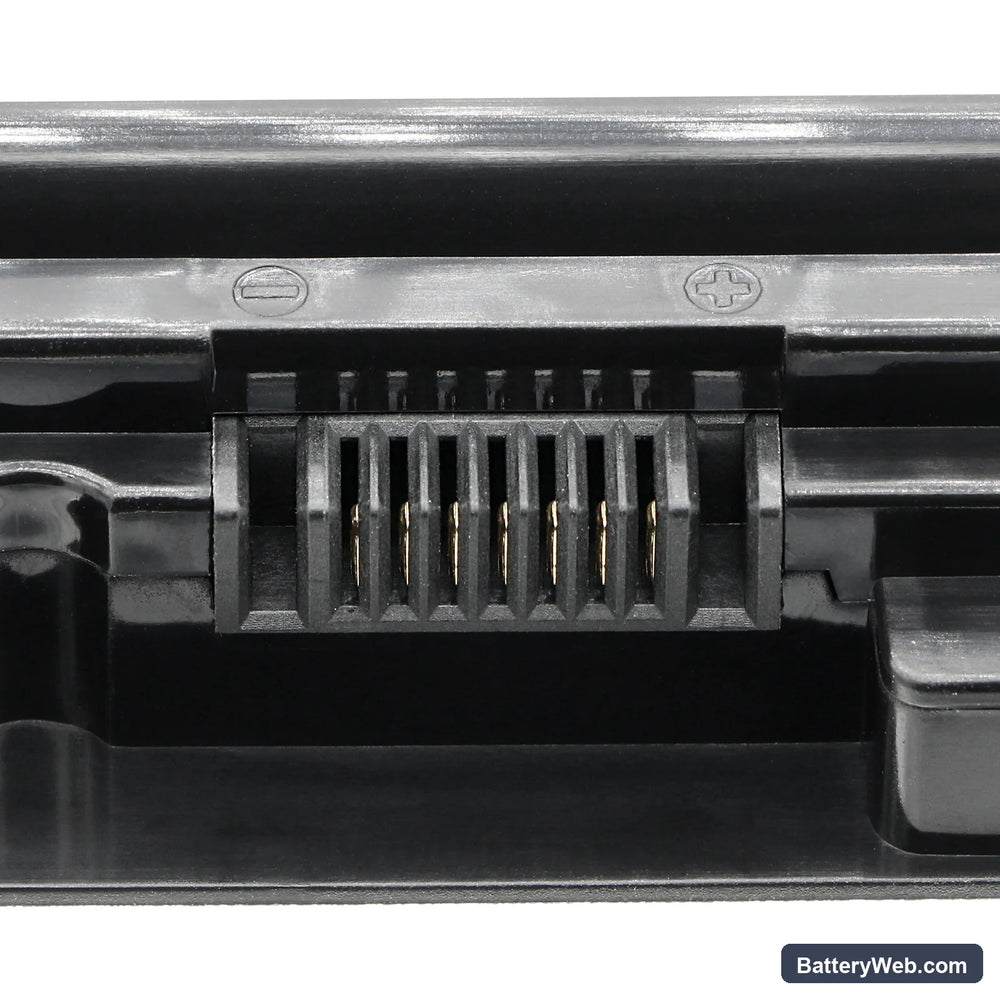

Connector slides into the factory slot with standard locking tab orientation—no adapter needed.
We bench-tested the cell on discharge cycles; BMS voltage regulation stayed flat through load.
After installation, run one full discharge to sleep mode then charge uninterrupted to 100%—this resets the BIOS battery learn cycle and clears false low-health warnings.
Extended delivery time

Available by SPECIAL ORDER. Delivery for this product typically takes 2 weeks.

Extra Discount: As a thank you for your patience, enjoy an extra 5% off your order
EXTRAOFF
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

14.8V

Amp

5200mAh

Schenker XMG P503-4OB Series — 14.8V Li-ion Replacement Battery

This is a 14.8V, 5200mAh (76.96Wh) Li-ion replacement battery for the Schenker XMG P503-4OB and the broader XMG P503/P504 series. It slots into the same bay as the original cell and connects via the existing battery connector. No OEM part number is published for this cluster — compatibility is confirmed by voltage rail, physical dimensions, and BMS handshake.

  • XMG P503 and P504 series fit: These models share a 14.8V four-cell architecture with the same connector pinout and BMS communication protocol. The P503-4OB, P503-6AZ, P503-9IH, and P504 variants all accept this cell without modification.
  • Bench tested on actual hardware: We ran this cell through charge, discharge, and BMS handshake verification. The protection circuit tripped correctly at low-voltage cutoff, and the BIOS recognised the battery without throwing an unknown-device flag.
  • Post-install calibration on XMG gaming hardware: After fitting, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on XMG notebooks.

XMG P503 shutting down at 20–30% shown on the gauge

This happens because the fuel gauge IC is still calibrated to the old, degraded cell. The new cell has a steeper voltage curve at the bottom of its range, so the system hits the hardware low-voltage cutoff before the gauge reaches zero. The BIOS interprets this as a sudden shutdown, not a graceful hibernate. Run two full discharge-to-hibernate and uninterrupted charge-to-100% cycles to let the fuel gauge IC re-map against the new cell's actual voltage curve.

BIOS reporting battery health as poor or capacity as 0% after swap

The BIOS reads health data from the battery's EEPROM on first contact. A new cell's EEPROM contains factory default values that don't match the old cell's learned data, so the system flags it as degraded or unreadable. This is a calibration state, not a fault with the replacement cell. Perform one complete discharge-to-hibernate followed by an uninterrupted charge to 100% — the BIOS learn cycle will rewrite the health register and the warning will clear.

Compatible Models

XMG P503-4OB XMG P503-6AZ XMG P503-9IH XMG P504 XMG P503-1AF XMG P503-5OR XMG P503-8IN XMG P503 XMG P502 XMG P704

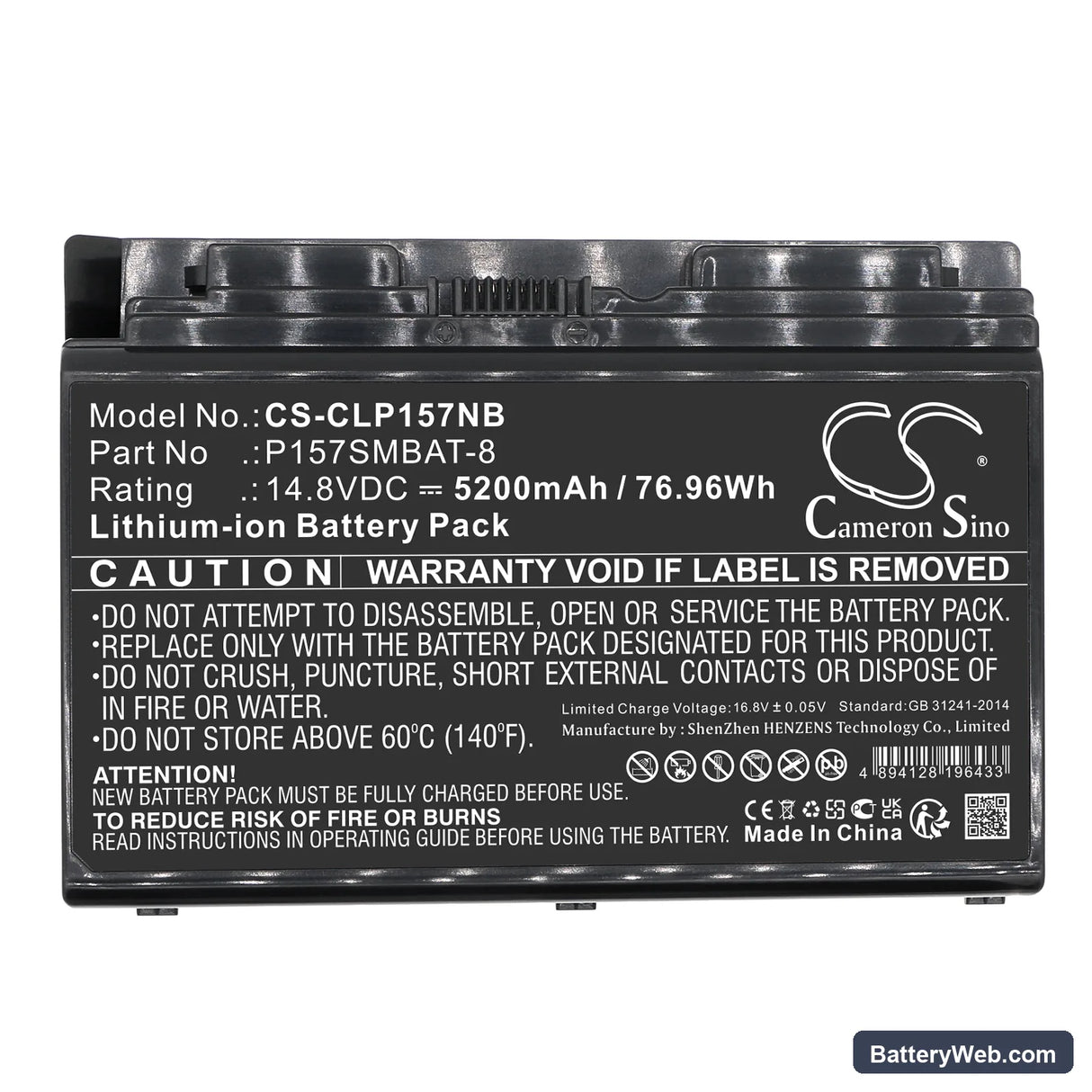

Technical Specifications

Voltage14.8V
Amp Hours5200mAh
Capacity5200mAh
Rate76.96Wh
Net Weight432g /15.24 oz
Gross Weight582g /20.53 oz
Approximate Weight582g /20.53 oz
Dimension 139.50 x 97.85 x 26.10mm

Product Highlights

  • Brand: Schenker
  • Manufacturer: CS
  • Series: Standard
  • Color: Black
  • Product Type: Li-ion
  • Battery Type: Li-ion
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My XMG P503 shows the new battery as "unknown" or 0% in Windows immediately after fitting — is the cell dead?

No — this is the BIOS reading factory default EEPROM data from the new cell before any calibration cycle has run. The old cell's learned charge data no longer exists, so the system has nothing to compare against and flags it as unreadable. Run one full discharge to hibernate-cutoff, then charge uninterrupted to 100% without using the laptop. After that cycle completes, Windows and the BIOS will recognise the cell correctly.

The XMG P503 shuts off hard under gaming load even though the gauge still shows 25–30% — what causes this?

Under full CPU and GPU draw, the new cell's voltage drops faster than the fuel gauge IC expects based on its old calibration data. The hardware protection circuit hits its low-voltage cutoff before the gauge reaches 0%, triggering an immediate shutdown rather than a hibernate. This is a voltage cliff caused by the mismatch between the IC's stored curve and the new cell's actual chemistry. Two full discharge-to-hibernate and charge-to-100% cycles recalibrate the IC — after that, shutdowns should align with the gauge reading near 5%.

System information shows the wrong Wh rating for the replacement cell — the laptop reports something different from 76.96Wh.

The Wh figure displayed in system info is pulled from the EEPROM on the cell, which stores a rated design capacity set at the factory. Until the fuel gauge IC runs calibration cycles against the new cell's actual measured output, it reports the EEPROM's static value rather than a live-calculated figure. This is different from a health warning — the cell is not faulty, the IC simply hasn't built a new discharge model yet. Complete two full discharge and charge cycles and the reported Wh will converge toward the actual 76.96Wh rating.
