Shark XB75N Cordless Vacuum Replacement Battery 15.6V 2000mAh

Shark SV75_N / SV75Z_N Series — 15.6V Ni-MH Replacement Battery (XB75N)

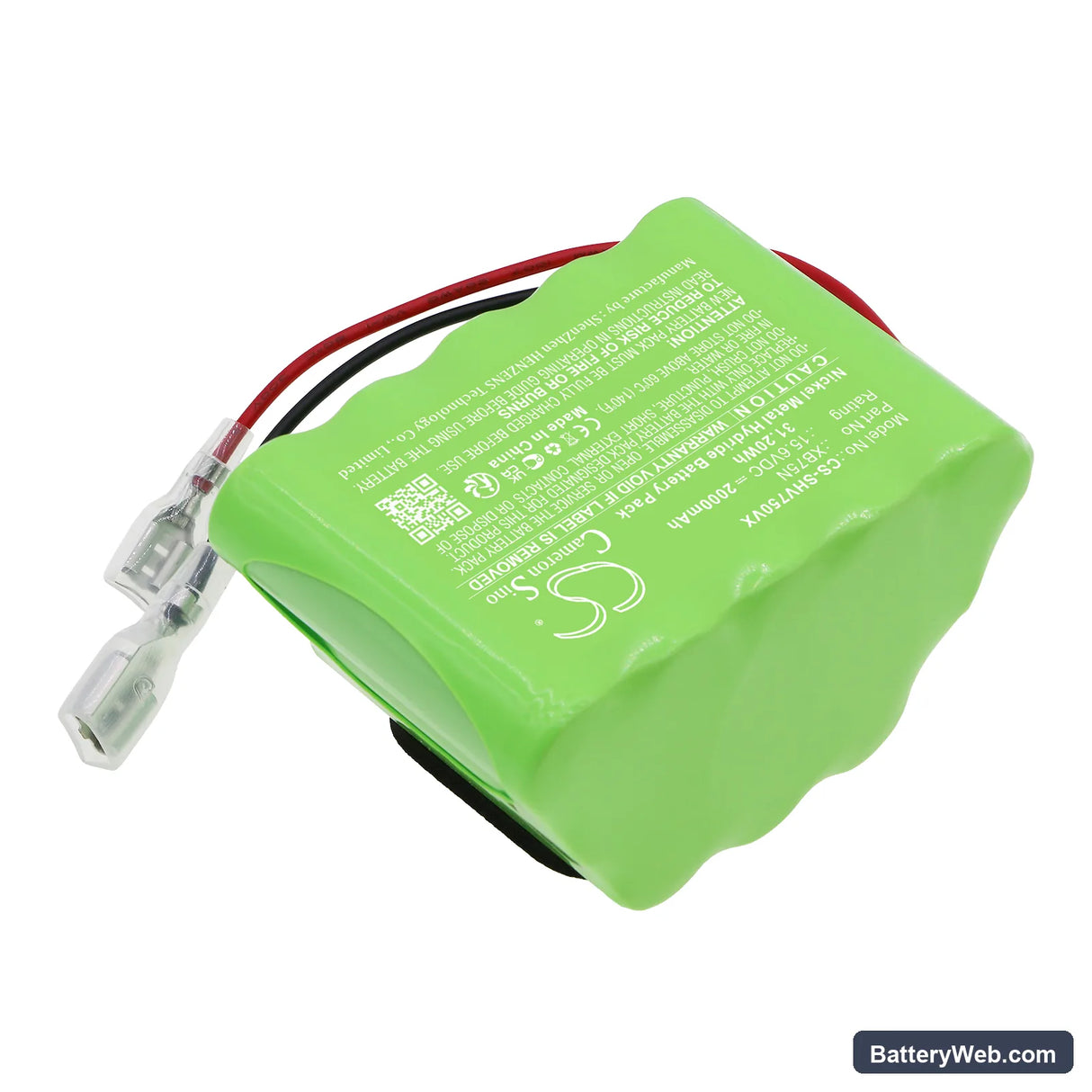

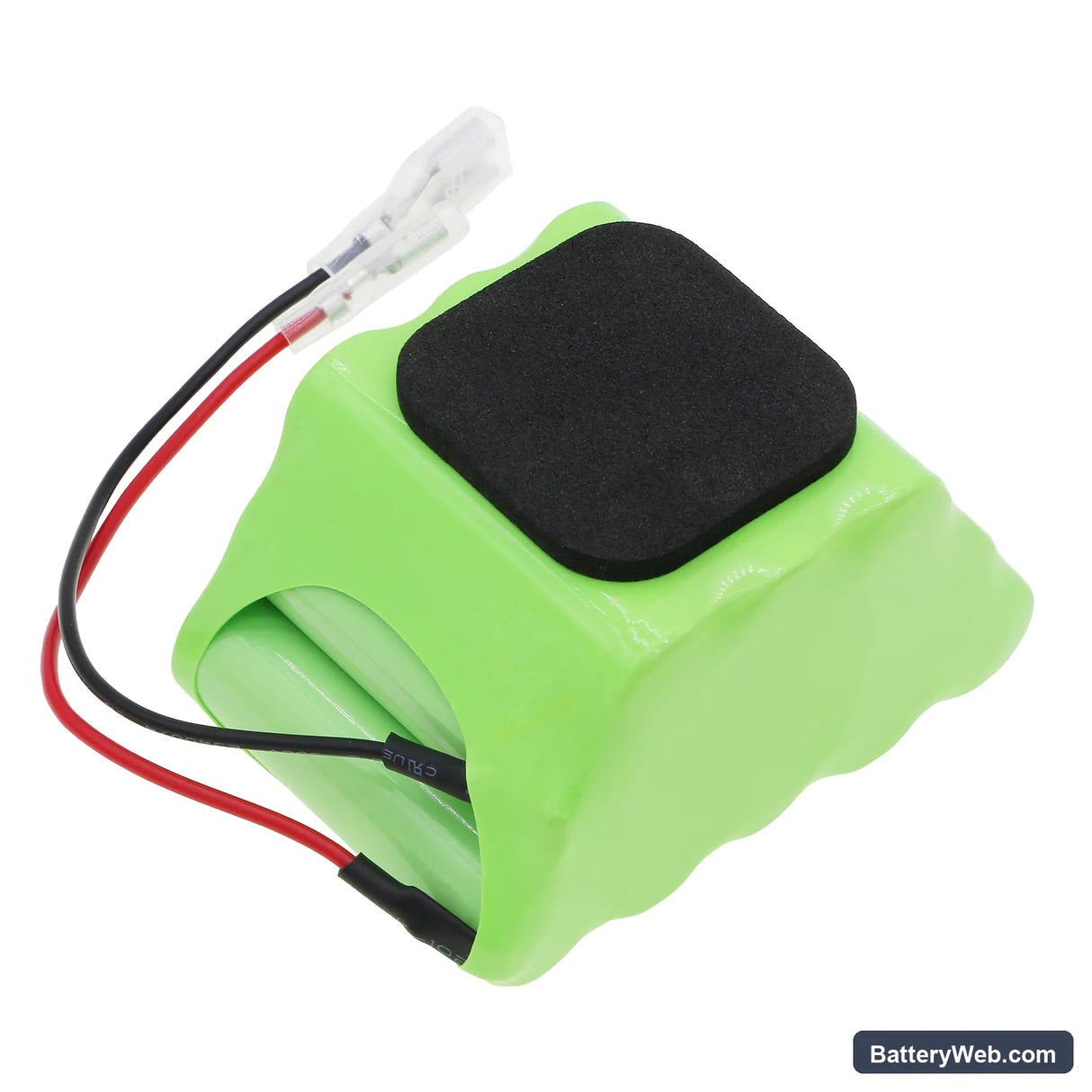

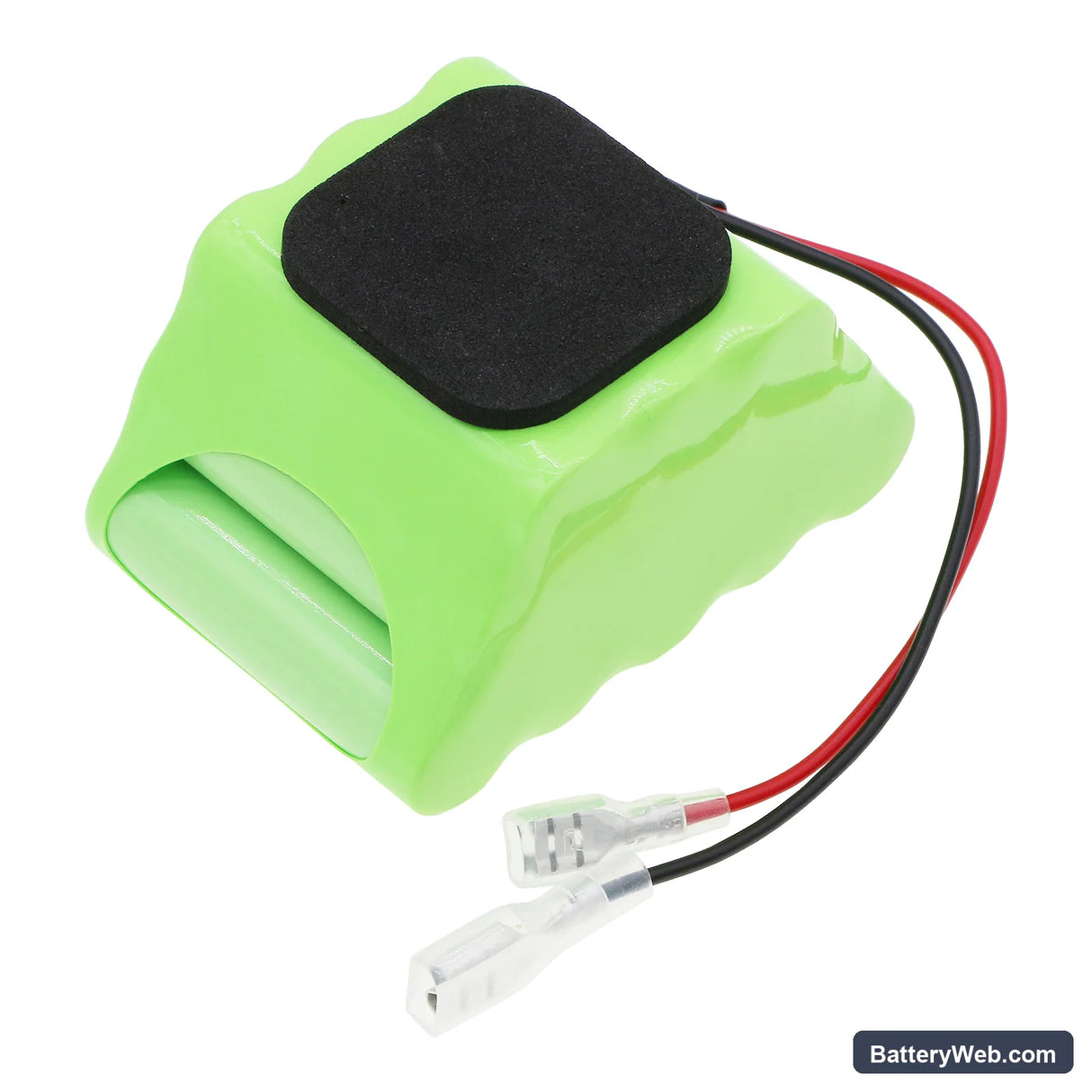

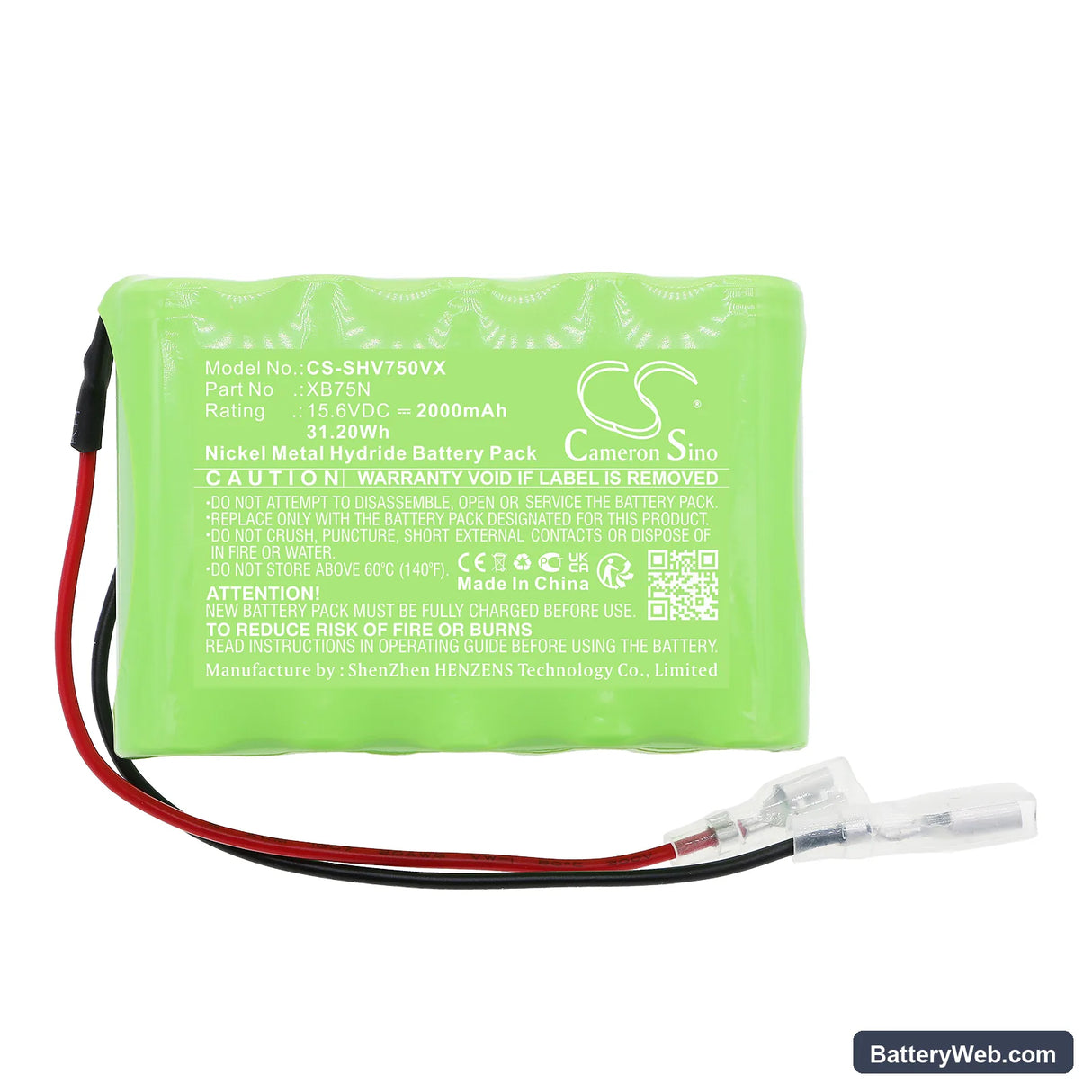

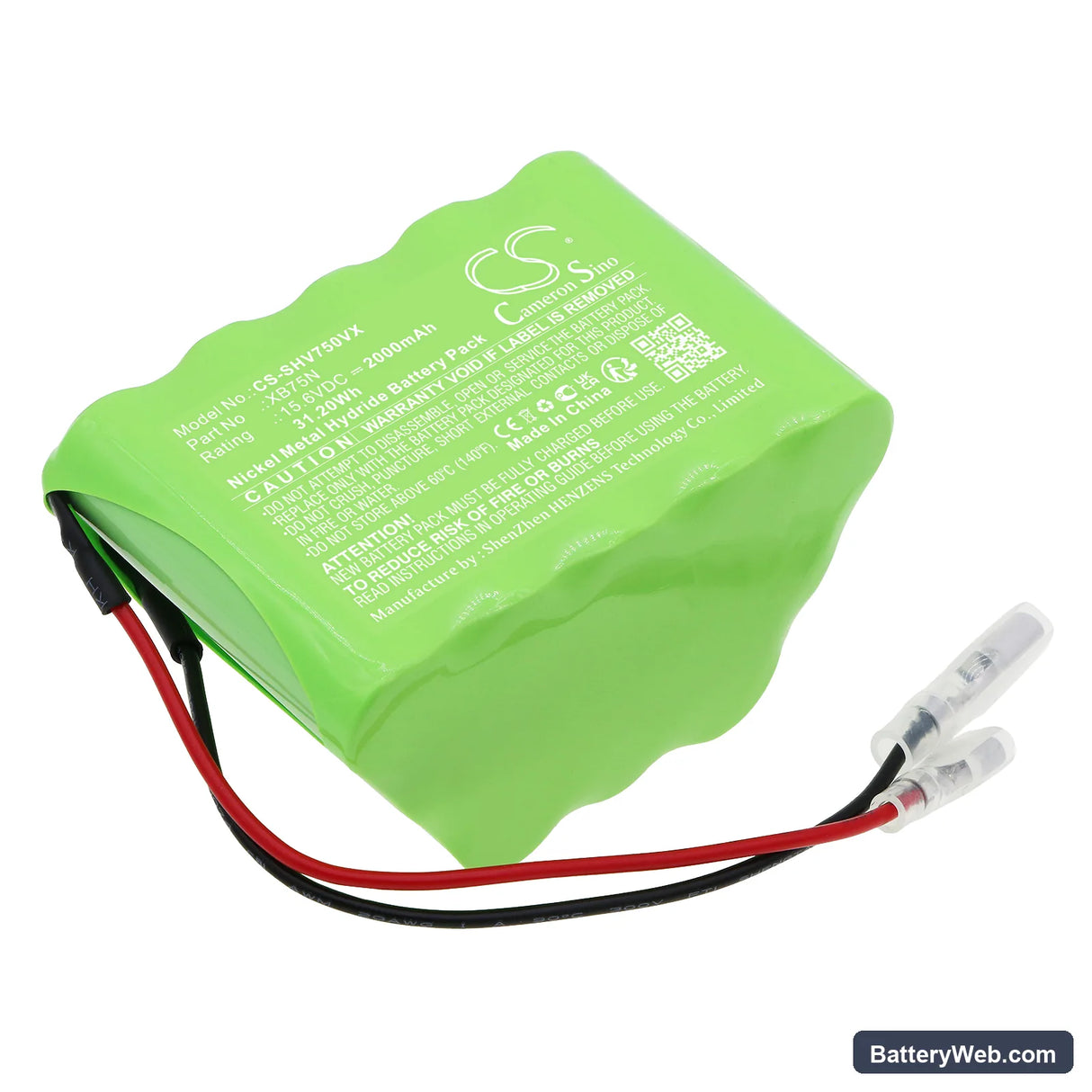

This is a 15.6V, 2000mAh Ni-MH replacement battery for the Shark SV75_N cordless stick vacuum and its variants. It fits models including the SV75Z_N, SV75SP_N, and SV75C, using OEM part number XB75N. If your original battery has faded or stopped holding a charge, this cell restores the vacuum to working condition without replacing the whole unit.

• SV75 series compatibility: The SV75 family shares a common 15.6V Ni-MH cell pack, connector pinout, and housing form factor across all variants in the lineup. Swapping cells does not require any tools or firmware — the motor controller reads voltage directly, no BMS handshake required.
• Bench tested on actual hardware: We cycled this battery through full charge and discharge runs on the SV75 platform. The motor controller accepted the cell immediately, suction came up to rated draw, and the charge circuit topped the pack without any fault signals.
• Dock charging habit for Ni-MH cells: Do not leave this vacuum sitting on the dock permanently between uses. Ni-MH chemistry is particularly vulnerable to trickle charge damage — continuous dock contact accelerates capacity fade faster than normal cycling. Charge to full, then remove it from the dock.

Cordless vacuum losing suction before the battery indicator reaches low

On the SV75 platform, suction drops noticeably before the battery light signals low when the filter is partially blocked. A restricted filter forces the motor to draw higher current than rated, which causes voltage to sag under load even though cell capacity remains. The battery reads fine at rest, but under the load of a clogged filter it cannot hold the voltage the motor needs. Clean or replace the filter first — if suction returns to full strength after that, the battery is not the fault.

Motor cutting out mid-clean and then recovering after a few seconds

This is a BMS overcurrent trip, not a dead battery. When suction is sustained against a blockage — carpet pile, a sock caught at the inlet, or a full dust cup — current spikes past the cell's rated draw and the protection circuit opens. The motor stops, the cell cools, and the circuit resets, which is why the vacuum comes back on its own after a short pause. Clear the blockage, empty the dust cup, and check the inlet path before running it again. If trips continue with a clear path, measure resting voltage — a healthy 15.6V Ni-MH pack should read between 16V and 17V off charge.
